Product description: Toocaa L2 40W Pro Bundle
The TOOCAA L2 is a high-end laser plotter designed for users who demand maximum power and precision. Thanks to its 40W diode laser , the device easily cuts thicker materials— up to 15mm of wood or MDF —and enables deep, clean engraving. Its 415 x 395mm working area allows for the completion of even large projects, while a precise positioning mechanism (0.01mm) ensures a high-quality finish.

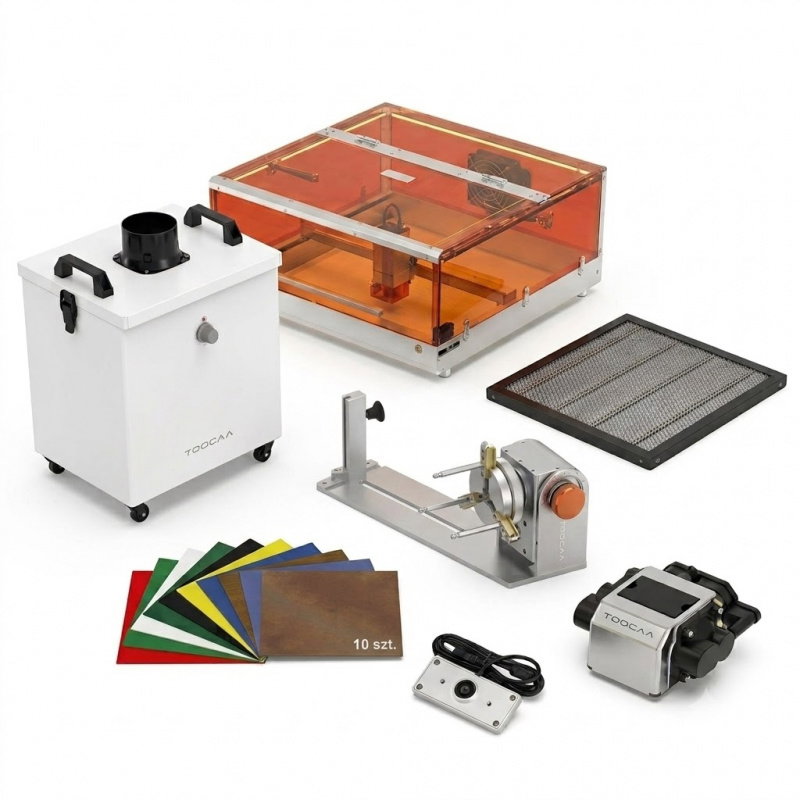

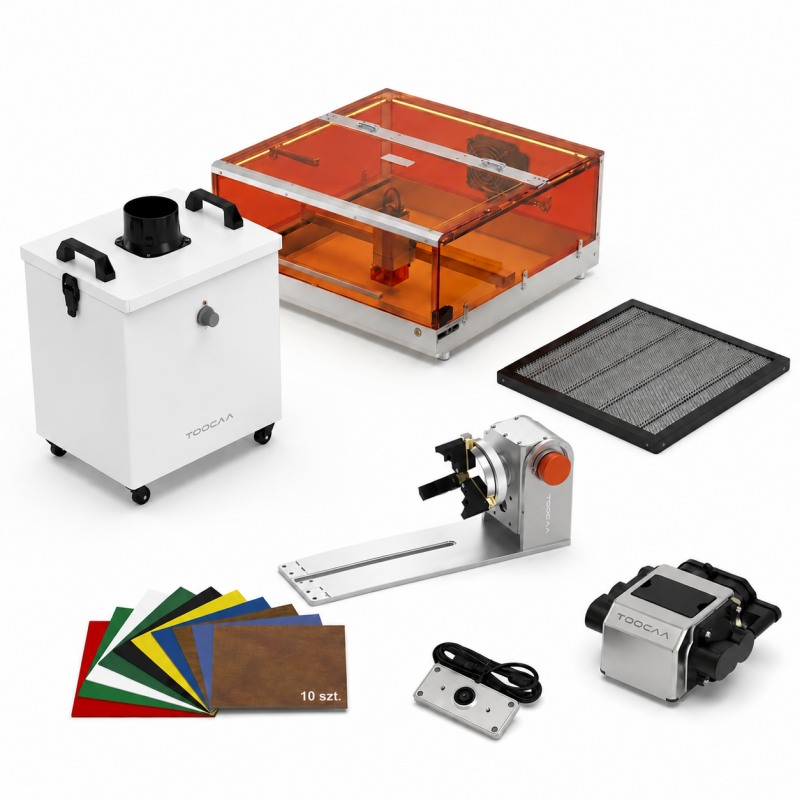

The kit includes a TOOCAA L2 40W laser plotter , an Air Assist air pump and a Smoke Purifier, a honeycomb work table , a TOOCAA Material Magic Box , and a smart camera and a 5-in-1 rotation module .
Products offered as part of packages are shown on sales documents (invoice, receipt) as separate items.
Bundle - Toocaa L2 40 W Advanced Bundle.
The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 40W plotter is designed with user safety in mind. It meets Class 1 laser standards and is equipped with numerous sensors, including a fire detector, tilt detector, cover open detector, emergency button, and USB interlock . Combined with a physical LED power switch and emergency stop function, the system allows for safe and stable operation even in a home environment.
Effective smoke extraction system
Dust and fumes emitted during engraving are effectively extracted thanks to a smoke filtration system combined with a fan . This allows for a clean and safe working environment, minimizing the impact of harmful substances on the operator and the surrounding area. The kit also includes a professional Smoke Purifier, which eliminates smoke, dust, and fumes generated during laser cutting and engraving . The three-stage filtration system (pre-filter, medium-efficiency filter, and high-efficiency activated carbon filter) ensures fresh and safe air in the workshop. The compact housing with handles and wheels facilitates transport, while the sealed design prevents smoke leaks, ensuring high operational efficiency.
TOOCAA Smart Camera
The TOOCAA intelligent camera for the L2 plotter enables precise material positioning and real-time engraving preview. Equipped with a 5 MP sensor (2592 x 1944 px) , it allows for perfect pattern alignment within a 400 x 400 mm area, eliminating the risk of errors.
Practical use of the Air Assist pump
Laser operation produces smoke, dust, and material debris that can settle on the lens, causing discoloration and degrading cut quality. The TOOCAA Air Assist kit eliminates this problem with a powerful airflow that removes contaminants from the cutting area .The airflow system significantly lowers the temperature of the processed surface , preventing deformation, burns, and contamination. Cutting lines are smoother, edges cleaner, and details more precise.
5-in-1 rotation module
The multifunctional 5-in-1 rotary attachment for the TOOCAA L2 laser plotter enables precise engraving of cylindrical, spherical, annular, and irregular-shaped objects. A quick-change jaw system, 0° to 180° angle adjustment, and 5 operating modes make it easy to mark cups, bottles, rings, balls, and other objects.
The TOOCAA L2 offers a large work area that allows you to tackle medium-sized projects such as cutting acrylic, wood or leather accessories.
The LED strip shows the operating states of the plotter by displaying different colors.
Honeycomb work table
The 400 x 400 mm honeycomb worktable is a solid platform for laser engravers and plotters. The openwork metal structure ensures optimal airflow and efficient smoke extraction, preventing burns on the underside of wood, plywood, or acrylic. Furthermore, the panel stabilizes the material and reduces unwanted reflections of the laser beam, resulting in higher precision and exceptionally clean, aesthetic cut edges.
TOOCAA Material Magic Box
The package also includes a set of materials designed for laser engraving. Thanks to the multi-layered sheets, you can easily achieve clear and contrasting patterns – the laser precisely reveals the underlying layer in a different color.
Contents of the set
- TOOCAA L2 laser plotter
- 40W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- User manual
- Air pump + accessories
- Smoke Purifier - air purifier + accessories
- TOOCAA Honeycomb Work Panel - 400 x 400 mm
- Camera for laser plotter
- 5-in-1 rotary module for TOOCAA L2 laser plotter + accessories
- TOOCAA Material Magic Box
- 1x Red/White Plastic Sheet
- 1x Green/White Plastic Sheet
- 1x Plastic sheet black/white
- 1x Black/Green Plastic Sheet
- 1x Black/Red Plastic Sheet
- 1x Plastic Sheet Black/Yellow
- 1x Plastic sheet black/blue
- 1x PU Synthetic Leather Sheet Bamboo/Black
- 1x PU Synthetic Leather Sheet Blue/Silver
- 1x Sheet of PU synthetic leather brown/silver
The plotter is compatible with Toocaa Studio and LightBurn software, as well as Windows systems, macOS and Linux.
| Technical specifications of the TOOCAA L2 laser plotter | |
|---|---|
| Laser power | 40 W |
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 15 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.13 x 0.15 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 10A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 240 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
