Limit switch mini WK835
Limit switch with straight lever 120 mm long. Maximum operating parameters are AC 250 V and current 16 A.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product Description: Mini Limit Switch - WK835
Limit switch with straight lever with a length of 120 mm. The maximum operating parameters are AC 250 V and 16 A current.
Mini limit sensor switch - WK835.
Specifications
- Operating parameters:
- AC 250 V / 16 A
- AC 125 V / 16 A
- Number of leads: 3 (COM, NO, NC)
- Dimensions without lever: 26 x 16 x 10 mm
Detailed dimensions are available in the documentation.

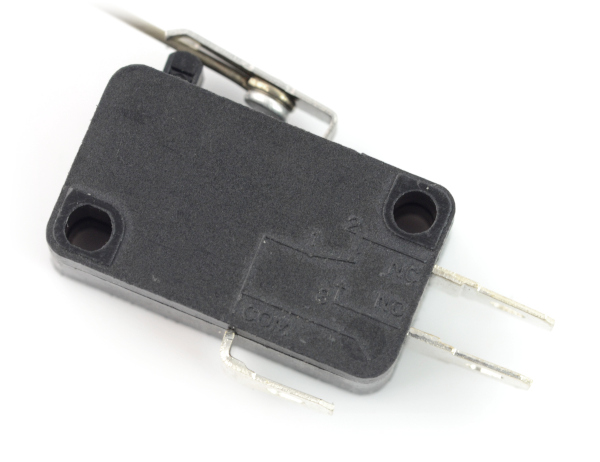

Mini limit switch WK835
WK835 mini limit switch is a top quality product, which is suitable for electronic, automatic and programmable electronics projects. The extra long lever makes it easy to connect more distant components.
The rectangular black housing of the WK835 switch is very robust and non-conductive. Three standard pinouts - COM, NO, NC - make this component versatile.
Miniature switch with long lever - 12 cm
The offered limit sensor is distinguished from others by a specially long straight lever (without bend). The lever length is 120 mm (12 cm). Thanks to this design, it is possible to conveniently connect the elements more distant from each other in specialized projects.
Limit sensors are available in many variants. All others you can find in our offer. You are welcome!
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | limit mini |
| Switch - shape | rectangular |
| Switch - backlight | no |
| Colour | black |
| Length | 26 mm |
| Width | 16 mm |
| Height | 10 mm |
| Width | 5.3 cm |
| Height | 19.5 cm |
| Depth | 1.2 cm |
| Weight | 0.007 kg |
