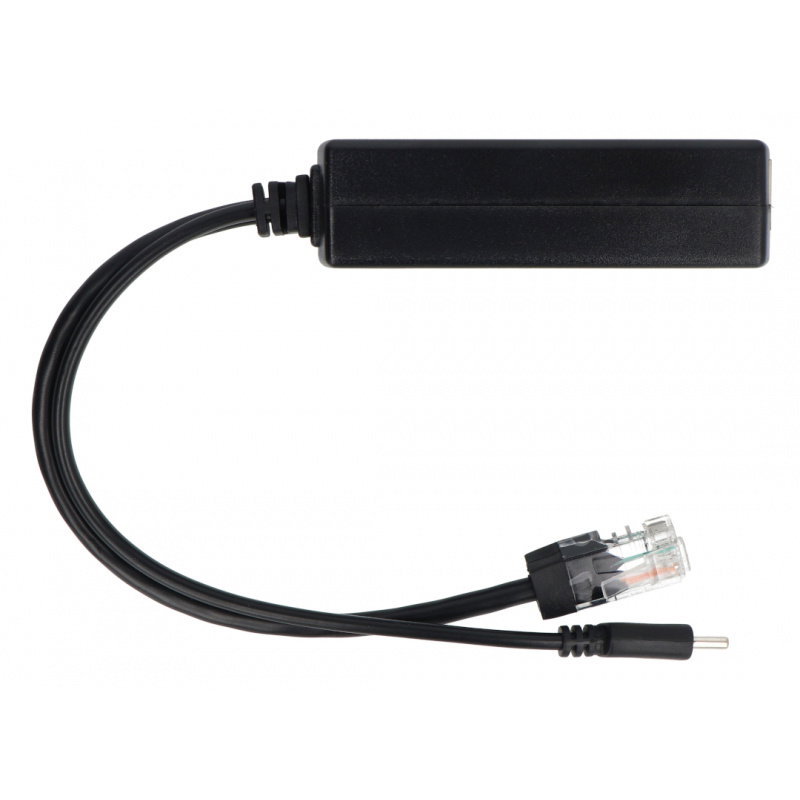

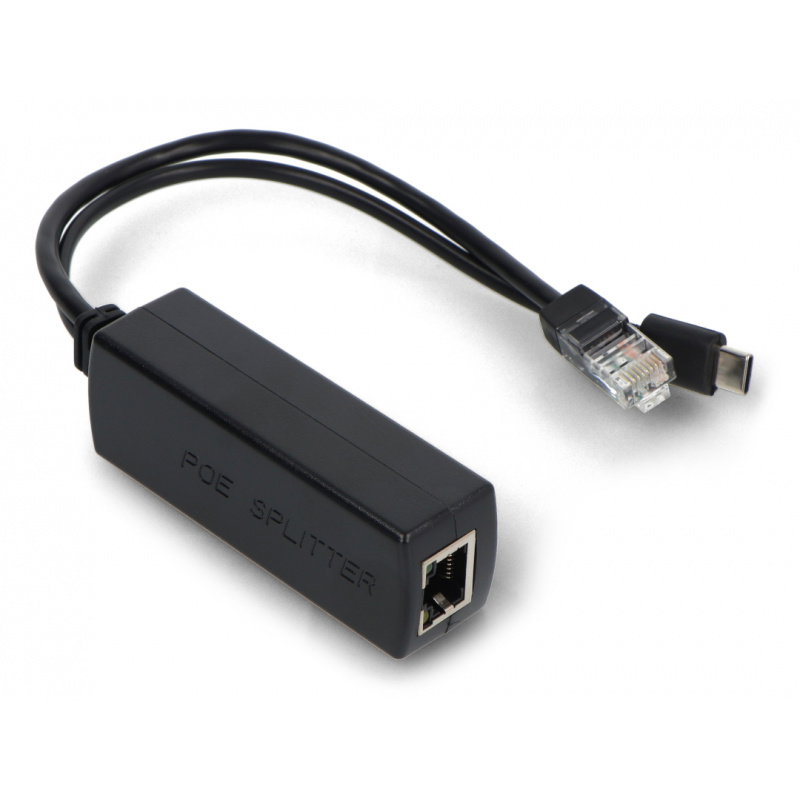

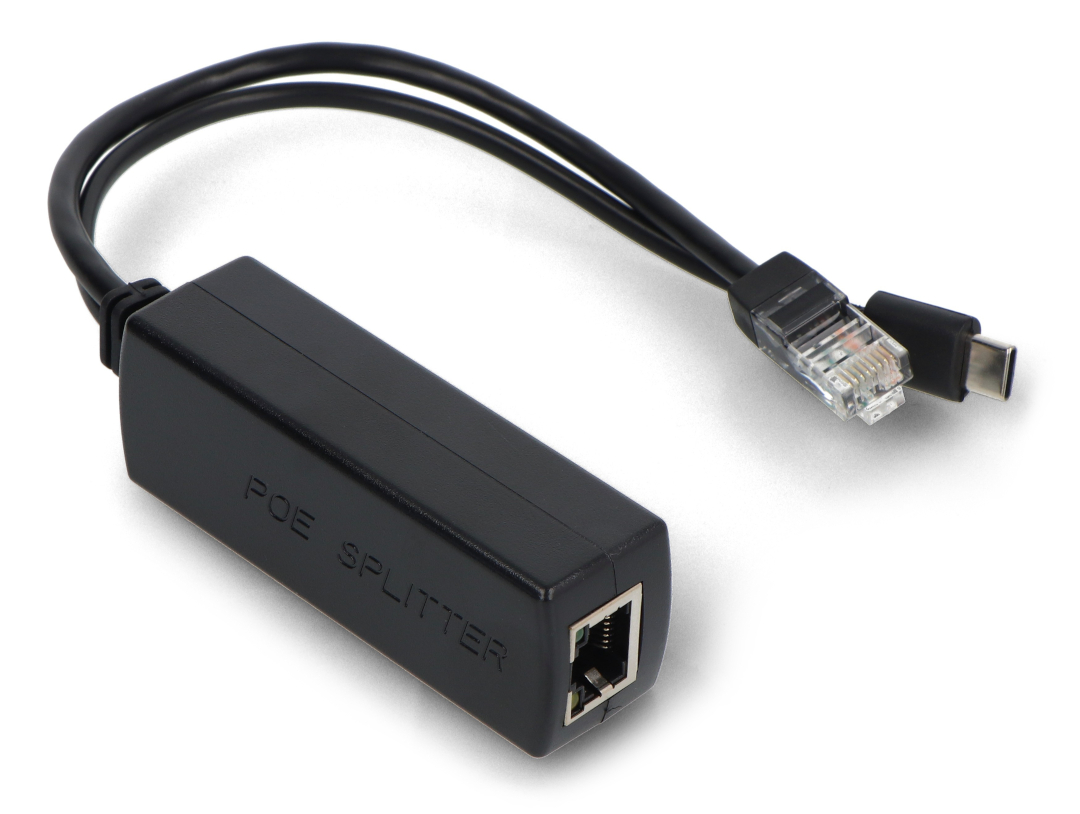

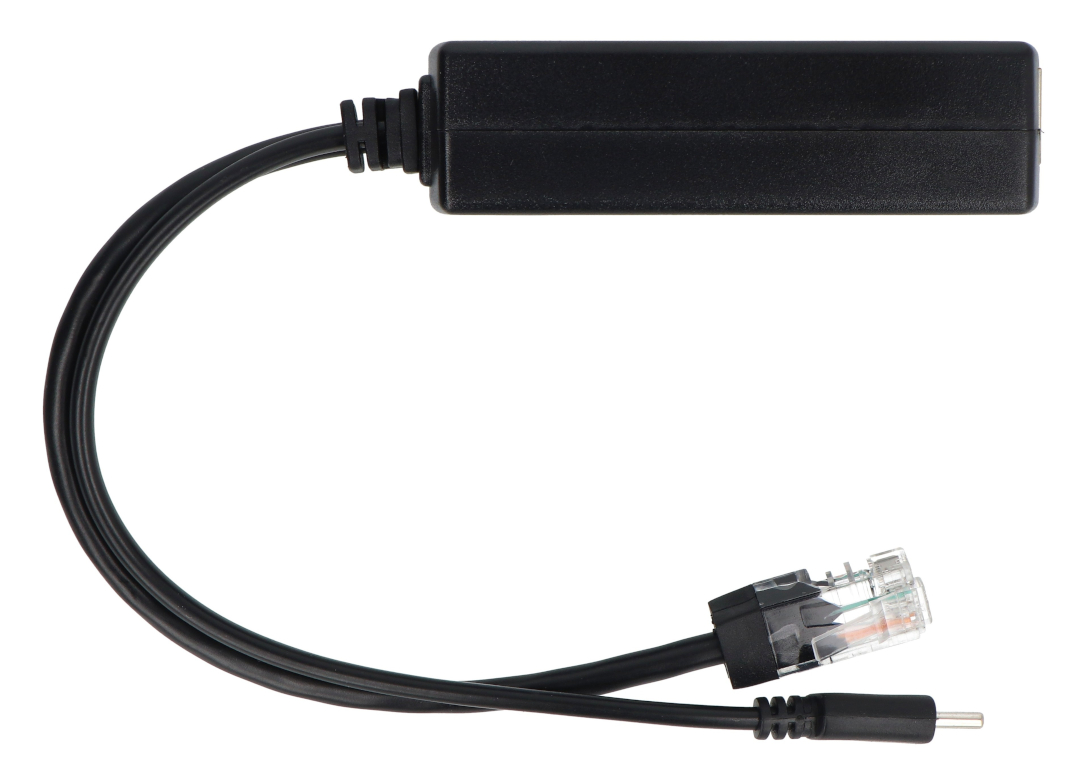

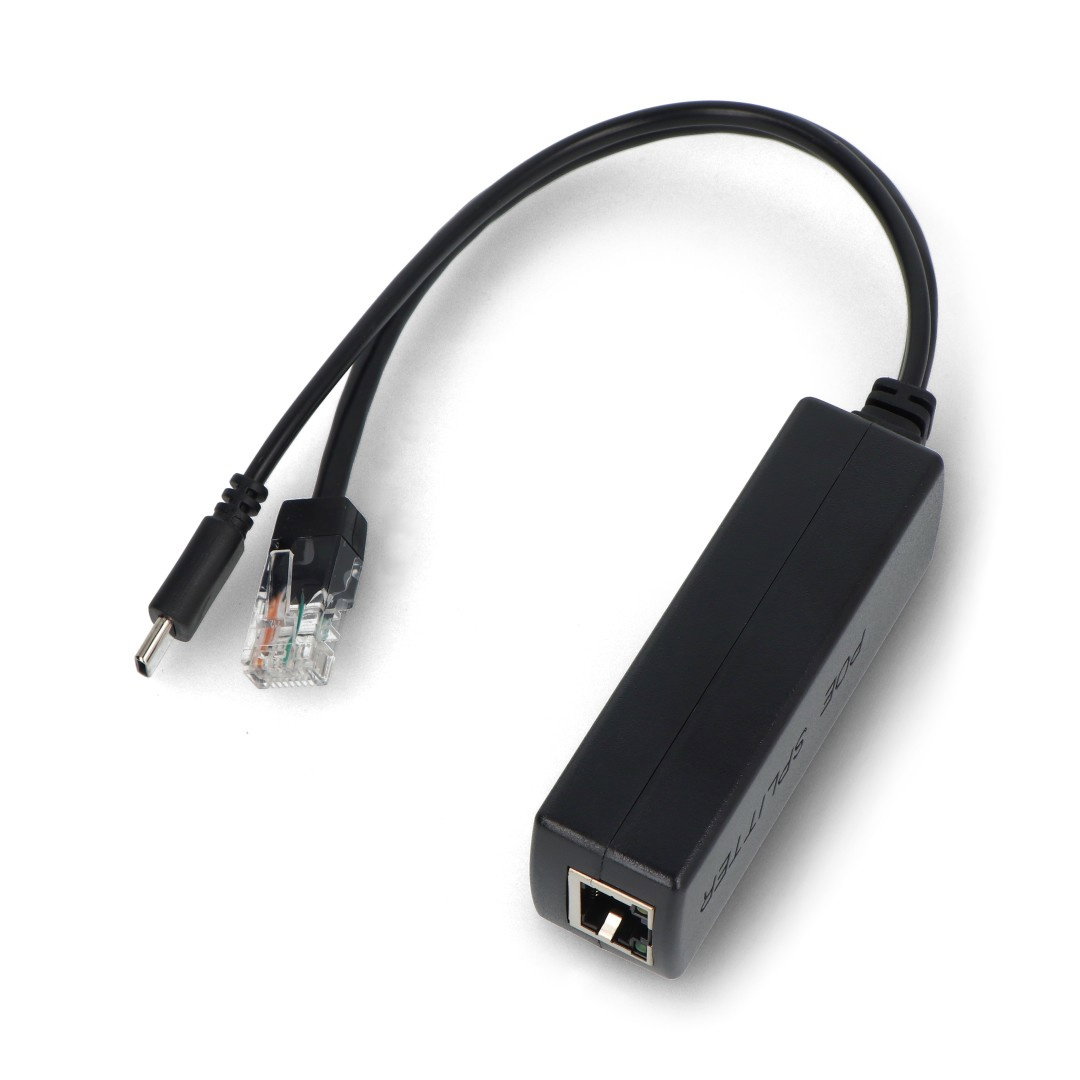

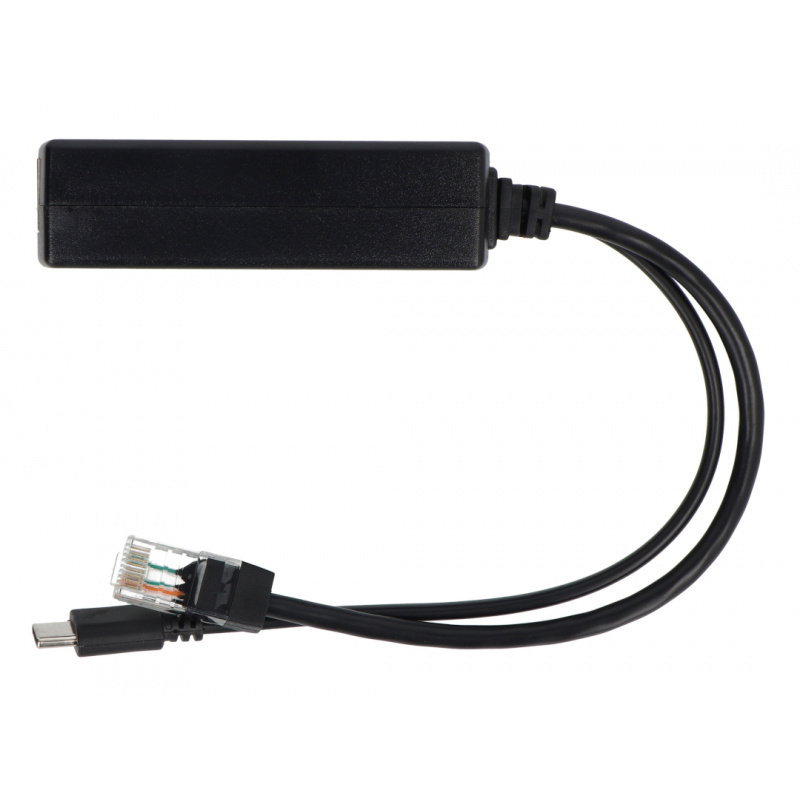

Product description: PoE splitter for Raspberry Pi - Ethernet LAN RJ45 power supply to USB type C - Joy-IT
The PoE Power over Ethernet Adapter is a practical accessory designed to power the Raspberry Pi 4B and other devices equipped with a USB Type-C connector via Ethernet. PoE technology allows for simultaneous data and power transmission over a single network cable, significantly simplifying device installation in hard-to-reach places. The adapter requires a compatible switch, router, or PoE injector and a Cat5e or higher network cable . This solution eliminates the need for a separate power supply at the device's installation site, making the adapter ideal for IoT projects, monitoring, building automation, and embedded systems .
PoE splitter for Raspberry Pi - Ethernet LAN RJ45 power supply to USB type C - Joy-IT.
The PoE Power over Ethernet Adapter is a practical accessory designed to power the Raspberry Pi 4B and other devices equipped with a USB Type-C connector via an Ethernet network.Special features
- Power over Ethernet: Simultaneous data and power transfer over a single cable
- Compatibility with Raspberry Pi 4B: works with devices equipped with USB Type-C
- PoE support: compatibility with switches, routers and PoE injectors
- Simple installation: quick connection without additional configuration
- Reduced number of cables: no need for a separate power supply
- Perfect for IoT and automation: conveniently power devices in hard-to-reach places
- Compatible with Cat5e and higher cables: stable data and power transmission
Practical applications
- Raspberry Pi 4B power supply
- IoT and Smart Home projects
- IP monitoring
- building automation
- embedded systems
- home servers and NAS
- network installations
Technical specifications
- Compatibility: Raspberry Pi 4B and devices with USB Type-C
- Power supply: Power over Ethernet (PoE)
- Connectors: 1x USB Type-C power plug, 1x RJ45 socket, 1x RJ45 plug
- Input voltage: from 36 V to 57 V
- Standard PoE voltage: 48 V, 52 V
- Output voltage: 5 V DC
- Output current: 2 A
- PoE protocol: IEEE 802.3af
- Network bandwidth: 10/100 Mbps
- Maximum transmission distance: up to 100 m
- Required network cable: Cat5e or higher category
- Cable length: 205 mm
- Operating temperature: from 0°C to 50°C
- Operating humidity: max. 80%, non-condensing
- Dimensions: 82 x 28 x 23 mm
- Weight: 56 g
The adapter requires a compatible switch, router or PoE injector and a Cat5e or higher network cable.
