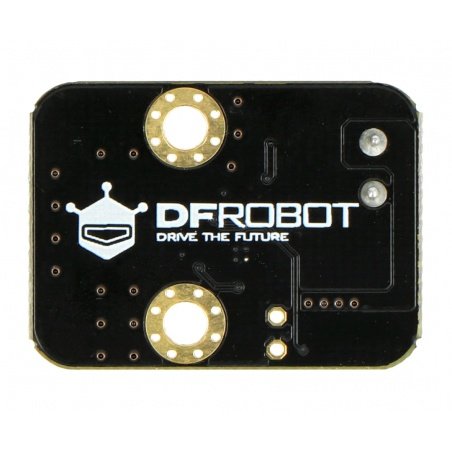

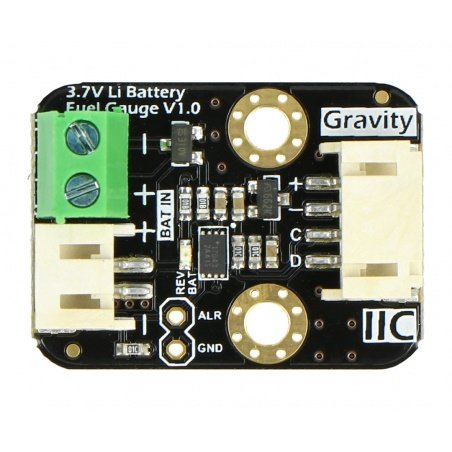

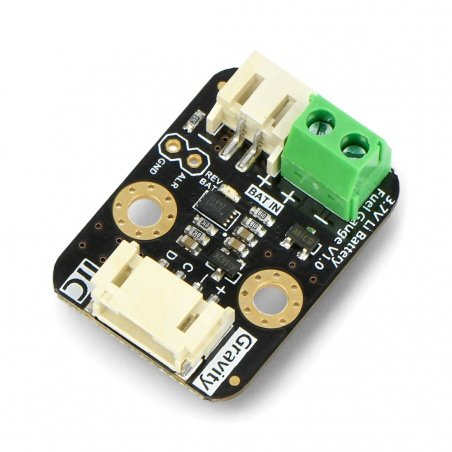

DFRobot Gravity - I2C battery charge level meter

Index: DFR-12263 EAN: 5903351243612

A module designed for reading the Li-Pol 3.7 V battery charge level in real-time. It is also equipped with alarm function when the battery level is low, or when battery power drops below a certain threshold, helps to estimate the battery life. In projects that run on solar power it helps to register the rate of change of battery power even within a month.

DFRobot Gravity - I2C battery charge level meter
€12.13
€9.86 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: DFRobot
Compatibility: Arduino Raspberry Pi

Description

A module designed for reading the Li-Pol 3.7 V battery charge level in real-time. It is also equipped with alarm function when the battery level is low, or when battery power drops below a certain threshold, helps to estimate the battery life. In projects that run on solar power it helps to register the rate of change of battery power even within a month.

The product is compatible withArduinoandRaspberry Pi.

Sample code and detailed information can be found inthe user guide.

Specification

  • Supply voltage: from 3.3 V to 6 V
  • Input voltage: from 2.5 V to 4.2 V
  • Supported battery type: Li-Pol 3.7 V
  • Operating current: 50 uA
  • The alarm function
  • Protection against reverse polarity
  • Interface: I2C Gravity
  • Dimensions: 22 x 30 mm

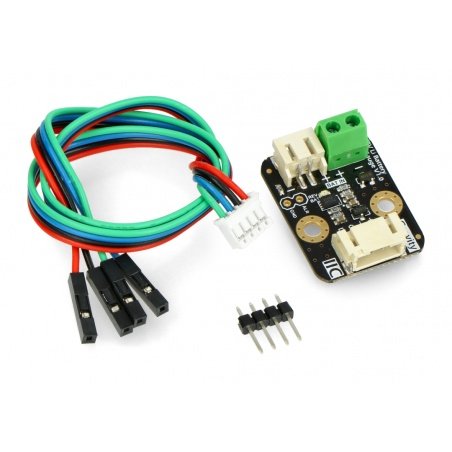

Set includes

  • Battery charge level meter
  • Goldpin strap 4-pin
  • Cable Gravity
