Product description: Pico-Clock-Green - LED digital electronic clock module - overlay for Raspberry Pi Pico - Waveshare 19695
ThePico-Clock-Greenisan overlay for the Raspberry Pi Picoin the form of a digital electronicclockthat presents information through its built-inLEDs. It has aDS3231RTC chip, light intensity sensor, buzzer and function buttons. It usesI2Cbus to communicate with Pico. Displays information about current time, date or temperature.
Product compatible with Raspberry Pi Pico
The manufacturer also provides aproduct wiki pagethat contains a detailed user guide to help you get started with the module.

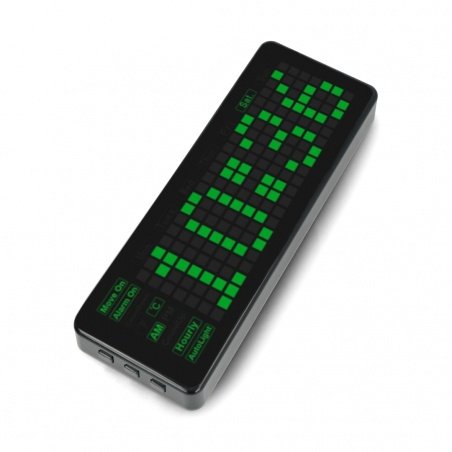

Pico-Clock-Green - a module with a digital LED electronic clock.
The clock displays information in green.
Special features
- Built-in RTC DS3231 with integrated battery, which maintains the clock after disconnecting the power supply and allows continuous measurement of time and temperature
- Equipped with light intensity sensor (photosensor) responsible for automatic brightness control
- Buzzer enabling the activation of two programmable alarms
- Equipped with two mounting holes with a distance of 90 mm
- Real time clock counts seconds, minutes, hours, day of the month, month, day of the week and year with leap year compensation valid until 2100
- Gives the possibility to set the time format: 24-hour or 12-hour with AM / PM indicator
- Digital temperature sensor with ± 3°C measuring accuracy
Technical specification
- Type: overlay for Raspberry Pi Pico
- Module: digital LED electronic clock
- Built-in chip: SM5166P + SM16106
- Power supply: from 3.3 V to 5 V (via USB)
- Backup battery voltage: from 2.3 V to 5.5 V
- Power consumption: 100nA
- Debug port: USB
- Backlight type: LEDs
- Layout: 8 x 24
- Backlight color: jade green
- Additional features:
- scrolling display
- alarm
- time in selectable 12/24 hours
- temperature in °C / °F format
- day of the week with automatic setting
- timer configuration
- manual or automatic brightness adjustment
- 3 buttons for configuration
- Display dimensions 190 x 60 mm
- Overlay dimensions: 216 x 79 x 25 mm

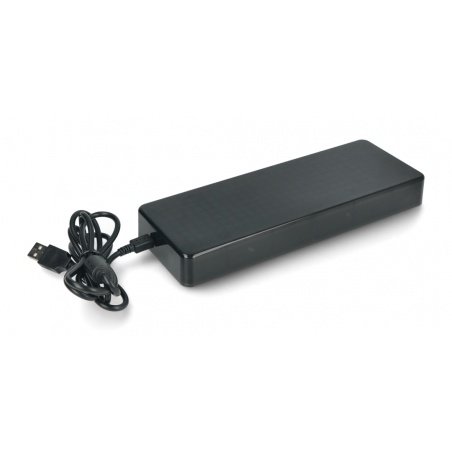

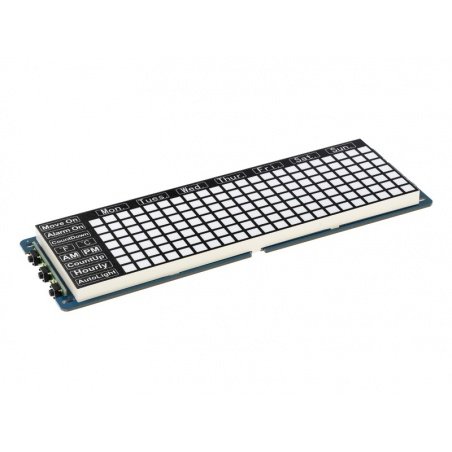

Overlay for Raspberry Pi Pico in form of module with digital clock.

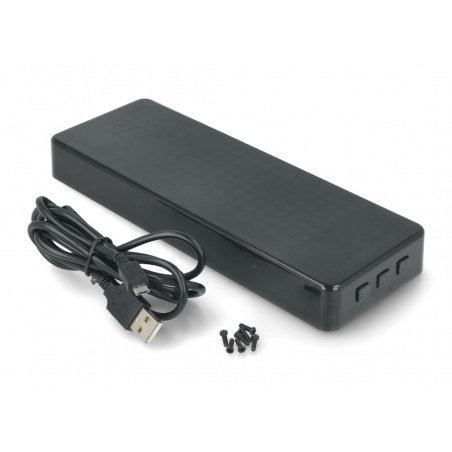

Kit contents.
Kit contents
- Pico-Clock-Green overlay
- Black overlay case
- USB A - microUSB B cable 120 cm long
- Battery CR2032 for RTC clock
- Mounting elements - screws - 7 pcs.
In our offer you will also find otherextensions for Raspberry Pi Pico. Feel free to browse the available range.
