Product description: xTool S1 - cutting and engraving machine - 40 W - basic set
The xTool S1 is a modern, premium laser plotter with a powerful 40 W diode laser, ideal for fast cutting and engraving. The device is housed in a robust, secure housing with a built-in light filter and five fire sensors, meeting Class 1 safety requirements. The large 498 x 319mm workspace allows for multiple workpieces to be processed at once without the need for repositioning – even at speeds up to 600mm/s . The pin-point positioning system ensures maximum precision in project alignment, while the built-in smoke and dust extraction system ensures a clean and comfortable work environment.
xTool S1 - cutting and engraving machine - 40 W - basic set.
xTool S1 is a modern premium laser plotter with a powerful 40 W diode laser, ideal for fast cutting and engraving.
Special features
- Powerfull lase: 40W diode laser ideal for cutting and engraving over 300 materials
- Large working area: 498 x 319 mm - convenient positioning of several workpieces for batch processing
- Class 1 safety: full protection for the user, stable and closed structure
- Pin-point positioning: more accurate than a camera - fast positioning of polyfigures and round objects
- Exhaust extraction system: built-in exhaust fan for a healthier working environment
Ultra-HD - super-fast and precise engraving
This module allows you to create deep, clear marks on gold, silver, steel, aluminum, as well as plastics and acrylics – without the need for additional preparations or coatings. It's an ideal solution for jewelry, badges, nameplates, and personalized metal items.
The large working area of 498 x 319 mm allows for the processing of many elements at once without the need to reposition them.
The device is enclosed in a solid, safe housing with a built-in light filter and five fire sensors that meet Class 1 safety requirements.
The highest level of detail - sharp and clear engravings
Thanks to the laser's extremely small focal point (0.03 x 0.03 mm), the device offers exceptional engraving precision—almost on par with HD photo printing. It perfectly reproduces details in photos, graphics, business cards, and delicate decorative elements, such as jewelry engraving.
Enhanced stability and performance
Solid, closed housing and rigid construction The xTool S1 ensures complete stability while working at speeds up to 600 mm/s. This translates into greater efficiency and repeatability when processing larger batches – without the need for guides or support fixtures.
Intuitive software - full control over the process
xTool Creative Space (XCS) offers a pre-built shape library, hundreds of designs, and assistive features (e.g., AI-drawing, auto-snap, quick autofocus), making it an ideal tool for beginners. For more advanced users, full integration with LightBurn , a renowned laser processing tool, is available.

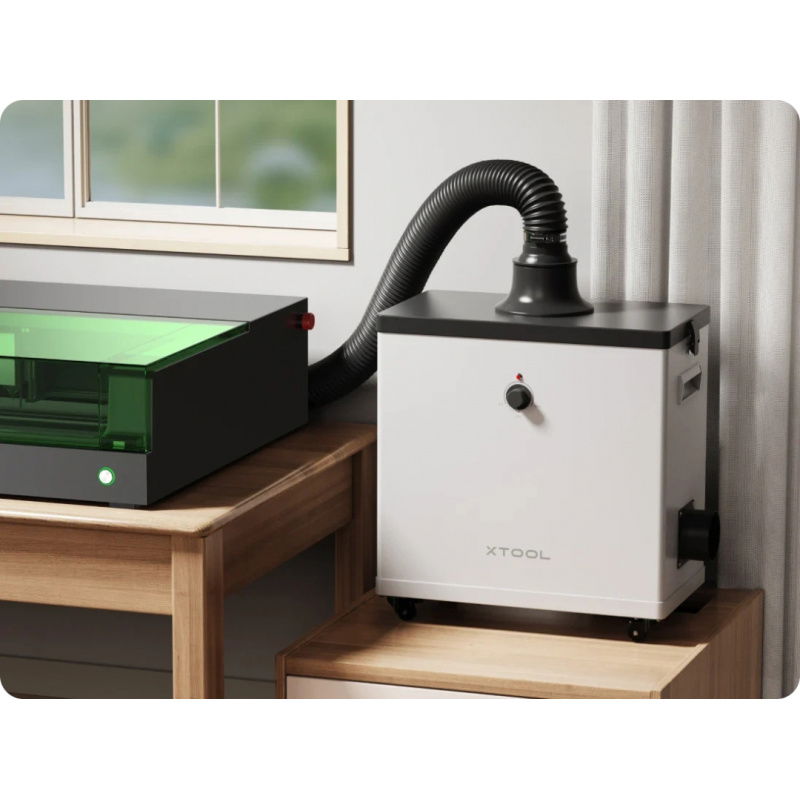

Clean air while working - comfort and safety
The integrated exhaust extraction system effectively removes smoke, particles, and vapors generated during engraving and cutting. Compatible with a dedicated air purifier, the device ensures safe and comfortable working conditions even in enclosed spaces.
The module allows you to create deep, clear marks on gold, silver, steel, aluminum, as well as on plastics and acrylic.
| Contents of the set | |
|---|---|
| xTool S1 with 40W diode module | 1 pc. |
| Smart Air Assist | 1 pc. |
| Honeycomb panel | 1 pc. |
| xTool S1 Technical Specifications | |
|---|---|
| Laser type | LED 40 W |
| Work area | 498 x 319 mm |
| Maximum operating speed | 600 mm/s |
| Positioning system | Pin-point, manual and automatic |
| Focus | automatic + manual |
| Cutting depth (diode laser) | up to 18 mm wood, up to 15 mm black acrylic |
| Compatible materials | over 300 types (metal, wood, acrylic, plastic, leather and others) |
| Software | xTool Creative Space (XCS), LightBurn |
| Connection | USB / WiFi |
| System Compatibility | Windows, macOS, Android, iOS |
| Certificates | IEC/EN60825, CE, FCC, FDA, ROHS, UKCA, Telecom |
| Dimensions | 765 x 561 x 183 mm (without stand) |
| Mass | 20 kg |
