Product description: D500 LiDAR Kit STL-19P laser scanner - 360 degrees - 12 m - DFrobot SEN0547
The STL-19P is a laser scanner from DFrobot that offers a range of up to 12 meters and is able to scan an area in the 360 ° range. In addition, the device has been equipped with automatic space mapping and obstacle detection functions. The STL-19P laser scanner has a scanning frequency from 6 Hz to 13 Hz, an additional advantage is its small dimensions of 38.59 x 38.89 x 33.50 mm, which allow it to be used in projects requiring minimalist components.

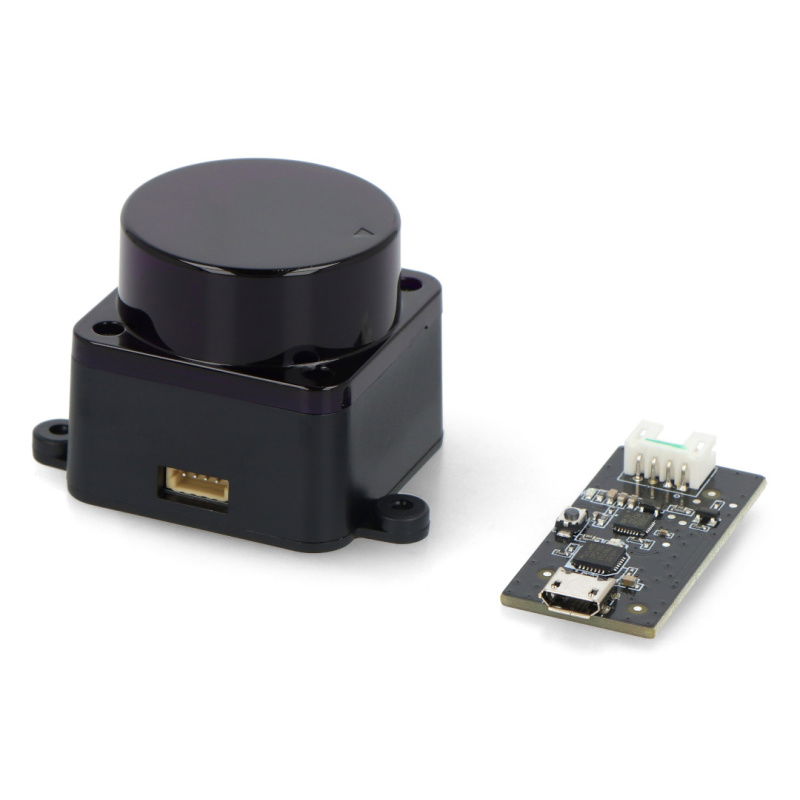

D500 LiDAR Kit STL-19P laser scanner - 360 degrees - 12 m - DFrobot SEN0547.

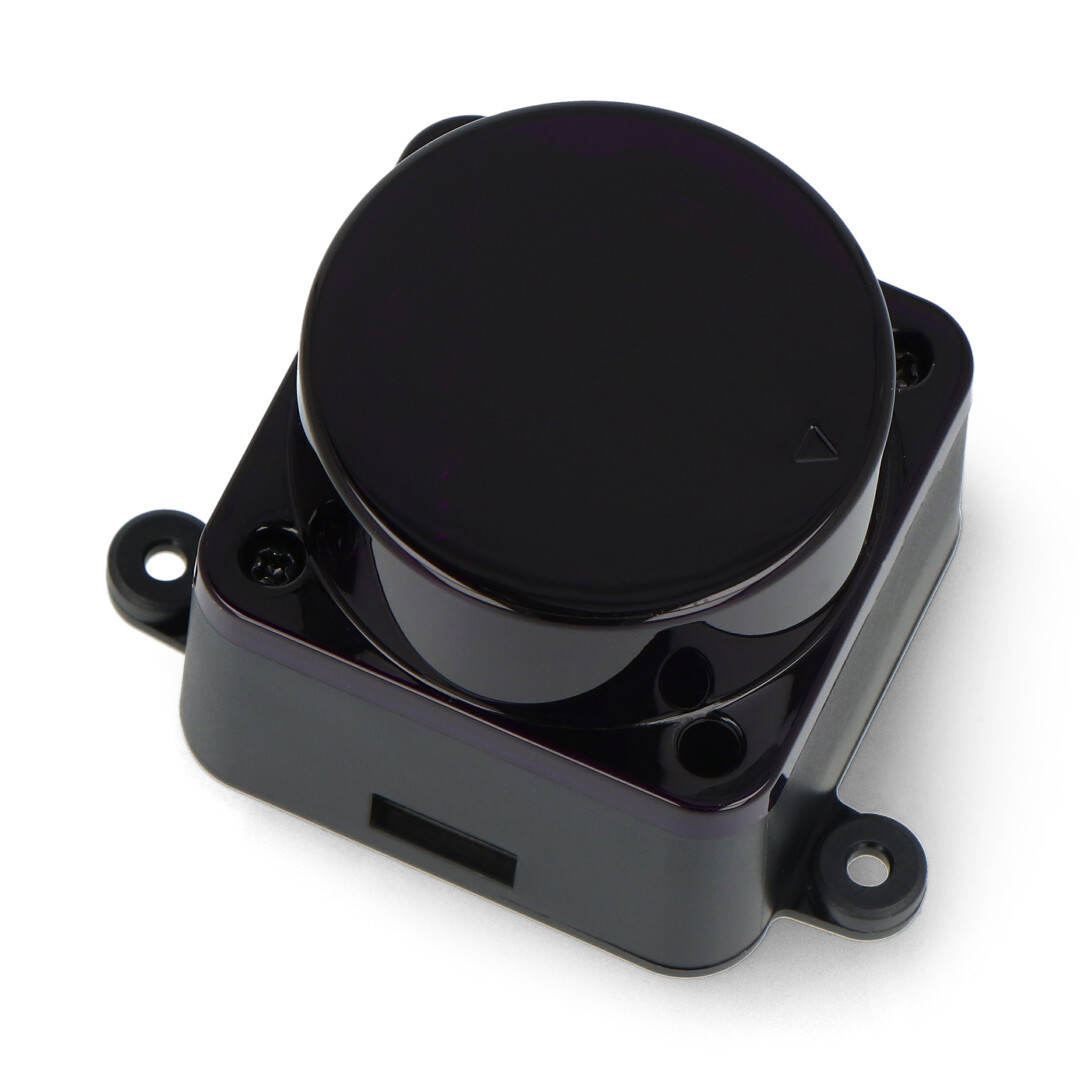

D500 LiDAR Kit STL-19P laser scanner.
Bright light resistance
The laser optics are resistant to direct light exposure of up to 60 klux. Thanks to its high light resistance, the laser can take detailed measurements both inside and outside buildings.
Displaying the mapped image by a LiDAR scanner
With the help of the Rviz software it is possible to observe the image scanned by the LiDAR scanner. This functionality allows for accurate analysis and work on the data provided by the scanning robot.
Detailed instructions on Rviz can be found on the wiki page.

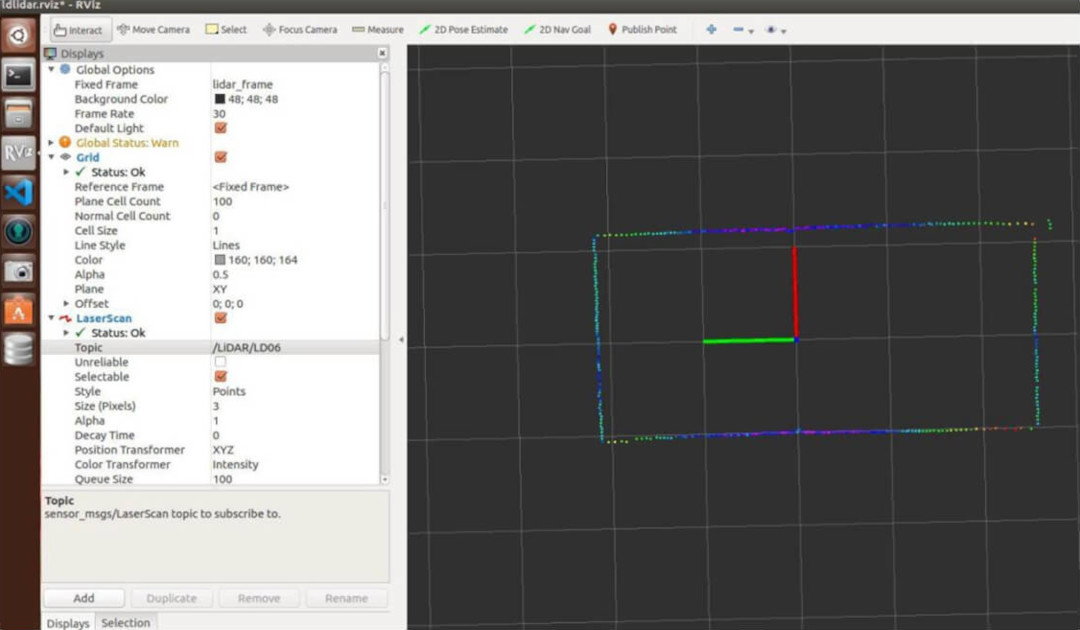

Displaying a mapped image in the Rviz app.

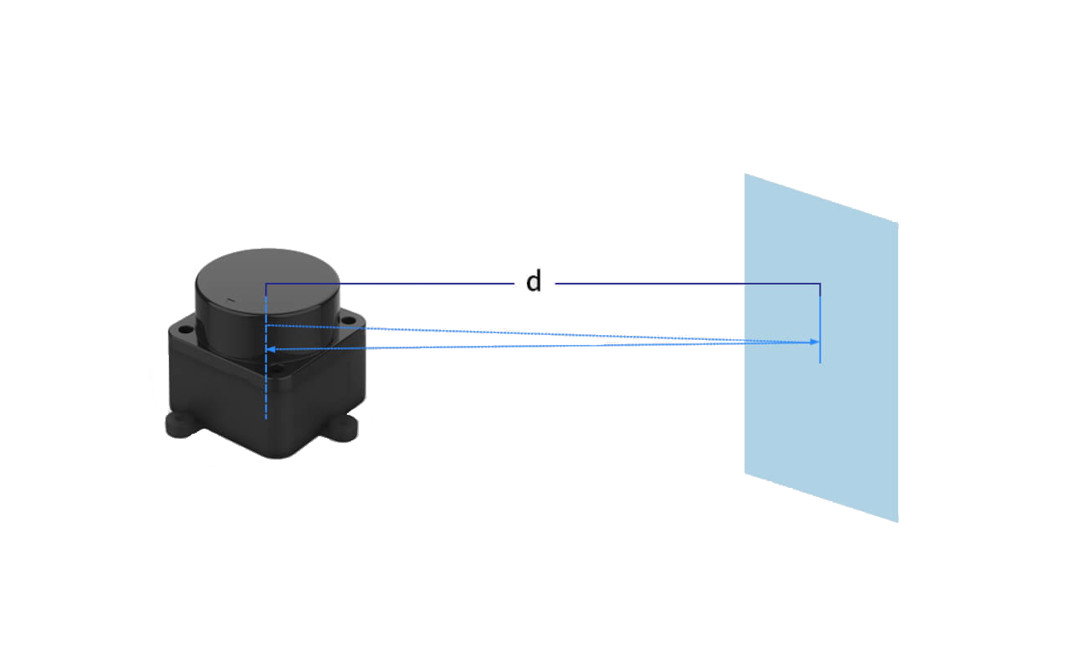

12 meter scanning range.
Scanning range of 12 meters
The greater range allows the robot to more effectively scan space and map a large area, in addition, the increased range allows the robot to move more effectively and avoid potential obstacles.
High durability
The device is equipped with a brushless motor, which ensures the life of the scanner up to 10,000. work hours.
Scanner application
Thanks to the high-quality workmanship, the scanner can be used in many places, such as:
- Education
- Research
- Automatic navigation
- Navigating and positioning
- Robots dodging obstacles
Set contains
- 1x STL-19P LiDAR sensor
- 1x adapter plate
- 1x 4-pin cable
- 1x USB cable

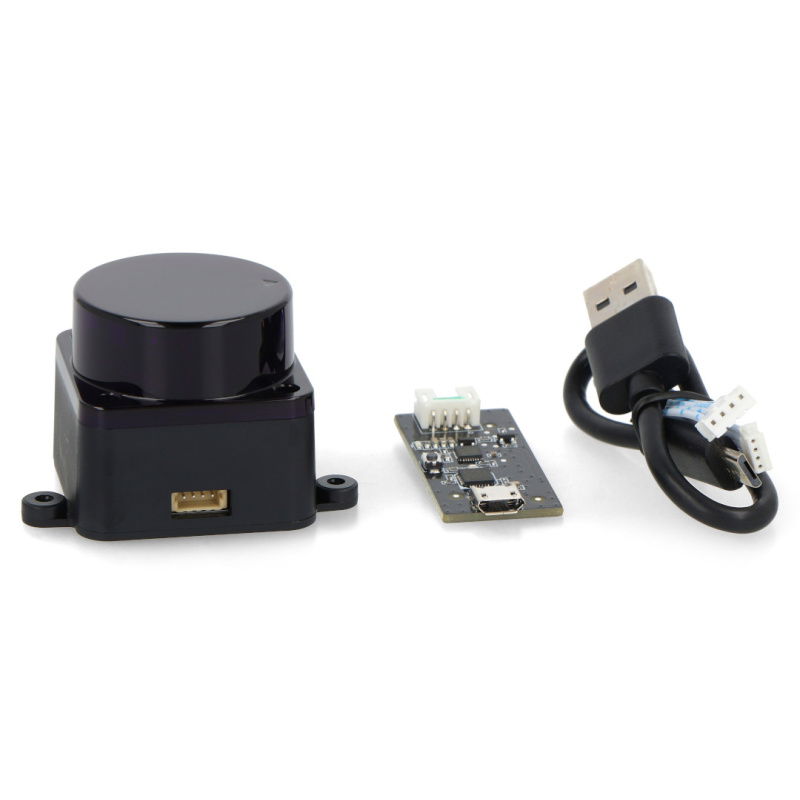

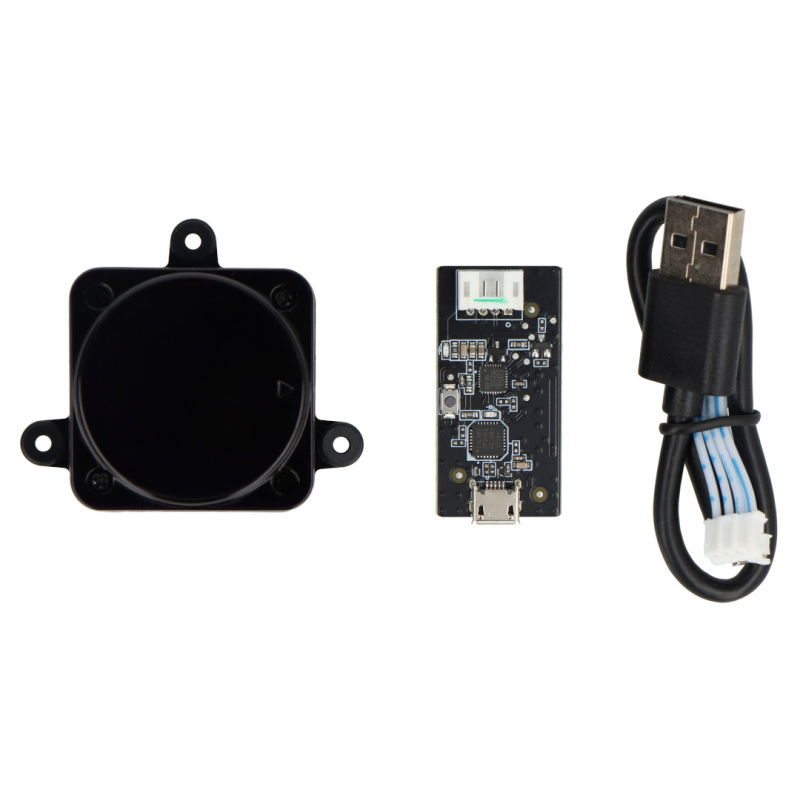

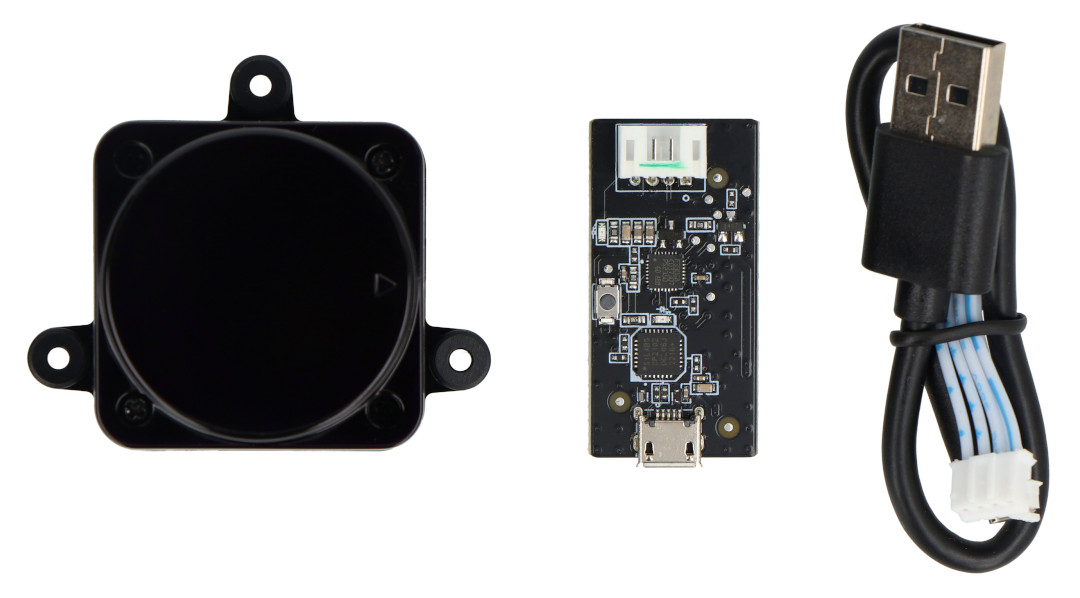

D500 LiDAR Kit STL-19P kit contents.

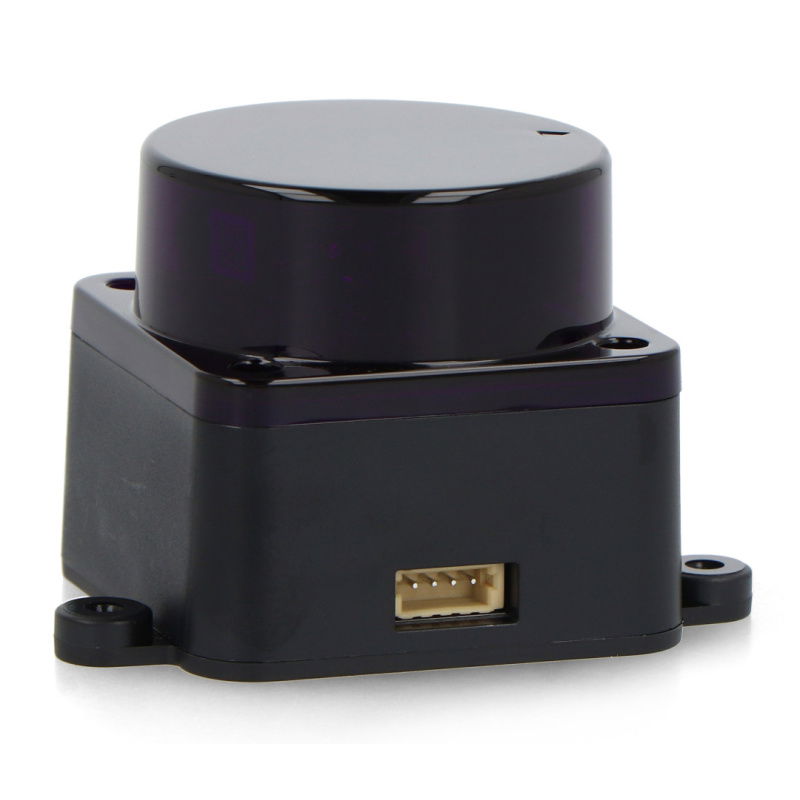

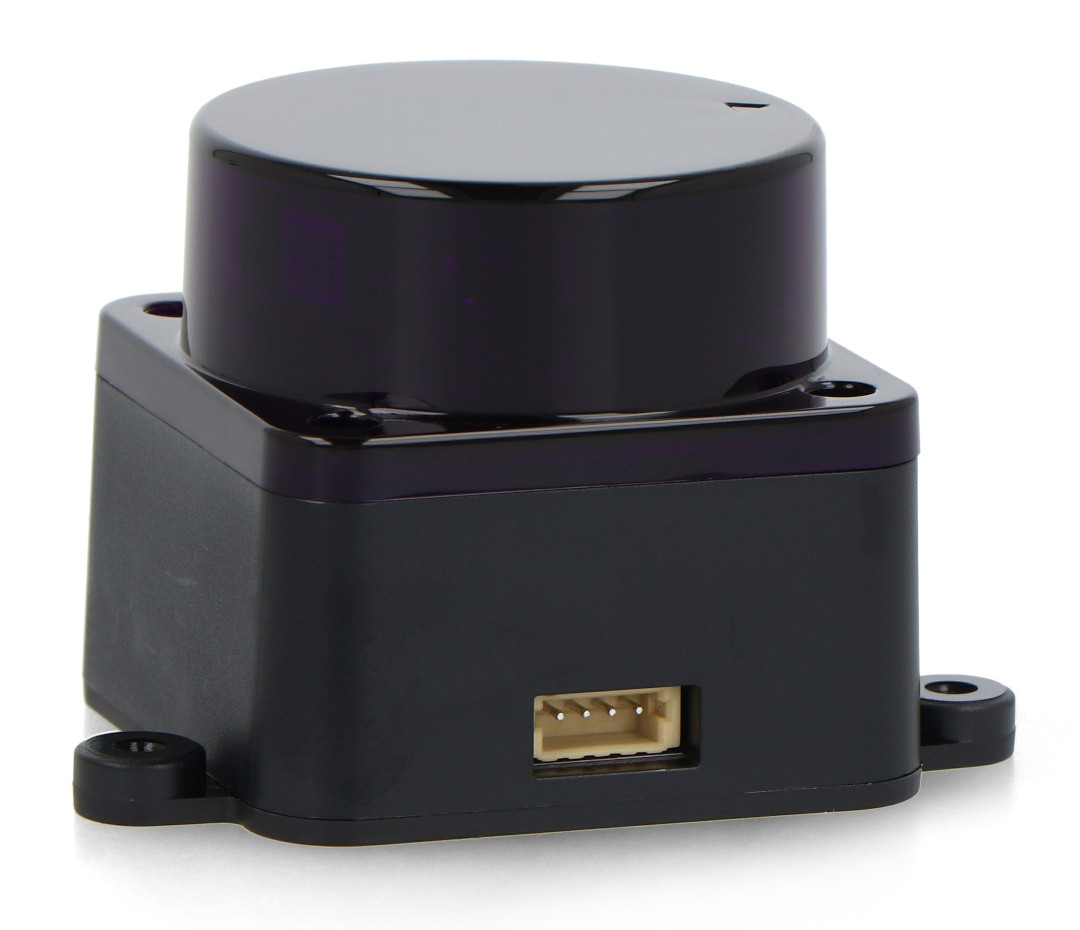

D500 LiDAR Kit STL-19P laser scanner - 4-pin socket.
Product specification
- Model: STL-19P
- Scanning range: 0.03 m to 12 m
- Refresh rate: 5000 Hz
- Scanning frequency: 10 Hz
- Average measurement accuracy: ± 45 mm
- Measurement resolution: 15 mm
- Scanning range: 360 °
- Measurement error: ± 2 °
- Measurement resolution: 0.8 ° / 10Hz
- Ambient light immunity: up to 60 klux
- Laser wavelength: 895 nm to 915 nm
- Tilt angle: 0 ° to 2 °
- Input voltage: 5 V
- Working current: 290 mA
- Power consumption: 1,45 W
- Communication interface: UART
- Working temperature: from -10°C to 45°C
- Storage temperature: -30°C to 70°C
- Motor: brushless
- Speed: 230,400 baud
- Dimensions: 38.59 x 38.89 x 33.50 mm
- Weight: 46 g
