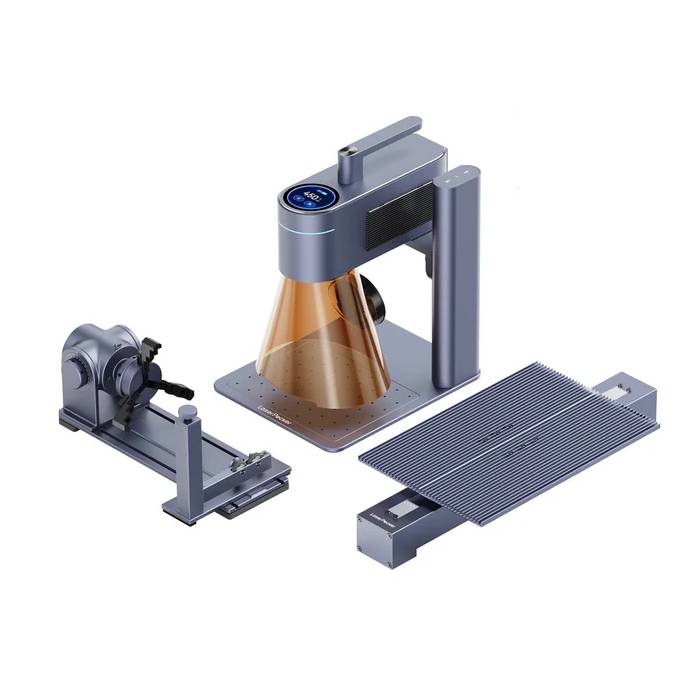

Product description: LaserPecker LP4 - 10W diode and 2W infrared laser engraving machine - Deluxe set
The LaserPecker LP4 is a modern, compact laser engraver combining a 10W diode laser (450nm) and a 2W infrared laser (1064nm) in a single housing. This configuration enables precise marking and cutting of a wide range of materials. The diode laser excels at cutting materials (up to 8mm plywood ) and engraving organic surfaces, while the IR laser is designed for precise marking of metals and plastics without the need for auxiliary sprays. The touchscreen and intuitive software allow you to get started almost immediately, even without experience. The Deluxe kit also includes two add-ons that expand the device's capabilities: a rotary module and a Slide Extension module .

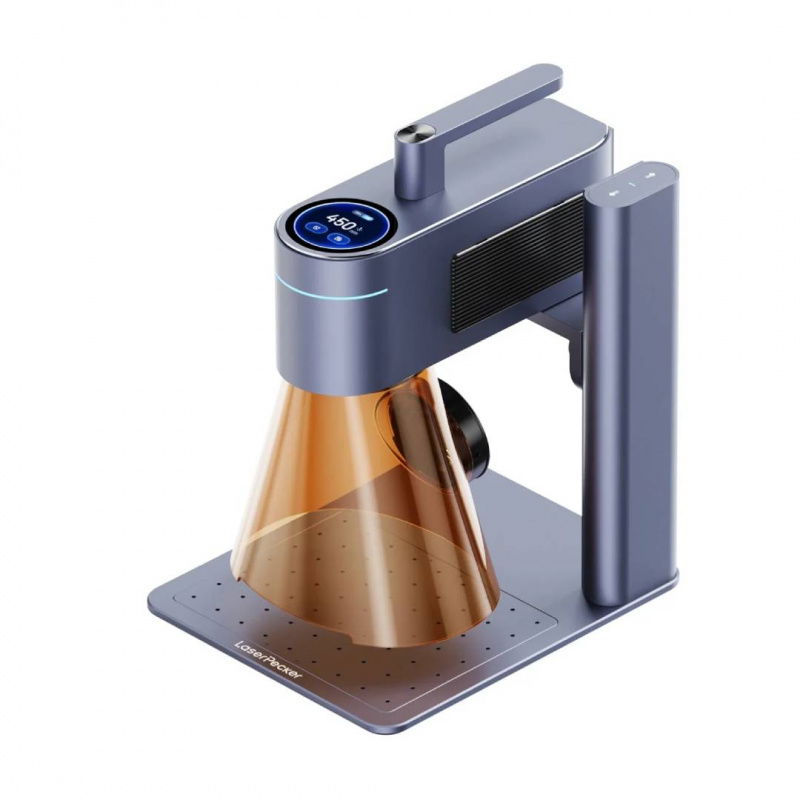

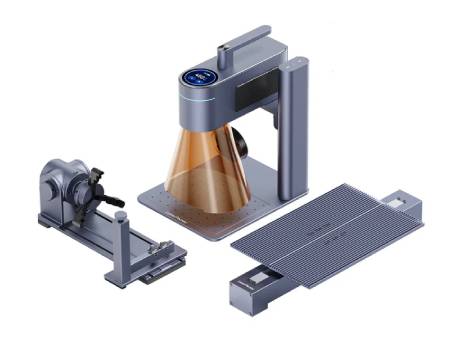

LaserPecker LP4 - 10W diode and 2W infrared laser engraving machine - Deluxe set.

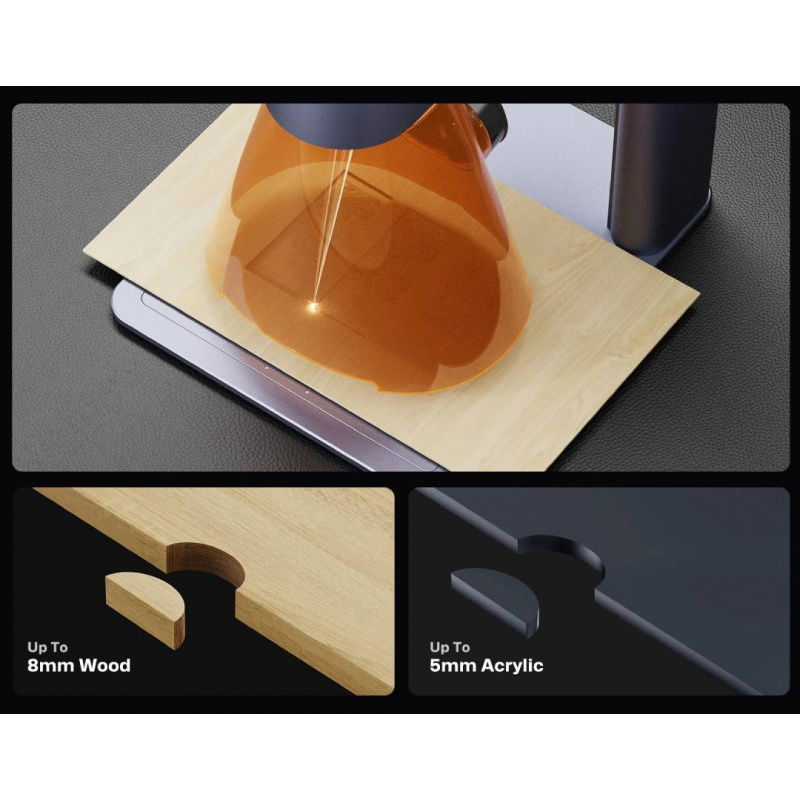

With the appropriate LP4 settings it allows you to cut wood up to 8 mm thick and acrylic up to 5 mm thick.
Dual laser technology and impressive precision
The LaserPecker LP4 combines a 450nm (10W) blue diode laser with a 1064nm (2W) infrared laser in a single compact device. This combination enables engraving on over 300 types of materials – from wood, paper, and leather, through glass and plastic, to precious metals like gold, silver, titanium, and steel. Depending on the material type, you can easily switch the laser source with a gesture on the touchscreen or in the app . The device automatically adjusts the recommended engraving parameters to the specific material. The extremely precise laser spot (0.05 x 0.05 mm for the 450nm laser and 0.01 x 0.01 mm for the 1064nm laser) allows for positioning accuracy of 0.01 mm , while a resolution of up to 8K guarantees photographic quality even with micro-engraving. A working speed of up to 4000 mm/s makes the device equally suitable for both single-item and mass production.
Mobility, ergonomics and ease of use
The LP4's design was developed with portability and versatility in mind. The total weight of the set is just 4.23 kg , making it easy to move and use both in stationary and handheld mode – with the ability to work at any angle . Thanks to the built-in touchscreen and the LaserPecker Design Space app (compatible with Android, iOS, Windows, and macOS), operation is quick and intuitive – even for beginners. Support for LightBurn software is an additional advantage. which opens up access to more advanced design features.

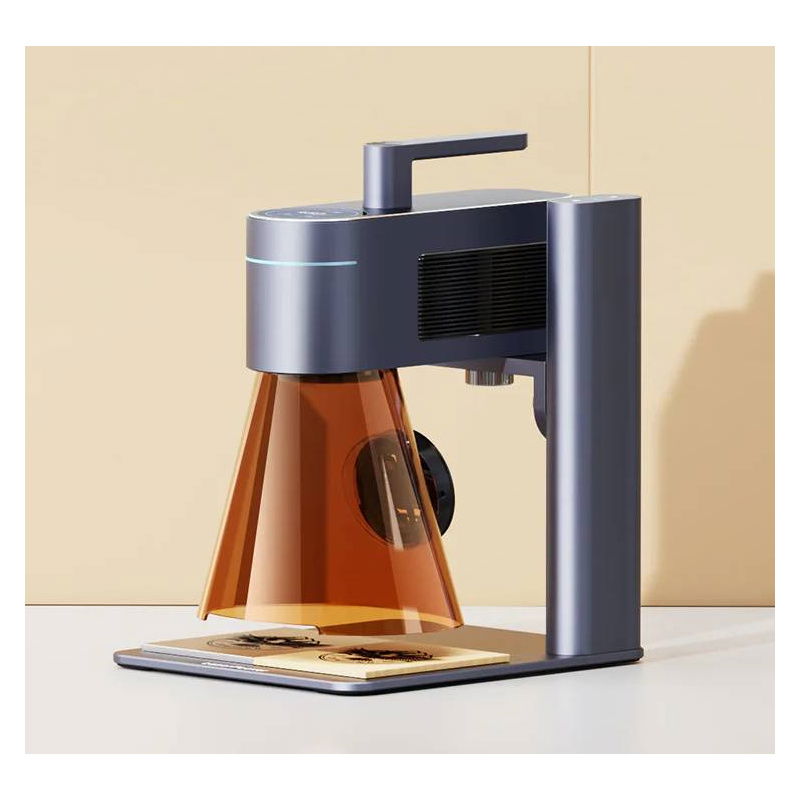

The engraving machine can work at an angle.

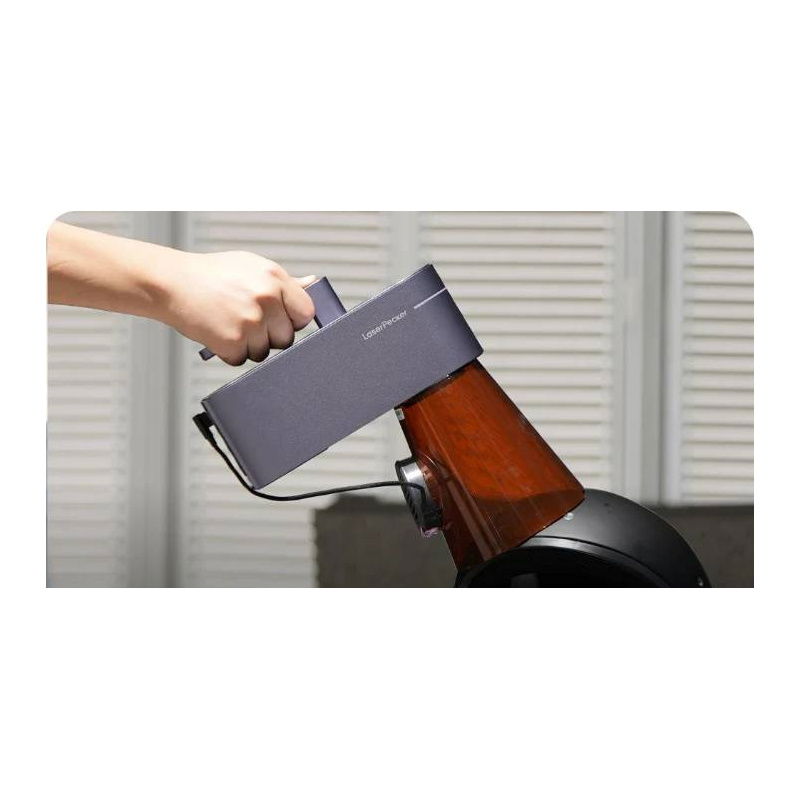

The handheld version is perfect for creative work while traveling.
Rotation module and Slide Extension - full flexibility

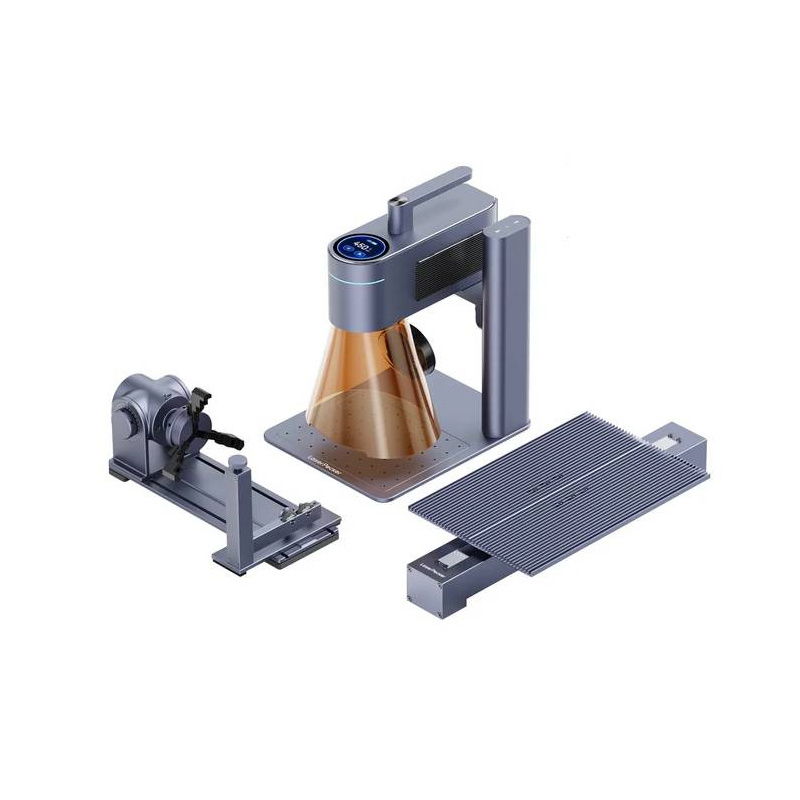

The Deluxe kit includes two incredibly practical extensions. The Rotary Module enables precise marking of cylindrical objects —such as mugs, glasses, wedding rings, and bracelets—and allows you to work with items up to 200 mm in diameter . The Slide Extension extends the work area from 160 x 120 mm to 160 x 300 mm , allowing you to complete larger projects without interrupting your workflow. Both extensions install without tools, ensuring ease of use and quick transition between work modes.
Safety systems and user comfort
The LaserPecker LP4 is equipped with a range of integrated safety features that enhance user comfort and safety. A built-in emergency stop button, a tilt sensor that shuts down the device if it's moved, and overheat protection prevent uncontrolled laser operation. Also included is a conical protective shield and 450nm and 1064nm filtering goggles to protect eyes from harmful radiation. The Deluxe version is also compatible with optional housing covers and an air filtration system, making it ideal for working in confined spaces.
LaserPecker LP4 works with the LaserPecker Design Space app.
Elements included in the set.
Contents of the set
- LP4 laser engraver
- Rotation module
- Work area extension module
- Electric stand
- Protective cover
- Goggles
- USB cables
- Power cord
- Angle positioner
- Cable holder
- Tools
- User manual
| Technical specifications of the LaserPecker LP4 laser engraving machine | |
|---|---|
| Laser type | 450 nm blue diode laser + 1064 nm infrared (IR) laser |
| Laser power | 10W (450nm) / 2W (1064nm) |
| Laser spot | 0.05 x 0.05 mm (450 nm) / 0.01 x 0.01 mm (1064 nm) |
| Image resolution | 1K / 2K / 4K / 8K |
| Positioning accuracy | 0.01 mm |
| Movement accuracy | 0.01 mm |
| Engraving speed | up to 4000 mm/s |

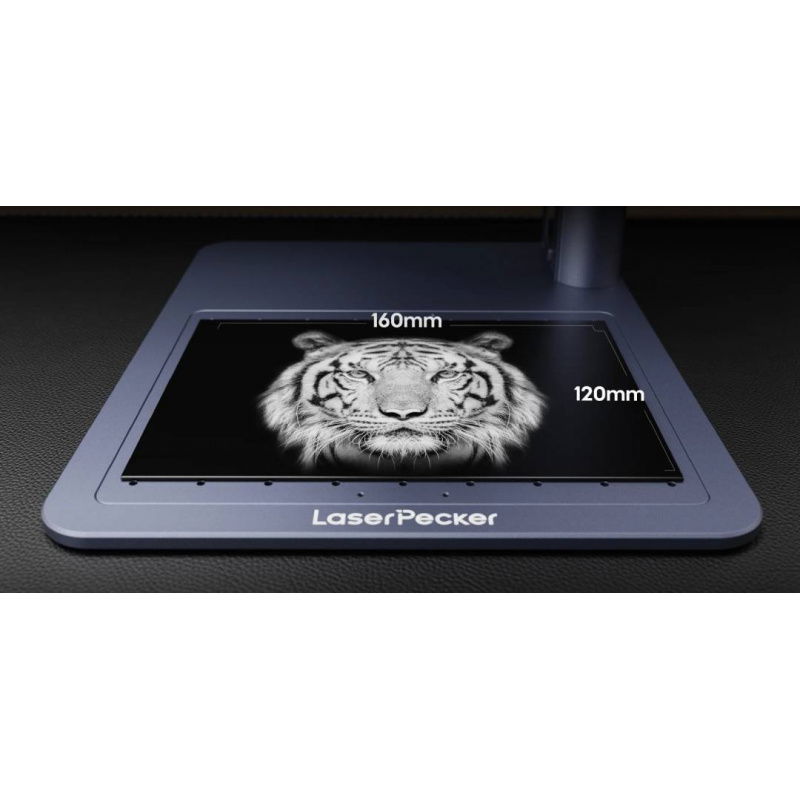

| Working field | 160 x 120 mm, 160 x 300 mm with extension |
| Working range of the electric stand | 120 mm |
| Focal length | 150 mm |
| Maximum height of the workpiece | 94 mm |
| Maximum rotary engraving diameter | 200 mm |
| Cutting depth | up to 8 mm (plywood), up to 5 mm (black acrylic) |
| Supported materials - 450 nm | painted metal, anodized aluminum, 304 stainless steel, bamboo, wood, leather, paper, fabrics, food, photosensitive printing, plastic, acrylic, colored glass, glazed ceramics |
| Supported materials - 1064 nm | stainless steel, gold, silver, platinum, aluminum, titanium, brass, plastic, acrylic, leather and coated materials |
| Software | LaserPecker Design Space (App & PC) / LightBurn |
| Supported systems | iOS 13.0+, Android 7.0+, Windows 10+, macOS 10.15+ |
| Supported file formats | PC: G-code, JPG, PNG, BMP, SVG, DXF Mobile app: G-code, JPG, PNG, BMP, SVG |
| Preview modes | rectangular, contour, center point preview |
| Communication | Bluetooth 5.0 / USB (PC via dongle or cable) |
| Power supply | DC 24V 5A, AC 100V to 240V 50/60Hz |
| Device power | 120 W |
| Certificates | CE, ROHS, FCC, FDA, CDRH, NCC, KC, UKCA, TELEC |
| Supported languages | English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified and Traditional Chinese |
| Dimensions | 260.5 x 218 x 283.5 mm |
| Mass | 4.23 kg |
