Product description: Mintion Nutopress Pro - press for fusing threaded inserts - inserts - for 3D printing - 90 W

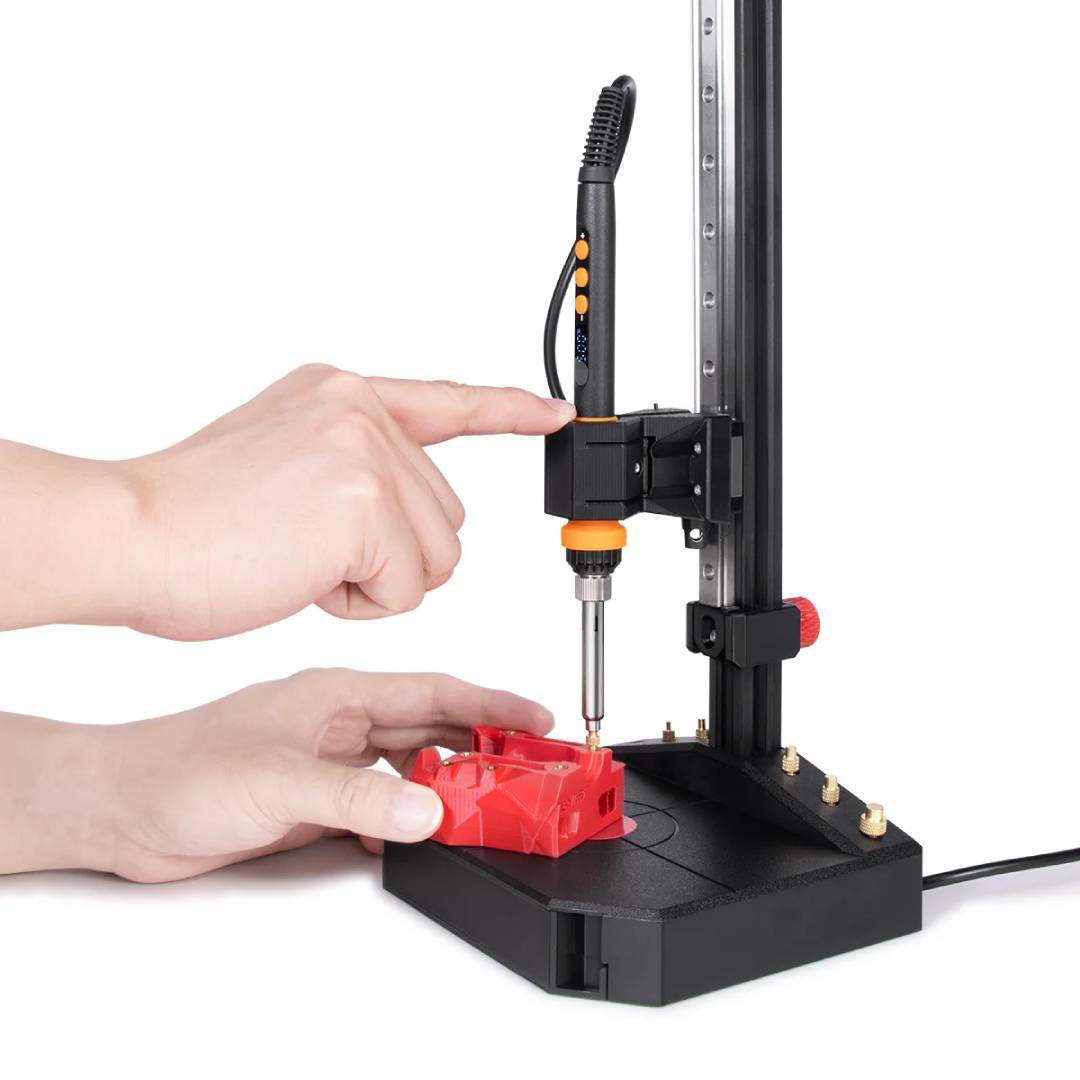

The Mintion NutoPress Pro is a thermal assembly station for threaded inserts , designed for precise and repeatable 3D printing. A linear guide with a 210 mm working range ensures smooth vertical movement , while an adjustable positioning mechanism facilitates working with components of varying heights. The 90 W soldering iron quickly reaches the desired temperature and allows for stable fusion of inserts into materials such as PLA , PETG , ABS , and ASA .

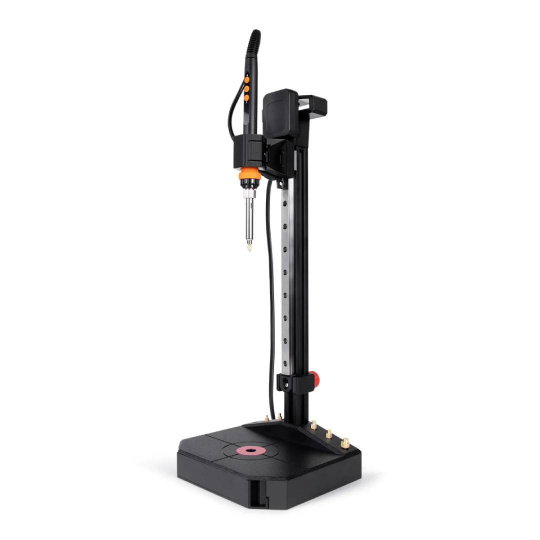

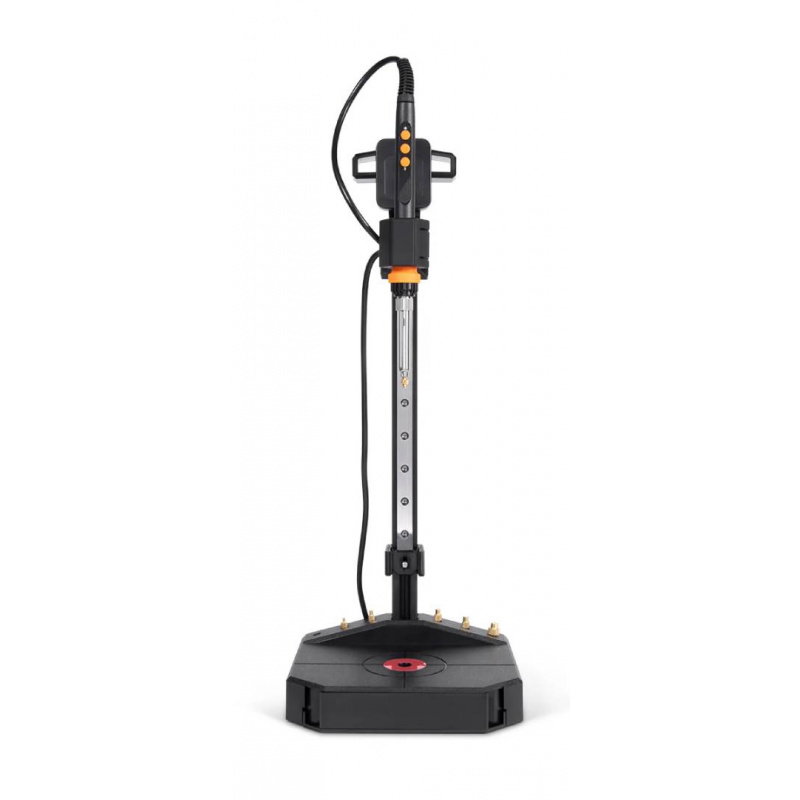

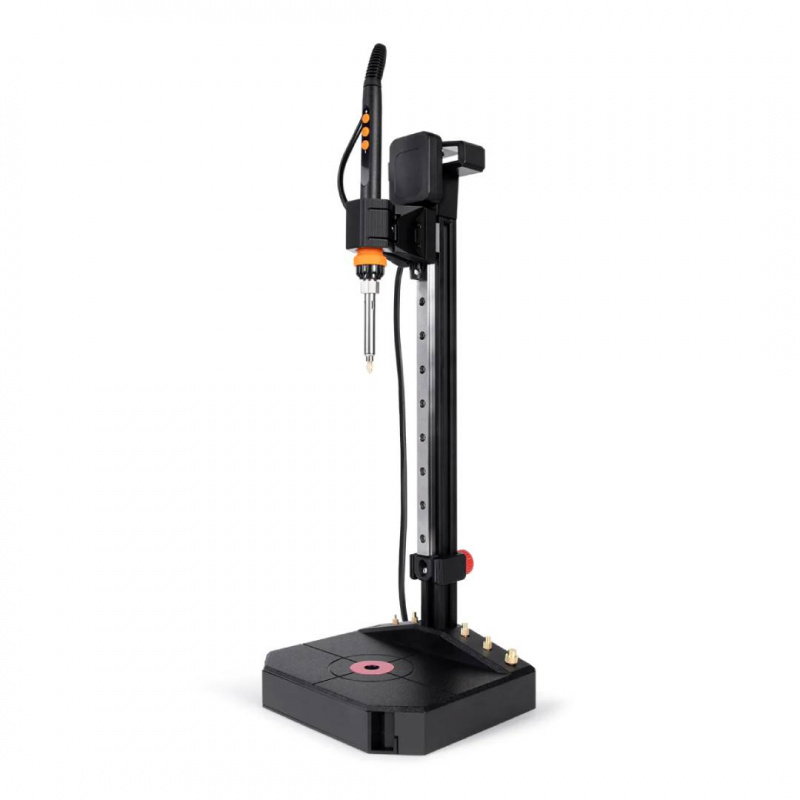

Mintion Nutopress Pro - press for fusing threaded inserts - inserts - for 3D prints - 90 W.

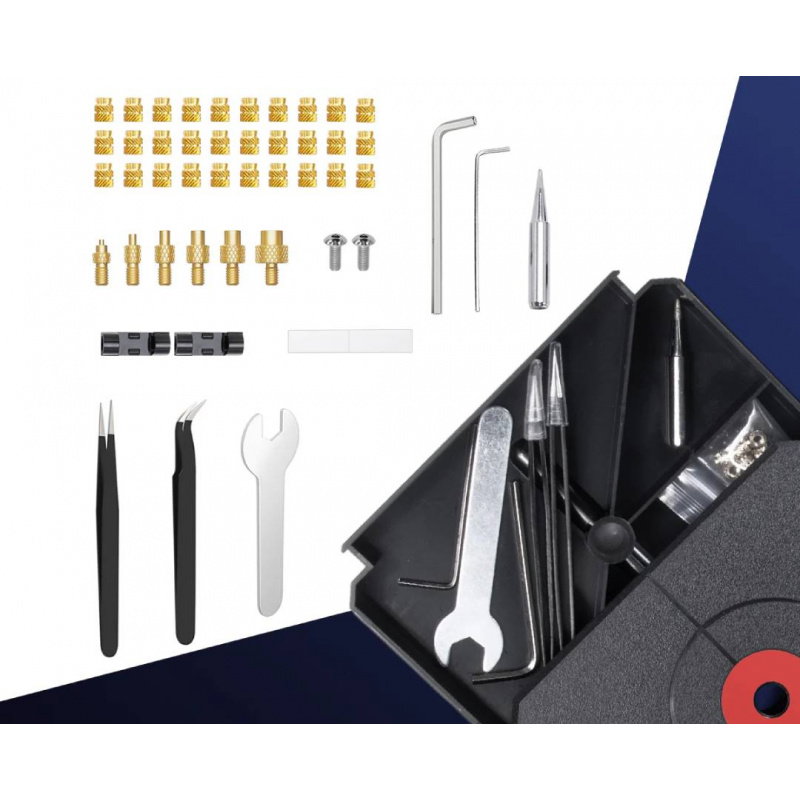

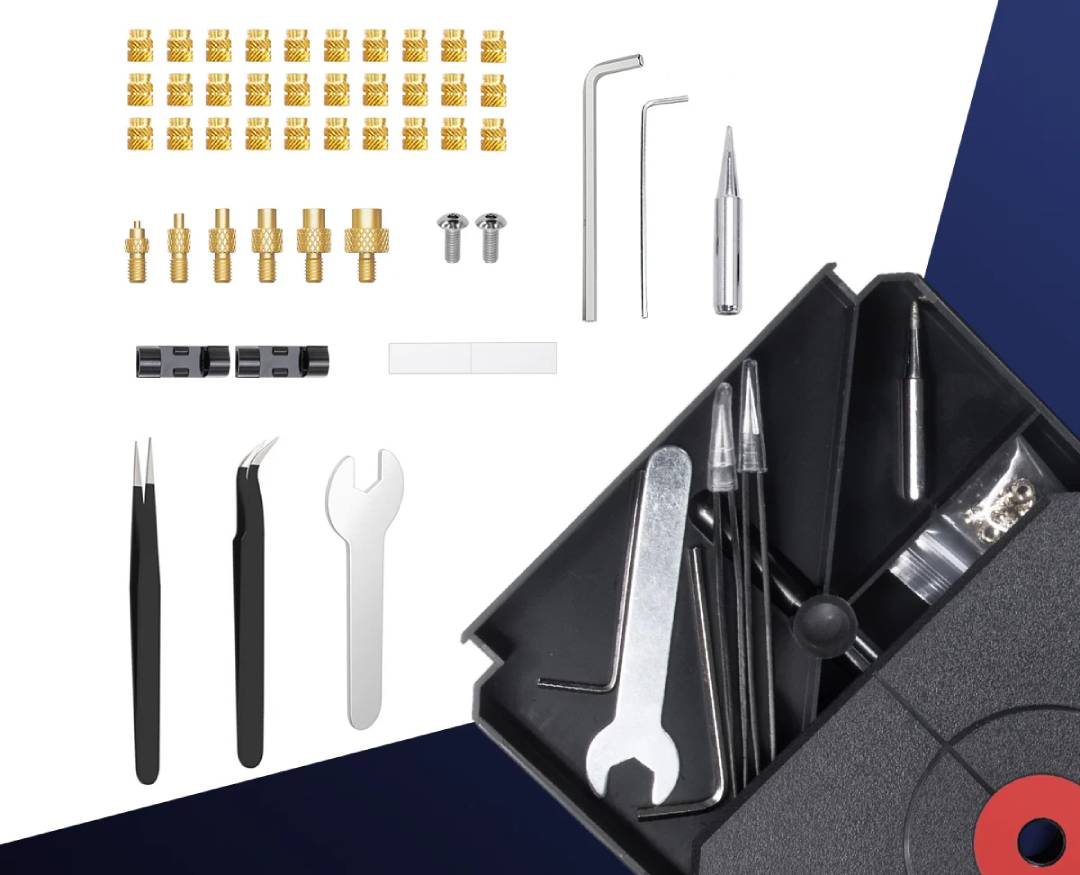

The drawer in the base allows you to conveniently store inserts and accessories.
Main Features of Mintion NutoPress Pro
- 210 mm linear guide : ensures smooth vertical movement and high precision of guiding the soldering iron
- Adjustable positioning bracket : allows for stable mounting of elements of different heights
- 90W soldering iron : heats up quickly and maintains a stable temperature during operation
- Temperature adjustment from 180°C to 500°C : allows you to adjust the parameters to different materials used in 3D printing
- Digital temperature display : allows you to monitor the soldering iron temperature continuously
- M2, M3, M4, M5, M6 and M8 adapters : support for the most popular threaded insert sizes

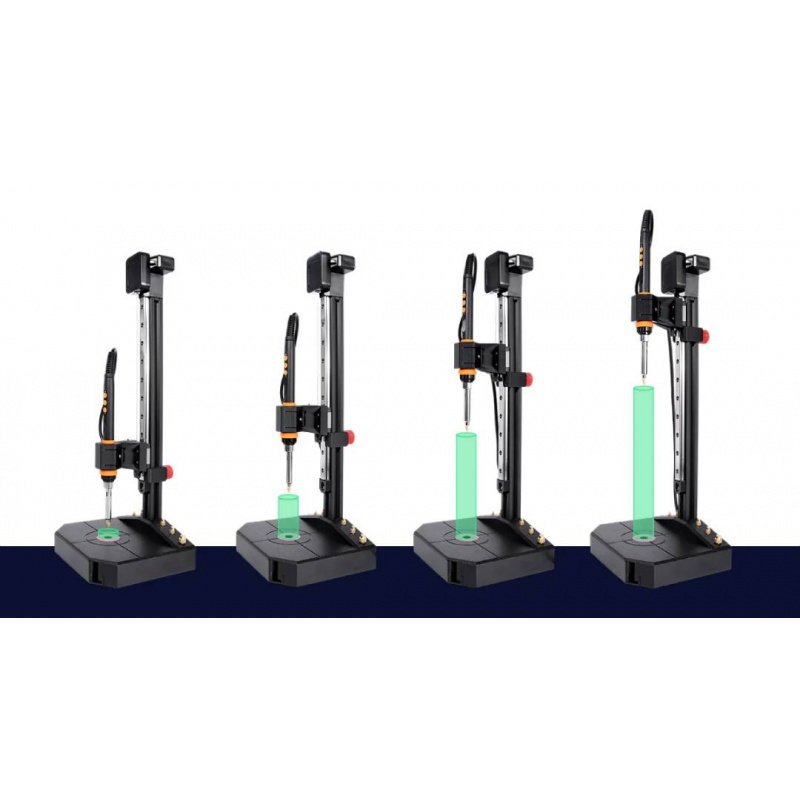

- Adjustable working height : makes it easier to work with tall models and elements with non-standard dimensions
- Complete accessory kit : allows you to get started without additional purchases
Technical specifications of the press for fusing threaded inserts
- Soldering iron power: 90 W
- Temperature control range: 180°C to 500°C
- Display: digital
- Temperature units: °C / °F
- Supported adapter sizes: M2, M3, M4, M5, M6, M8
- Threaded inserts included: M3 x OD5 x L4
- Number of M3 inserts included: 30 pcs.
- Compatible materials: PLA, PETG, ABS, ASA and other thermoplastics
- Construction: linear guide with aluminum profile
- Working range of the linear guide: 210 mm

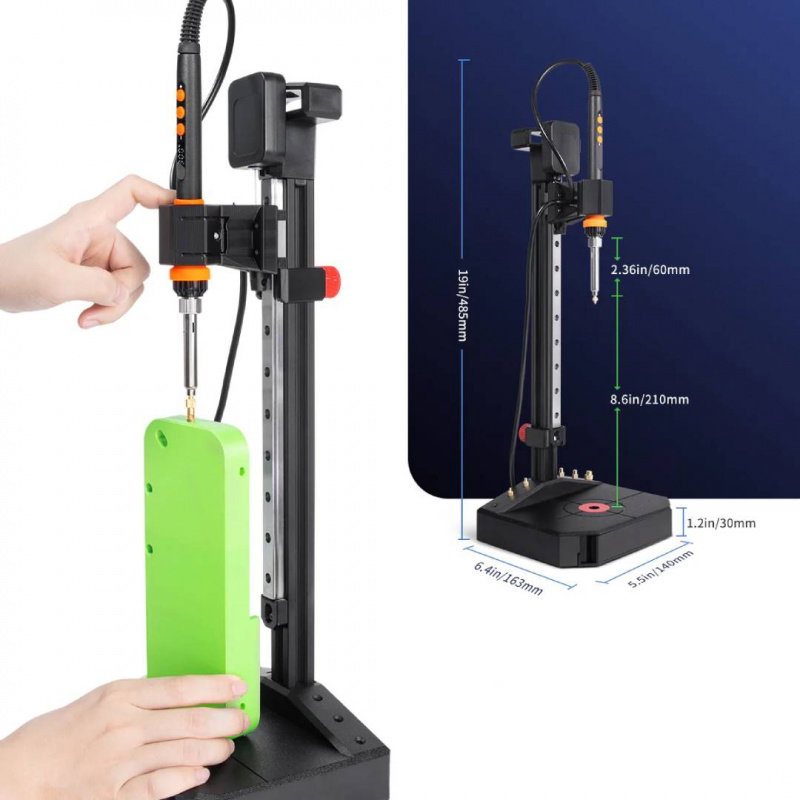

- Height: 485 mm
- Base dimensions: 163 x 140 x 30 mm
- Working tip length: 60 mm
Kit contents
- Mintion NutoPress Pro Press
- 90W soldering iron with digital display
- Adapters for inserts: M2, M3, M4, M5, M6, M8

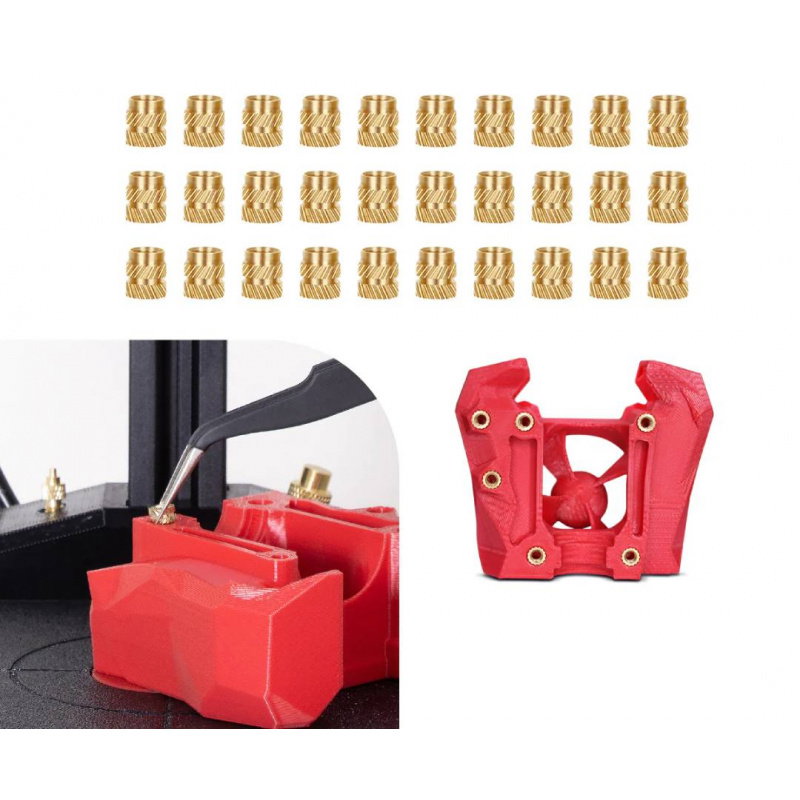

- 30 M3 brass threaded inserts
- Stainless steel working tip
- Straight tweezers
- Curved tweezers
- Open-end wrench
- 2 Allen keys
- 2 cable holders
- 2 mounting screws
- 2 double-sided tapes

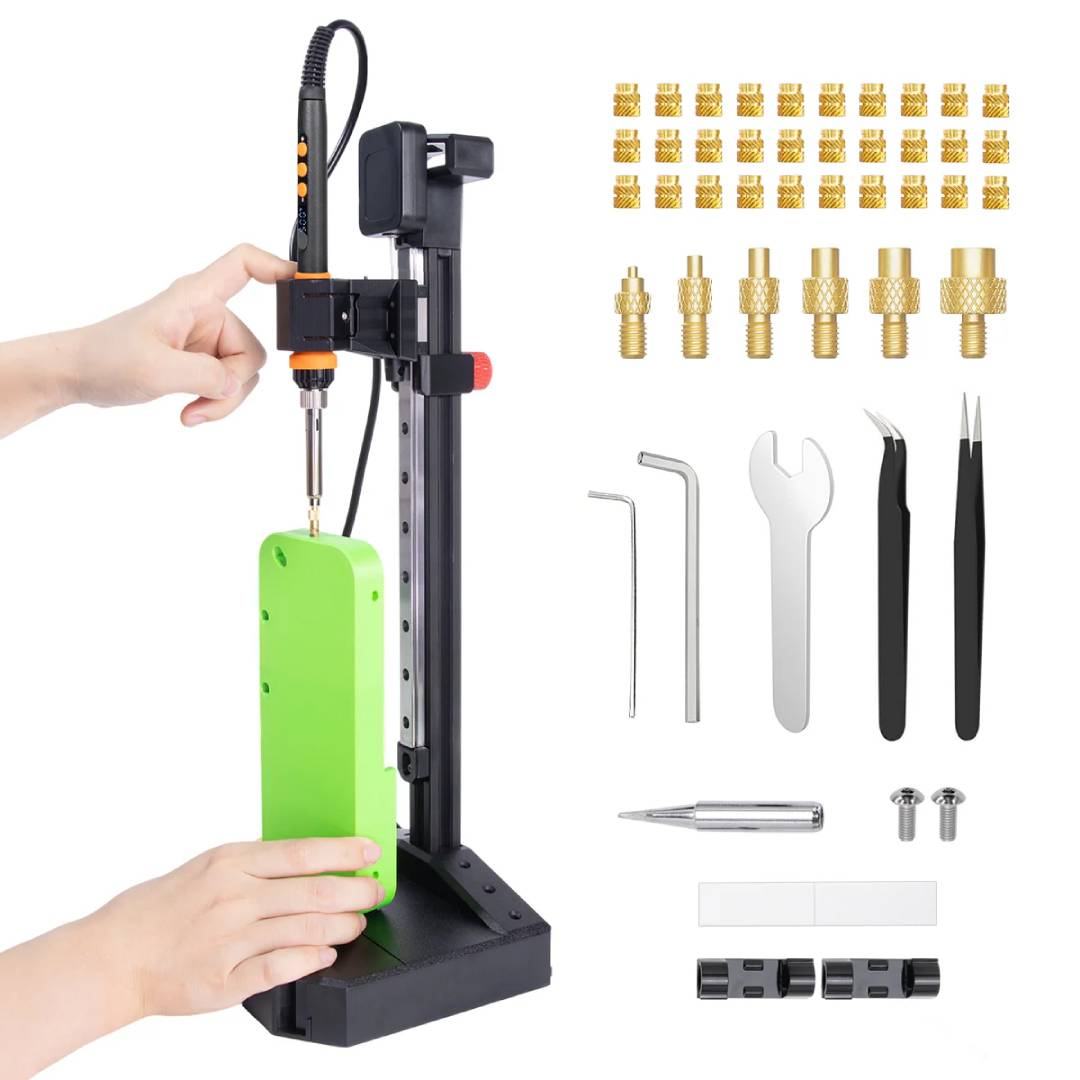

Elements included in the set.
