Product description: 3D printer - QIDI Q2 Combo
The QIDI Q2 Combo is a fast, enclosed 3D printer using CoreXY kinematics, offered in a kit with the QIDI Box system for automatic multi-color and multi-material printing . A 270 x 270 x 256 mm build volume, a hotend up to 370°C , a bed up to 120°C , and an actively heated chamber up to 65°C enable working with both basic and demanding filaments . The printhead can move at speeds up to 600 mm/s and acceleration up to 20,000 mm/s². The Q2 Combo offers automatic leveling using the nozzle and Load Cell sensor, a 1080p camera with AI print error detection , resonance compensation, a G3 + HEPA H12 + activated carbon filtration system, and a power outage recovery function. The included QIDI Box automates filament changes, enables printing with multiple materials and colors, recognizes compatible QIDI filaments via NFC, and allows you to keep the material in the right conditions during printing.

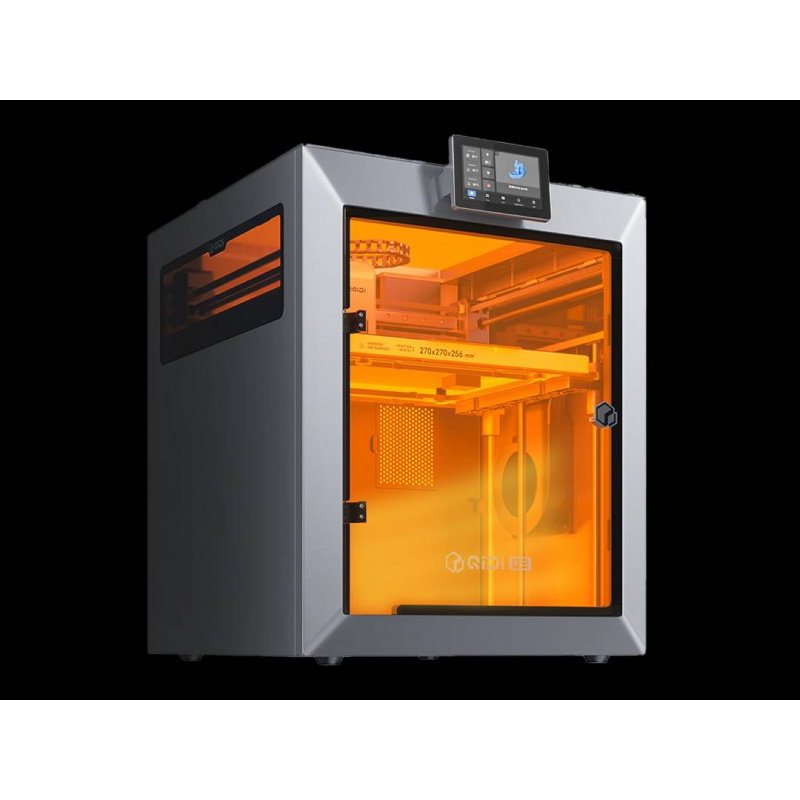

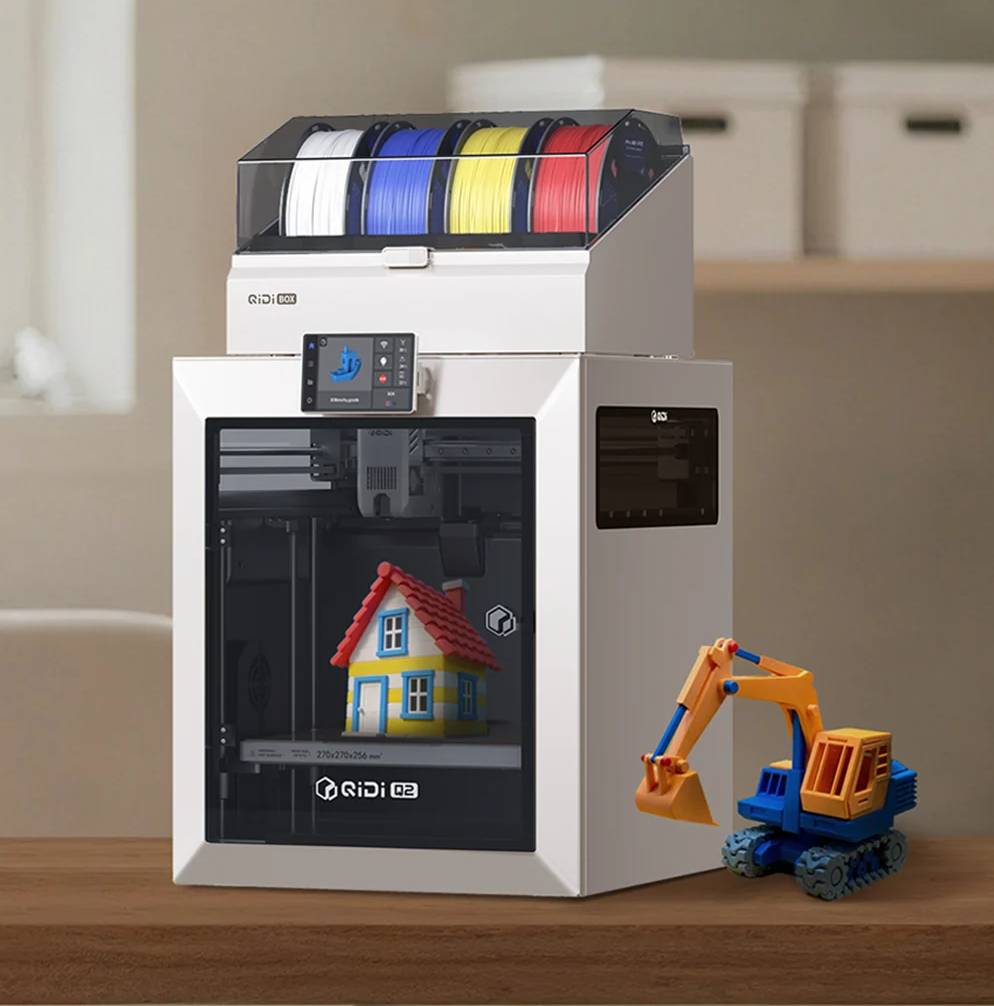

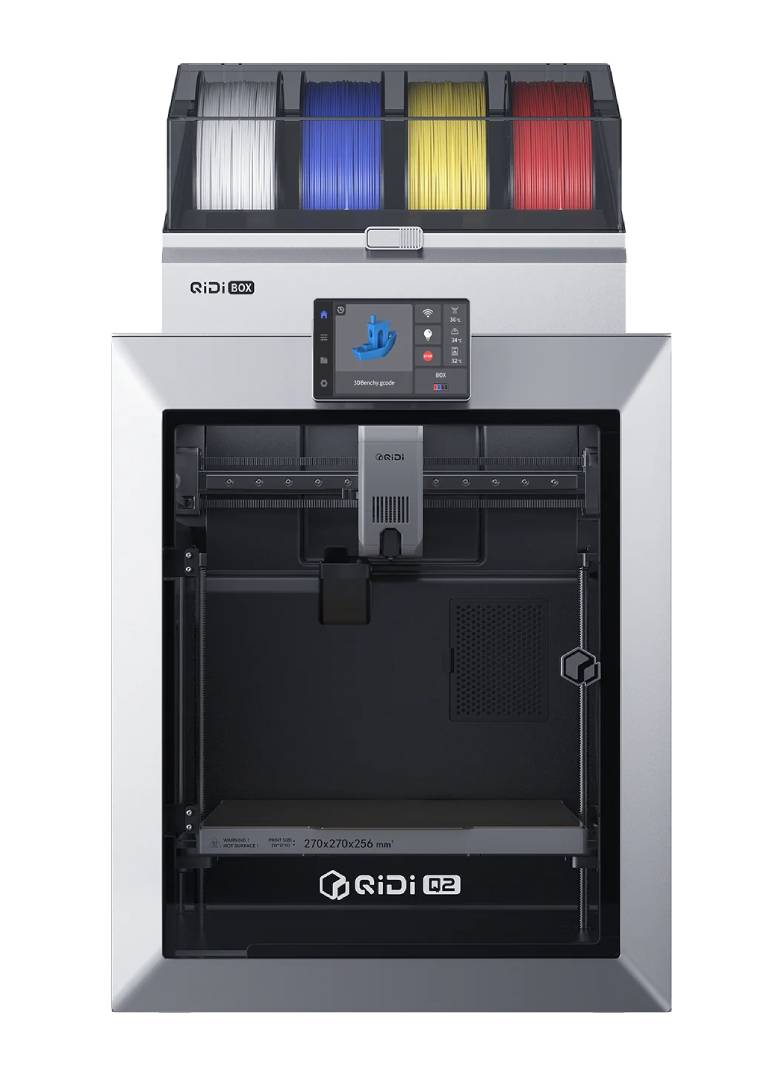

3D Printer - QIDI Q2 Combo.

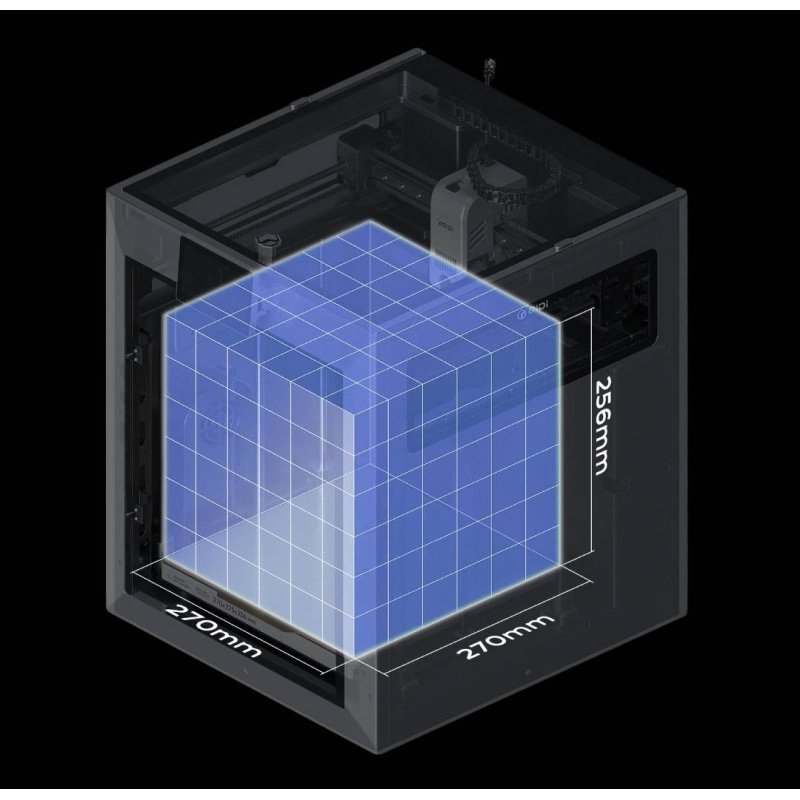

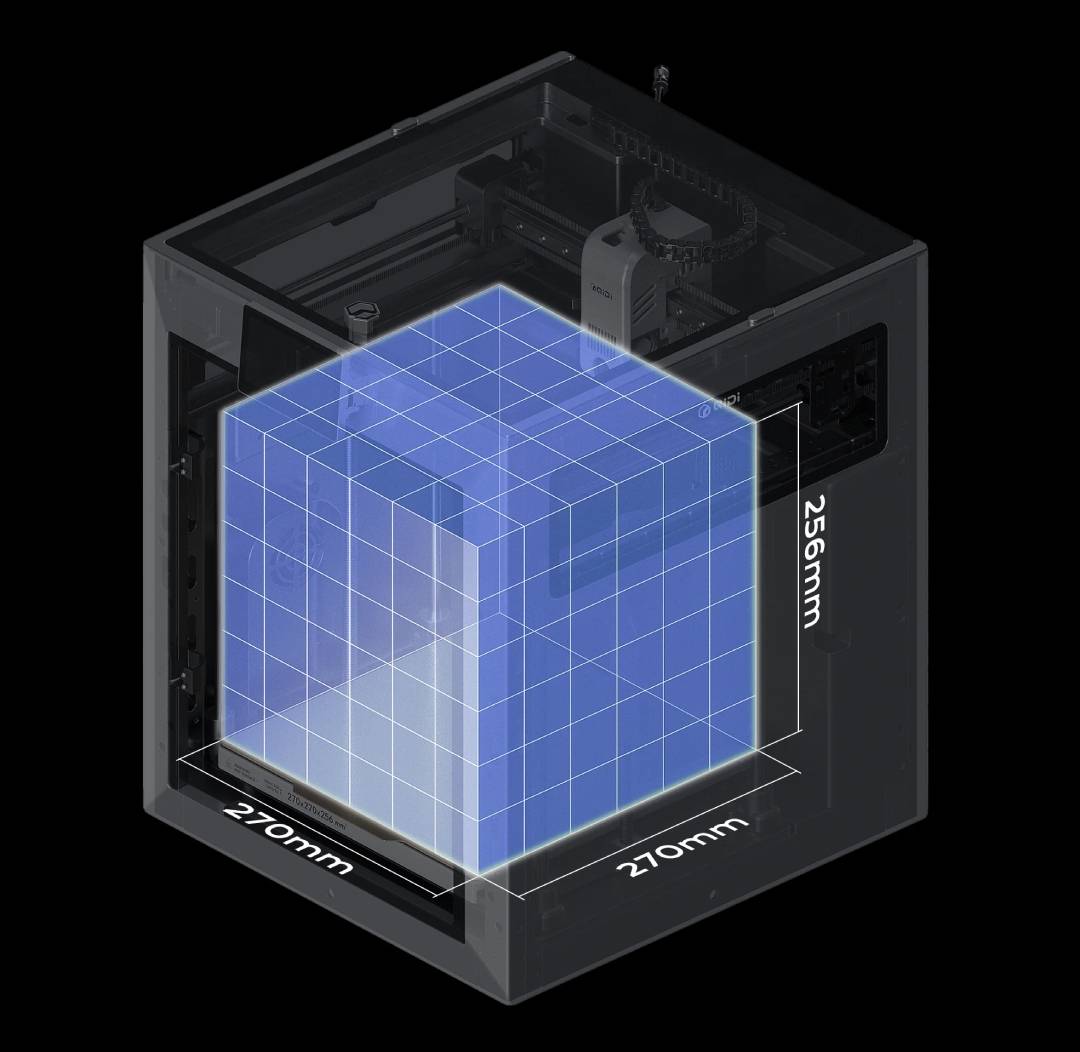

The 270 x 270 x 256 mm build volume provides enough space to print larger models and several smaller elements in one job.

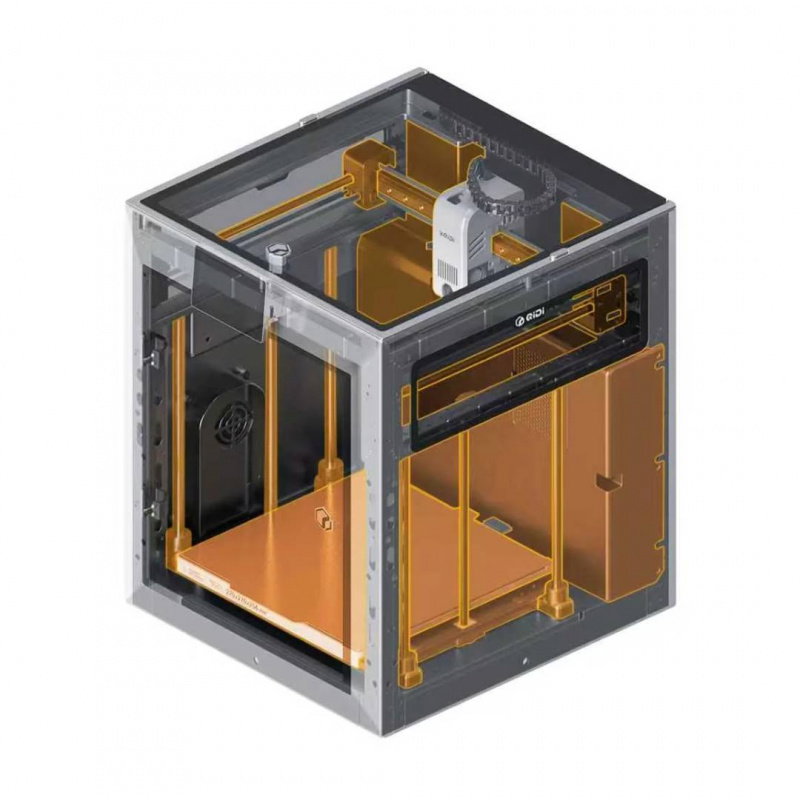

The stable design of the CoreXY and the fast printing of the QIDI Q2 Combo

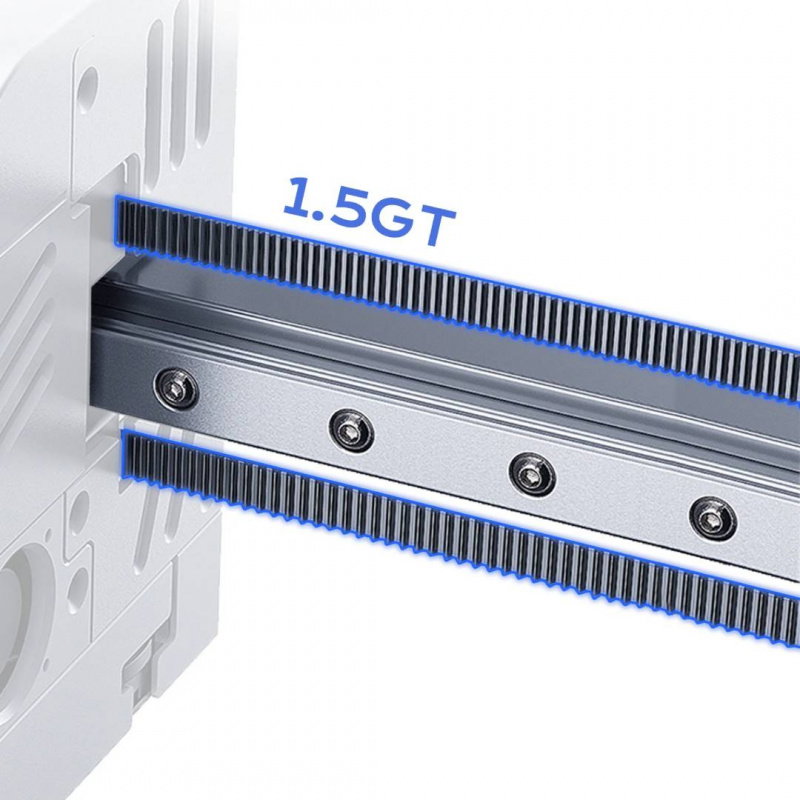

The QIDI Q2 Combo is designed to combine high speed with the stability needed to produce accurate models. The CoreXY system utilizes a metal motion frame , a high-hardness X-axis linear guide, and 1.5GT belts with increased tooth density to help reduce VFA artifacts. The Z-axis utilizes two independently driven lead screws, and a resonance compensation feature further reduces the impact of vibration on the build surface. The head reaches a travel speed of up to 600 mm/s and an acceleration of up to 20,000 mm/s² , making it suitable for both rapid prototyping and production.
QIDI Q2 Combo auto-leveling and precise first layer
The QIDI Q2 Combo features an automatic leveling system using a Load Cell sensor integrated into the hotend . During measurement, the nozzle itself acts as the contact element, eliminating the offset from the filament application point that occurs with a separate probe. This solution simplifies device setup and helps achieve a correct first layer without time-consuming manual platform leveling. A magnetic, double-sided plate with a textured PEI surface facilitates the adhesion of the first layers and allows for convenient removal of finished models after printing.

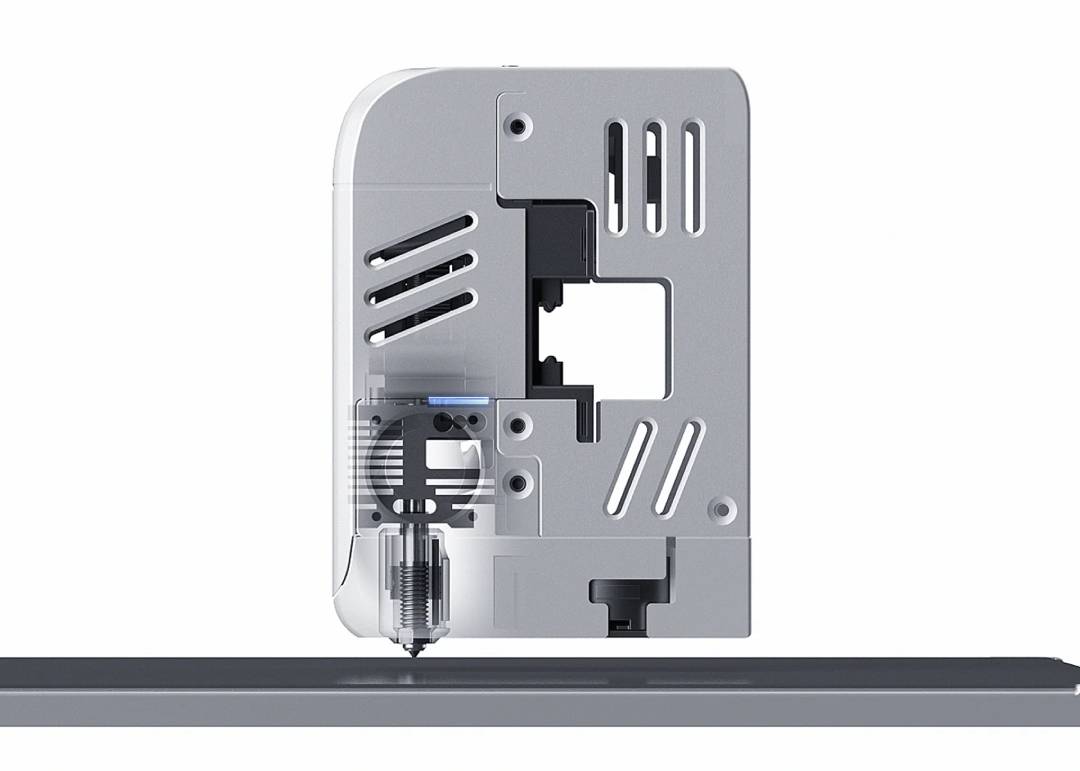

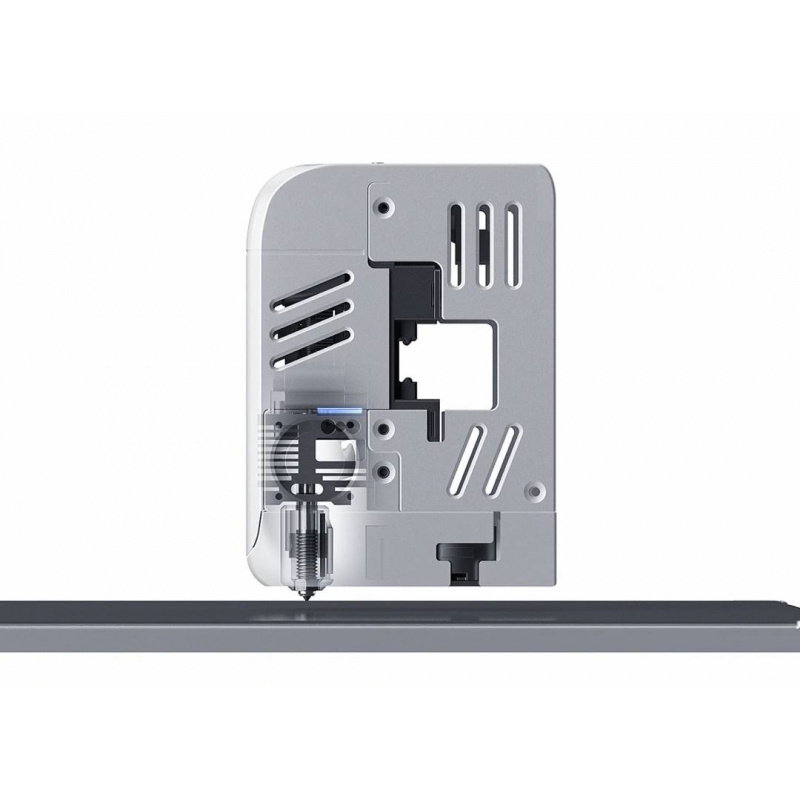

The Load Cell sensor integrated into the hotend utilizes nozzle-to-bed contact, eliminating the offset of a separate probe.

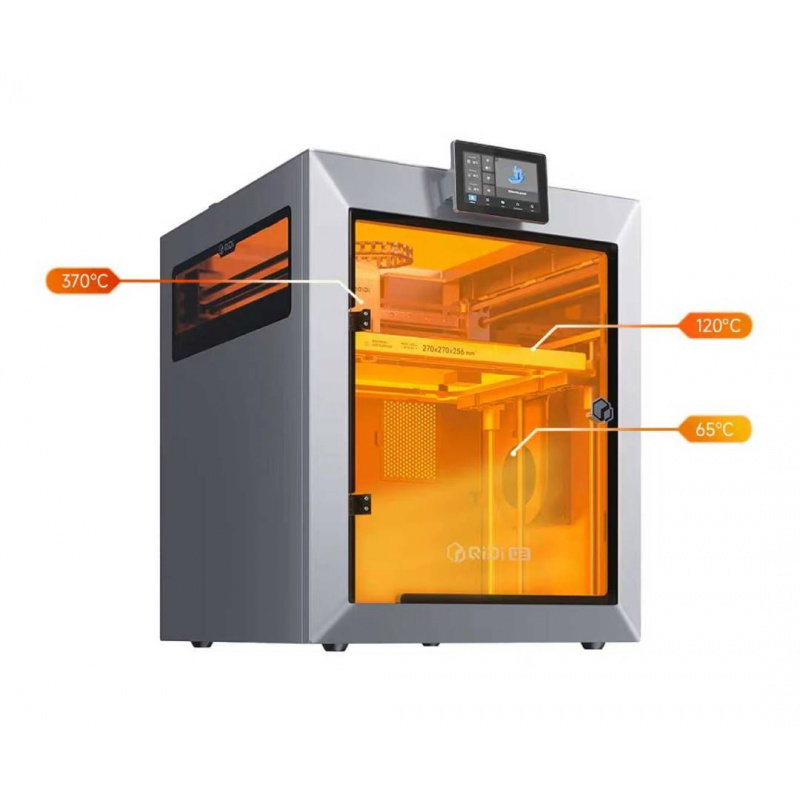

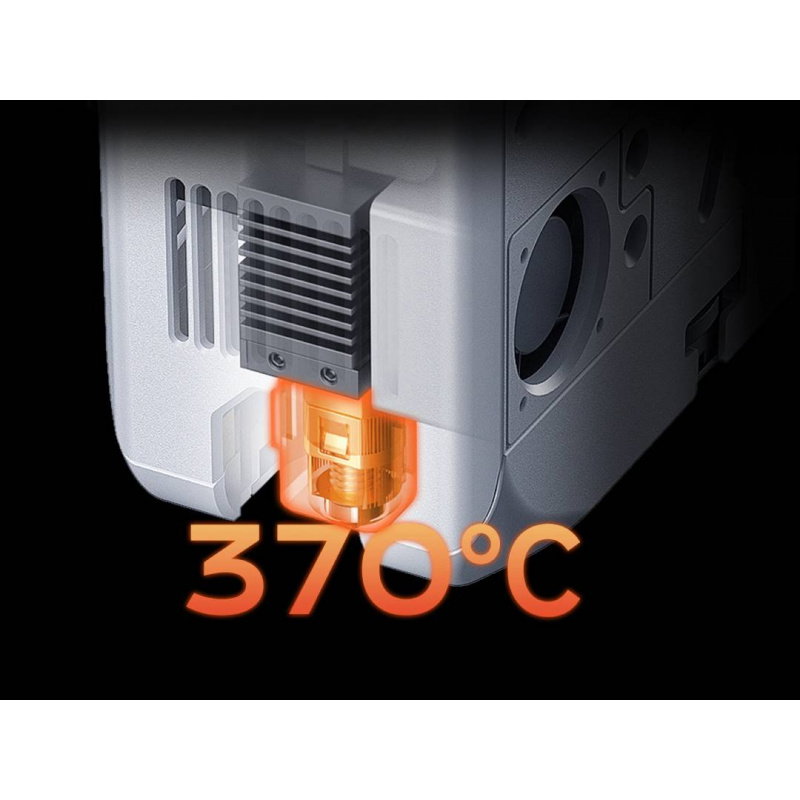

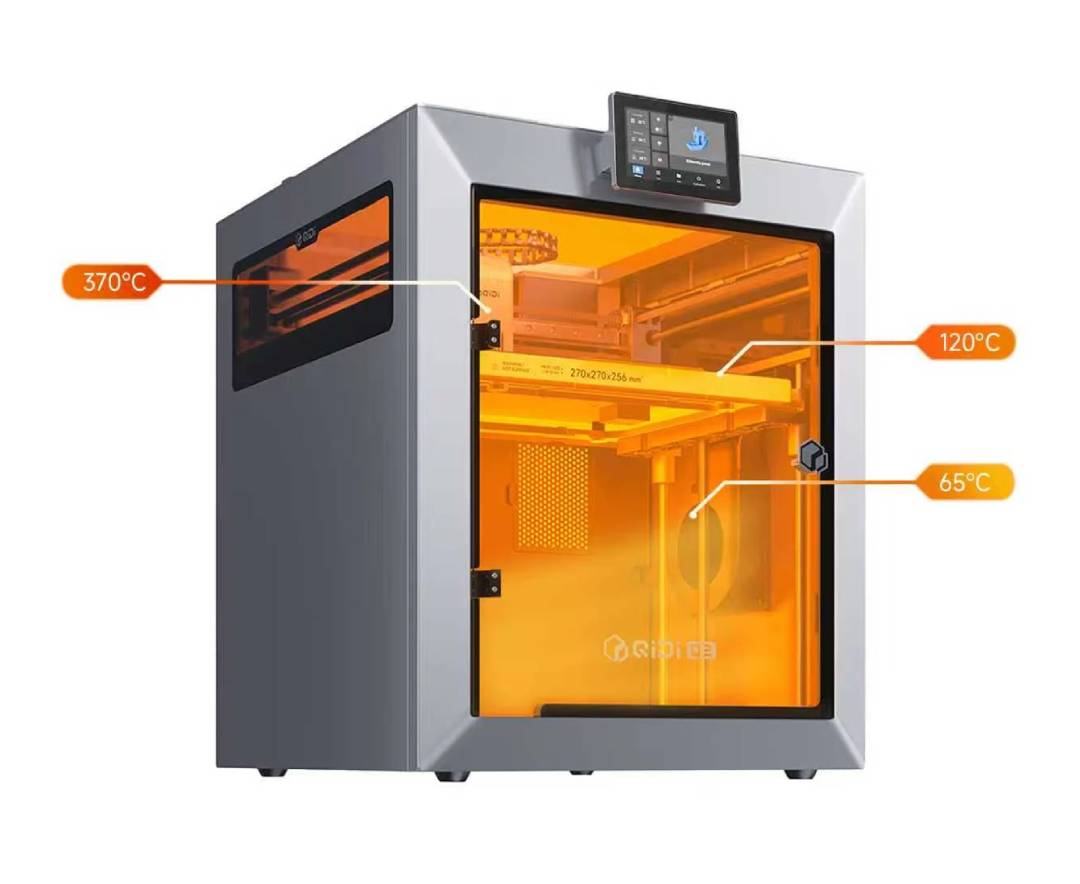

370°C hotend and actively heated chamber for demanding filaments
The QIDI Q2 Combo isn't limited to using only basic filaments, as the hotend reaches temperatures up to 370°C , and the print bed can be heated to 120°C . The second-generation PTC chamber heating system allows for temperatures up to 65°C , providing a more stable thermal environment for materials susceptible to shrinkage and delamination. The direct extruder uses hardened steel gears, while the bimetallic nozzle increases the system's durability when working with more demanding filaments. This allows the printer to support PLA, PETG, ABS, ASA, TPU, PA, PC, and carbon and glass fiber-reinforced polymers , and the manufacturer also indicates the ability to print with PPS-CF.
QIDI Box - automatic filament change and multi-color printing
The key element that distinguishes the QIDI Q2 Combo from the standard QIDI Q2 is the included QIDI Box , which automates filament feeding and switching during printing. The system allows for multi-color and multi-material models , and automatic spool switching also allows for continued printing after one filament runs out, reducing the risk of interrupting a long print. The QIDI Box offers filament drying during printing at temperatures up to 65°C and NFC functionality that automatically recognizes compatible QIDI filaments and selects the appropriate settings. The ability to connect up to four QIDI Box modules allows you to expand the system to support up to 16 materials, making the Q2 Combo suitable for more complex projects requiring multiple colors, support materials, or filaments with different properties.

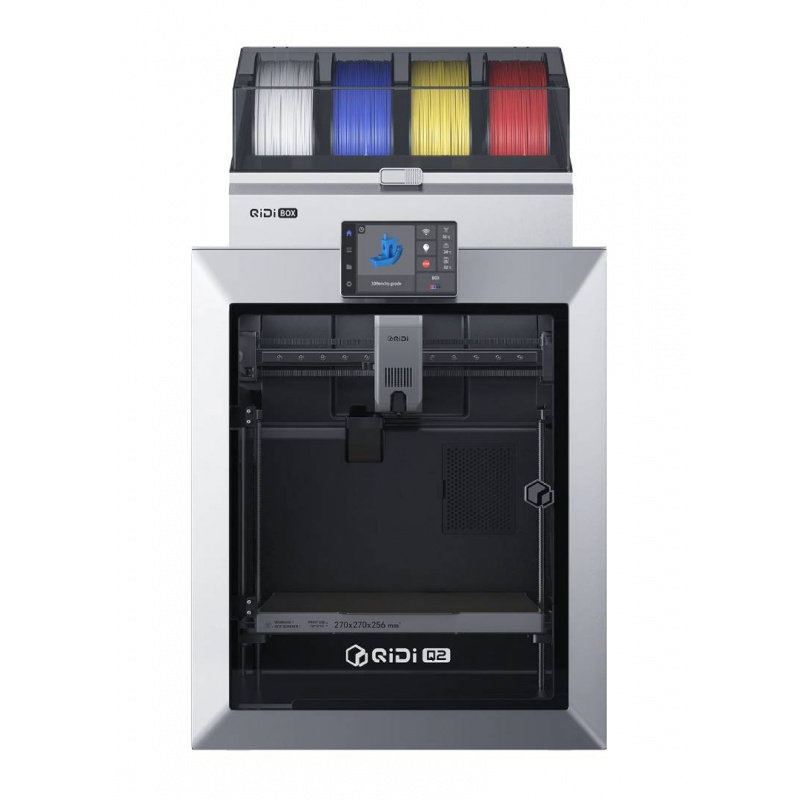

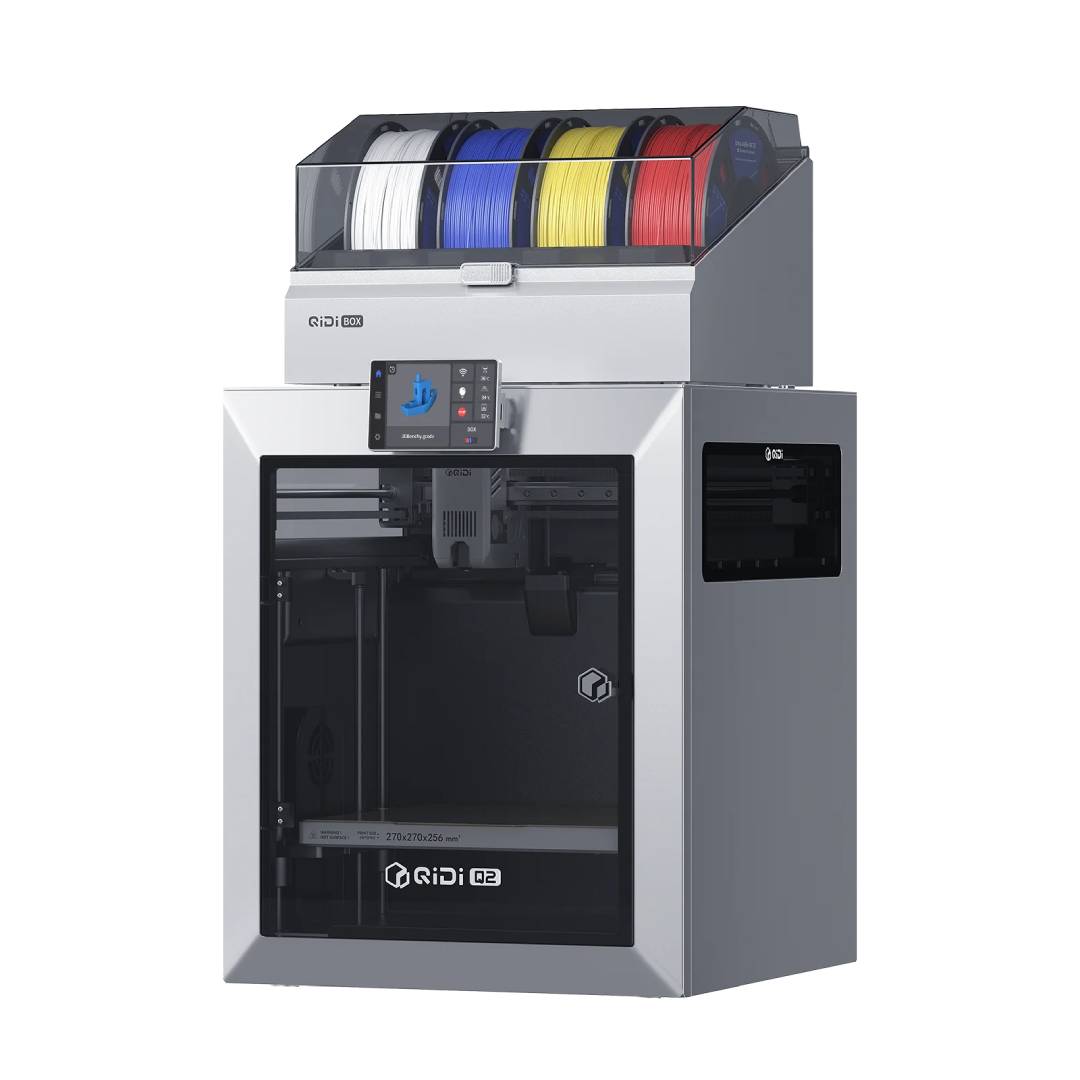

QIDI Box automates filament changes, enables printing with multiple materials and colors, and recognizes compatible QIDI filaments via NFC.

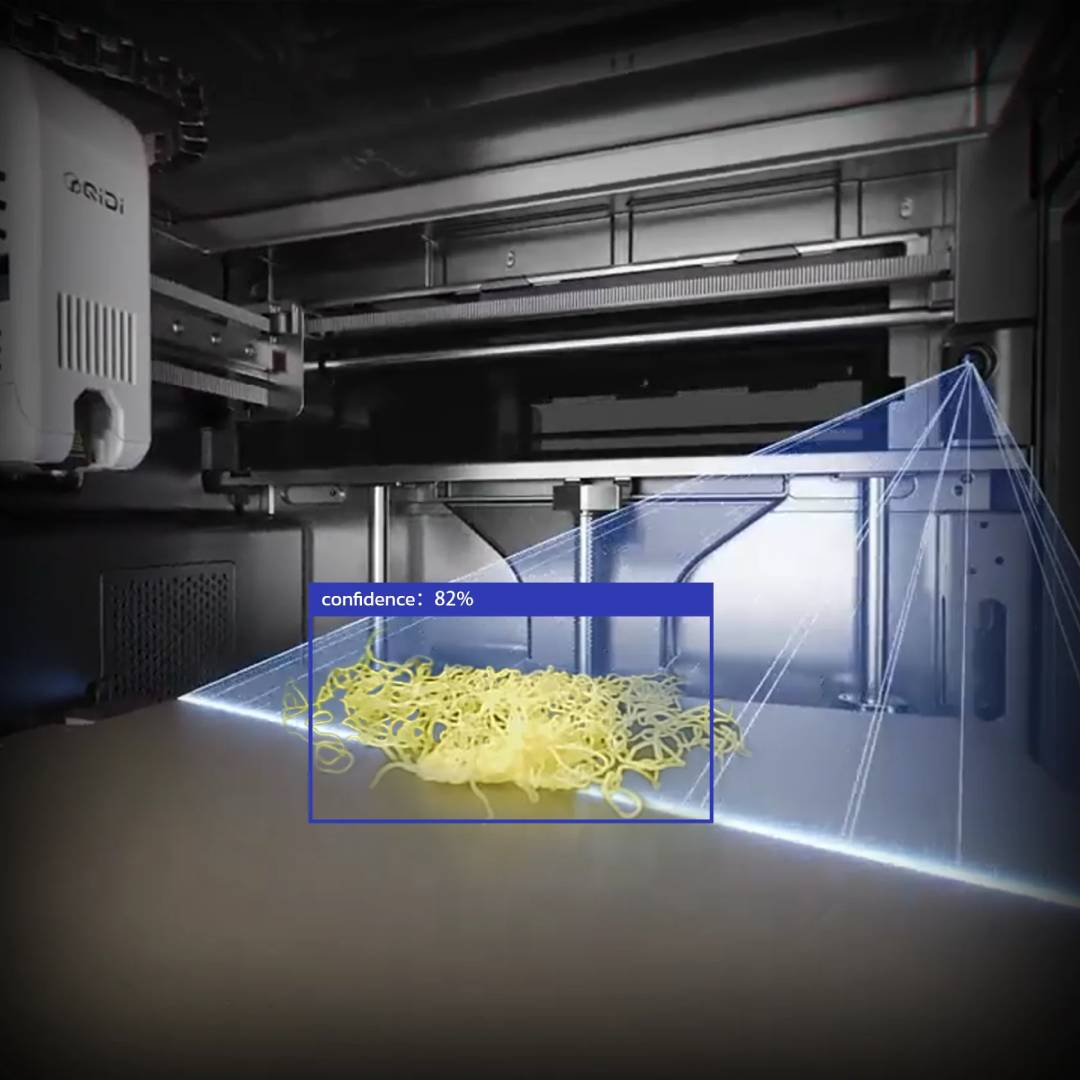

The AI camera allows you to monitor your print, create time-lapse recordings, and detect "spaghetti" irregularities.
AI Camera, Air Filtration, and Print Control Systems
An integrated camera with resolutions up to 1080p allows you to monitor workflows and create time-lapse recordings, while the AI function detects irregularities such as spaghetti formation. The sealed chamber is equipped with a 3-in-1 filtration system consisting of a G3 pre-filter, an HEPA H12 filter, and a coconut shell activated carbon filter. The manufacturer claims 99.5% dust and particle capture efficiency. Additional safety features include multi-sensor closed-loop temperature control, a filament end sensor , and a power-outage resume function , while the QIDI Box system also provides filament tangling detection.
QIDI Studio, connectivity and convenient operation of the Q2 Combo
For model preparation, the manufacturer provides QIDI Studio , and the Q2 Combo can also work with third-party software such as OrcaSlicer and PrusaSlicer . STL, OBJ, 3MF, and STEP/STP files are supported. This makes it easy to move from CAD design directly to print preparation. The printer has 32 GB eMMC memory, a USB port , and Wi-Fi and Ethernet interfaces, so jobs can be sent over the network or run locally from a USB drive. The Q2 Combo kit is pre-configured for use with the QIDI Box, providing the user with a complete workstation for standard, multi-color, and multi-material 3D printing.

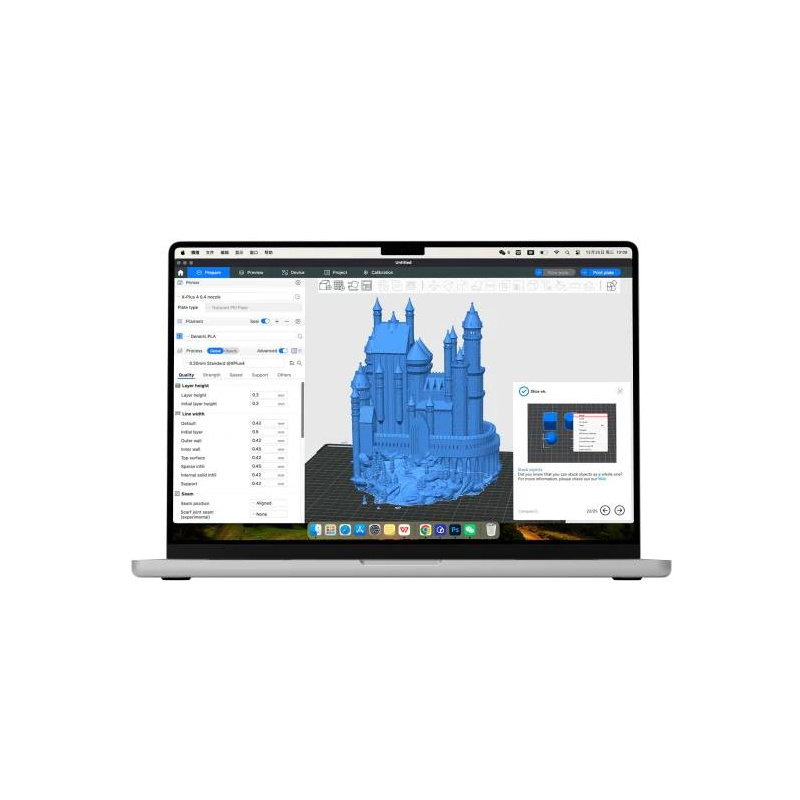

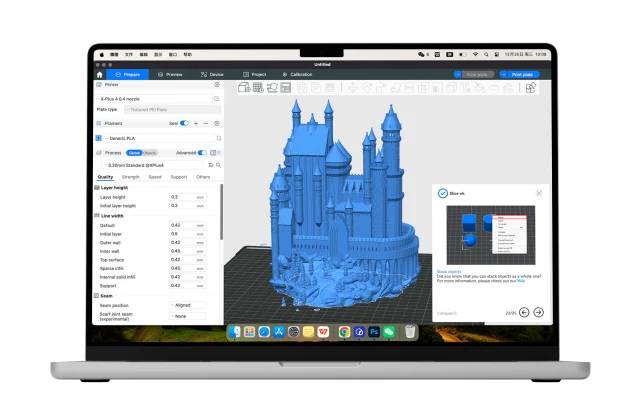

QIDI Studio is slicer software designed to prepare 3D models for printing and manage the printing process.
QIDI Box enables multi-color and multi-material printing, automatic spool changing and filament drying during operation.
QIDI Q2, Q2C and Q2 Combo - the most important differences
The QIDI Q2 is a full-featured printer with a closed enclosure featuring glass panels, an actively heated chamber, a 3-in-1 filtration system, and an AI camera. The Q2C retains its 270 x 270 x 256 mm build volume, a hotend temperature of up to 370°C, and a printhead speed of up to 600 mm/s, but is a simplified version without active chamber heating. The air filter and camera are optional . The QIDI Q2 Combo utilizes the capabilities of the standard Q2, but the factory setup has been expanded with the QIDI Box , so it's ready for automatic printing with multiple colors and materials. The Combo variant is suitable for users who want automatic filament switching without having to purchase the basic QIDI Box module.
Contents of the set
- QIDI Q2 3D printer
- QIDI Box multi-material system
- Touch screen
- Filament spool holder
- Handle cover
- Filament holder extension with pneumatic quick-release coupling
- Power cord
- Ethernet cable
- USB 2.0 memory
- Spare parts kit
- Lubricating oil
- 7 mm wrench
- Flat screwdriver
- Glue stick
- Set of Allen keys H1.27, H1.5, H2, H2.5 and H3
- Scraper
- Silicone cleaning element

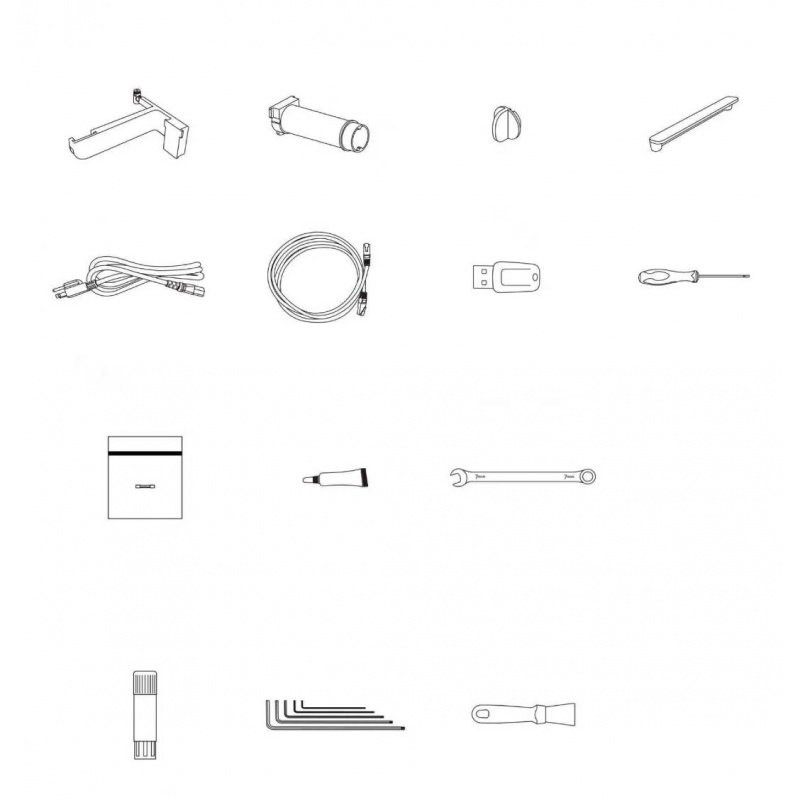

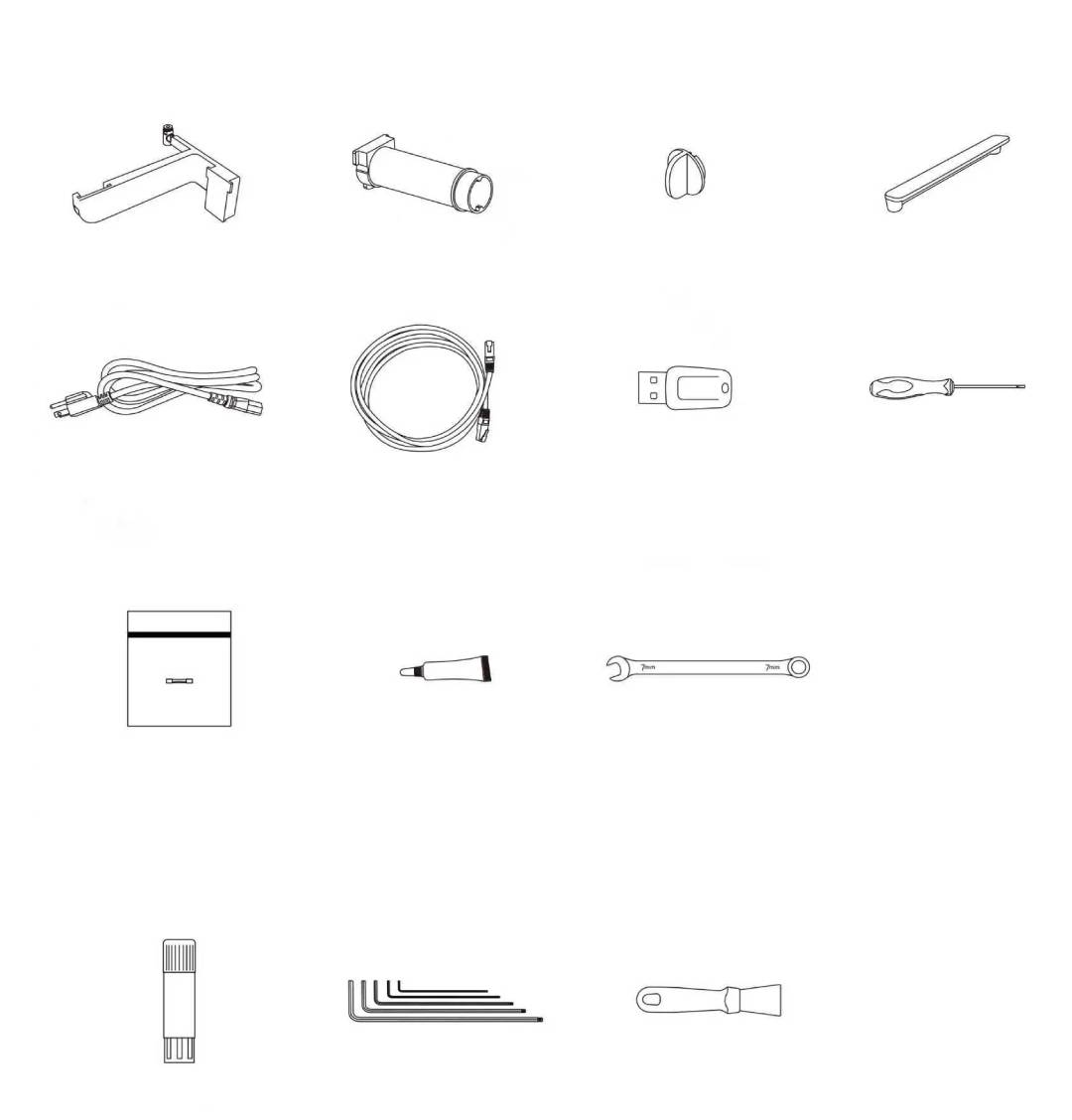

Elements included in the set.
| Technical specifications of the QIDI Q2 Combo printer | |
|---|---|
| Printing technology | FDM / FFF |
| XY kinematics | CoreXY |
| Belts | 1.5GT |
| X-axis | high hardness linear guide |
| Z axis | two independent trapezoidal screw motors |
| Working field | 270 x 270 x 256 mm |
| Maximum head temperature | 370°C |
| Hotend | ceramic heating system, multi-metal construction |
| Extruder type | Direct |
| Extruder wheels | hardened steel, double gears |
| Nozzle | bimetallic |
| Standard nozzle diameter | 0.4 mm |
| Optional nozzle diameters | 0.2mm, 0.6mm, 0.8mm |
| Filament diameter | 1.75 mm |
| Work platform | aluminum heated table |
| Worktop | double-sided, textured PEI board |
| Maximum table temperature | 120°C |
| Chamber heating | independent second-generation PTC system |
| Maximum chamber temperature | 65°C |
| Maximum head speed | 600 mm/s |
| Maximum acceleration | 20000 mm/s² |
| Automatic leveling | yes, Load Cell sensor integrated into the hotend |
| Resonance compensation | Yes |
| Filament end sensor | Yes |
| Filament entanglement detection | yes, with QIDI Box |
| Filament blockage detection | Yes |
| Filament cutter | Yes |
| Camera | up to 1080p |
| Timelapse recording | Yes |
| AI error detection | Yes |
| Air filtration | 3 in 1 |
| Filtration system components | G3 pre-filter + HEPA H12 + coconut shell activated carbon |
| Hotend cooling fan | 4-pin PWM with RPM feedback |
| Model cooling fan | 4-pin PWM with RPM feedback |
| Auxiliary model cooling fan | 4-pin PWM with RPM feedback |
| Motherboard fan | closed-loop control |
| Chamber circulation fan | closed-loop control |
| Supported filaments | PLA, ABS, ASA, PETG, TPU, PA, PC, carbon/glass fiber reinforced polymers and others |
| Multi-color and multi-material printing | yes, QIDI Box included |
| Automatic filament change | Yes |
| Automatic spool switching when filament runs out | Yes |
| NFC filament recognition | yes, compatible QIDI filaments |
| Drying the filament in the QIDI Box | yes, up to 65°C |
| Maximum number of connected QIDI Boxes | 4 |
| Maximum number of materials when expanding the system | 16 |
| Resuming work after a power outage | Yes |
| Memory | 32GB eMMC |
| USB drive | USB 2.0 |
| Communication | WiFi, Ethernet, USB |
| Screen | 4.3" touchscreen |
| Screen resolution | 480 x 272 px |
| Software | QIDI Studio, OrcaSlicer, PrusaSlicer and others |
| Supported model formats | STL, OBJ, 3MF, STEP / STP |
| Supported operating systems | Windows, macOS, Linux |
| Power supply | 110 V / 220 V to 240 V AC, 50 / 60 Hz - depending on regional version |
| Printer power rating | 350 W |
| Chamber heating power | 280 W |
| Dimensions | 402 x 438 x 494 mm |
| Mass | 18.1 kg |
