Product description: 3D printer - QIDI Q2
The QIDI Q2 is a fast, enclosed 3D printer utilizing CoreXY kinematics, a metal construction, and an X-axis linear guide. A 270 x 270 x 256 mm build volume, a hotend up to 370°C , a bed up to 120°C , and an actively heated chamber up to 65°C enable working with both basic and demanding filaments . The printhead can move at speeds of up to 600 mm/s and acceleration up to 20,000 mm/s². The Q2 offers automatic leveling using the nozzle and Load Cell sensor, a 1080p camera with AI print error detection , a filament end sensor, resonance compensation, and print recovery after a power outage. A G3 + HEPA H12 + activated carbon filtration system supports air purification, and compatibility with the QIDI Box allows for expansion of the device for multi-color and multi-material printing.

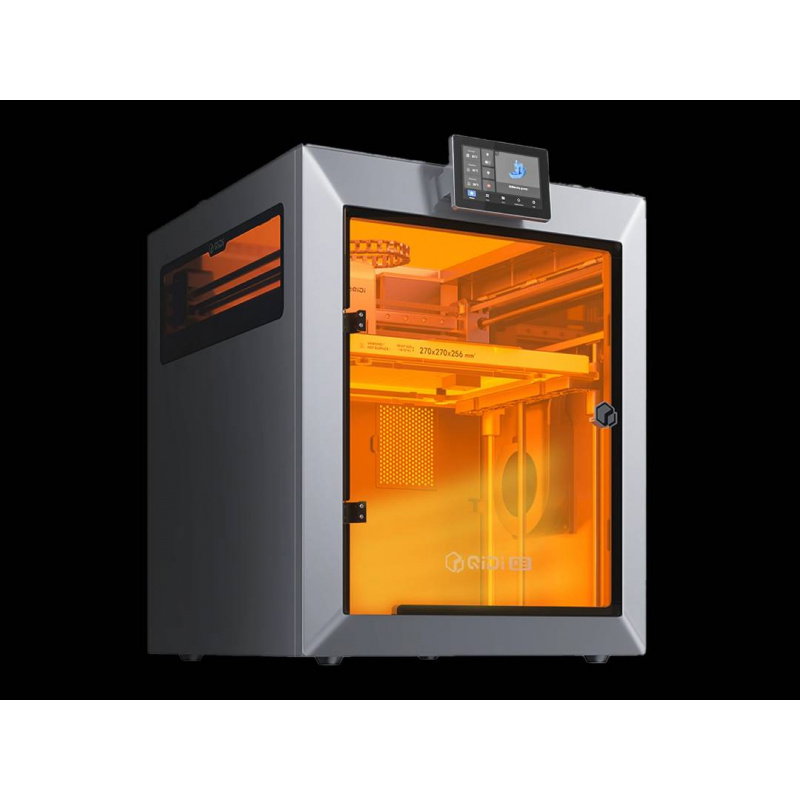

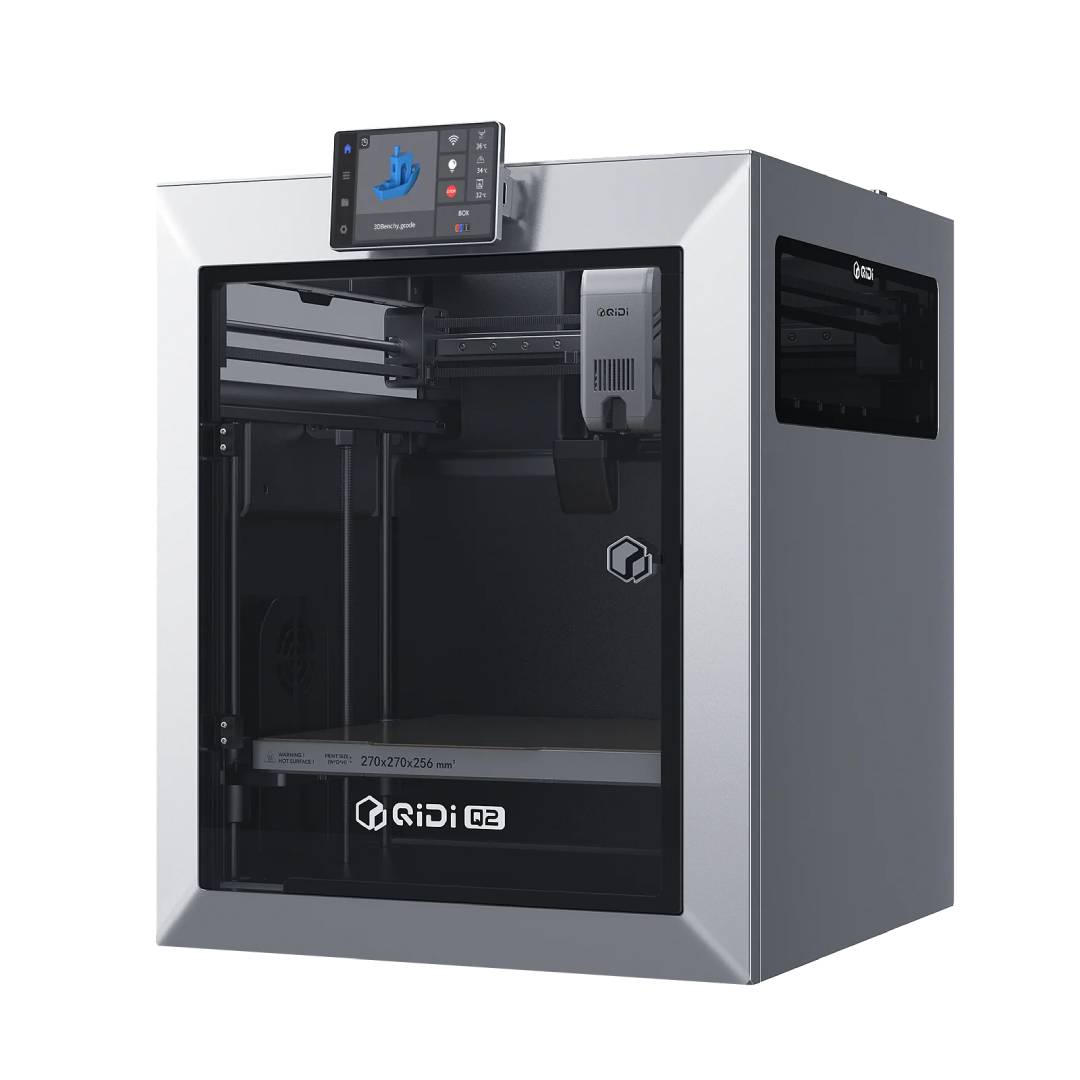

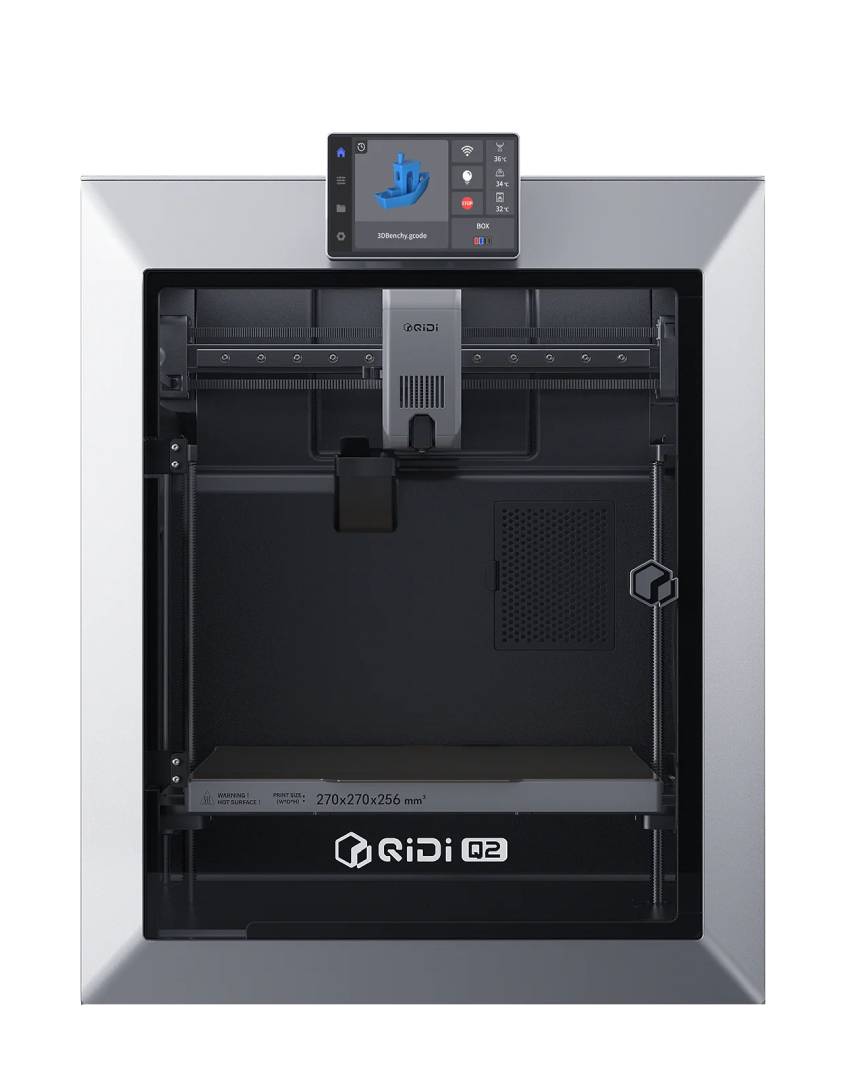

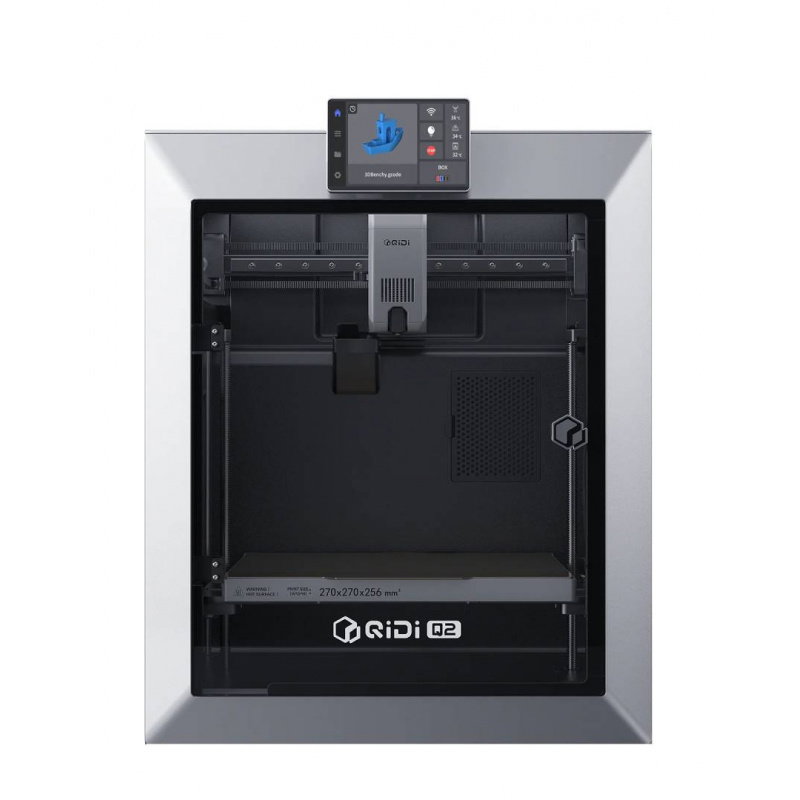

3D printer - QIDI Q2.

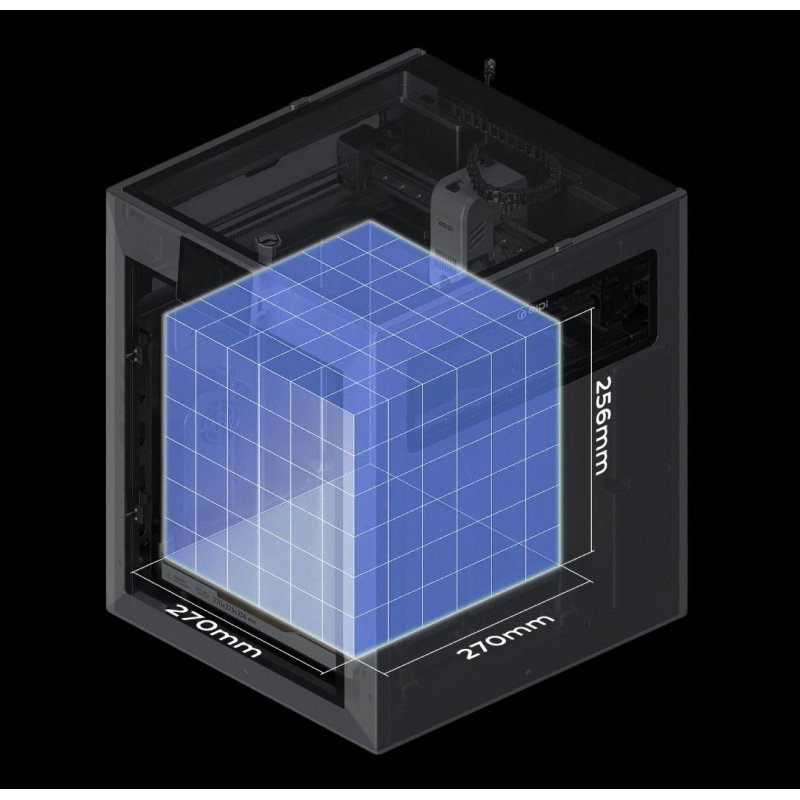

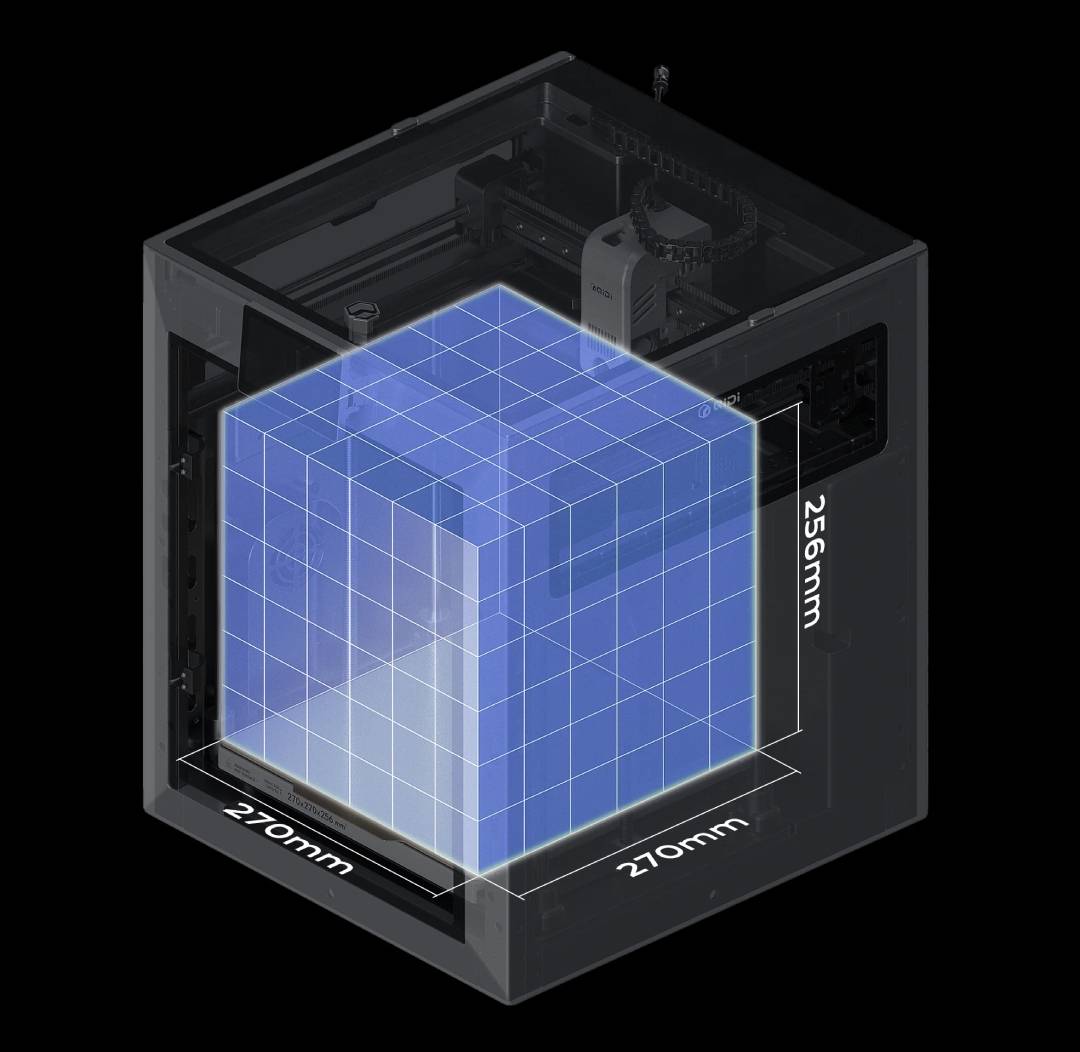

The 270 x 270 x 256 mm build volume provides enough space to print larger models and several smaller elements in one job.

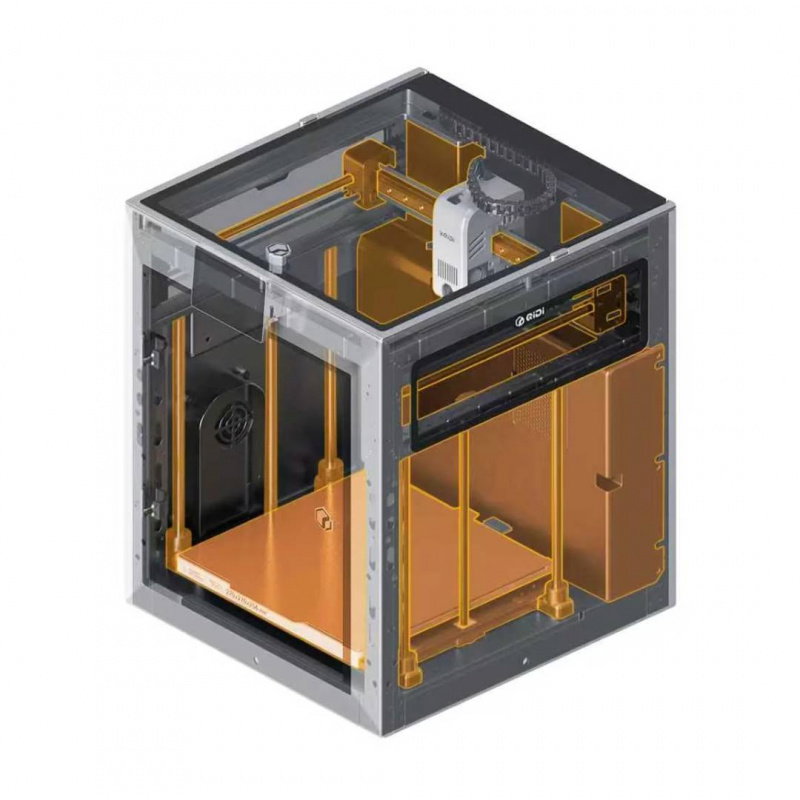

Stable CoreXY design and fast QIDI Q2 printing

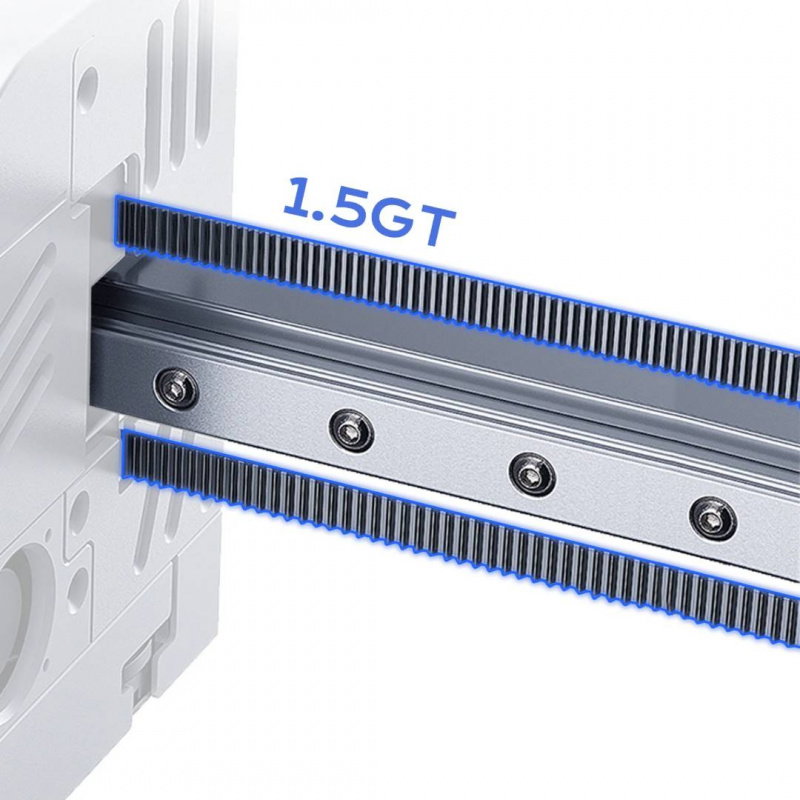

The QIDI Q2 is designed to combine high speed with the stability needed to produce accurate models. The CoreXY system utilizes a metal frame for the motion mechanism, a high-hardness X-axis linear guide, and 1.5GT belts with increased tooth density to help minimize VFA artifacts. The Z-axis utilizes two independently driven lead screws, and a resonance compensation feature further reduces the impact of vibration on the build surface. The head reaches a travel speed of up to 600 mm/s and an acceleration of up to 20,000 mm/s² , making it suitable for both rapid prototyping and production.
QIDI Q2 automatic leveling and precise first layer
The QIDI Q2 features an automatic leveling system using a Load Cell sensor integrated into the hotend . During measurement, the nozzle itself acts as the contact element, eliminating the offset from the filament application point that occurs with a separate probe. This solution simplifies device setup and helps achieve a correct first layer without time-consuming manual platform leveling. A magnetic, double-sided plate with a textured PEI surface facilitates the adhesion of the first layers and allows for convenient removal of finished models after printing.

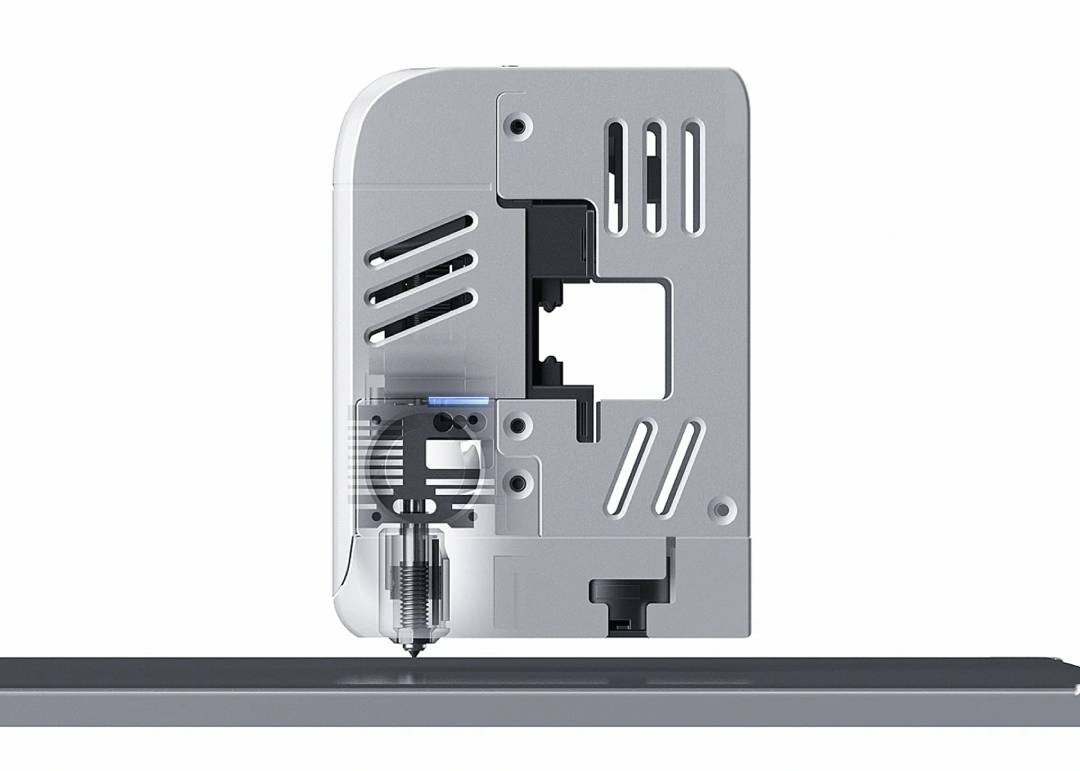

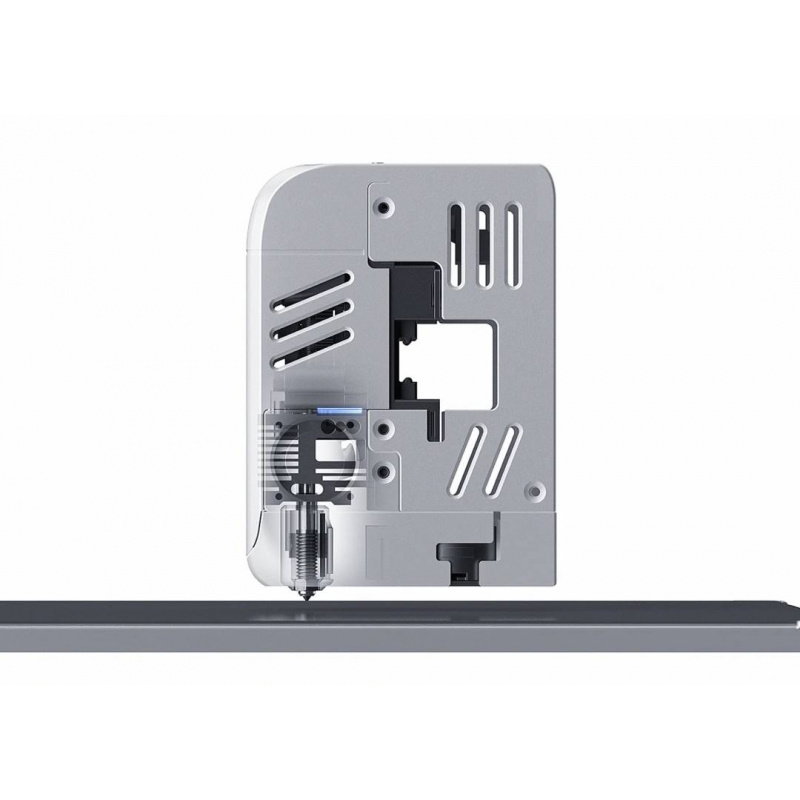

The Load Cell sensor integrated into the hotend utilizes nozzle-to-bed contact, eliminating the offset of a separate probe.

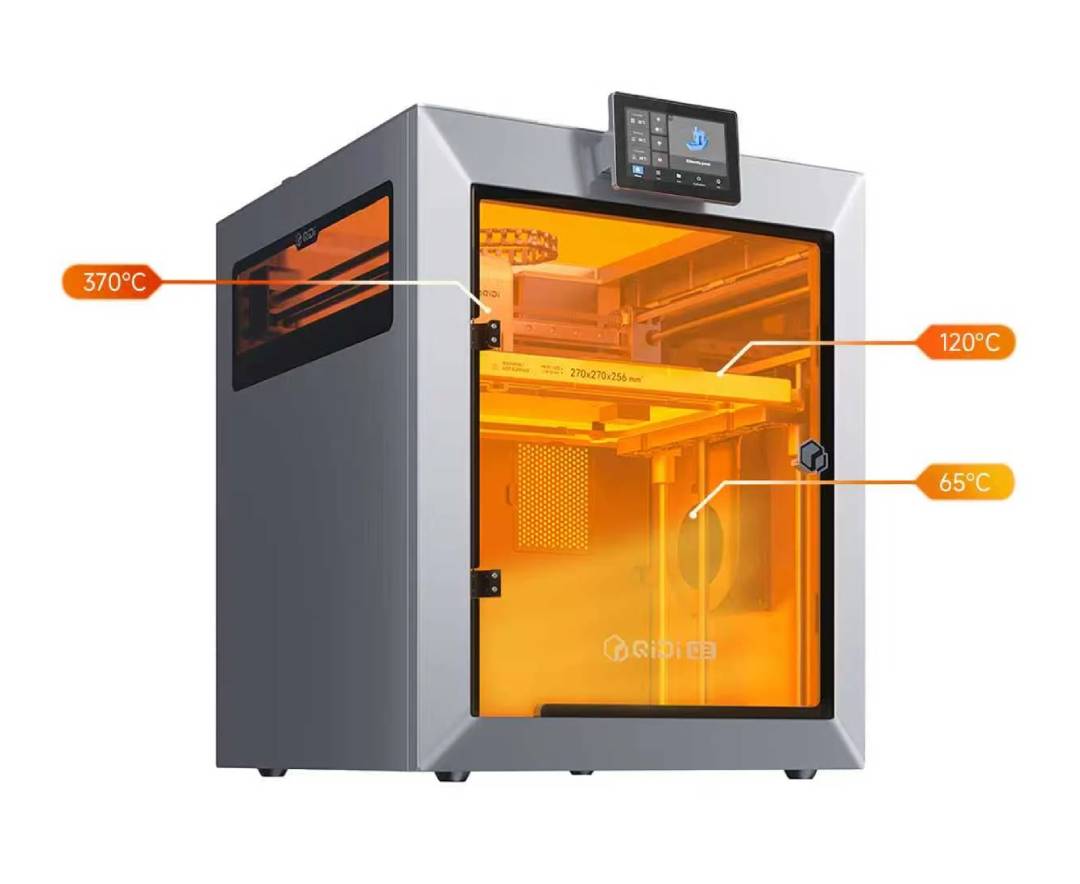

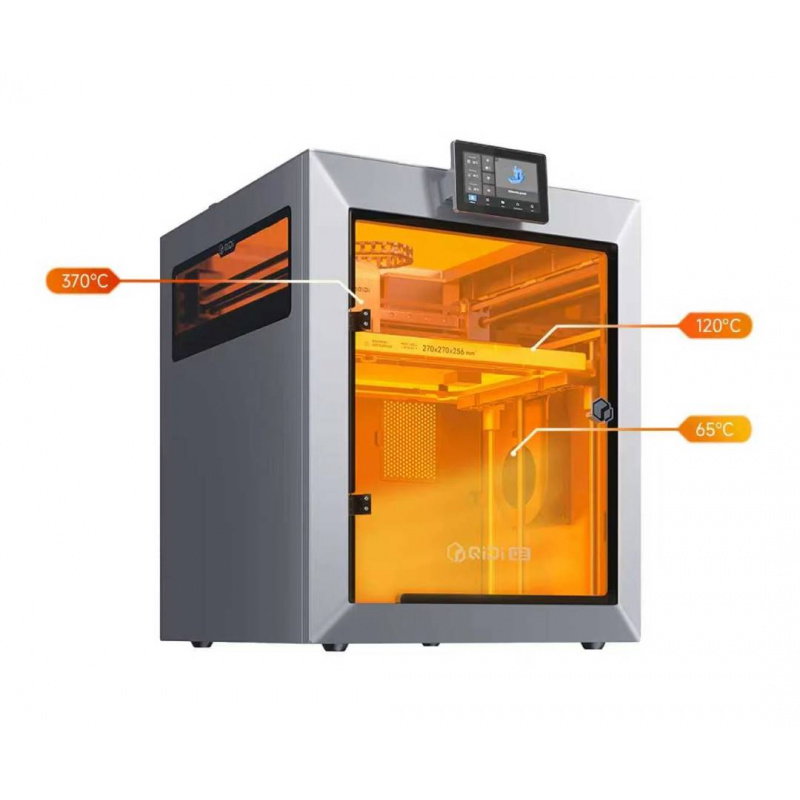

The actively heated chamber up to 65°C stabilizes thermal conditions when working with materials susceptible to shrinkage.

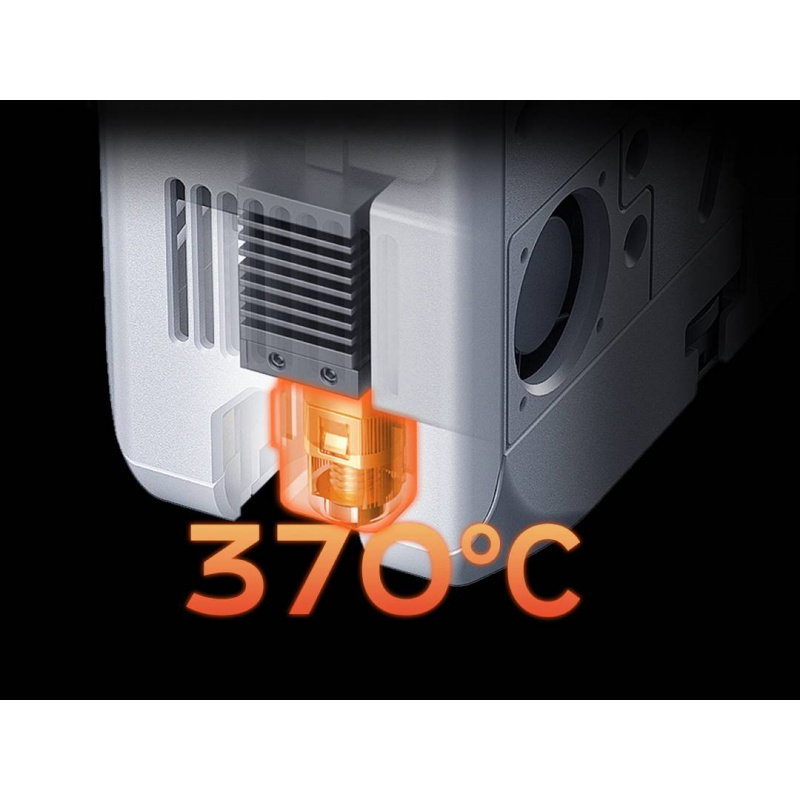

370°C hotend and actively heated chamber for demanding filaments
The QIDI Q2 isn't limited to using only basic filaments, as the hotend reaches temperatures up to 370°C , and the print bed can be heated to 120°C . The second-generation PTC chamber heating system allows for temperatures up to 65°C , providing a more stable thermal environment for materials susceptible to shrinkage and delamination. The direct extruder uses hardened steel gears, while the bimetallic nozzle increases the system's durability when working with more demanding filaments. This allows the printer to support PLA, PETG, ABS, ASA, TPU, PA, PC, and carbon and glass fiber-reinforced polymers , and the manufacturer also indicates the ability to print with PPS-CF.
AI Camera, Air Filtration, and Print Control Systems
An integrated camera with resolutions up to 1080p allows you to monitor workflow and create time-lapse recordings, while the AI function detects irregularities such as spaghetti formation. The sealed chamber is equipped with a 3-in-1 filtration system consisting of a G3 pre-filter, an HEPA H12 filter, and a coconut shell activated carbon filter. The manufacturer claims 99.5% dust and particle capture efficiency. Additional safety features include multi-sensor closed-loop temperature control, a filament end sensor , and a power-outage restart function , as well as flame-retardant chamber materials.

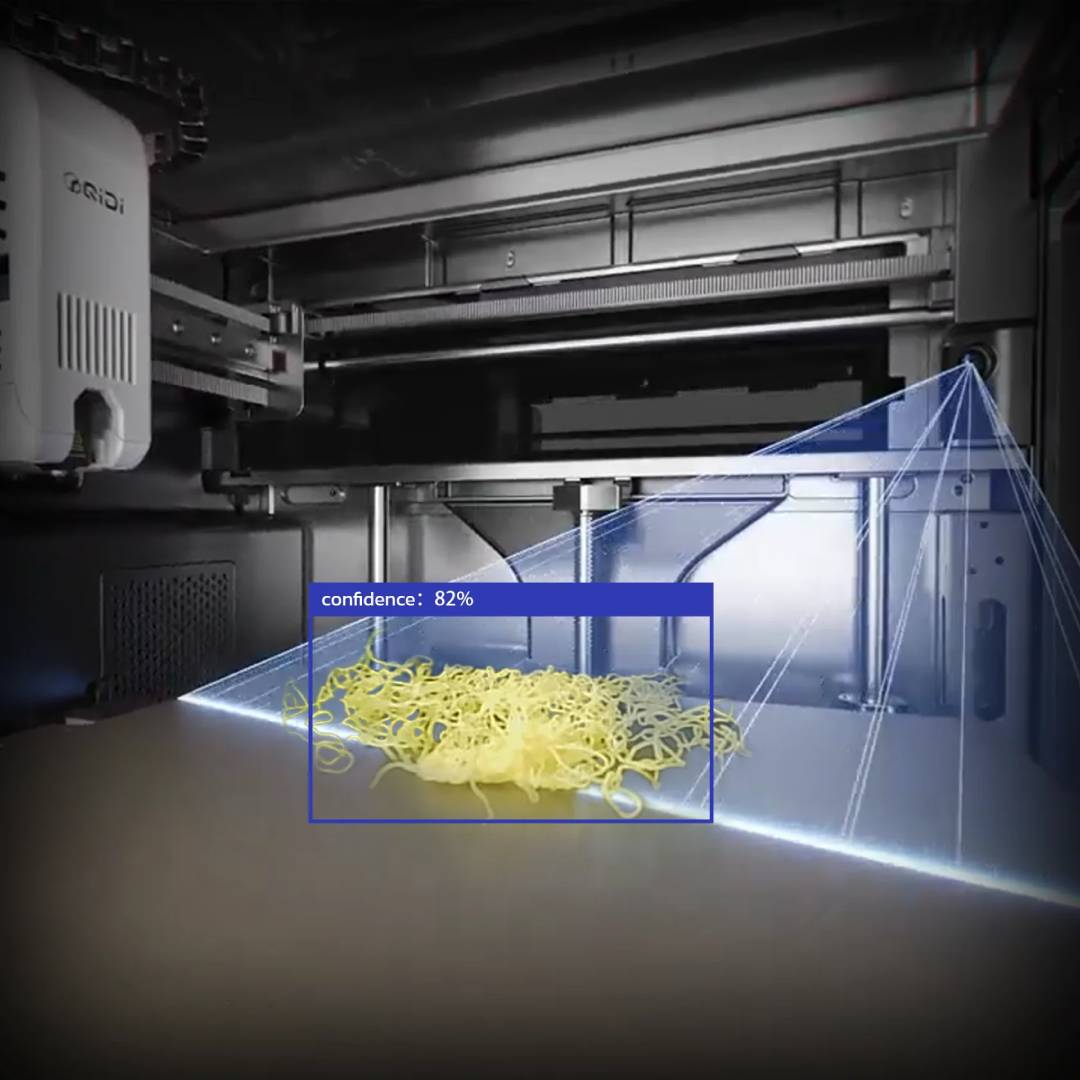

The AI camera up to 1080p allows you to monitor your print, create time-lapse recordings, and detect "spaghetti" irregularities.

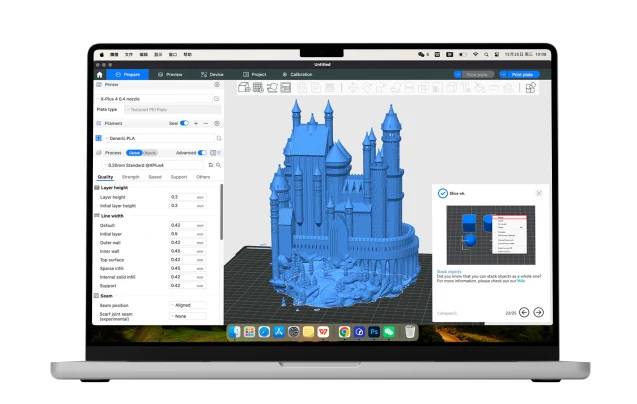

QIDI Studio is slicer software designed to prepare 3D models for printing and manage the printing process.
QIDI Studio, connectivity and expansion with QIDI Box
For model preparation, the manufacturer provides QIDI Studio , and the Q2 can also be used with third-party software such as OrcaSlicer and PrusaSlicer . STL, OBJ, 3MF, and STEP/STP files are supported, making it easy to move from CAD design directly to print preparation. The printer has 32 GB eMMC memory, a USB port , and Wi-Fi and Ethernet interfaces, so jobs can be sent over the network or run locally from a USB drive. The ability to later connect a QIDI Box means you can start with a single spool and then expand the station with automatic material changing without having to replace the printer itself.
QIDI Q2, Q2C and Q2 Combo - the most important differences
The QIDI Q2 is a full-featured printer with a closed enclosure with glass panels, an actively heated chamber, a 3-in-1 filtration system, and an AI camera. The Q2C retains its 270 x 270 x 256 mm build volume, a hotend up to 370°C, and a printhead speed of up to 600 mm/s, but is a simplified version without active chamber heating. The air filter and camera are optional . The Q2 Combo, on the other hand, is based on the Q2's equipment, but the kit also includes the QIDI Box system for automatic multi-filament handling . The QIDI Box enables multi-color and multi-material printing. automatic spool switching, NFC-enabled QIDI filament recognition, and material drying during printing. By connecting up to four modules, the system can handle up to 16 materials. The Q2 is therefore suitable for users who need a complete single-material printer with the option of future expansion. The Q2C lowers the entry threshold at the expense of some equipment, while the Q2 Combo is a solution designed from the ground up for multi-color operation.
QIDI Q2 can be used as the first 3D printer at home or in a studio, but its parameters also allow it to be used in more advanced projects.
Elements included in the set.
Contents of the set
- QIDI Q2 3D printer
- Touch screen
- Filament spool holder
- Handle cover
- Filament holder extension with pneumatic quick-release coupling
- Power cord
- Ethernet cable
- USB 2.0 memory
- Spare parts kit
- Lubricating oil
- 7 mm wrench
- Flat screwdriver
- Glue stick
- Set of Allen keys H1.27, H1.5, H2, H2.5 and H3
- Scraper
- Silicone cleaning element
| Technical specifications of the QIDI Q2 printer | |
|---|---|
| Printing technology | FDM / FFF |
| XY kinematics | CoreXY |
| Belts | 1.5GT |
| X-axis | high hardness linear guide |
| Z axis | two independent trapezoidal screw motors |
| Working field | 270 x 270 x 256 mm |
| Maximum head temperature | 370°C |
| Hotend | ceramic heating system, multi-metal construction |
| Extruder type | Direct |
| Extruder wheels | hardened steel, double gears |
| Nozzle | bimetallic |
| Standard nozzle diameter | 0.4 mm |
| Optional nozzle diameters | 0.2mm, 0.6mm, 0.8mm |
| Filament diameter | 1.75 mm |
| Work platform | aluminum heated table |
| Worktop | double-sided, textured PEI board |
| Maximum table temperature | 120°C |
| Chamber heating | independent second-generation PTC system |
| Maximum chamber temperature | 65°C |
| Maximum head speed | 600 mm/s |
| Maximum acceleration | 20000 mm/s² |
| Automatic leveling | yes, Load Cell sensor integrated into the hotend |
| Resonance compensation | Yes |
| Filament end sensor | Yes |
| Filament entanglement detection | yes, requires QIDI Box |
| Filament blockage detection | Yes |
| Filament cutter | Yes |
| Camera | up to 1080p |
| Timelapse recording | Yes |
| AI error detection | Yes |
| Air filtration | 3 in 1 |
| Filtration system components | G3 pre-filter + HEPA H12 + coconut shell activated carbon |
| Hotend cooling fan | 4-pin PWM with RPM feedback |
| Model cooling fan | 4-pin PWM with RPM feedback |
| Auxiliary model cooling fan | 4-pin PWM with RPM feedback |
| Motherboard fan | closed-loop control |
| Chamber circulation fan | closed-loop control |
| Supported filaments | PLA, ABS, ASA, PETG, TPU, PA, PC, carbon/glass fiber reinforced polymers and others |
| Multicolor printing | yes, after connecting the QIDI Box |
| Resuming work after a power outage | Yes |
| Memory | 32GB eMMC |
| USB drive | USB 2.0 |
| Communication | WiFi, Ethernet, USB |
| Screen | 4.3" touchscreen |
| Screen resolution | 480 x 272 px |
| Software | QIDI Studio, OrcaSlicer, PrusaSlicer and others |
| Supported model formats | STL, OBJ, 3MF, STEP / STP |
| Supported operating systems | Windows, macOS, Linux |
| Power supply | 110 V / 220 V to 240 V AC, 50 / 60 Hz - depending on regional version |
| Printer power rating | 350 W |
| Chamber heating power | 280 W |
| Dimensions | 402 x 438 x 494 mm |
| Mass | 18.1 kg |
