Arduino MKR GPS Shield ASX00017 - Shield for Arduino MKR

Index: ARD-16718 EAN: 7630049201248

Overlay for Arduino MKR series, allows you to create projects that require GPS location determination. On the board is integrated GNSS u-blox SAM-M8Q. The device can be placed directly on MKR pins or connected to any device with such a connector using the included ESLOV cable. It communicates via I2C or UART interface.

Arduino MKR GPS Shield ASX00017 - Shield for Arduino MKR
€58.90
€47.89 tax excl.
Waiting time: 2-4 weeks
Only on request
PayPal payment
Manufacturer: Arduino
Compatibility: Arduino

Description: Arduino MKR GPS Shield ASX00017 - cap for Arduino MKR

Overlay forArduino MKR series,allows you to create projects that require GPS location determination. On the board is integrated GNSSu-blox SAM-M8Q.The module is designed to work with different positioning services simultaneously. It allows to receive and send signals from GPS, GLONASS and Galileo. The device can be placed directly on MKR pins or connected with any device having such a connector using the includedESLOVcable. It communicates viaI2Cinterface in case of connection via ESLOV or UART connector when it is superimposed on Arduino MKR pins.

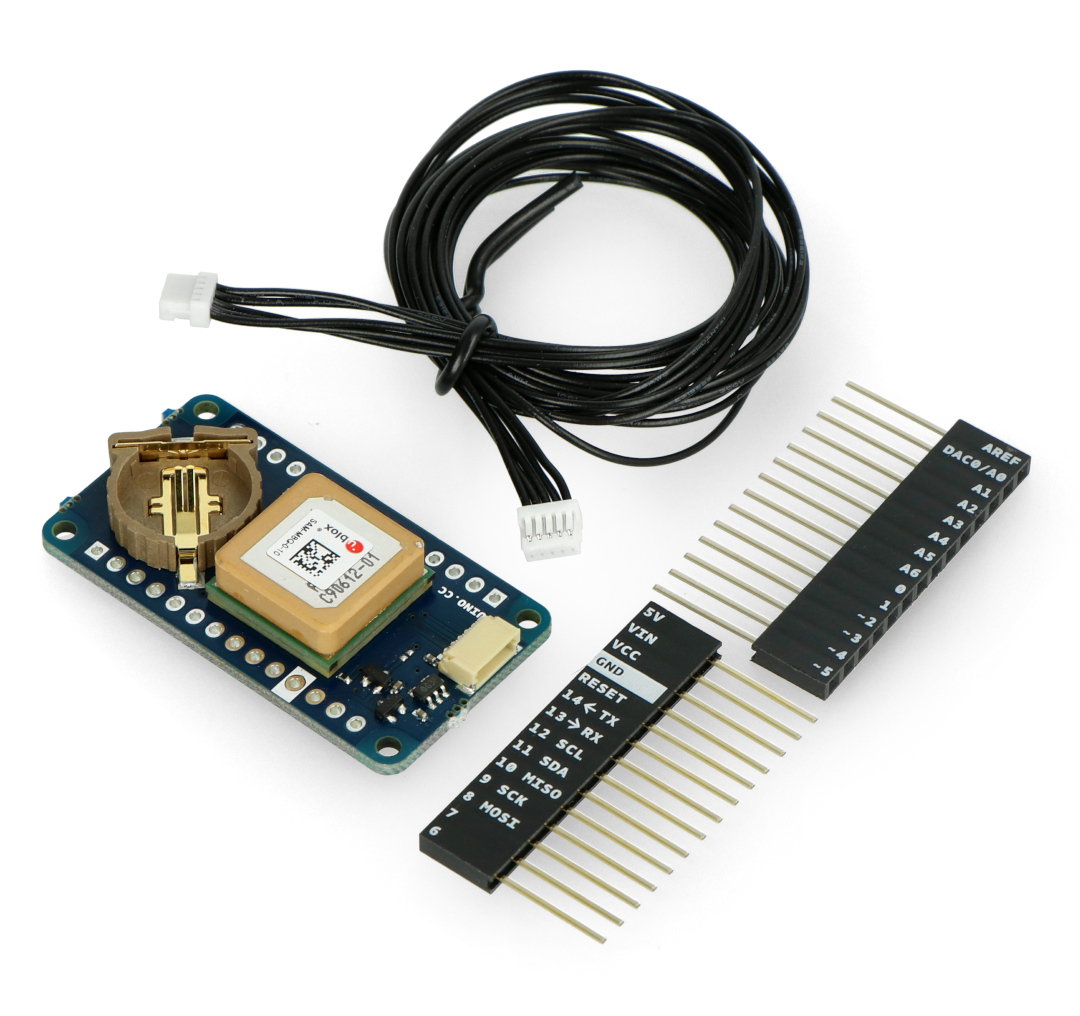

Arduino MKR GPS ShieldContent of the GPS overlay set for Arduino MKR.

Configuration of GPS overlay for MKR.

The GPS module can be configured usingspecial commands. A battery slot has been placed on the board to keep the configurations made. This can be convenient e.g. when changing the GPS mode to 1g, which is commonly used in experiments at high altitudes. Another example is the use of Galileo location, which is disabled by default, but can be enabled by sending configuration message (UBXCFG-GNSS) to the receiver. A detailed description of all commands is available here.

Arduino MKR GPS ShieldArduino MKR GPS Shield.

GPS Shield

The board has additional ESLOV connector in addition to Arduino MKR compatible pins. It is a 5-pin connector with a 1 mm grid. Using this connector, connect the module to the motherboard via I2C interface.

Złącze Eslov w nakładce GPS na Arduino MKR

ESLOV connector in GPS overlay on Arduino MKR.

GPS overlay specification

  • GNSS receiver: u-blox SAM-M8Q
  • Connectors: MKR / ESLOV
  • Input voltage: 3,3 V
  • Working voltage: 3,3 V
  • Battery slot: CR1216 (not supplied)
  • Interface: serial / I2C / DCC
  • Dimensions: 45 x 23 mm
  • Weight: 14 g

Voltage to 3.3 V
Voltage from 3.3 V
Package width 6 cm
Package height 8.3 cm
Package depth 2.7 cm
Package weight 0.027 kg
