Ethernet and PoE Shield - W5500 - Ethernet and PoE Shield for Arduino - DFRobot DFR0850
Shield for Arduino board made by DFRobot company. It extends Arduino capabilities by adding Ethernet communication and PoE module. It allows users to connect the Arduino to a network using an RJ45 cable. The module is based on the W550 chip, which provides a wired TCP / IP connection. The W5500 has a built-in 32-kilobyte internal memory buffer for processing Ethernet packets.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Ethernet and PoE Shield - W5500 - Ethernet and PoE Shield for Arduino - DFRobot DFR0850
Shield for Arduino board made by DFRobot company. It extends the capabilities of Arduino by adding Ethernet communication and PoE module. It allows users to connect Arduino to the network using RJ45 cable. The module is based on the W550 chip, which provides a wired TCP / IP connection. The W5500 has a built-in 32-kilobyte internal memory buffer for processing Ethernet packets. This is much faster and easier than using any other Embedded Ethernet solution. In addition, there is also a microSD memory card slot on the board.
There is a detailed user guide available on the manufacturer's website that makes using the overlay much easier - check it out!

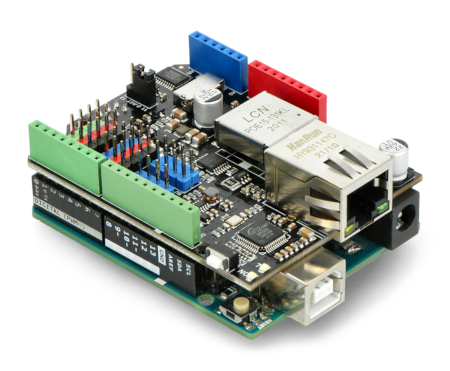

Ethernet and PoE Shield - W5500 - Ethernet and PoE overlay for Arduino. Arduino board needs to be purchased separately.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

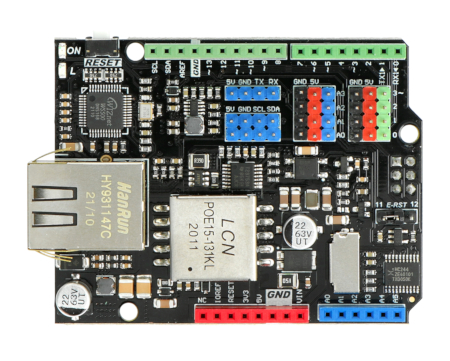

Ethernet and PoE Shield - top view.
Special features of the Ethernet and PoE Shield overlay
- TCP / IP protocol support: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- WOL Wake-on-LAN support
- Ethernet Controller: W5500 with 32 kB buffer
- Built-in level converter circuit
- PoE module allows power over Ethernet - works only with PoE capable routers / switches
- Suggested application:
- security system: network camera
- home monitoring
- USB Ethernet: storage devices, network printers
- set-top box, PVR, digital media centre
Kit contents
- Ethernet and PoE Shield - W5500 - Ethernet and PoE Shield for Arduino - 1 piece
- 2.54mm jumper - 1 piece
Technical specification of the overlay
- Type: Arduino expansion board
- Type: communication overlay
- Communication type: Ethernet and PoE
- PoE input: 48 V AC/DC
- PoE power: up to 12 W (VIN port can output 12 V / 1 A)
- PoE class: 0 PD
- PoE standard: 802.3at
- Communication interface: SPI bus
- SPI Clock: 80 MHz maximum
- Ethernet controller: W5500 with 32 kB buffer
- Supported TCP / IP protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
- Built-in RJ45 connector
- Slot for microSD memory card
- Overlay dimensions:
- boards: 68.6 x 53.3 mm
- boards and Ethernet connectors: 72.5 x 53.3 mm

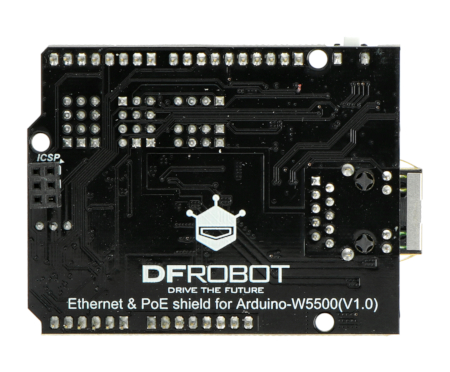

Ethernet and PoE Shield - the bottom view.
Useful links
| Name | Value |
|---|---|
| Width | 7 cm |
| Height | 8 cm |
| Depth | 2.5 cm |
| Weight | 0.046 kg |
