Mainboard Creality Ender-3
Amotherboard dedicated to the Ender-3 printer. It is an original subassembly of the printer's manufacturer, Creality. The motherboard has the manufacturer's code V4.2.7. It uses a motor controller with an operating volume of less than 50 dB.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Creality Ender-3 motherboard
Motherboarddedicated to theEnder-3printer. It is an original subassembly of the printer manufacturerCreality. The motherboard has the manufacturer's code designation V4.2.7. It uses a motor controller with an operating volume of less than 50 dB.
Original motherboard Creality Ender-3
Introducing the original V4.2.7 motherboard for the popular Creality Ender-3 3D printer. This is a fully integrated version, which means that the stepper motor drivers have been mounted with heat sinks directly on the PCB - so there's no need to insert the StepStick drivers into the appropriate slots yourself.
The designers of the Creality Ender-3 printer took care of the ease with which themotherboardcan be installed- the description ofthe purpose of the various connectors is printed directly on the surface of the PCB, making it much more difficult to make a mistake while connecting the wires.
Creality Ender-3 motherboard.
Botland is the only official distributor of Creality 3D printers in Poland. Buying from us guarantees original equipment shipped from a warehouse inside the country and fast technical support. We also run a professional service in Poland and offer original spare parts.

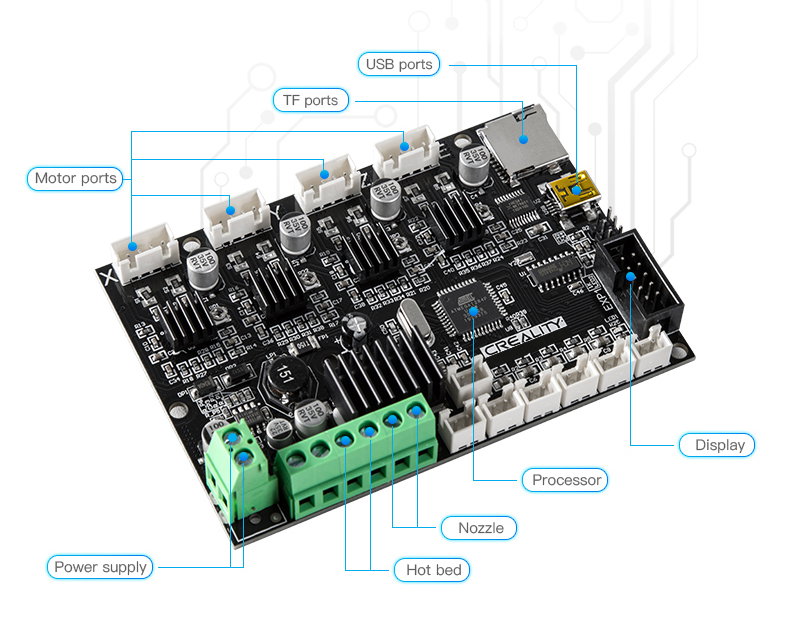

Description of Creality Ender-3 motherboard pinouts.
Leads on the main board:
- X axis printer motor connector
- Connector for the printer's Y-axis motor
- Printer Z axis motor connector
- Extruder motor connector
- Memory card connector
- MicroUSB port
- LCD display connector
- Nozzle thermistor connector
- Print platform thermistor connector
- Connector of Z axis limit switch
- Connector for Y axis limit switch
- Connector for X axis limit switch
- Nozzle screw connector
- Print platform screw connector
- Fan screw connector
- Screw connector power supply
Connection description
At one of the longer edges of the PCB there is a place for microSD card slot and four connectors for motors - X, Y, Z (responsible for axis movement) and extruder drive. On the opposite side there are smaller connectors, used for plugging in cables from limit switches of X, Y and Z axes, as well as sockets for thermistors, power supply, fans and nozzle and heater of working table.
At the shorter edge of the board there is a miniUSB connector for communication with PC, IDC socket for LCD display. What's important, the CrealityEnder-3 motherboarddoesn't contain any (apart from miniature stepper motor driver mounting potentiometers) setting elements, so it's ready to install right after purchase.
Creality Ender-3 motherboard specifications
- The board has mounting holes
- Compatible with 3D printers: Creality Ender-3, Ender-3 Pro, Ender-3 V2, Ender-5, Ender-5 Pro
- Dimensions: 100 x 70 x 20 mm
- Weight: 50g
Creality motherboard.
Przydatne linki
| Name | Value |
|---|---|
| Creality - model | Ender |
| Width | 16 cm |
| Height | 5.7 cm |
| Depth | 14.3 cm |
| Weight | 0.136 kg |
