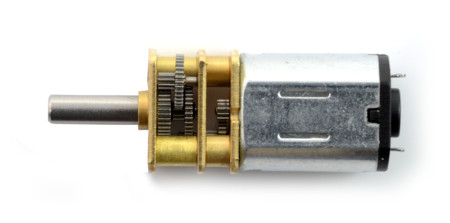

Micro motor N20-BT18 5:1 250RPM - 9V
The N20 series miniature motor with 5:1 gearing, has 250 RPM, torque is 0.5 kg*cm (0.049 Nm). The supply voltage is from 3V to 9V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: N20-BT18 micro 5:1 250RPM motor - 9V
Small, lightweight yet powerful motors from the N20 series, compatible with Pololu's motors, are used by robot builders as drive units. The units can be powered by up to 9 V (depending on the model), and gain their useful power above 3 V. The optimum voltage, at which the ratio of power to strength is most favourable, is 6 V.
The drawing shows the dimensions of the micro motor with gearbox.
Dimensions of the motor
The motor body is a cuboid measuring 24 x 10 x 12 mm. The gearbox is 9.27 mm long. There is a 3 mm D-shaped shaft at the output. Total mass is about 10 g.
Technical specification of the motor
| Supply voltage: | 3 V - 9 V |
|---|---|
| No-load current (9 V): | 70 mA |
| No-load speed (9 V): | 250 rpm |
| Torque (9 V): | 0.5 kg*cm (0.049 Nm) |
| Gear ratio: | 5:1 |
| Shaft diameter: | 3 mm |
| Body dimensions: | 24 x 10 x 12 mm |
| Weight: | 10 g |
| Double-sided shaft: | NO |
Accessories for N20 series motors
N20 motors are compatible with Pololu motor accessories.
- Mounts: Special mounts in white or black have been designed for mounting the motors. An extended version and one made of heavy-duty aluminium are also available.
- Motor controllers: Direction and speed control is provided by DC motor controllers. We offer integrated circuits for individual soldering as well as ready to connect, cooperating with kits (e.g. Arduino) modules.
| Attention! N20 motors are not compatible with Pololu micro motor encoders. |
| Name | Value |
|---|---|
| Diameter | 12 mm |
| Length | 24 mm |
| Voltage to | 3.0 V |
| Voltage from | 9.0 V |
| Motor - current | 70 mA |
| Motor - gear | 5:1 |
| Rotation speed | 250 obr/min |
| Torque | 0.5 kg*cm |
| Mass | 10 g |
| Motor - shaft | 3 mm |
| Width | 5 cm |
| Height | 1.1 cm |
| Depth | 2.5 cm |
| Weight | 0.01 kg |
