Product description: SwitchC6 - controller for controlling electrical circuits - ESP32-C6 and WiFi - M5Stack K140
The SwitchC6 is a modern controller designed to control electrical circuits in single-wire installations —without the need for a neutral wire. Based on the ESP32-C6-MINI-1 chip, the module features a bistable relay that enables remote control of devices connected to AC mains from 100V to 230V . The pre-installed ESP-NOW software supports mesh communication with other ESP32 devices , and the available GPIO (with digital isolation) allows for the development of additional features. Thanks to its compact size and high compatibility, the SwitchC6 is ideal for smart home applications, lighting automation, and retrofitting traditional installations.

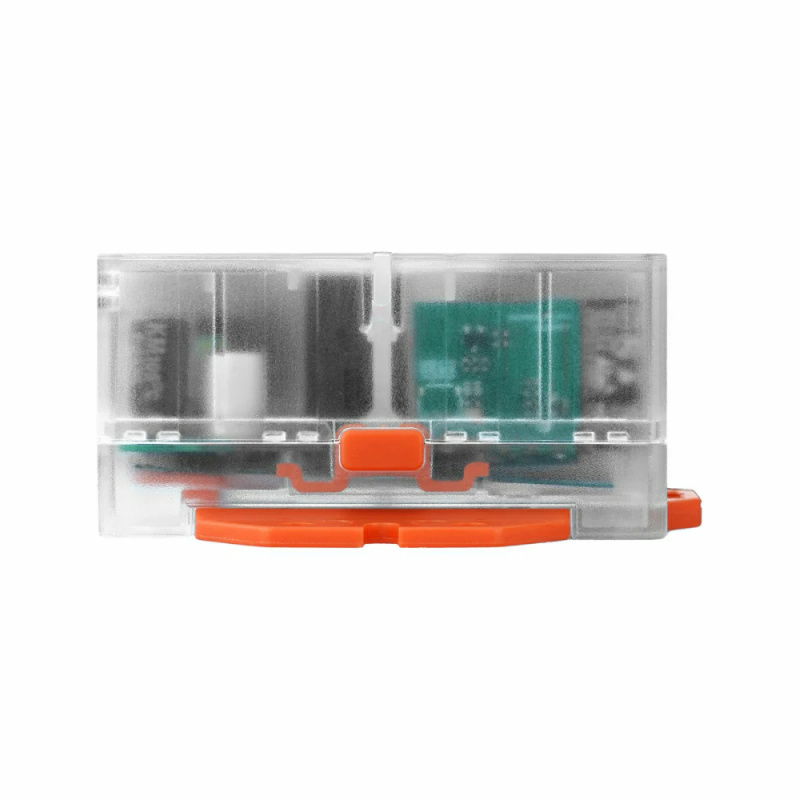

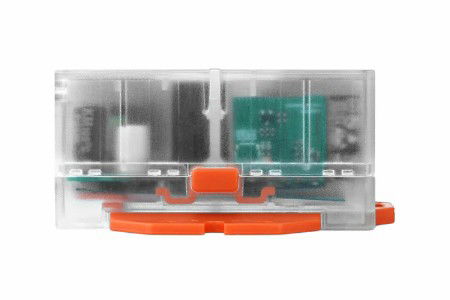

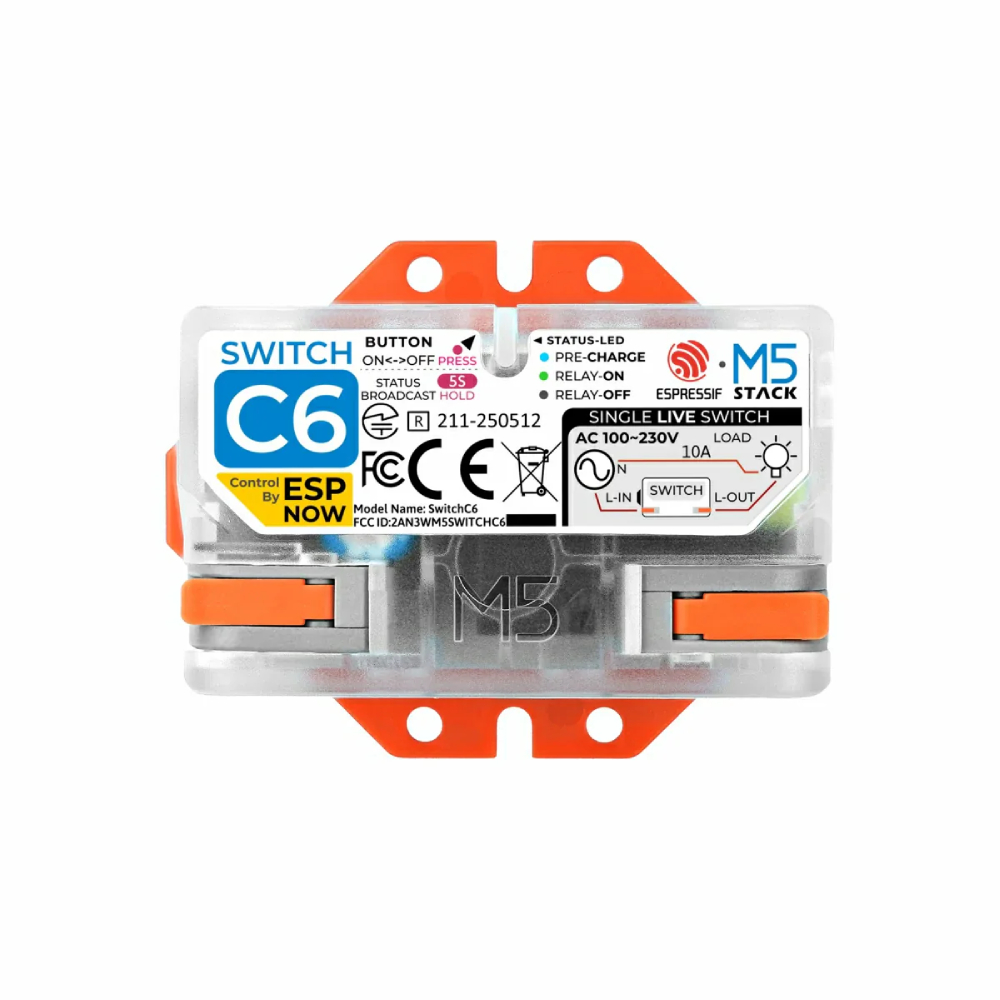

SwitchC6 - controller for controlling electrical circuits - ESP32-C6 and WiFi - M5Stack K140.
SwitchC6 is a modern controller designed to control electrical circuits in single-wire installations.Special features
- Operation of installations without a neutral wire
- Based on ESP32-C6-MINI-1 with WiFi 6 (2.4 GHz)
- Built-in bistable relay, AC load control up to 2200 W (10 A)
- Pre-installed ESP-NOW firmware, mesh communication without WiFi
- Access to 2 GPIO lines with digital isolation
- LED operating status indicator
- Compact housing and easy integration into a wall box
- Low energy consumption and stable operation
- Perfect for lighting modernization and integration with IoT systems
Practical applications
The SwitchC6 is perfect for applications requiring remote control of lighting or home appliances without the need for electrical rewiring . It can be used as a Smart Home system component, a stair lighting controller, a gate or roller shutter automation module, or as part of an ESP-NOW mesh network with multiple control points . Digitally isolated GPIOs allow for the connection of sensors, switches, or functional extensions.
Controller technical specifications
- SoC: ESP32-C6-MINI-1
- Processor architecture: 32-bit RISC-V
- Maximum processor clock speed: 160 MHz
- Wireless connectivity: WiFi 6
- Network standards: IEEE 802.11 b/g/n/ax
- WiFi operating band: 2.4 GHz
- Power supply type: AC mains voltage
- Input voltage: 100 V to 220 V
- Mains frequency: 50/60 Hz
- Relay type: latching
- Maximum load power: 2200 W
- Maximum load current: 10 A
- GPIO interface: galvanically isolated
- Insulation system: CA-IS3642HW
- Expansion connector: ZH1.5-3P
- Status indicator: LED
- Operating temperature range: -10°C to 60°C
- Dimensions: 58 x 46 x 27mm
- Weight: 40 g
Contents of the set
- 1x SwitchC6
SwitchC6 is perfect for smart home applications, lighting automation and modernization of traditional installations. Useful links |
