xTool F1 - 10W diode laser engraver and 2W infrared laser engraver - Outlet

Index: OUT-27670
Ask a question

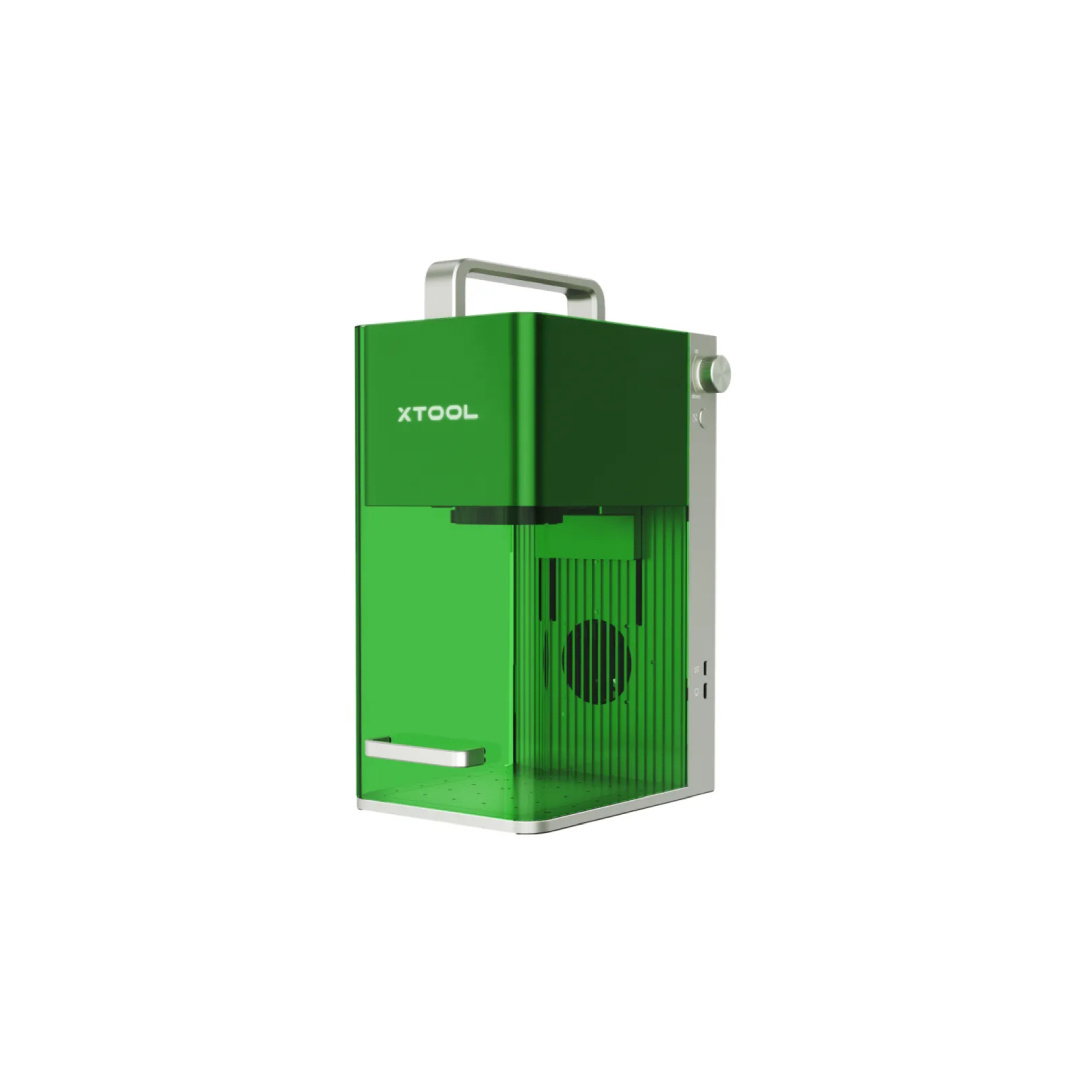

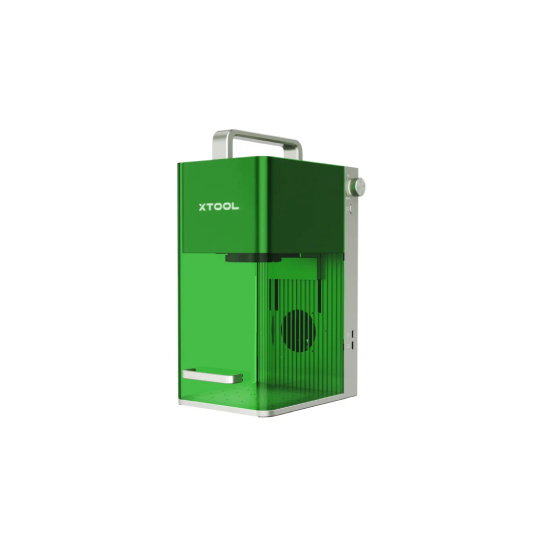

The xTool F1 is a compact yet extremely powerful laser engraver that enables fast and precise marking of over 300 materials , such as wood, leather, acrylic, metal, glass, ceramics, and cork. With a speed of up to 4000 mm/s and a movement accuracy of 0.00199 mm , the device allows for personalized engraving in less than 10 seconds. The F1 is equipped with two laser sources – a 10 W diode and a 2 W infrared – enabling not only cutting and marking of organic materials but also engraving metals such as stainless steel, aluminum, gold, silver, and brass.

xTool F1 - 10W diode laser engraver and 2W infrared laser engraver - Outlet
€1,027.90
€863.78 tax excl.
The store is available only to registered B2B customers Create an account
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Manufacturer: xTool

Product description: xTool F1 - 10W diode laser engraving machine and 2W infrared laser engraving machine - Outlet

Current product status:

  • A device used internally in the company
  • No transport lens cover

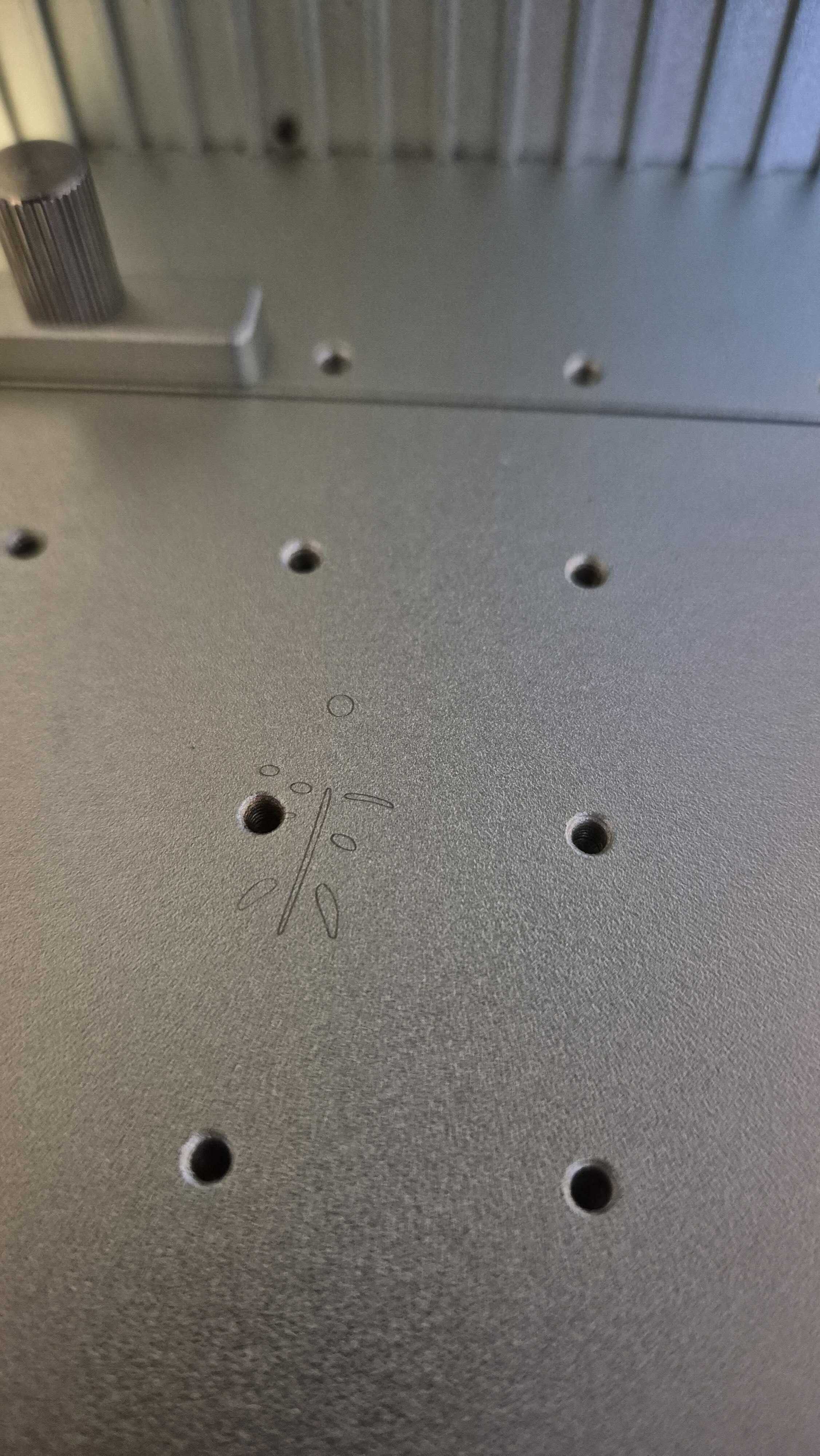

  • A burnt mark in the base is visible in the photo.
  • Incomplete set of material samples - two cards and one key ring missing

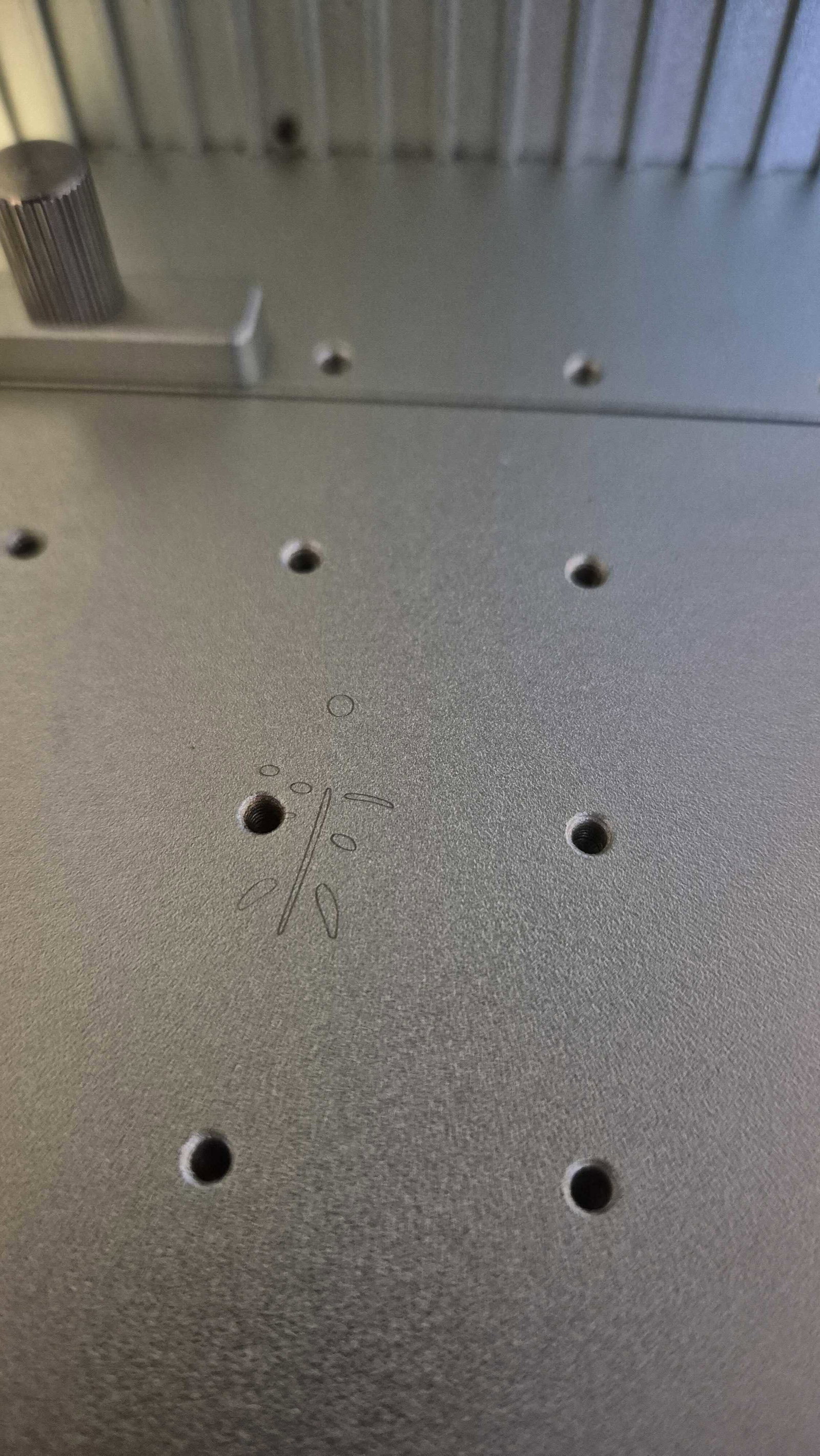

Visible burnout

Technical specifications and comparison of xTool F1 Ultra and XTool F1

Specification xTool F1 Ultra xTool F1
Laser type 20W diode laser + 20W fiber laser 10W diode laser + 2W infrared laser
Operating mode Laser engraving and cutting Laser engraving and cutting
Materials - cutting LED: paper, wood, leather, MDF, felt, some dark acrylics
Fiber optic: brass, stainless steel, aluminum		 LED: paper, wood, leather, MDF, felt, some dark acrylics
Materials - engraving LED: paper, wood, leather, MDF, stainless steel, ceramics, glass, etc.
Fiber optic: stainless steel, aluminum, plastic, titanium, gold		 LED: paper, wood, MDF, glass, steel
Infrared: metal, plastic, black acrylic
Working field 220 x 220 mm (up to 220 x 500 mm with feeder) 115 x 115 mm (up to 400 x 115 mm with accessories)
Maximum operating speed 10000 mm/s 4000 mm/s
Cutting wood (linden) up to 15 mm (multiple passes) up to 8 mm (multiple passes)
Cutting acrylic up to 12 mm (multiple passes) up to 6 mm (multiple passes)
Maximum workpiece height 145 mm 113 mm
Maximum diameter for rotary engraving 145 mm 113 mm
Supported software xTool Creative Space, Lightburn xTool Creative Space, Lightburn
Operating systems Android, iOS, iPadOS, Windows, macOS Android, iOS, iPadOS, Windows, macOS
Connection methods USB, WiFi, IP connection, hotspot USB, WiFi
Supported file formats SVG, DXF, JPG, PNG, BMP, TIF SVG, DXF, JPG, PNG, BMP, TIF
Pre-assembled Yes Yes
Built-in camera 16 MP smart camera NO
Positioning method Camera positioning Lack
Focusing Autofocus Manual focus
Laser point size 0.08 x 0.1 mm (diode), 0.03 x 0.03 mm (fiber optic) 0.08 x 0.06 mm (diode), 0.03 x 0.03 mm (infrared)
Movement accuracy 0.00482 mm 0.00199 mm
Safety certificate Class 4 Class 4
Device dimensions 273 x 373 x 492 mm 179 x 235 x 334 mm
Device weight 14.7 kg 4.6 kg
Maximum input power from 250 W to 275 W 120 W
Power supply input voltage from 100 V to 240 V AC 50/60 Hz from 100 V to 240 V AC 50/60 Hz

‌

Package width 42 cm
Package height 33 cm
Package depth 43 cm
Package weight 9.1 kg
