Product description: Sonoff quick connector set - 54 pcs.
Sonoff quick connectors are designed for quick and safe wire connection. With high-quality materials such as fireproof polycarbonate (PC) , they offer reliability and durability. The installation process is extremely simple - just insert the wire into the terminal to obtain a secure and stable connection. The quick connectors are compact and perfect for places with limited space.

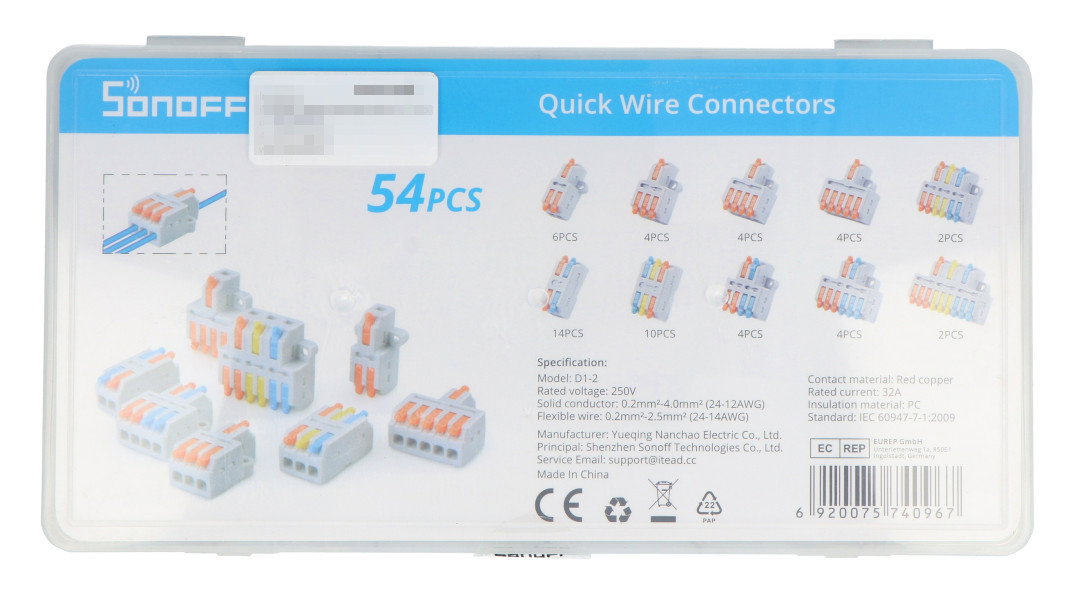

Sonoff quick connector set - 54 pcs.
Sonoff quick connectors are designed for quick and safe wire connection.Special features of quick connectors
- Wide range of applications: supports single-core and multi-core cables
- Ease of use: design allows for quick connections without the use of tools
- Safety: insulation made of materials resistant to high temperatures and fire
- Compact size: ideal for use in confined spaces
Technical specifications of quick connectors
- Range of supported cables:
- Rigid wires: 0.2 mm² to 4 mm² (24 to 12 AWG)
- Flexible wires: 0.2 mm² to 2.5 mm² (24 to 14 AWG)
- Operating voltage: 250 V
- Maximum current: 32 A
- Contact material: copper
Insulation material: PC - Number of pieces in the set: 54 pieces

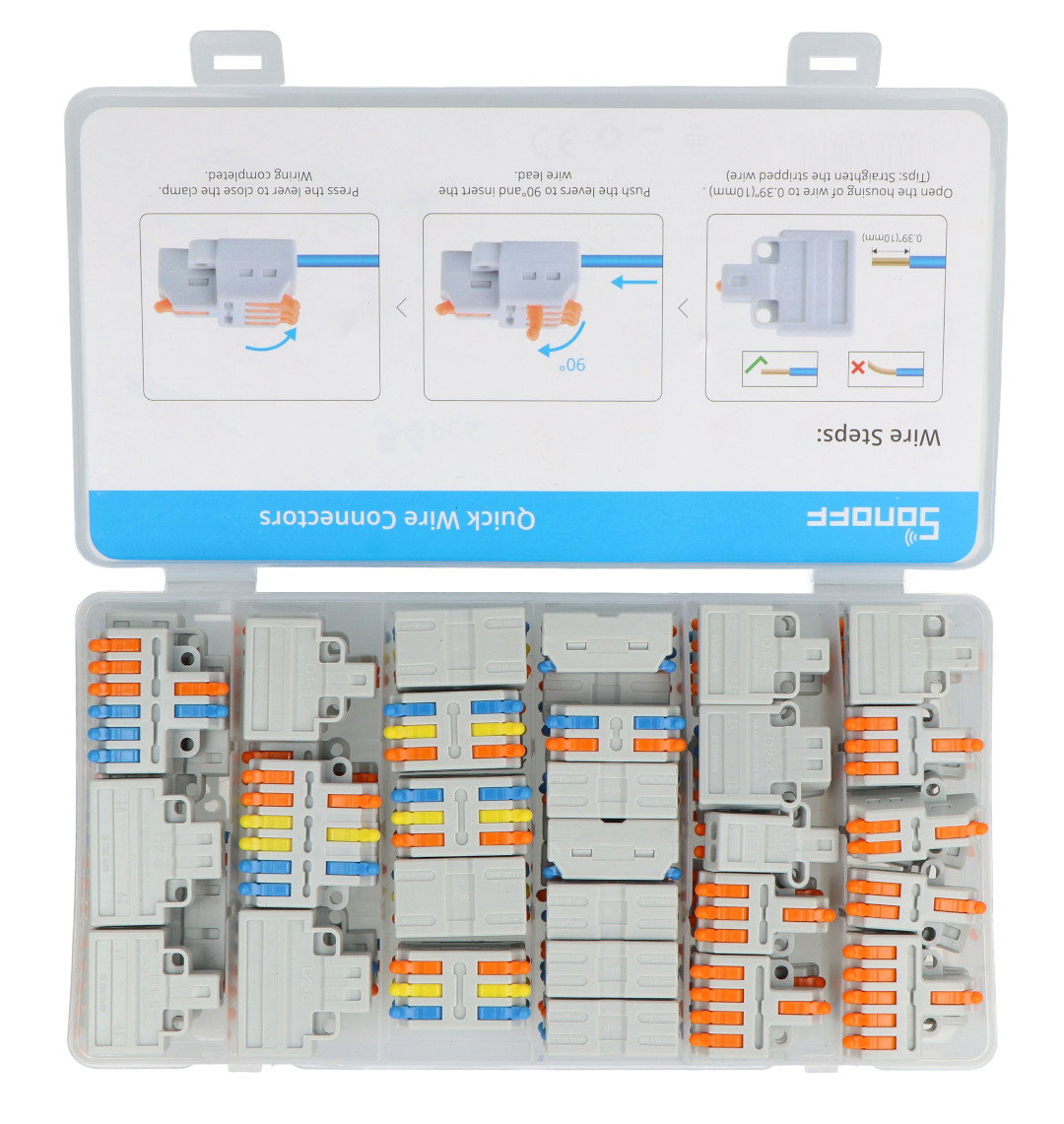

Kit Contents
- 2 pieces - Connectors 3 inputs, 6 outputs
- 2 pieces - Connectors 3 inputs, 9 outputs
- 6 pieces - Connectors 1 input, 2 outputs
- 4 pieces - Connectors 1 input, 3 inputs
- 4 pieces - Connectors 1 input, 4 outputs
- 4 pieces - Connectors 1 input, 5 outputs
- 4 pieces - Connectors 2 inputs, 4 outputs
- 4 pieces - Connectors 2 inputs, 6 outputs
- 14 pieces - Connectors 2 inputs, 2 outputs
- 10 pieces - Connectors 3 inputs, 3 outputs
Thanks to high-quality materials such as fire-resistant polycarbonate (PC), they offer reliability and durability.
