Product description: Sonoff quick connector set - 34 pcs.
Sonoff quick connectors are a practical alternative to traditional solutions. Thanks to the use of a lever mechanism, they enable quick, secure and multiple connection of wires without using tools. Each terminal has a separate spring contact , which ensures independent connections and increases safety. The housing made of high-quality PC material guarantees resistance to high temperatures, aging and mechanical damage. The connectors support single-core and multi-core wires in the range of 0.2 mm² to 4 mm² (AWG from 28 to 12) , being a universal solution for various electrical installations. Thanks to easy assembly and disassembly , they can be reused, which reduces costs and saves working time. Ideal for use in home and industrial installations, e.g. in lighting systems, building automation or distribution boxes.

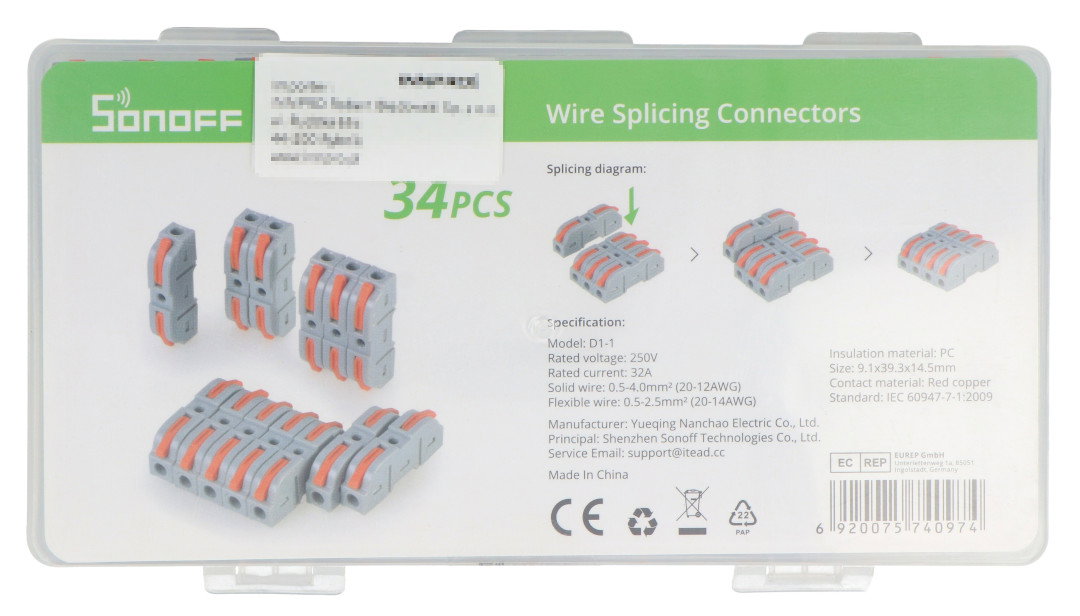

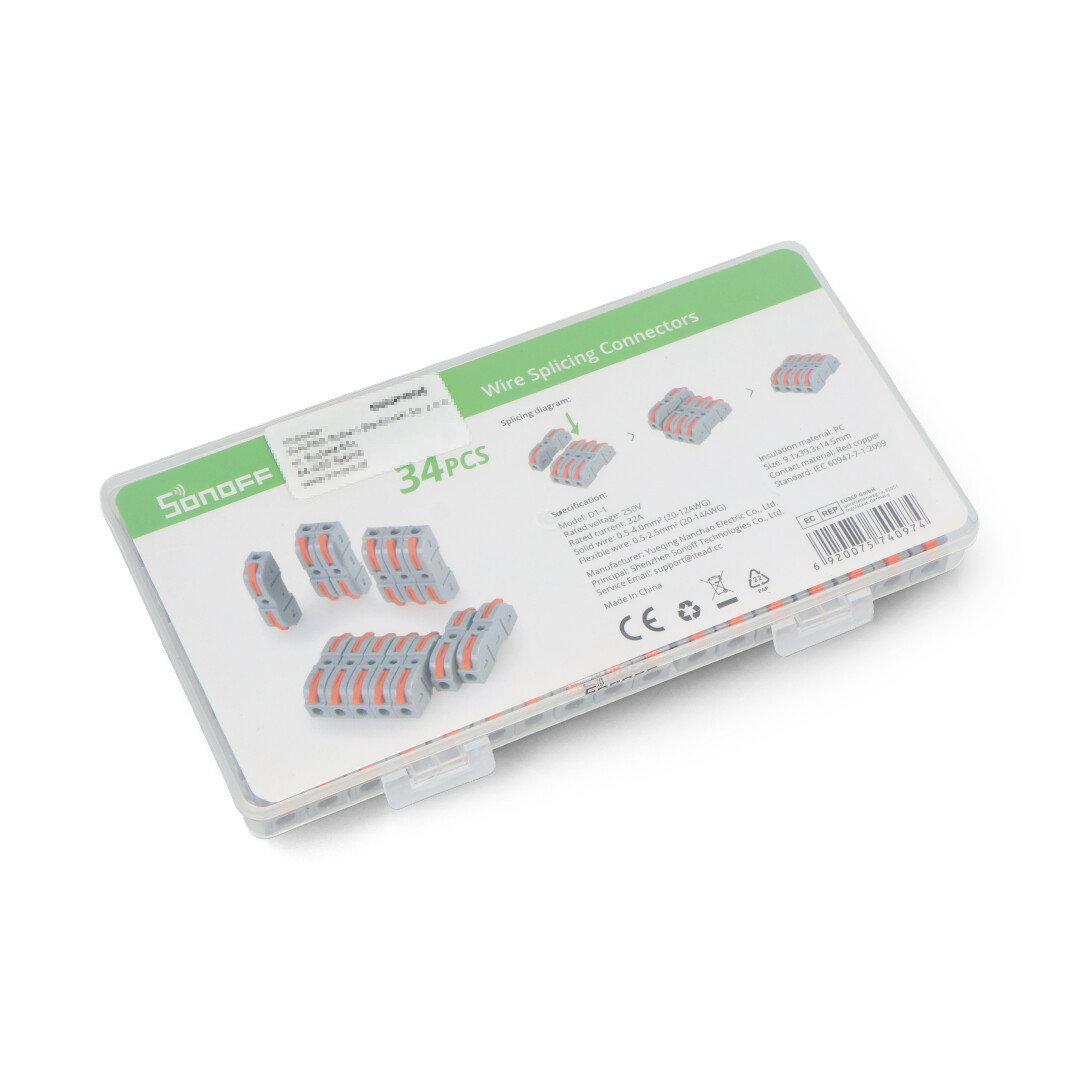

Sonoff quick connector set - 34 pcs.
Quick connectors have a high-quality PC housing.
Main features of quick connectors
- Safe and durable construction - high-quality PC material resistant to temperature and corrosion
- Easy to use - lever mechanism eliminates the need for soldering and using insulating tape
- Universal application - supports wires from 0.2 mm² to 4 mm² (AWG 28-12) , single and multi-core
- Reusable - the ability to open and close the clamps allows for quick replacement of cables
- Independent terminals - each wire is connected separately, which increases the safety and quality of the connection

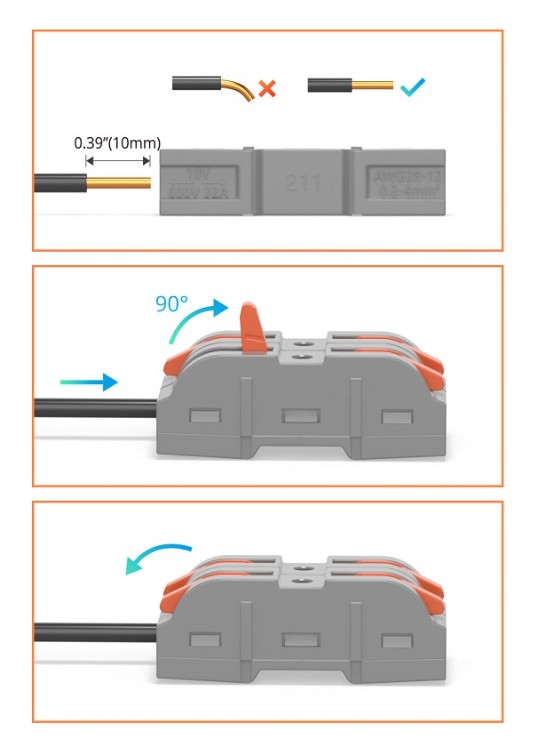

How to use quick connectors?
- Open the lever - lift the orange handle to the vertical position (90°)
- Insert the wire - place the stripped end of the wire into the socket
- Close the clamp - lower the lever to hold the cable securely
- Check the connection - make sure the cable is securely attached
- Reusable - If you need to replace the wiring, simply lift the lever, remove the old wire and insert the new one
The connectors are easy to use and reusable.

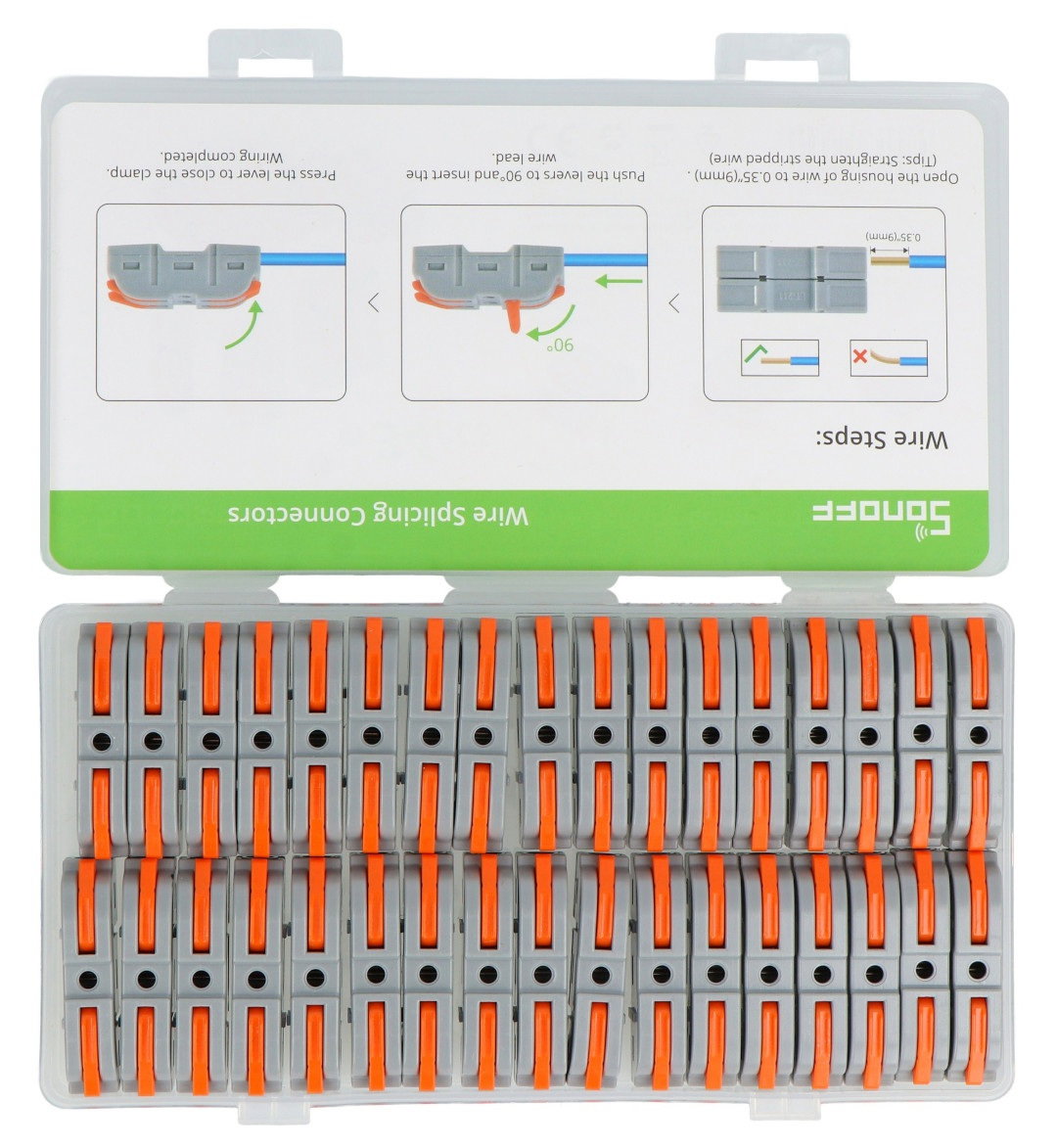

The set contains 34 quick connectors placed in a handy organizer.
Technical specifications of quick connectors
- Model: D1-1
- Nominal voltage: 250 V
- Nominal current: 32 A
- Supported cables:
- Solid wires: 0.5 mm² to 4 mm² (24 to 12 AWG)
- Flexible wires: 0.5 mm² to 2.5 mm² (24 to 14 AWG)
- Contact material: tinned copper
- Insulation material: polycarbonate (PC)
- Number of pieces in the set: 34 pieces
- Dimensions: 39.3 x 14.5 mm
Contents of the set
- Sonoff quick connector set - 34pcs.
