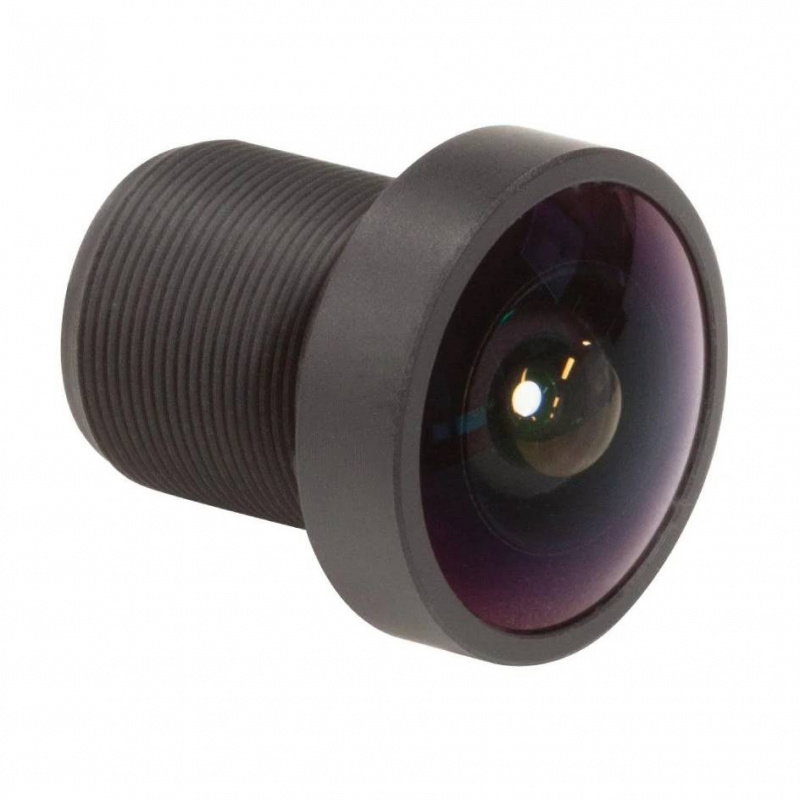

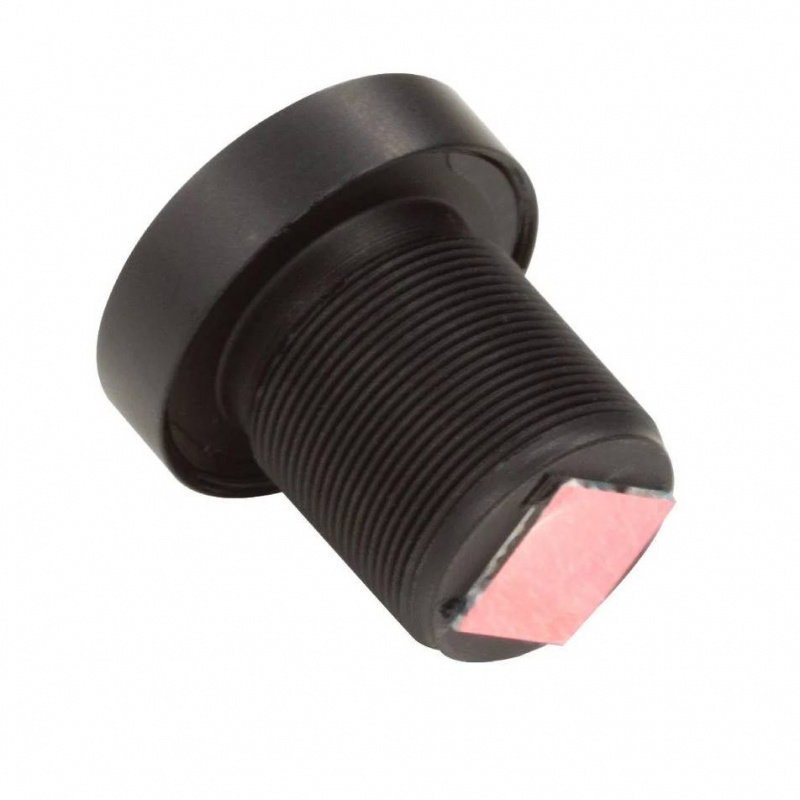

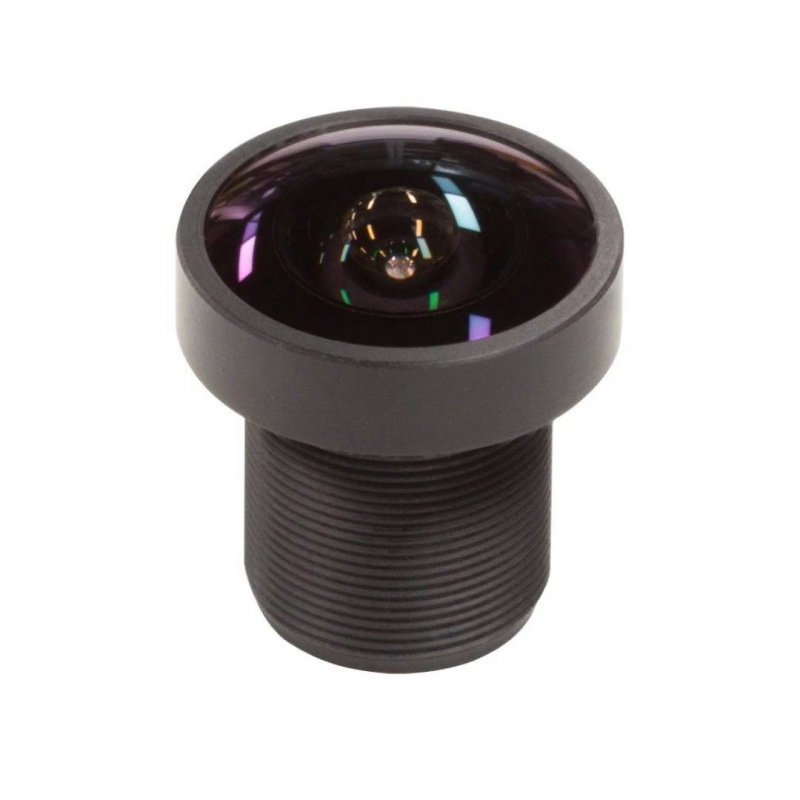

Product description: M27195H15 wide-angle lens M12 1.95 mm for USB cameras - ArduCam LN055
The ArduCam M27195H15 is a high-quality M12 (S-mount) lens designed specifically for use with USB cameras . Its ultra-short 1.95mm focal length allows for wide-angle capture, allowing for a larger area without increasing the distance from the object being observed. The lens is compatible with 1/2.7", 1/2.8", and 1/2.9" optical sensor formats , offering a horizontal field of view of 145° to 155°, depending on the sensor used. The F2.0 brightness ensures a good amount of light reaches the sensor, resulting in high image quality even in less favorable lighting conditions. The M27195H15 is used in robotics, surveillance systems, image analysis, AI projects, and anywhere else requiring a very wide field of view while maintaining a compact size.
Technical specifications of the lens
- Model: M27195H15
- Product type: USB camera lens
- Mount: M12 (S-mount)
- Optical format: 1/2.7''
- Compatibility with sensors: from 1/2.7" to 1/2.9"
- Focal length (EFL): 1.95 mm
- Brightness: F2.0
- Field of view (D/H/V) for 1/2.7" sensor: 158° / 155° / 136°
- Field of view (D/H/V) for 1/2.8" sensor: 154° / 150° / 129°
- Field of view (D/H/V) for 1/2.9" sensor: 149° / 145° / 121°
- Back Focal Length (BFL): 3.8 mm
- Minimum Focus Distance (MOD): 0.2 m
- Optical design: 6G + IR
- Dimensions: Ø17.5 x 19.9 mm
- Weight: 5 g
Kit contents
- 1x ArduCam M27195H15 M12 Lens 1.95mm
