The rotating module requires the use of an Ador Extension Base Add-on , which enables its correct installation and provides adequate working space inside the FLUX Ador device.
When working with wider objects , it is recommended to use the Riser Add-on .
For engraving long items such as glasses, bottles or baseball bats, it is recommended to use the Rotary Support Tower Add-on .
Product description: Ador Chuck Rotary module for the FLUX Ador laser cutter and engraver
The Ador Chuck Rotary Add-on is an advanced rotary attachment for the FLUX Ador laser cutter and engraver , designed for precise 360° engraving. The module utilizes a precise jaw mechanism that ensures secure and stable clamping of elements of various shapes and sizes. This allows for both external and internal engraving , such as on rings. A wide range of tilt angle adjustment and the ability to work with long objects allow for easy and repeatable processing of irregular or conical shapes. The set includes various jaw types —stepped, L-shaped, and hexagonal—that allow for work with objects ranging in diameter from 1 mm to 130 mm . The rotary module requires the Ador Extension Base Add-on , which allows for correct assembly and provides adequate workspace inside the FLUX Ador engraver. Without this accessory, use of the attachment may be limited or impossible . A carefully selected configuration of additional accessories allows you to fully utilize the potential of the Ador Chuck Rotary and adapt the workstation to specific applications.

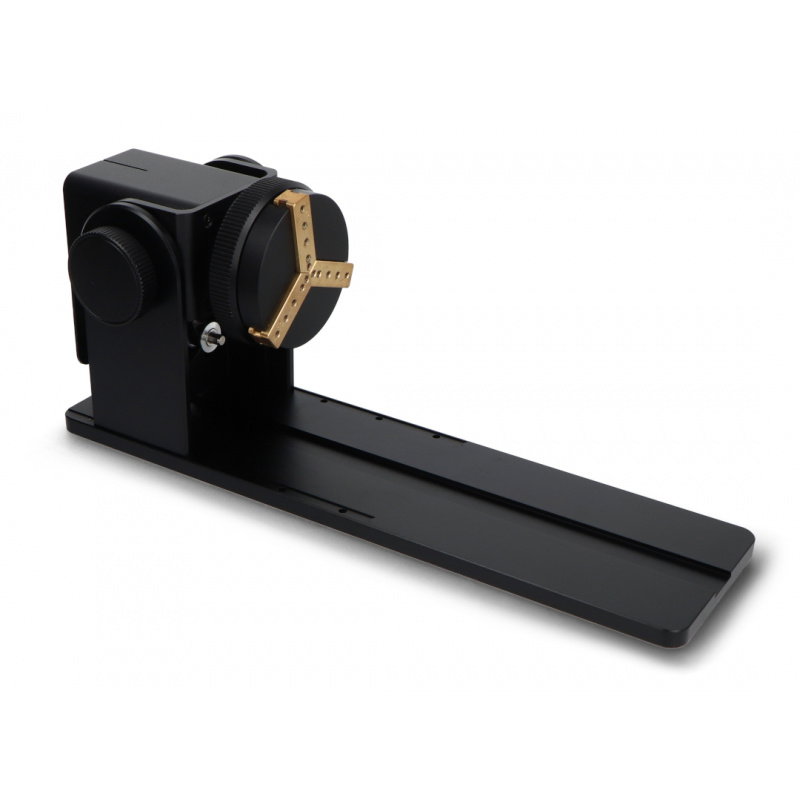

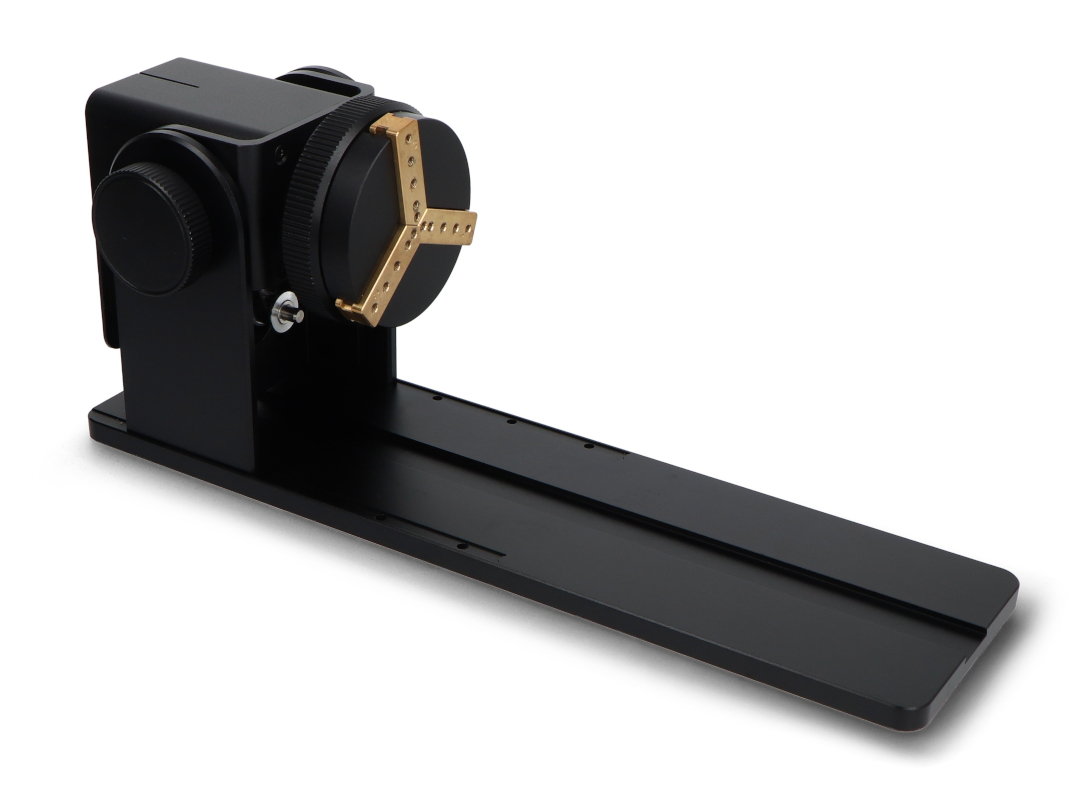

Ador Chuck Rotary module for the FLUX Ador laser cutter and engraver.

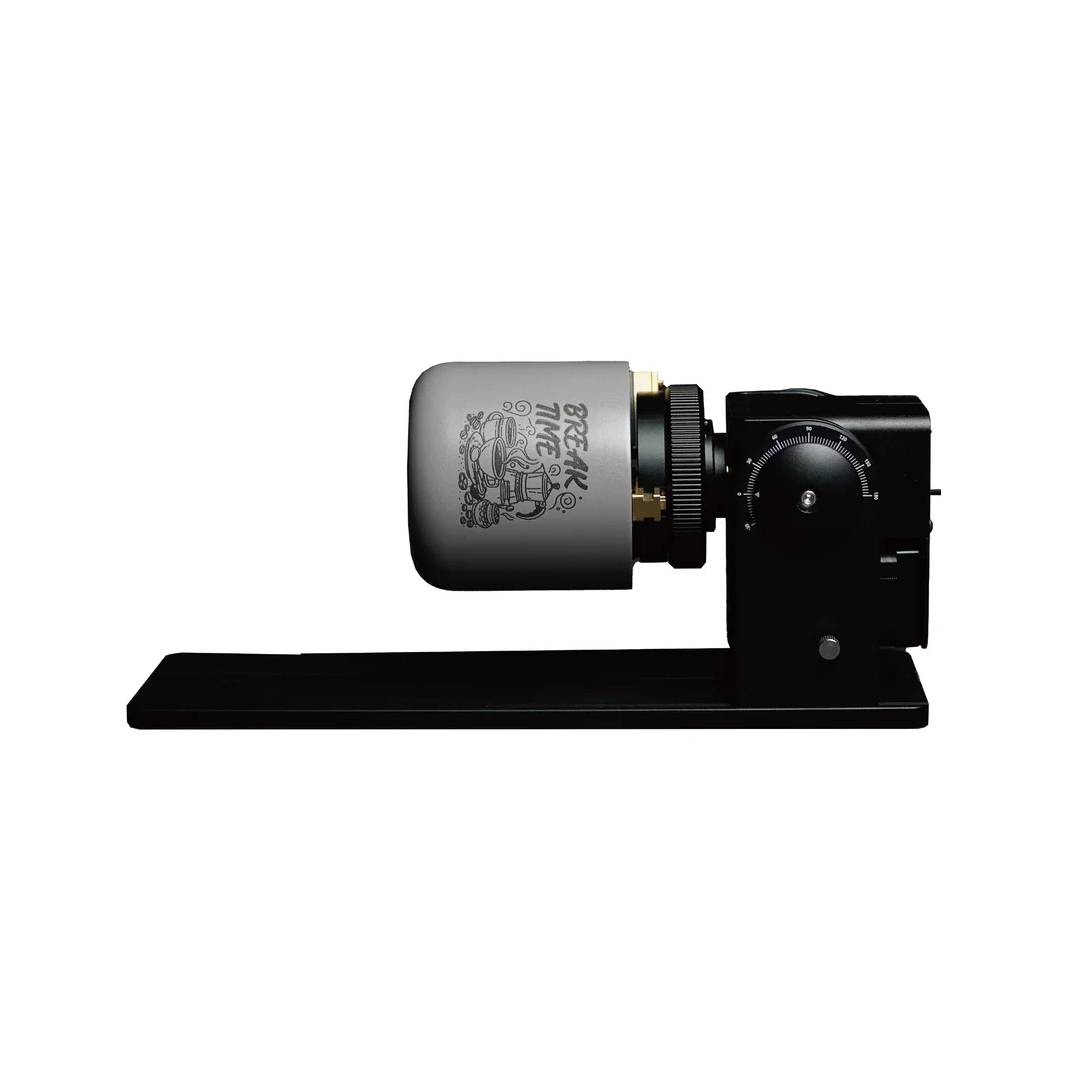

The module has interchangeable holders for objects of different diameters and shapes.
Main features of the rotary attachment
- Versatile jaw system : Set includes stepped, L-shaped and hexagonal jaws for stable clamping of a variety of geometries
- Wide diameter range : Capable of processing workpieces from 1mm to 130mm in diameter, covering everything from thin pens to wide vessels
- 360° engraving : ensures smooth rotation without play, guaranteeing perfect pattern joining around the entire circumference of the item
- Tilt angle adjustment : the design allows you to work with conical objects, keeping the engraved surface in the laser axis
- High compatibility : dedicated solution for the Flux Ador series, ensuring full synchronization with the manufacturer's software
- Solid mass and stability : the 1.65 kg module guarantees no vibrations during operation, which translates into clean engraving
Stability and precision of engraving
Advanced anti-slip jaws ensure maximum stability during laser engraving , eliminating the risk of material shifting. High clamping force enables precise marking on both delicate and hard surfaces. The Tail Support system supports longer workpieces , significantly improving accuracy. Vibration reduction translates into sharper details and repeatable designs. This is an ideal solution for demanding technical applications. Stable mounting combined with smooth adjustment allows for perfectly sharp edges, even on very small diameters, starting from 1 mm for cylindrical objects and 11 mm for rings .

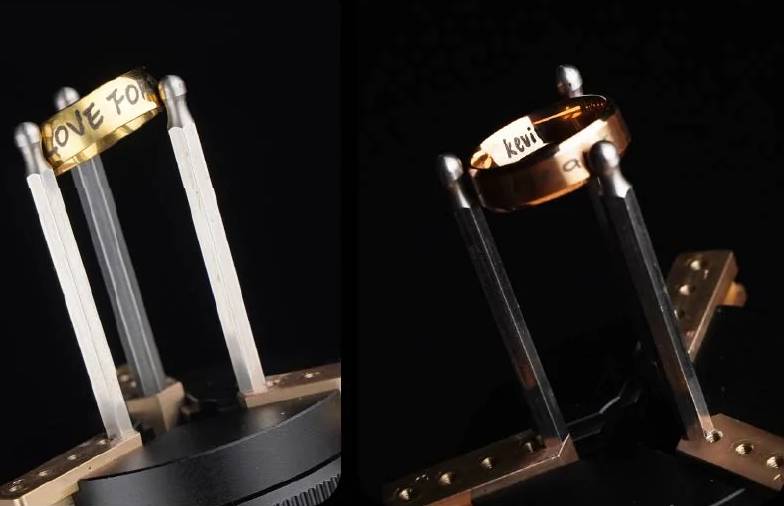

The rotary module enables precise engraving on rings and jewelry.

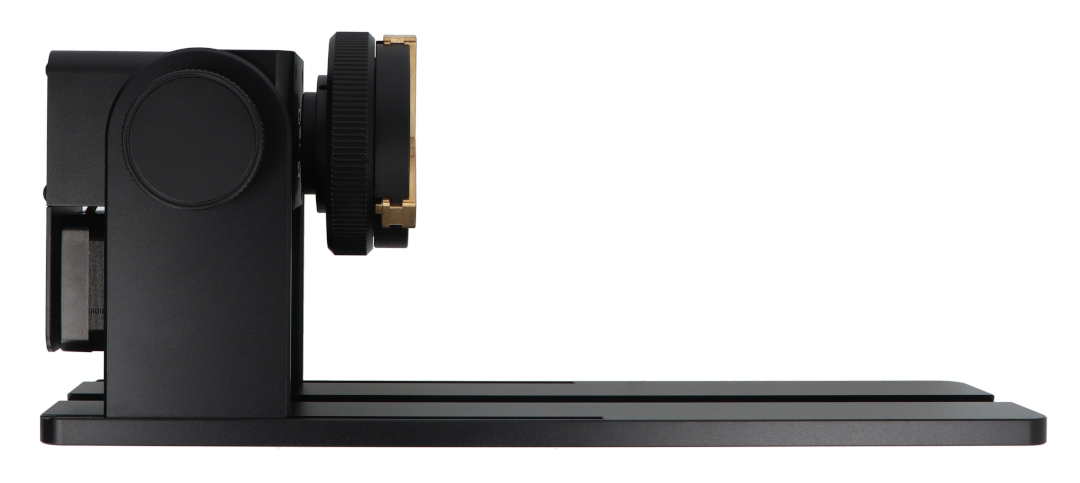

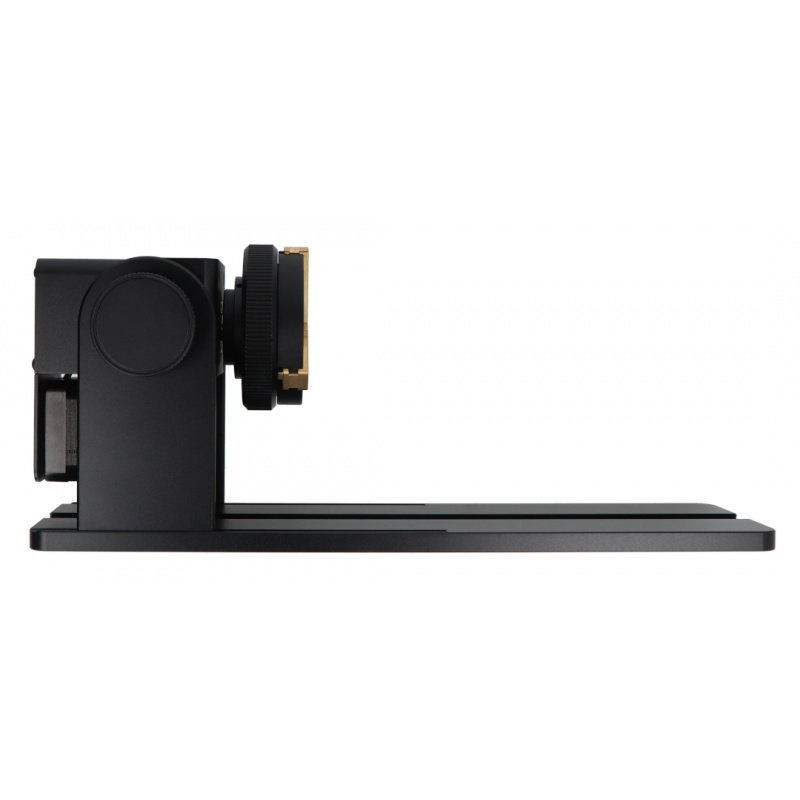

The rotary attachment is dedicated to the FLUX Ador plotter.
Machining of conical and irregular objects with angle adjustment
The base allows you to adjust the position of the workpiece to the specific project. Angle adjustment from -30° to 180° allows for precise positioning of even irregular items, such as baseball bats, wine bottles, or conical thermoses . The system can be expanded with additional accessories, such as the Chuck Riser, which allows for increased workspace for large items . This allows for comfortable engraving of wide items without structural constraints. Combined with the Tail Support and Rotary Support Tower, it offers full support for long and heavy objects. The modular design allows for customization to the user's specific needs, ensuring maximum flexibility and scalability.
Technical specifications of the Ador Chuck Rotary attachment
- Engraving diameter - cylindrical objects: from 1 mm to 130 mm
- Engraving diameter - rings: from 11 mm to 130 mm
- Engraving diameter - balls: from 25 mm to 130 mm
- Maximum engraving length: 325 mm
- Angle adjustment range: -30° to 180°
- Chuck type: jaw (step, L, hexagon)
- Compatibility: FLUX Ador (requires Chuck Riser expansion base)
- Dimensions: 300 x 103 x 125 mm
- Weight: 1.65 kg
Contents of the set
- FLUX Ador Chuck Rotary Add-on
- Rear support to stabilize long elements
- Connection cable
- Caliper
- Allen key
- Hexagonal jaws x 3
- Stepped jaws x 3
- L-shaped jaws x 3
- Flexible measuring tape
- M3 x 6 mounting screws
- Mini spirit level
- Calibration plate

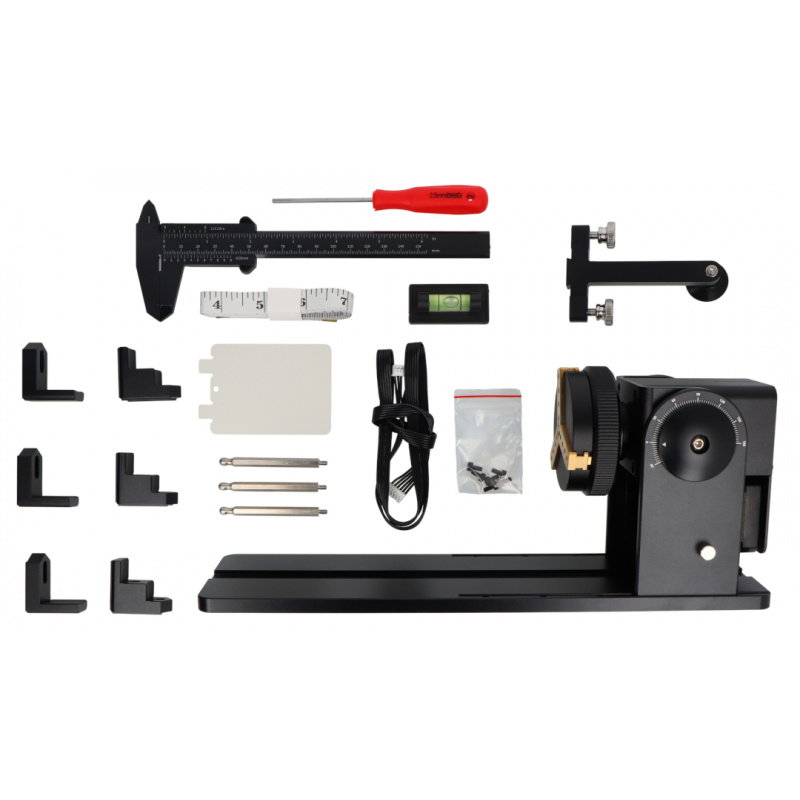

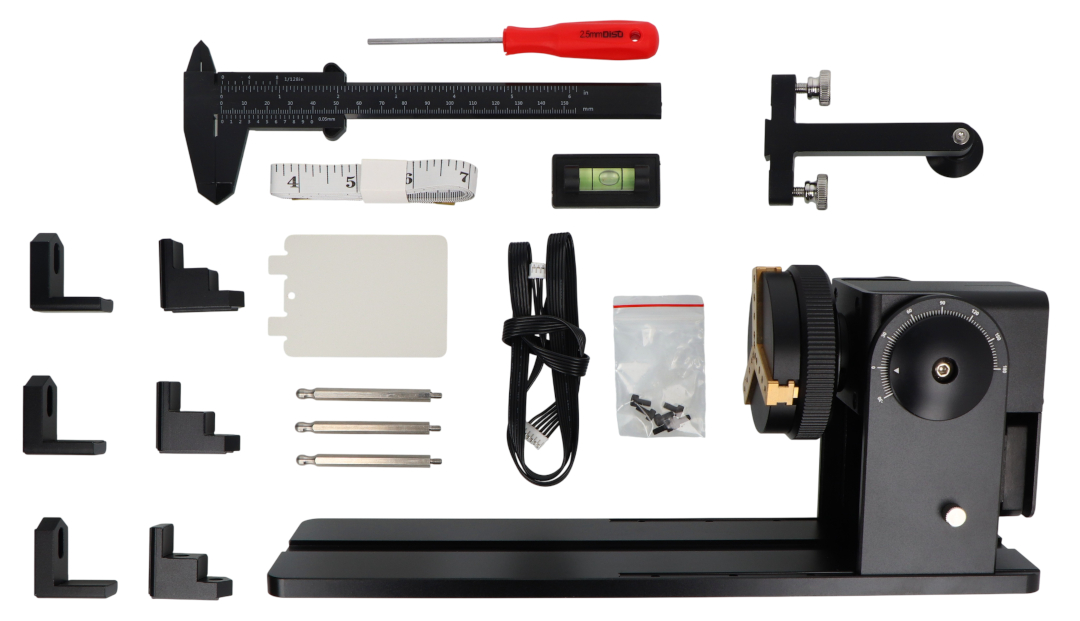

Elements included in the set.
