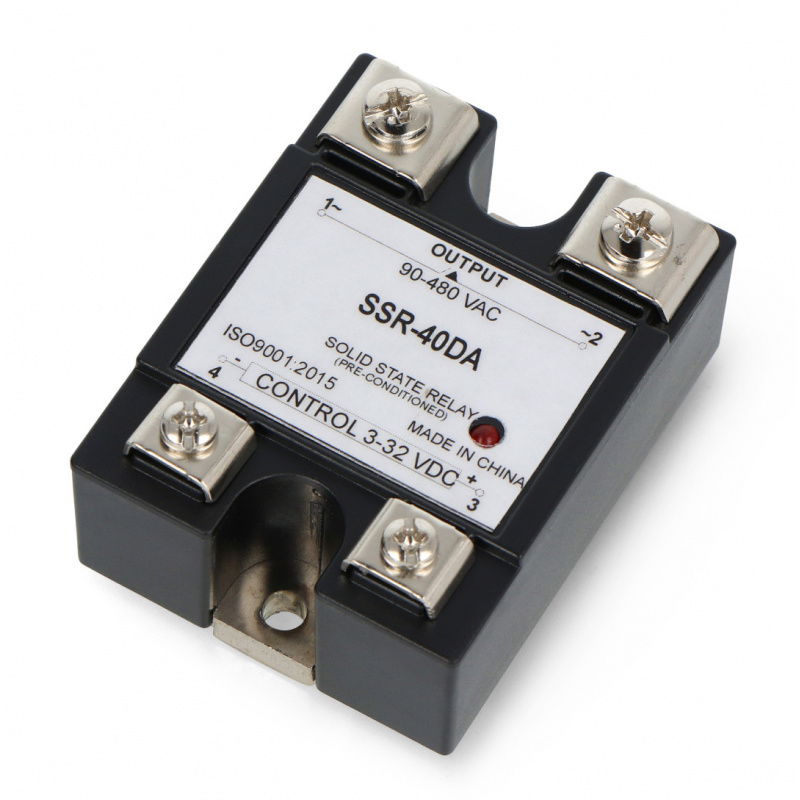

Solid state relay SSR-40A 480VAC / 40A - 32VDC
Single-phase solid -state relay SSR with a voltage of 480 V AC and 32 V DC. The rated current is 40 A.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Solid state relay SSR-40 A 480 V AC / 40 A - 32 V DC
Single-phase solid-state relay SSR with an alternating voltage of 480 V and a direct voltage of 32 V. The rated current is 40 A. Thanks to the use of semiconductor technology, the relay has no mechanical contacts, which has a positive effect on the durability of the devices. The lack of contacts also means no noise when switching .

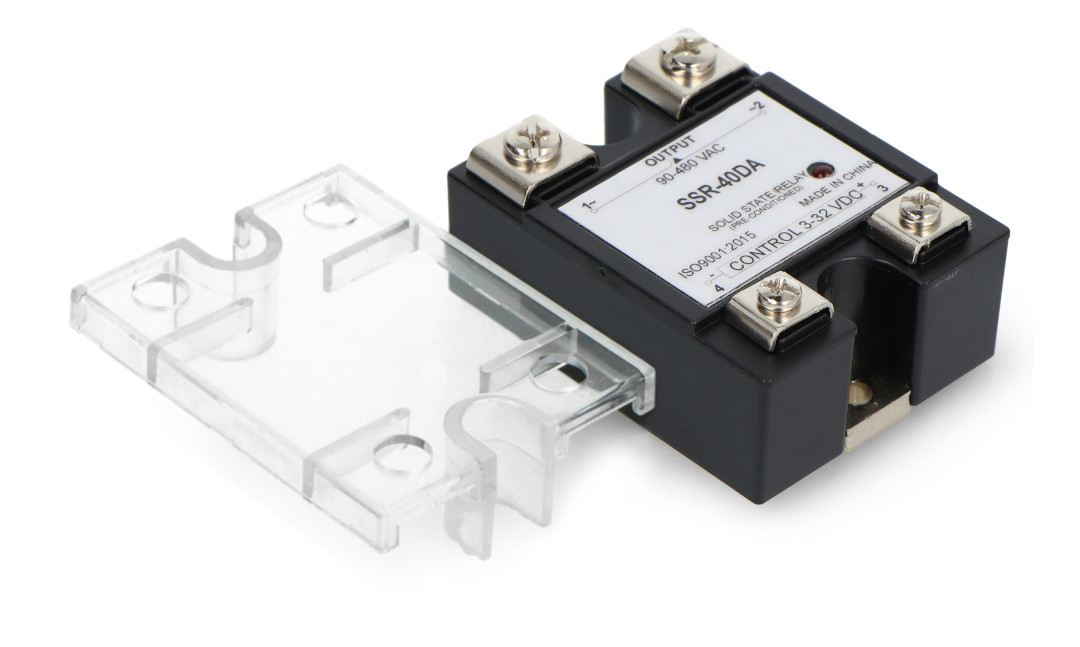

Solid State Relay SSR-40A 480VAC / 40A - 32VDC
Single-channel SSR solid state relay can safely operate in a wide temperature range from -20℃ to +80℃. The insulation strength is more than 50 (mΩ)/500V DC. And the dielectric strength is more than 2.5KV AC per minute.
The housing is made of lightweight and durable ABS material. What else distinguishes a solid-state relay? The device diagram shows not only the connection options, but also the physical dimensions. In addition, the 90 V / 480 V relay is characterized by a long service life, even in the case of intensive use.

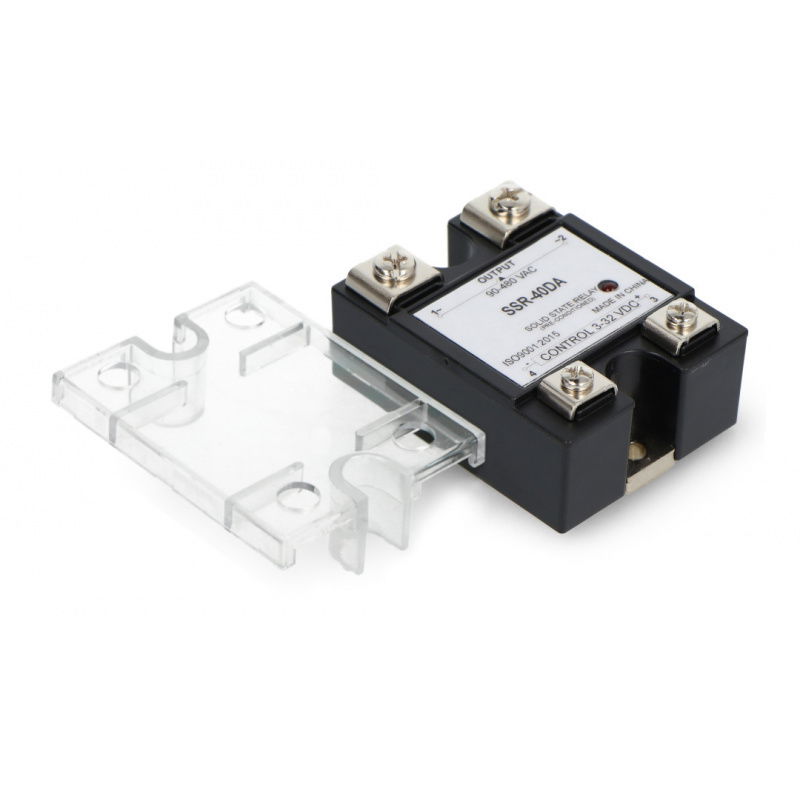

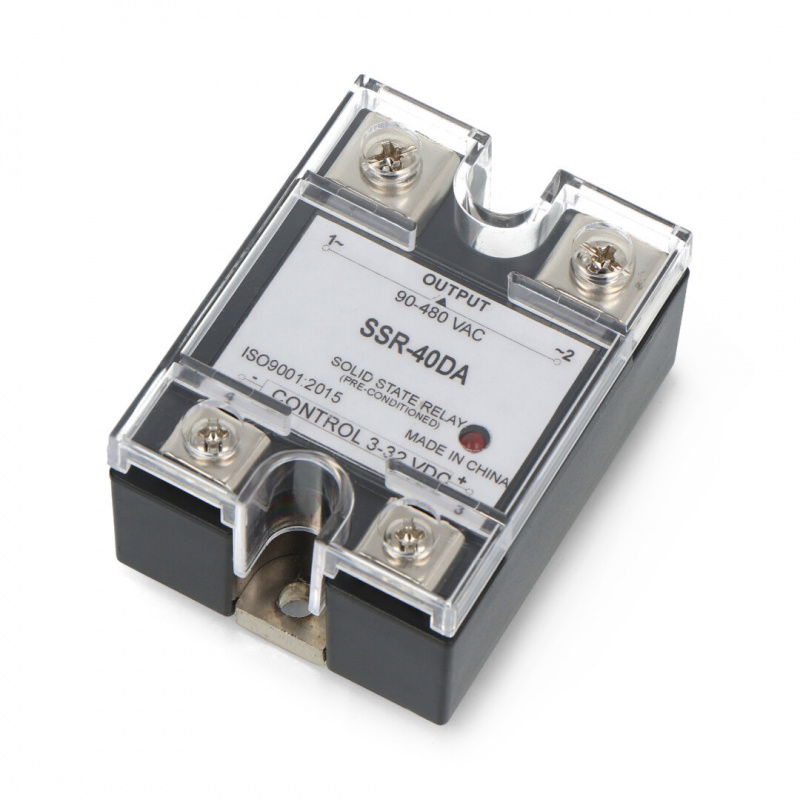

Solid state relay SSR-40A 480 V AC / 40 A - 32 V DC.
Technical specifications of the relay
- Operating voltage: 3 V to 32 V
- Load voltage: 90 V to 480 V
- Nominal current: 40 A
- Instantaneous current: 410 A
- Current consumption: 7.5 mA (12V)
- Response time: up to 10 ms
Single-phase solid-state relay SSR-40 A 480 V AC - additional information
The described SSR relay is distinguished by its wide application. It will work great in both home and industrial automation systems.
The 40 A relay has a minimum trip current of 7.5 mA at 12 V.
Useful links
| Name | Value |
|---|---|
| Channels | 1 |
| Interface | Digital I / O |
| Width | 8.5 cm |
| Height | 3 cm |
| Depth | 12 cm |
| Weight | 0.094 kg |
