Description: Fiberlogy ESD ABS Filament 1,75 mm 0,5 kg - Black.
Filament in black color with a diameter of 1,75 mm. Produced by Fiberlogy company, designed for printing in FDM / FFF technology. ESDABSmaterial has high resistance to electrostatic discharges. It has high energy dissipation and antistatic properties. Thanks to that it is worth using in electronics as it ensures its safety and reduces the risk of damaging electronic parts e.g. by electrostatic discharges.
Electrostatic discharges can cause great damage to electronic components. It is worth to protect all elements threatened by ESD effect, that is why ESD ABS filament will be useful in3D printingof, among others, housings for various types of integrated circuits, sensors, connectors or measuring devices.
In our offer of filaments you will also find other materials and colors.
ESD ABS properties
ESD ABS filament has highresistance to electrostatic dischargesand chemicals. It is resistant to high temperatures and scratches. The material has high impact strength. It can be subjected tomechanical and chemical treatment.
Application of ESD ABS filament
The material is used in electronics, in3D printoutsof housings, covers, cases. It can be used in printing tools for working with electronics, tools for manufacturing electronic components or machine components used in industry.
Suggested parameters for printing with the filament
| Printing temperature | From 250°C to 265°C |
| Table temperature | 90°C to 110°C |
| Closed chamber | Recommended |
| Due to differences in printer design, the above data should be considered as a guideline and the appropriate values should be determined experimentally. |

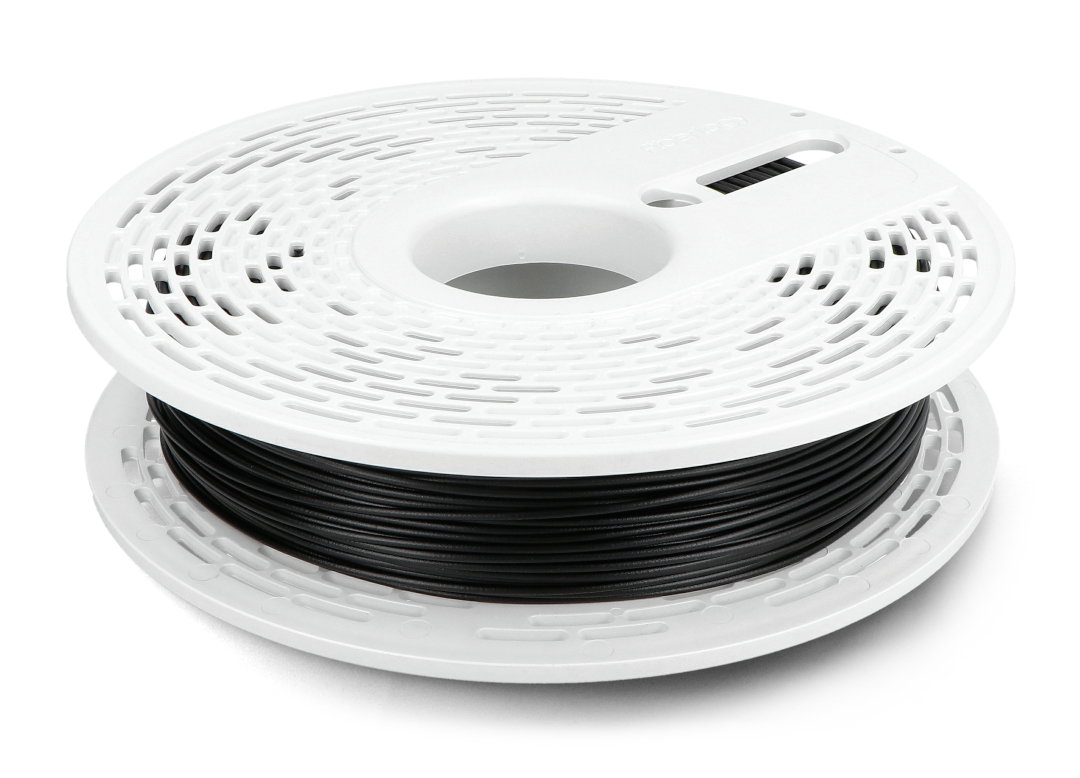

Fiberlogy ESD ABS 1,75 mm 0,5 kg - Black.
Fiberlogy felt specification
| Parameter | Range |
|---|---|
| Filament diameter | 1,75 mm |
| Dimensional tolerance of the filament | +/- 0.02 mm |
| Colour | Black |
| Printing temperature | From 250°C to 265°C |
| Table temperature | From 90°C to 110°C |
| Material | ESD ABS |
| Printing speed | From 35 mm/sec to 60 mm/sec |
| Drying conditions | 60°C / 4 h |
| Substrate | Glass, masking tape |
| Moisture absorber | Yes |
| Vacuum packaging | Yes |
| Roundness | +/- 0,01 mm |
| Retraction speed | from 20 to 45 mm/s |
| Net weight | 0,5 kg |
ESD ABS filament properties chart.
