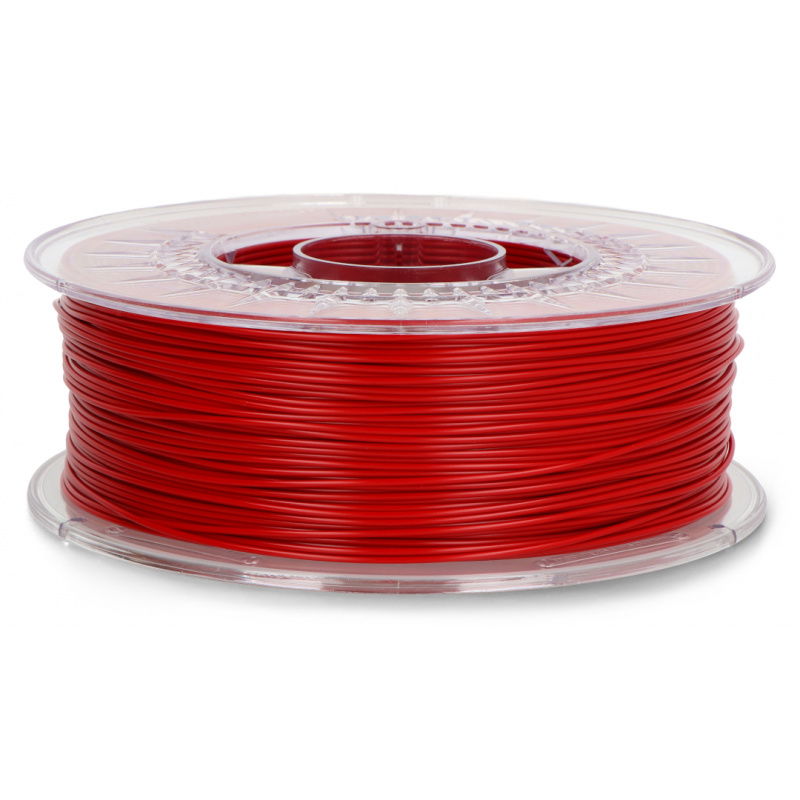

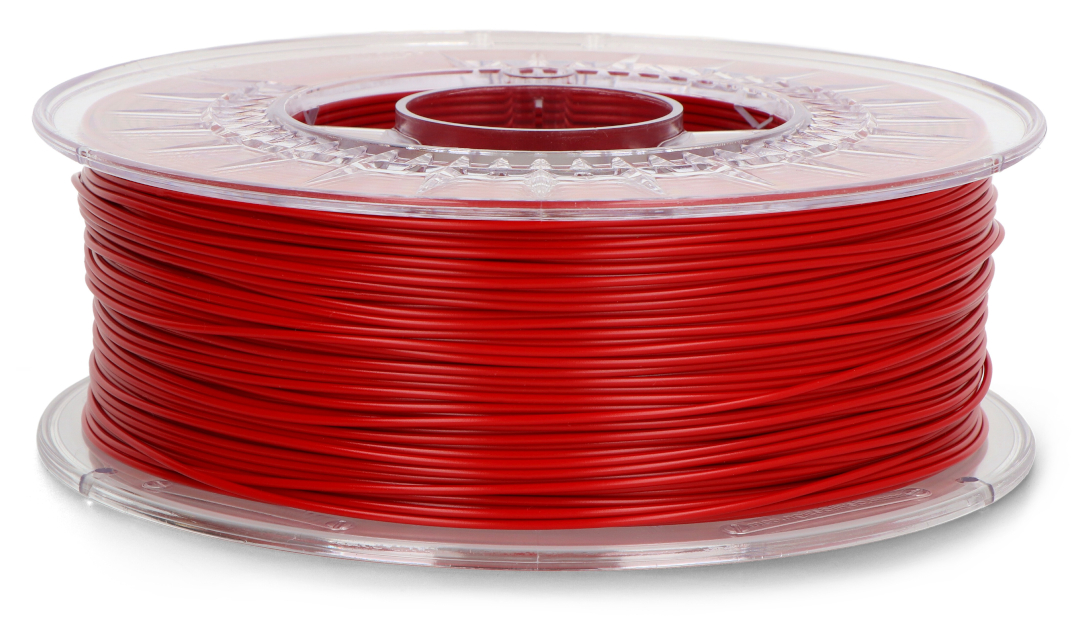

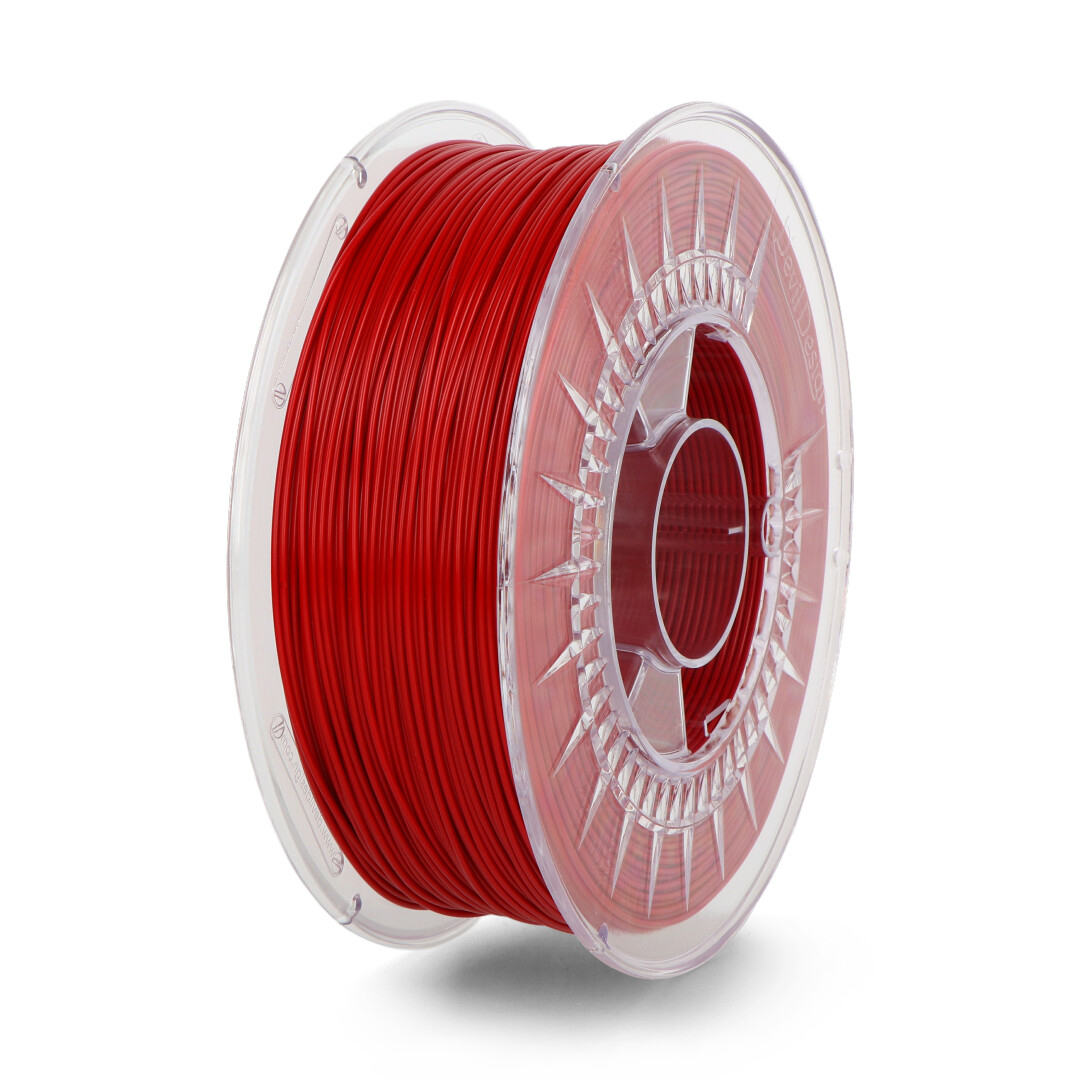

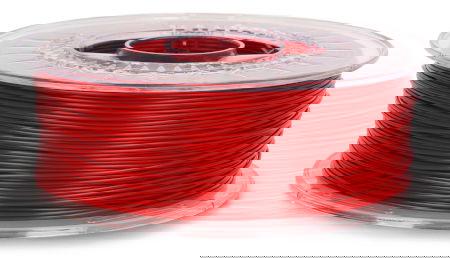

Product description: Devil Design ABS+ 1.75 mm 0.8 kg - Red
Devil Design ABS+ filament is a thermoplastic filament used as a cartridge for printing pens and 3D printers using the FFF printing method . The filament is vacuum-packed on a spool with a moisture absorber.
Our range of filaments also includes other materials and colors.
Devil Design ABS+ filament 1.75 mm 0.8 kg - Red.
The spool contains 0.8 kg net of material . The filament can be used in all FFF printers that are not protected against the use of material from a third-party supplier or open-source designs. The ABS+ filament is soluble in acetone and easily amenable to mechanical processing such as grinding or drilling.
Properties of ABS filament
- There is a smell of melting plastic while printing
- More durable than PLA
- Melting temperature: 230°C to 240°C. It is very important to choose the correct temperature specified by the manufacturer.
- Easy to sand, you can drill holes in it without any problems
- It is cheap and comes in many color variants.
ABS+ filament is characterized by high thermal and mechanical resistance, as well as a reduced tendency to shrink and warp during printing.
Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally.
Suggested filament printing parameters
| Head temperature | From 230°C to 240°C |
| Table temperature | From 90°C to 100°C |
| Print cooling | Not recommended |
Technical specifications and physical properties of Devil Design filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75mm / 2.85mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Filament roundness | +/- 0.02 mm |
| Material surface | Gloss |
| Material shrinkage | Big |
| Product weight | 0.8 kg |
| Material | ABS |
| Weight of empty spool | ~250 g |
| Spool diameter | 200 mm |
| Spool width | ~70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Cardboard with print |
| Package dimensions | 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
