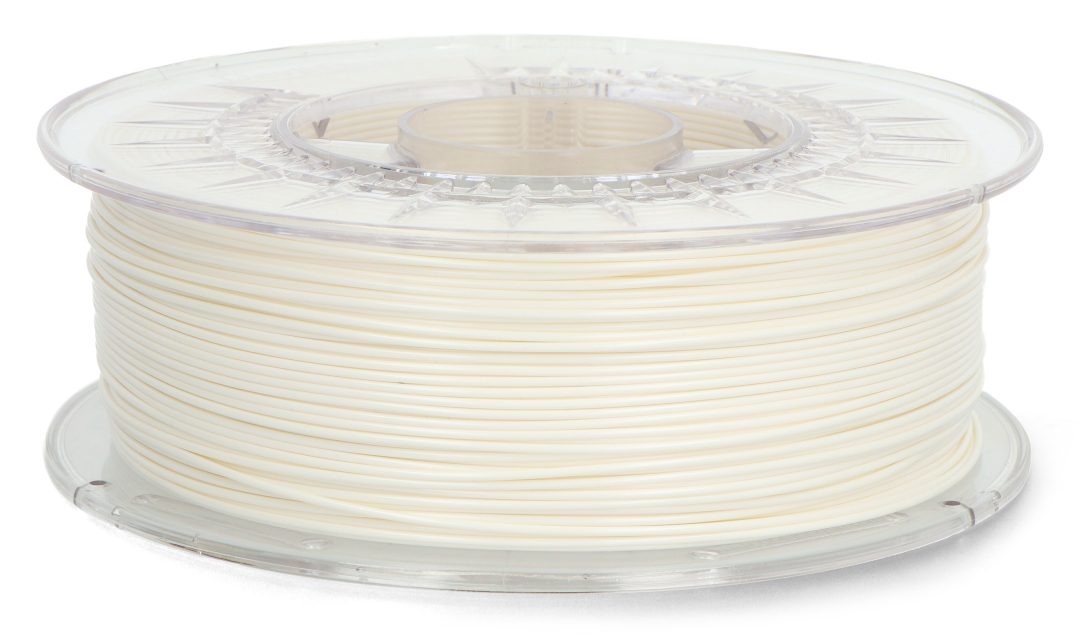

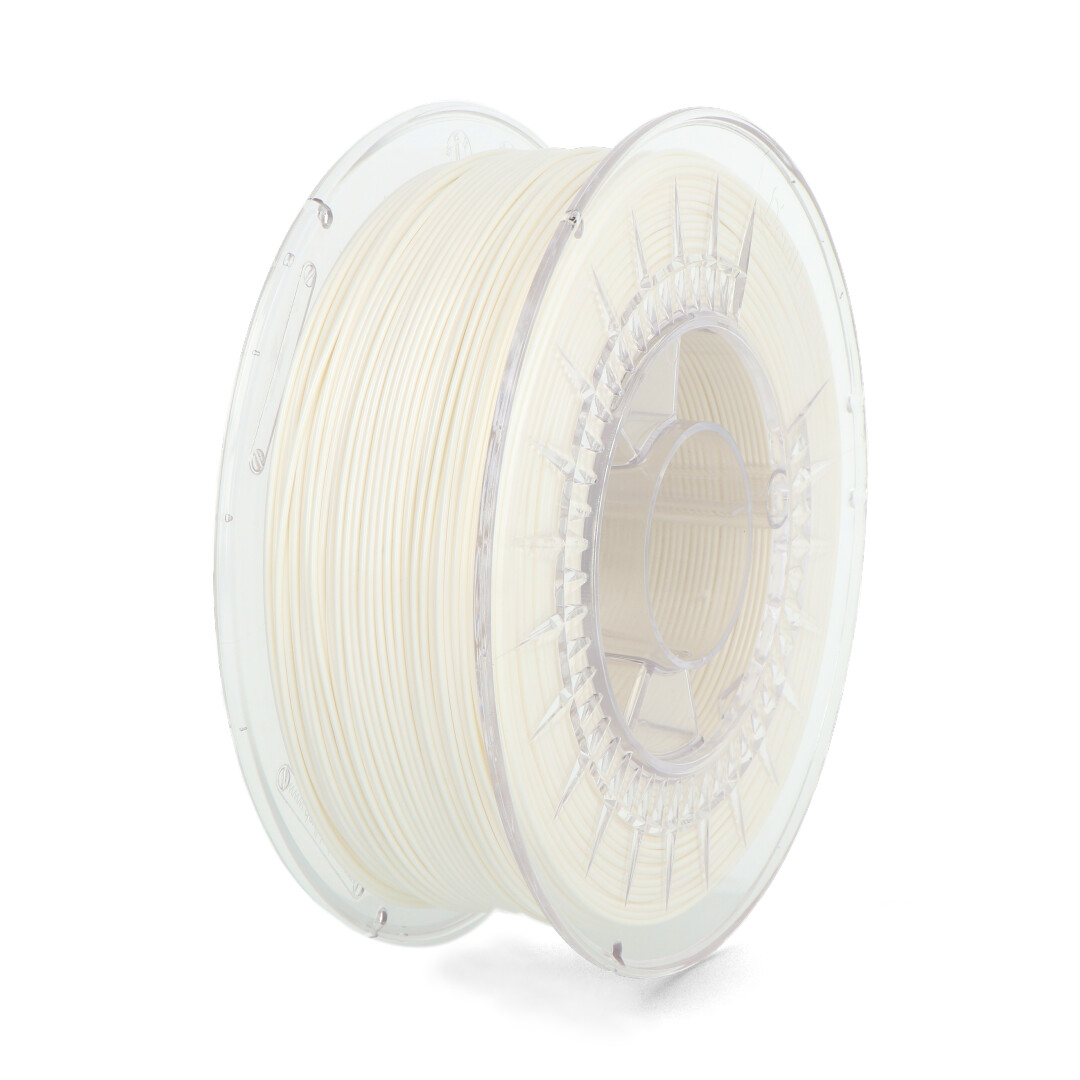

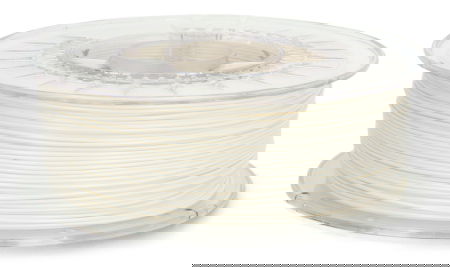

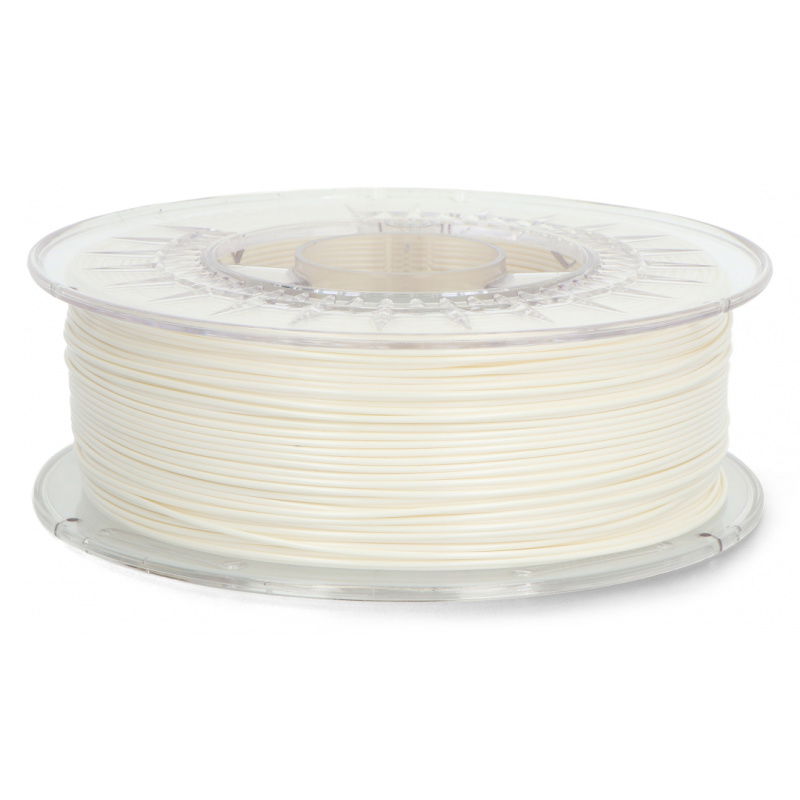

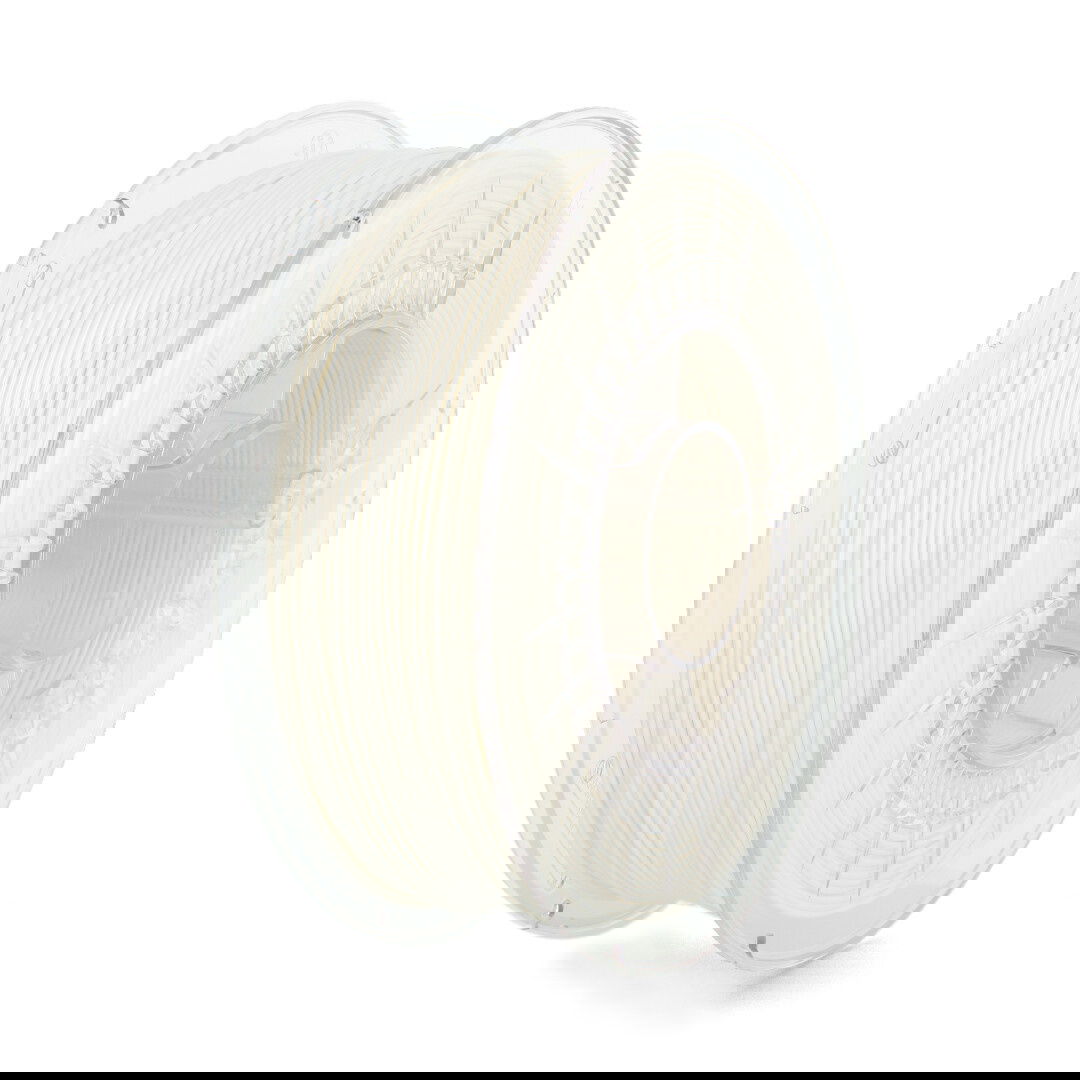

Product description: Devil Design ABS+ 1.75 mm 0.8 kg - White
Devil Design ABS+ filament is a thermoplastic filament used as a cartridge for printing pens and 3D printers using the FFF printing method . The filament is vacuum-packed on a spool with a moisture absorber.
Our range of filaments also includes other materials and colors.
Devil Design ABS+ filament 1.75 mm 0.8 kg - White.
The spool contains 0.8 kg net of material . The filament can be used in all FFF printers that are not protected against the use of material from a third-party supplier or open-source designs. The ABS+ filament is soluble in acetone and easily amenable to mechanical processing such as grinding or drilling.
Properties of ABS filament
- There is a smell of melting plastic while printing
- More durable than PLA
- It melts at a relatively low temperature: from 180°C to 220°C. It is very important to choose the appropriate temperature specified by the manufacturer.
- Easy to sand, you can drill holes in it without any problems
- It is cheap and comes in many color variants.
ABS+ filament is characterized by increased resistance to weather conditions and UV radiation.
Suggested filament printing parameters
| Head temperature | From 230°C to 240°C |
| Table temperature | From 90°C to 100°C |
| Print cooling | Not recommended |
| Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally. |
Technical specifications and physical properties of Devil Design filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75mm / 2.85mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Filament roundness | +/- 0.02 mm |
| Material surface | Gloss |
| Material shrinkage | Big |
| Product weight | 0.8 kg |
| Material | ABS |
| Weight of empty spool | ~250 g |
| Spool diameter | 200 mm |
| Spool width | ~70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Cardboard with print |
| Package dimensions | 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
Devil Design ABS+ filament 1.75 mm 0.8 kg - White
Devil Design ABS+ filament with a diameter of 1.75 mm has a Rockwell R hardness of 94 (measured using the ASTM D785 method). This heat shrink material achieves a center of gravity of 1.04³ g/cm. Another parameter worth mentioning is the softening temperature of 85℃.
Devil Design's ABS+ filaments are a good solution for all 3D printer users, both those who have fully mastered the device's capabilities and beginners. Due to the material's properties, it makes printing very easy.
Devil Design ABS+ filaments - additional properties
The maximum tensile strength of the filament, as declared by the manufacturer, was set at 430 kg/cm², based on the ASTM D638 standard. This thermoplastic material stretches by a maximum of 30% at break.
ABS+ filaments produced by Devil Design also stand out for their wide range of applications. Due to their high gloss and wide range of color options, they can be used to create decorative models. Other possibilities include printing toys, jewelry, accessories, housings, and everyday items.
