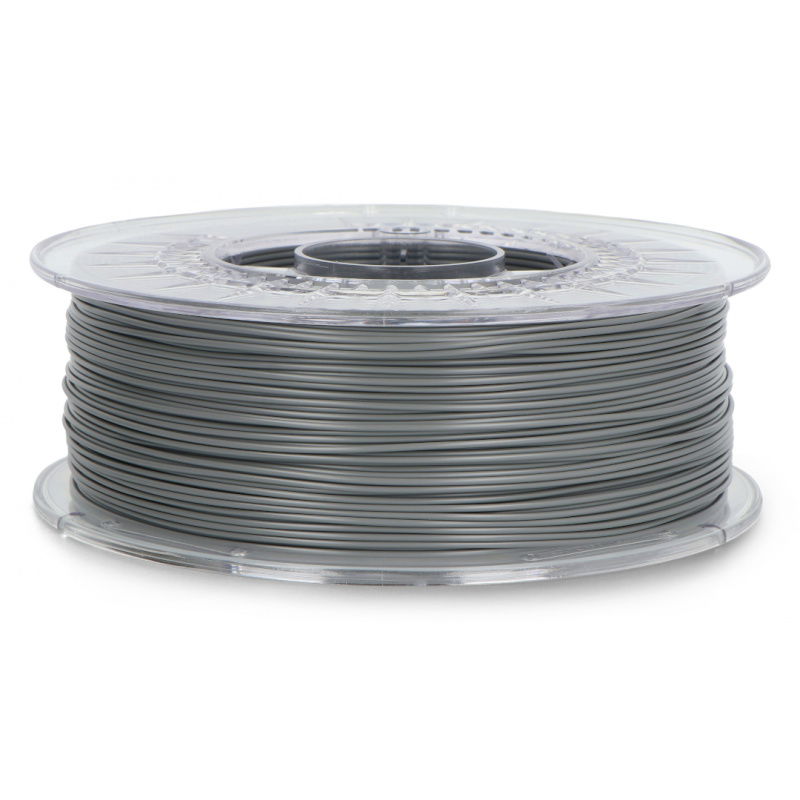

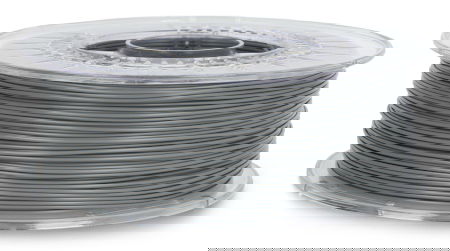

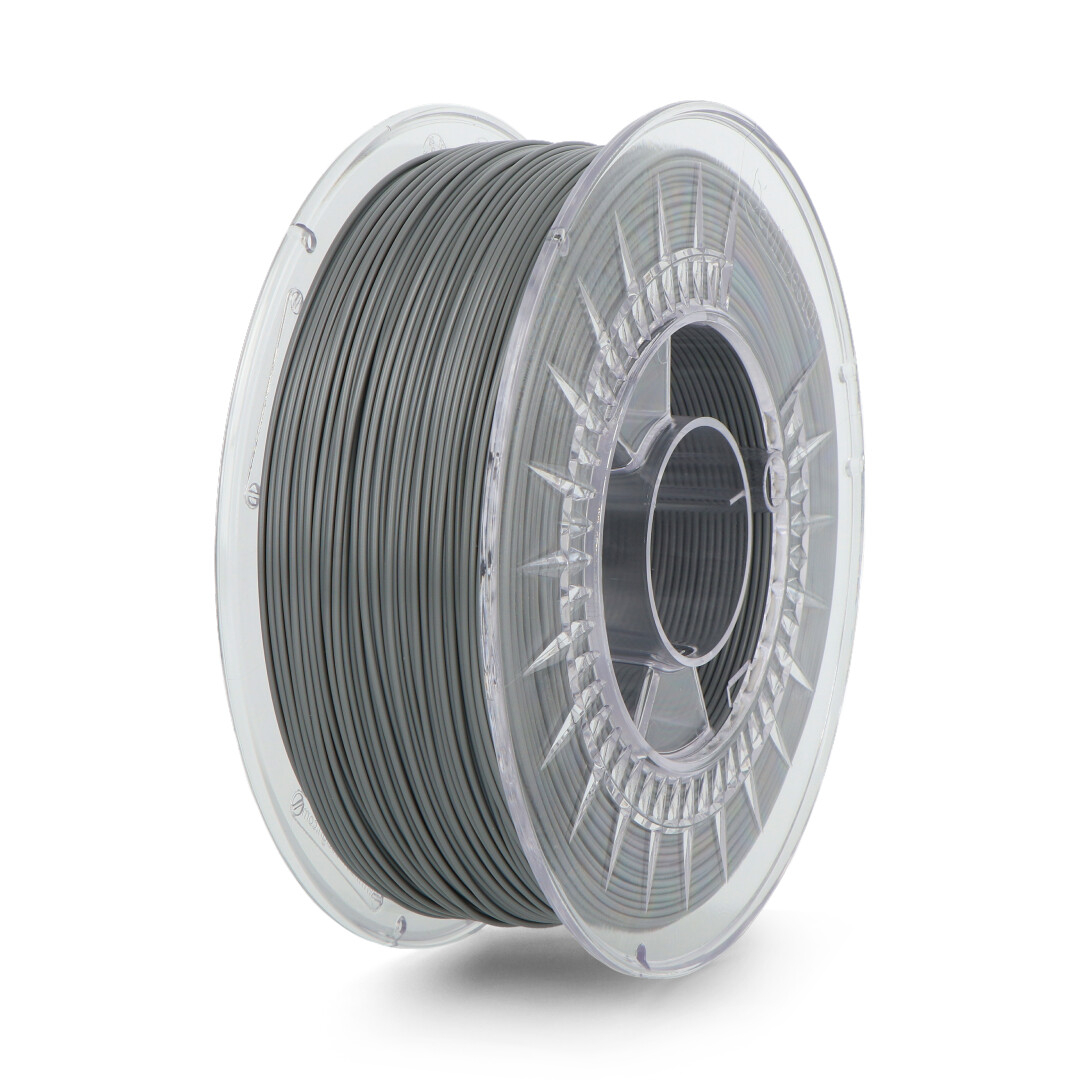

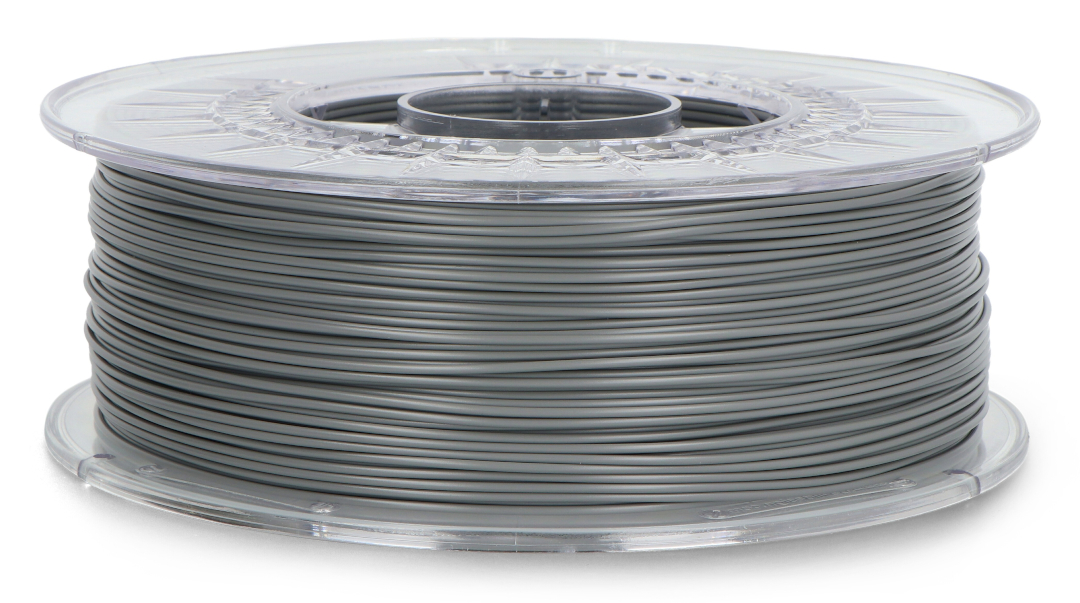

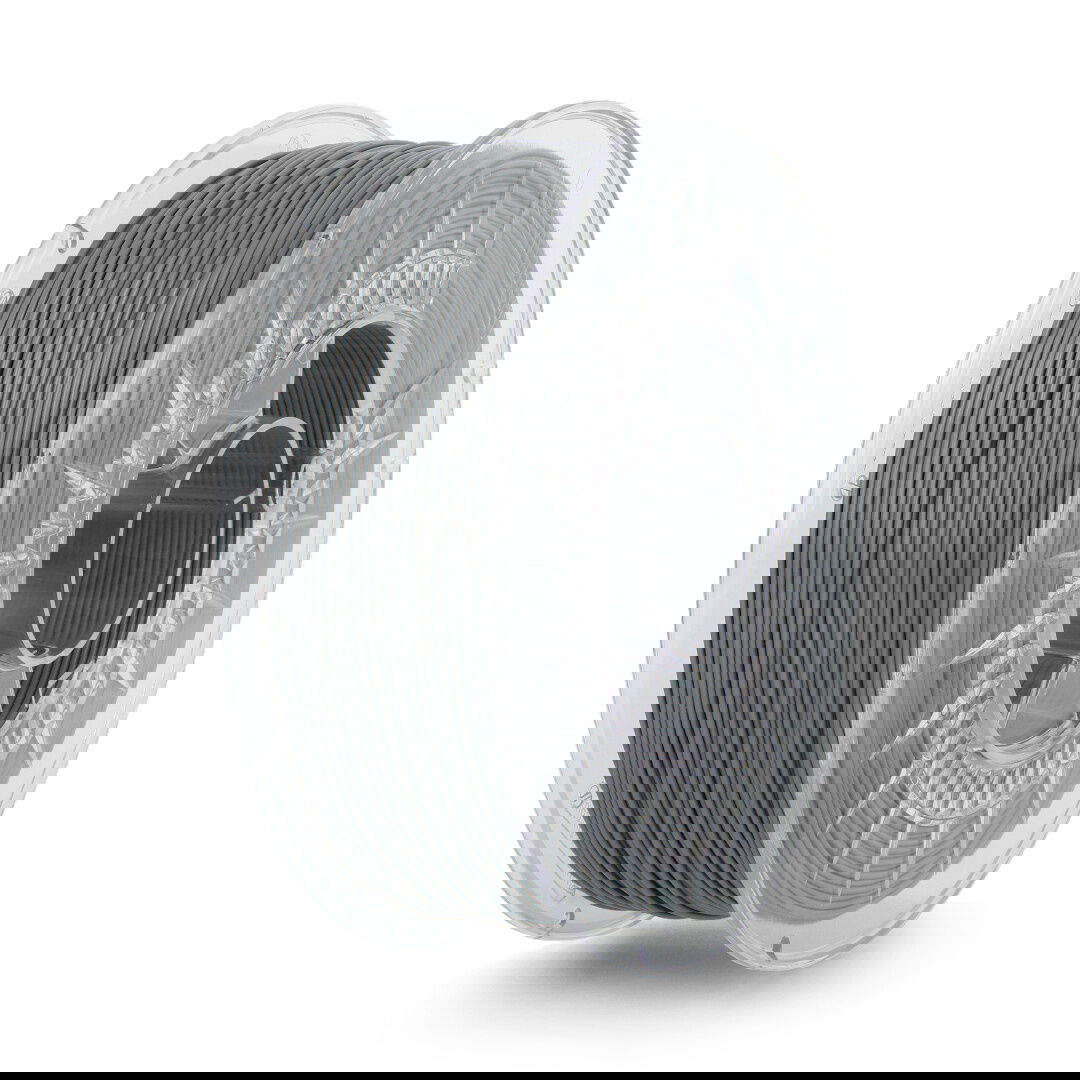

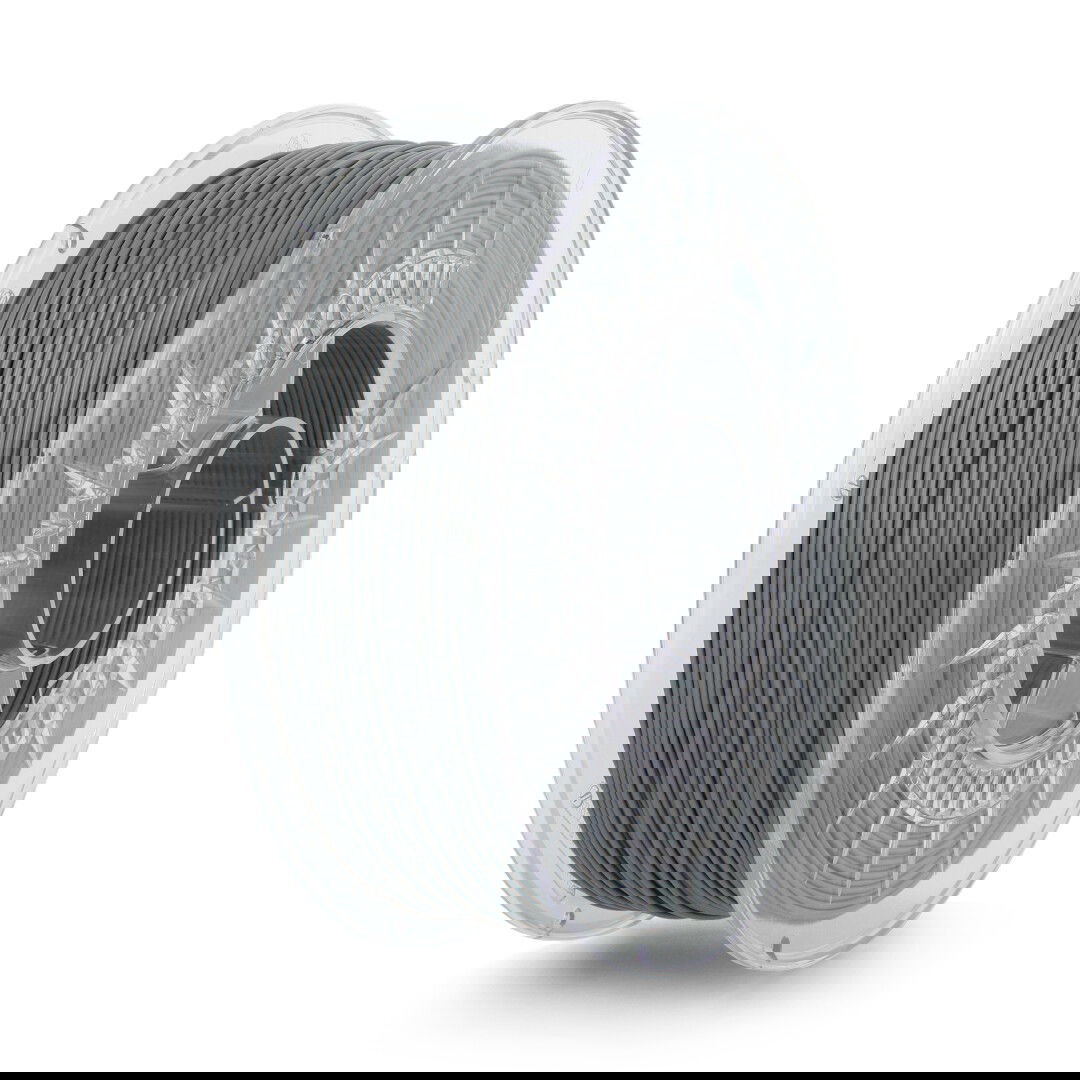

Product description: Devil Design ABS+ 1.75 mm 0.8 kg - Gray
Devil Design ABS+ filament is a thermoplastic filament used as a cartridge for printing pens and 3D printers using the FFF printing method . The filament is vacuum-packed on a spool with a moisture absorber.
Our range of filaments also includes other materials and colors.
Devil Design ABS+ filament 1.75 mm 0.8 kg - Gray.
The spool contains 0.8 kg net of material . The filament can be used in all FFF printers that are not protected against the use of material from a third-party supplier or open-source designs. The ABS+ filament is soluble in acetone and easily amenable to mechanical processing such as grinding or drilling.
Properties of ABS filament
- There is a smell of melting plastic while printing
- More durable than PLA
- It melts at a relatively low temperature: from 180°C to 220°C. It is very important to choose the appropriate temperature specified by the manufacturer.
- Easy to sand, you can drill holes in it without any problems
- It is cheap and comes in many color variants.
Due to differences in printer design, the above data should be treated as guidelines and the appropriate values should be determined experimentally.
Suggested filament printing parameters
| Head temperature | From 230°C to 240°C |
| Table temperature | From 90°C to 100°C |
| Print cooling | Not recommended |
Technical specifications and physical properties of Devil Design filament
| Parameter | Range |
|---|---|
| Filament diameter | 1.75 mm |
| Filament dimensional tolerance | +/- 0.05 mm |
| Filament roundness | +/- 0.02 mm |
| Material surface | Gloss |
| Material shrinkage | Big |
| Product weight | 0.8 kg |
| Material | ABS |
| Weight of empty spool | ~250 g |
| Spool diameter | 200 mm |
| Spool width | ~70 mm |
| Mounting hole diameter | 52 mm |
| Packaging | Cardboard with print |
| Package dimensions | 205 x 205 x 80 mm |
| Vacuum packaging | Yes |
| Moisture absorber | Yes |
Devil Design ABS+ filament 1.75 mm 0.8 kg - Gray
ABS+ filaments manufactured by Devil Design are recommended for both experienced 3D printer users and those just learning about the capabilities of this type of device. This is due to the relatively easy printing with this material.
Devil Design ABS+ filament, 1.75 mm in diameter, has a center of gravity of 1.04³ g/cm³. It has a Rockwell R hardness of 94, measured using the ASTM D785 method. The material stretches to a maximum of 30% at break.
Devil Design ABS+ filaments - what else is worth knowing about them?
Devil Design's ABS+ filaments are characterized by their universal application. Their high-gloss properties and wide color availability make the material ideal for decorative prints. Other applications include printing everyday objects, toys, jewelry, accessories, and electronic device casings.
Regarding other parameters, the softening point is 85℃. According to the manufacturer, the maximum tensile strength of the material is 430 kg/cm² (based on the ASTM D638 standard).
