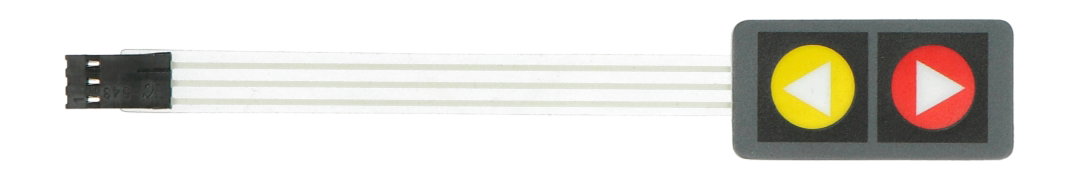

Membrane keypad - 2 coloured buttons with arrows - self-adhesive
Diaphragm keypad with two buttons in red and yellow, additionally there are arrows on the buttonsup and down. Thanks to the navigation arrows, the keyboard is perfect as a rudder to control our project, e.g. a robot or monitoring system, as well as to navigate the system. The prepared tape can be used to mount the keyboard in a desired place.
We could not load the price.
The promotional price does not combine with quantity discounts.
Diaphragm keypad - 2 coloured buttons with arrows - self-adhesive.
Diaphragm keypadwith two buttons in red and yellow, additionally there are up and down arrows on the buttons. Thanks to the navigation arrows, the keyboard is perfect as a rudder for controlling our project, e.g. a robot or a monitoring system, as well as for navigating the system. For mounting the keyboard in the desired place, you can use the prepared tape, located on the rear part of the keyboard. The keyboard's outlines are made in the form of a 90 mm long tapeended witha female connector with a raster of 2.54 mm. This allows you to easily connect the keyboard to our project usingconnecting cables orgoldpinconnectors.
These types of keyboards are small devices, which significantly facilitates their use in complex projects.
The graphics also include the size of the device.
Keyboard outputs
The way of realizing the keyboard outputs is shown in the graphics below. The first pin is responsible for powering the whole device, and the next two are signal pins.
Keyboard specifications
- Number of buttons: 2
- Dimensions: 40 x 20 x 0.8 mm
- Belt length: 90 mm
- Type of connector: 1x3 pin - female raster 2.54 mm
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | keyboard |
| Switch - shape | rectangular |
| Switch - backlight | no |
| Length | 40 mm |
| Width | 20 mm |
| Height | 0.8 mm |
| Raster | 2.54 mm |
| Width | 5.5 cm |
| Height | 0.2 cm |
| Depth | 20 cm |
| Weight | 0.002 kg |
