Self-adhesive membrane keyboard 4x4 - 16 keys
Diaphragm keypad equipped with 16 keys in 4 x 4 arrangement. It has numbers: from 0 to 9, letters: A, B, C, D and special characters: * i #. On the back of the keyboard there is a self-adhesive tape for easy installation. The keyboard is equipped with a tape with 8-pin connector with a 2.54 mm grid.
We could not load the price.
The promotional price does not combine with quantity discounts.
Self-adhesive membrane keypad 4x4 - 16 keys
Diaphragm keypad equipped with 16keys in 4 x 4 arrangement.It has numbers: from 0 to 9, letters: A, B, C, D and special characters: * i #. On the back of the keyboard there is aself-adhesivetape for easy installation. The keyboard is equipped with8-pintapewith a2.54 mmgrid, so it can be connected to the main module, such as Arduino or STM32usingconnectioncablesorthrough a goldpin strip.The keyboard can be used as a data input device.

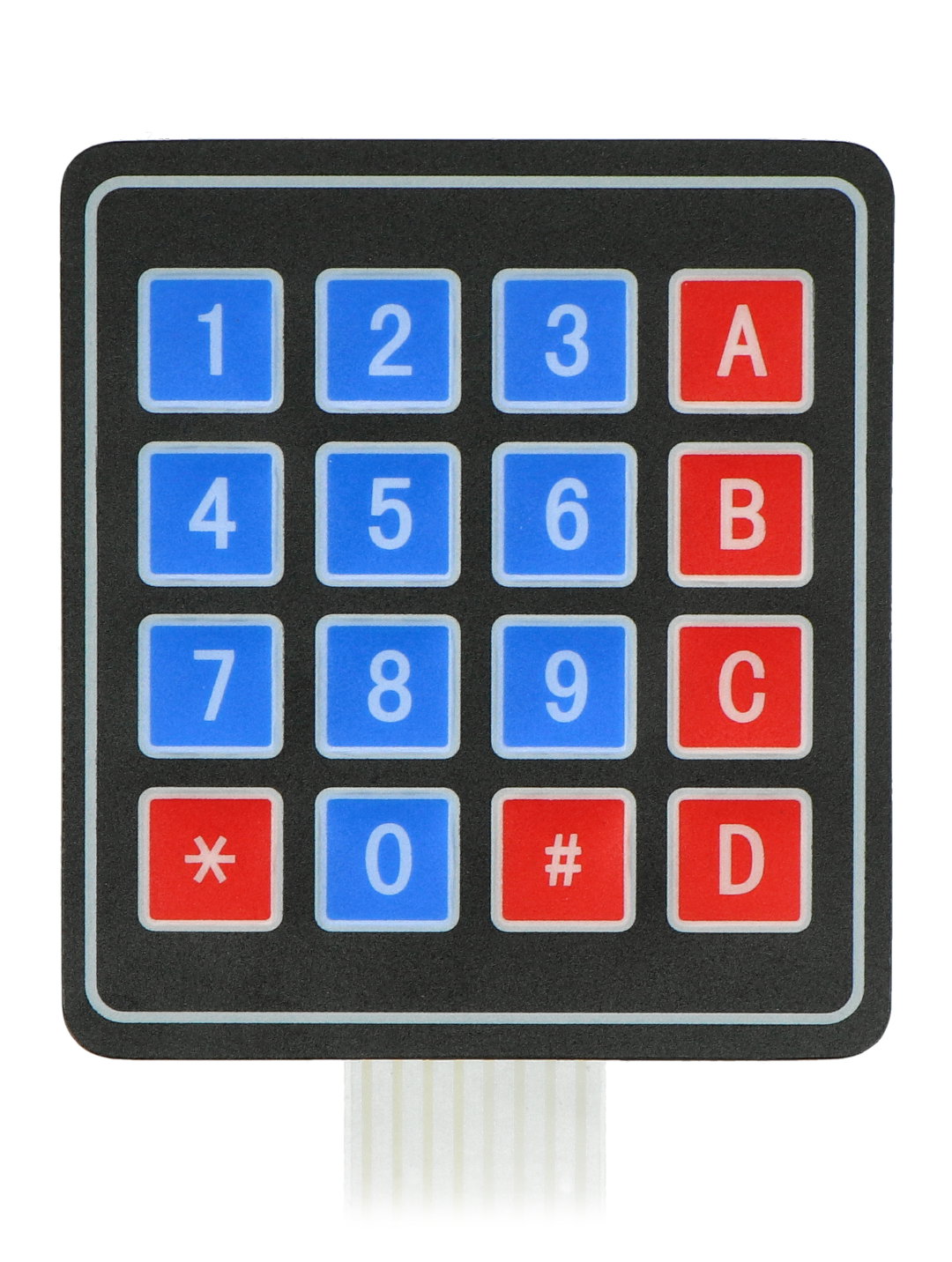

Membrane keyboard with 16 keys.
How to connect the keyboard
The keyboard can be connected in two ways. The layout of the outputs is shown in the figure below.
The layout of the outputs and how to connect the keyboard.
Diaphragm keypad specifications
- Number of buttons: 16
- Dimensions: 77 x 70 x 0.8 mm
- Belt length with connector: 83 mm
- Type of connector: 1 x 8 pin - female raster 2.54 (goldpin connector)
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | keyboard |
| Switch - shape | square |
| Switch - backlight | no |
| Colour | black |
| Length | 77 mm |
| Width | 70 mm |
| Height | 0.8 mm |
| Raster | 2.54 mm |
| Width | 6.9 cm |
| Height | 16.5 cm |
| Depth | 0.1 cm |
| Weight | 0.007 kg |
