Product description: Buttonmatrix - 4x4 keyboard matrix - Joy-IT

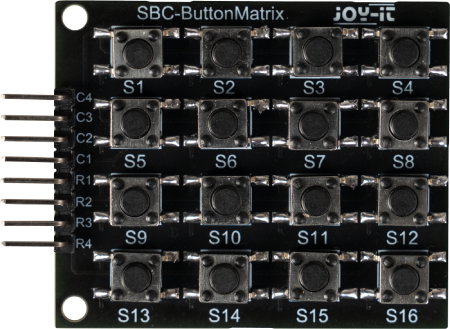

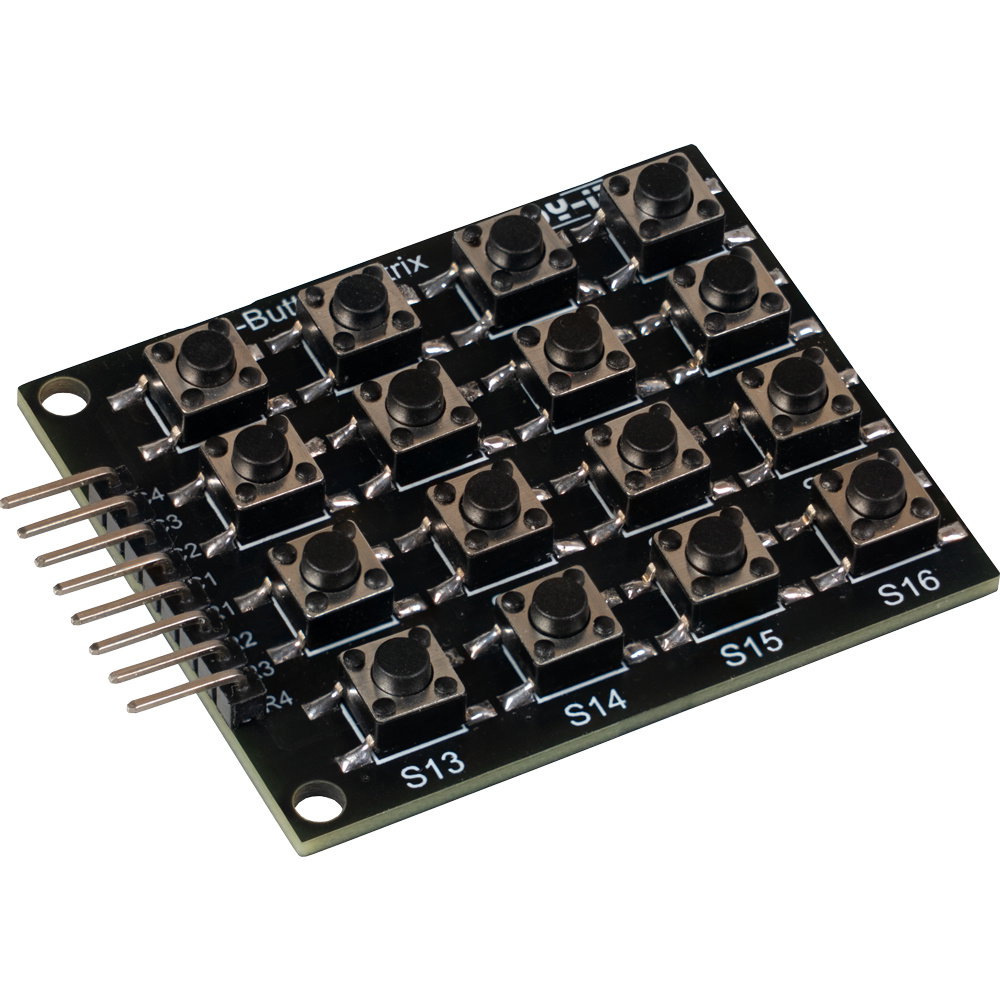

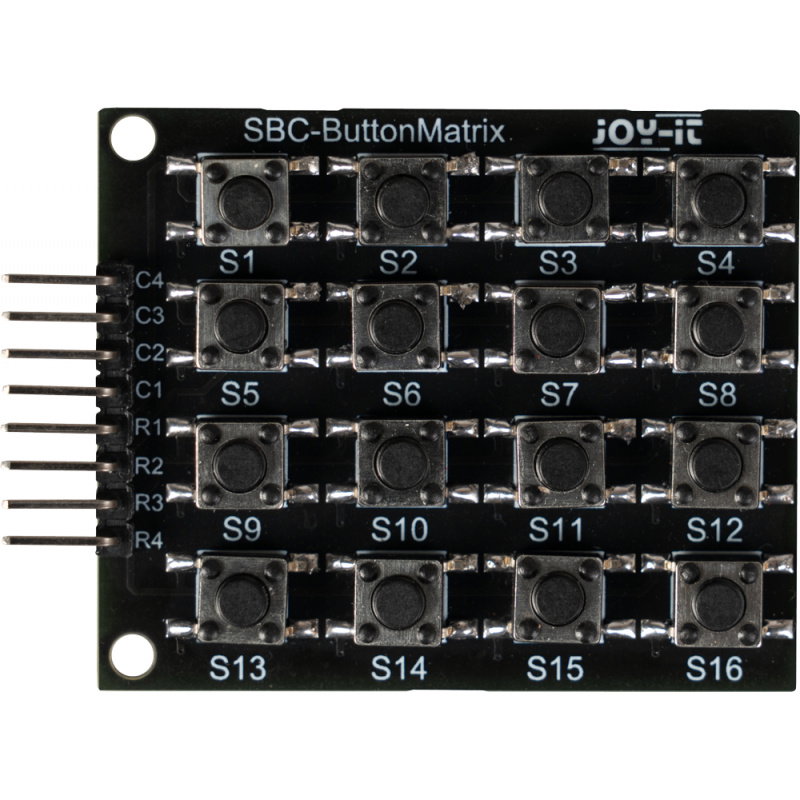

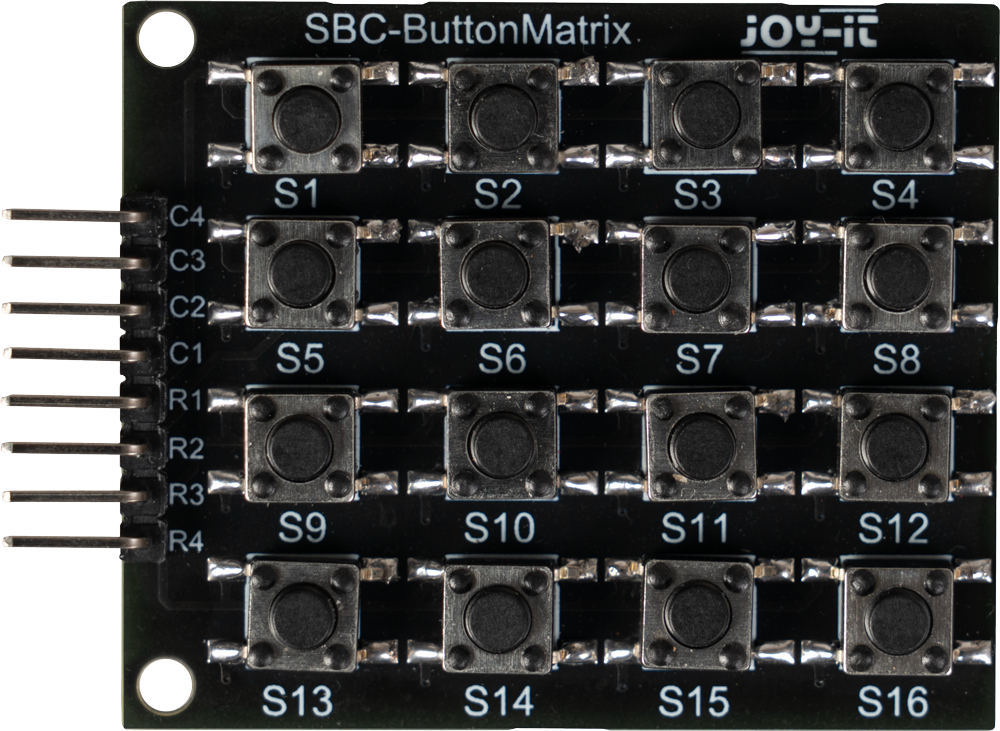

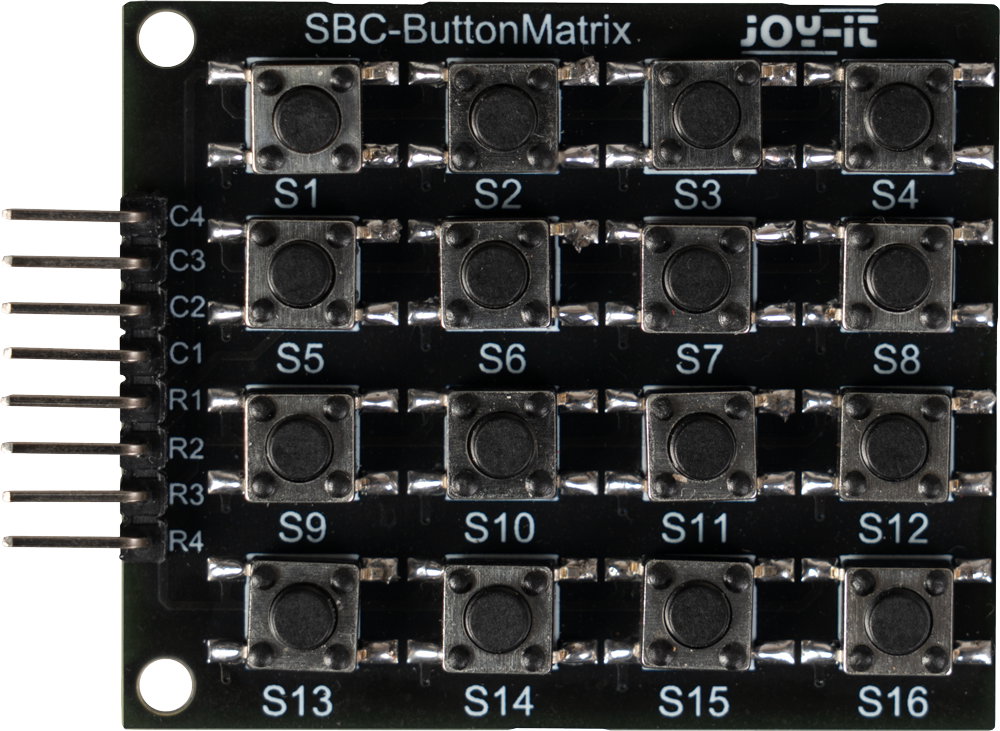

The Buttonmatrix 4x4 module is a practical input solution designed for use with microcontrollers and single-board computers. The module features 16 tact-switch buttons arranged in a 4x4 matrix, allowing for efficient operation of multiple keys while utilizing a small number of GPIO lines. By scanning rows and columns, the module enables reliable reading of all button states using only eight microcontroller pins . This solution is ideal for projects requiring control panels, numeric keypads, access control systems, or user interfaces.
Buttonmatrix - 4x4 keyboard matrix - Joy-IT.
The Buttonmatrix 4x4 module is a practical input solution designed for use with microcontrollers and single-board computers.Special features
- 4x4 Matrix: 16 buttons in a compact layout
- GPIO saving: all keys are operated using 8 pins
- Row and column scanning: reliable button detection
- Arduino Compatibility: Easy integration with popular platforms
- Compact design: perfect for embedded projects
- Universal use: controls, menus, numeric keypads
- Easy integration: quick connection to the microcontroller
Technical specifications
- Key layout: 4 x 4
- Number of buttons: 16
- Button type: tact-switch
- Number of GPIOs required: 8
- Compatibility: Arduino, microcontrollers, SBC
The solution is perfect for projects requiring control panels, numeric keypads, access systems or user interfaces.
