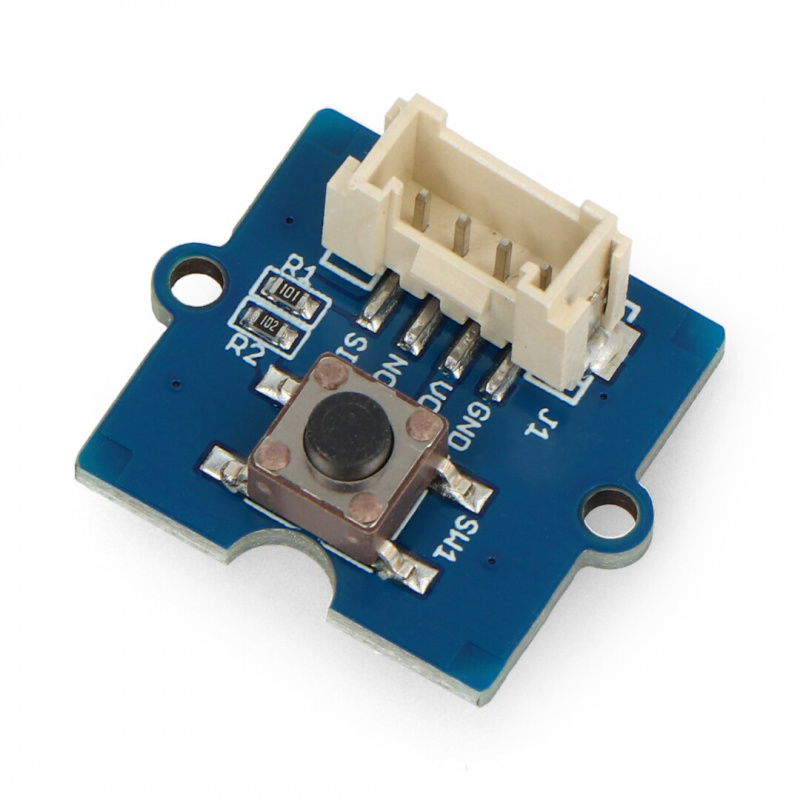

Grove - Button - module with a button
The control module from a Grove series. It has a built-in tact-switch system and pull-down resistor. It communicates with the microcontroller through a digital signal.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
The control module from a Grove series. It has a built-in tact-switch system and pull-down resistor. It communicates with the microcontroller through a digital signal.
Attention! This product is only available in our market in Poland and cannot be sold to other countries. |
Botland is an official distributor of electronics and robotics solutions from Seeedstudio. Hundreds of ready to use devices, components and modules are available from stock or to order. Our team guarantees that all Seeedstudio products presented here are original.
Specification
- Supply voltage: 5 V
- Button tact-switch
- Built-in pull-down resistors
- Communications: digital signal
- 4-pin Grove interface
- Module dimensions: 20 x 20 mm
The product is compatible with Arduino The manufacturer offers a user manual, and the program for Arduino. |
Connection

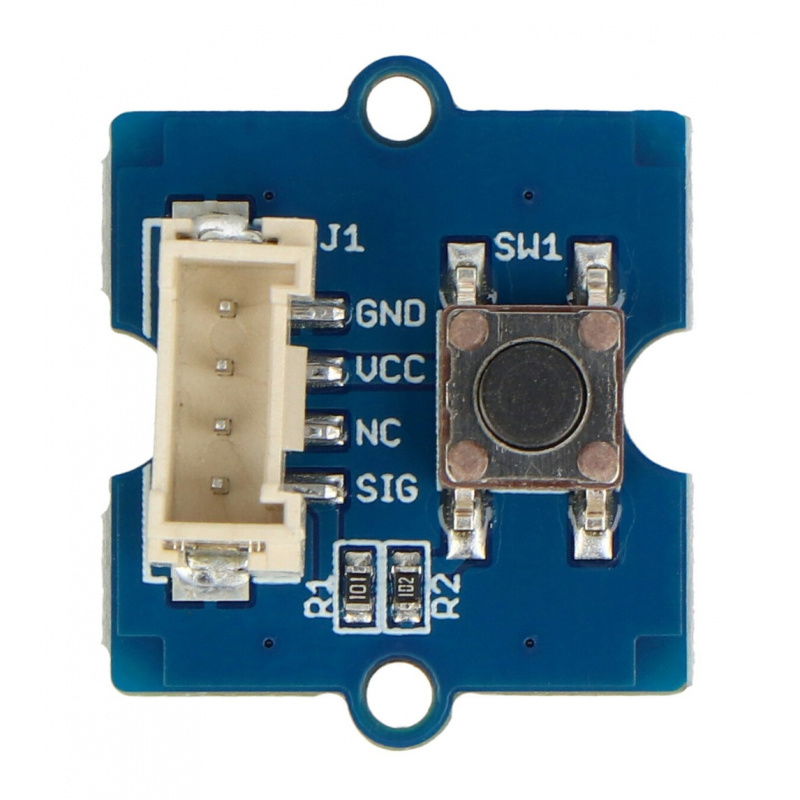

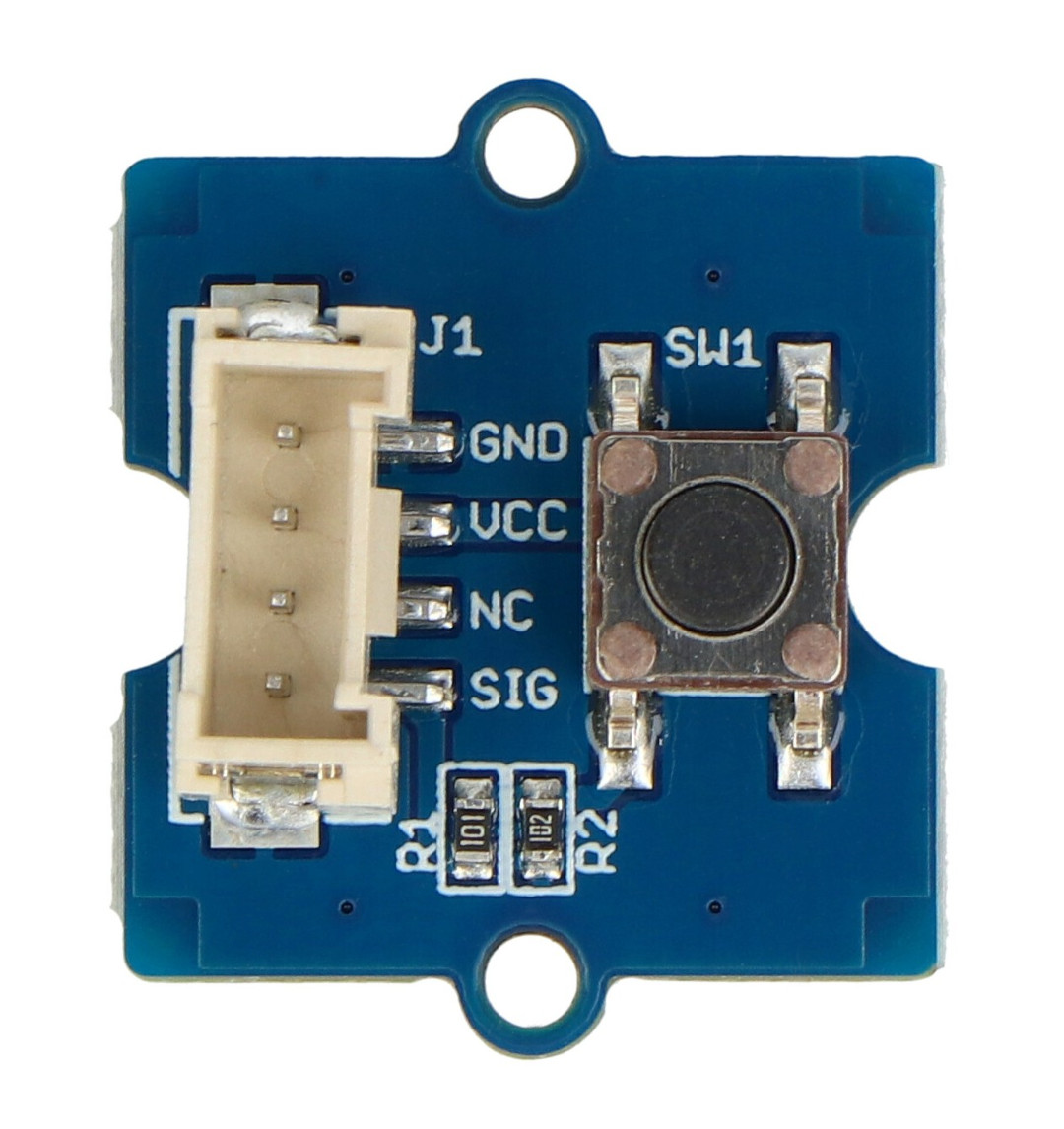

The sensor communicates with the microcontroller through a digital signal. It has the following outputs:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | The supply voltage of 5 V. |
| NC | Not connected. |
| SIG | Digital signal. |
Grove is a series of modules and sensors that are compatible with Base Shield boards working with Arduino and STM32 Nucleo. |
Useful links
| Name | Value |
|---|---|
| Switch - type2 | monostable |
| Switch - type | tact-switch THT |
| Switch - shape | round |
| Switch - backlight | no |
| Colour | black |
| Sensor - type | button |
| Width | 4.5 cm |
| Height | 6.6 cm |
| Depth | 1.5 cm |
| Weight | 0.008 kg |
