Grove - module with button

Index: SEE-13344 EAN: 5904422320553

The control module from a Grove series. It has a built-in tact-switch system and pull-down resistor. It communicates with the microcontroller through a digital signal.

Grove - module with button
€1.90
€1.54 tax excl.
Delivery 15 pcs scheduled for 2024-04-12
Waiting for delivery
PayPal payment
Manufacturer: Seeedstudio
Compatibility: Arduino Raspberry Pi

Description

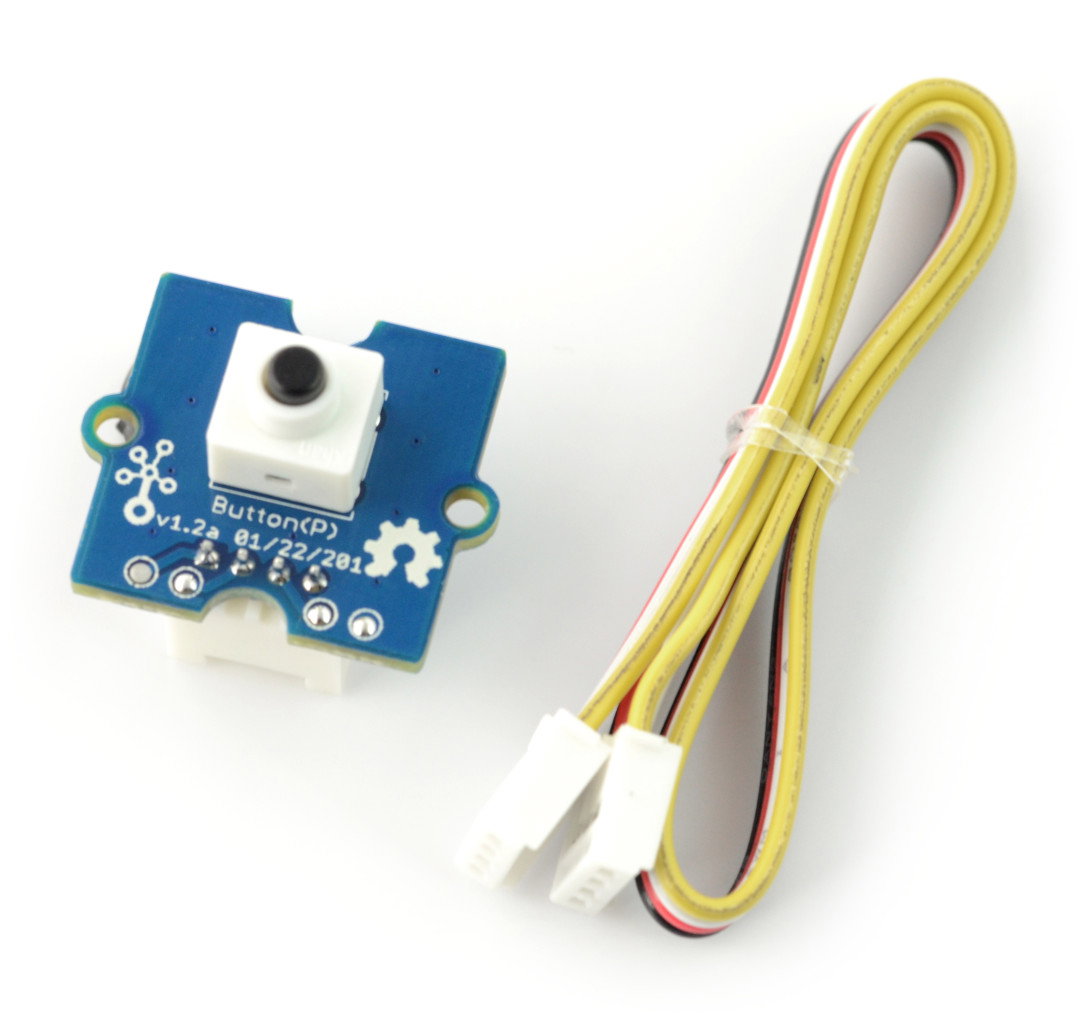

The control module from aGrove series. It has a built-intact-switchsystem with adapter andpull-down resistor. Connecting slot is at the bottom of the board, which makes it easy to hide the cable inthe case. It communicates with the microcontroller through adigital signal. The kit includes a cable adapted to Seeedstudio Base Shield v2.0.

Grove - Button - moduł z przyciskiem

Modules included with 4-pin cable for Base Shield v2.

Specification

  • Supply voltage: 5 V
  • Button tact-switch
  • Built-in pull-down resistors
  • Communications: digital signal
  • 4-pin Grove interface
  • Module dimensions: 20 x 20 mm

The product is compatible with Arduino

The manufacturer offers auser manual and the program forArduino.

Connection

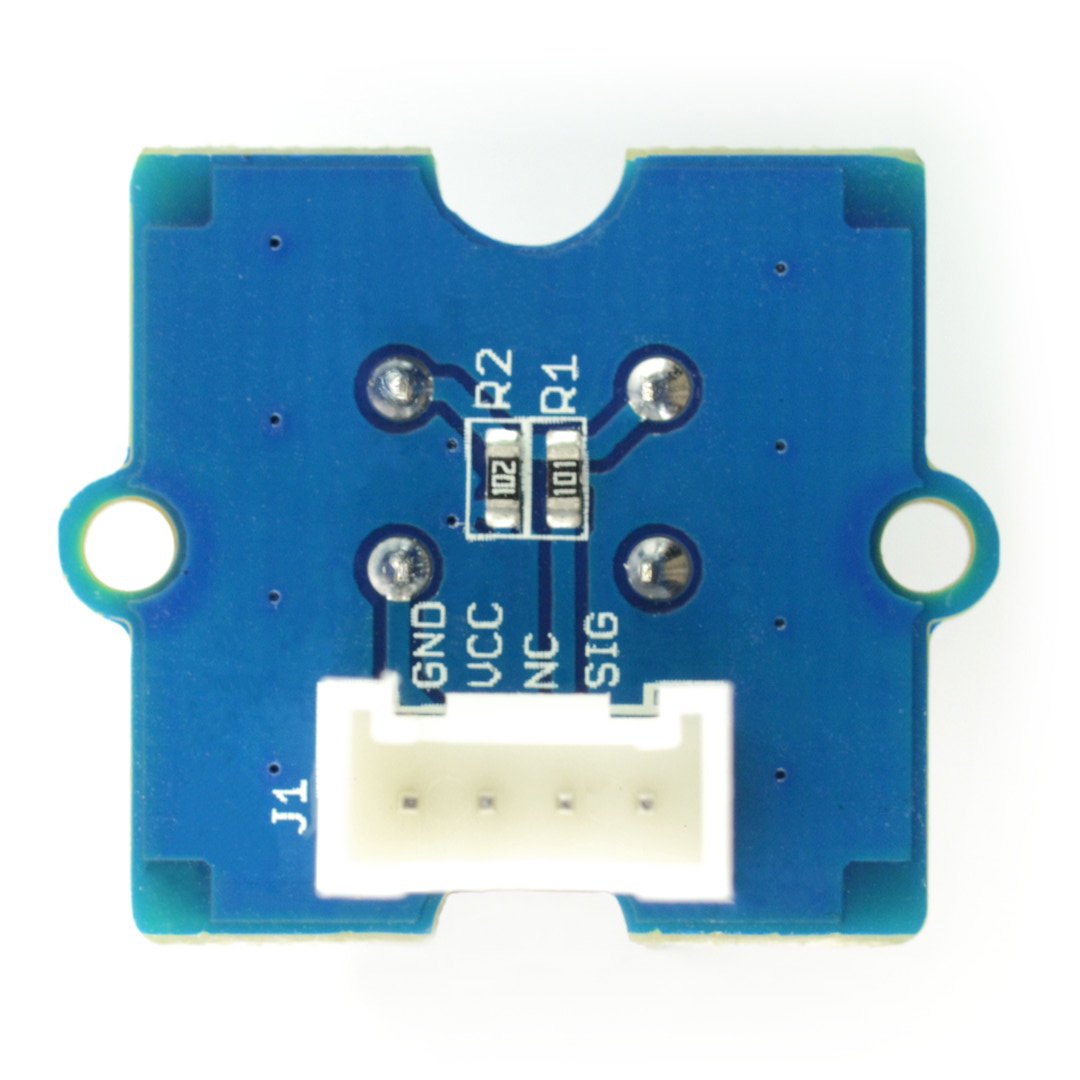

The sensor communicates with the microcontroller through a digital signal. It has the following pins:

Grove - Button - moduł z przyciskiem

Pin Description
GND The ground of the system.
VCC The supply voltage of 5 V.
NC Not connected.
SIG Digital signal.



Grove is a series of modules and sensors that are compatible with Base Shield boards working with Arduino and STM32 Nucleo.





Switch - type2 monostable
Switch - type tact-switch THT with cap
Switch - shape round
Switch - backlight no
Colour white
Sensor - type button
Package width 9 cm
Package height 1.8 cm
Package depth 12 cm
Package weight 0.008 kg
