Description
Capacitive touch sensor based on the module TTP223-b is supplied with the voltage from 2 V to 5.5 V, the output is a digital signal.
|
Attention! This product is only available in our market in Poland and cannot be sold to other countries. |
Specification
- Voltage: 2 to 5.5 V
- Response time:
- Speed mode: 60 MS
- The energy-saving mode: 220 MS
- Graphics:TTP223-B
- Equipped with 4-pin Grove, raster 2 mm
- Dimensions: 20 x 20 mm
|
The product is compatible with Arduino and Raspberry Pi The manufacturer offers auser guide, together with examples forArduinoandRaspberry Pi. |

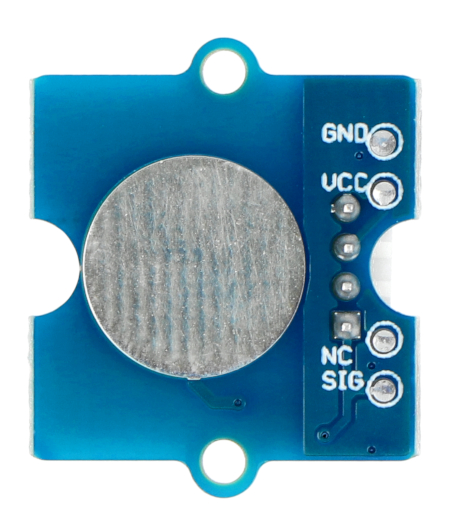

Connection
The sensor communicates with the microcontroller in the digital form. It has the following outputs:
| Pin | Description |
|---|---|
| GND | The ground of the system. |
| VCC | Power supply voltage: 2 V to 5.5 V. |
| NC | Not connected. |
| SIG | The sensor signal. |
|
Grove is a series of modules and sensors that are compatible withBase Shield boards working withArduinoandSTM32 Nucleo. |
