Product description: Mintion Nutopress - press for fusing threaded inserts - inserts - for 3D printing - 90 W
The Mintion NutoPress was designed for 3D printer users who expect consistent and professional results when installing threaded inserts . Its stable construction with an aluminum guide profile and vertical pressure mechanism allows for precise insert placement without risk of damaging the print. The 90W soldering iron with a digital display offers temperature control from 180°C to 500°C , allowing for adjustments to various materials, such as PLA , PETG , ABS , and ASA . The kit also includes adapters for the most popular insert sizes, mounting tools, and 30 M3 brass inserts , making it ready to use right out of the box.

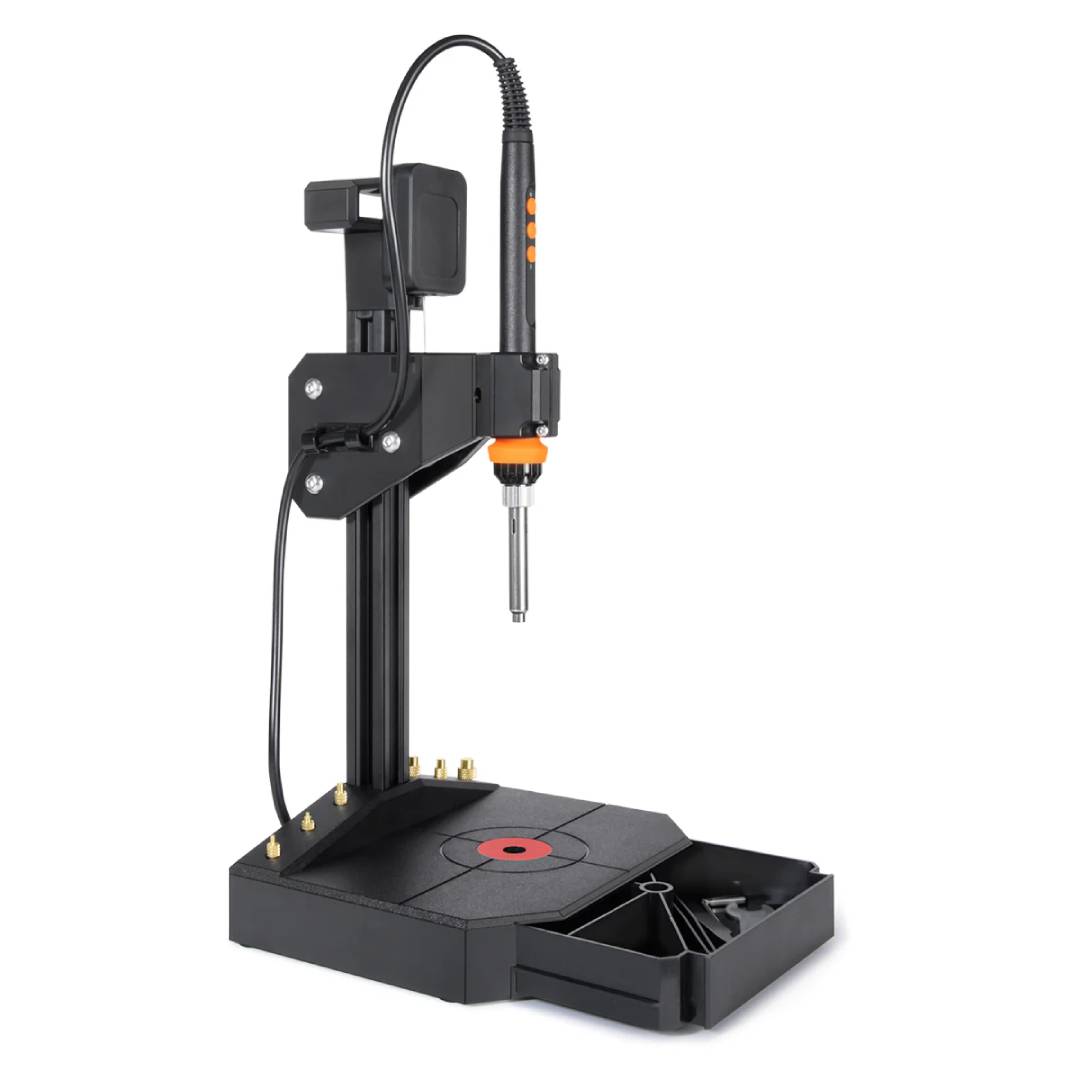

Mintion Nutopress - press for fusing threaded inserts - inserts - for 3D printing - 90 W.
The practical accessory drawer allows you to store all your bits and tools in one place.
Main features of the Mintion NutoPress press

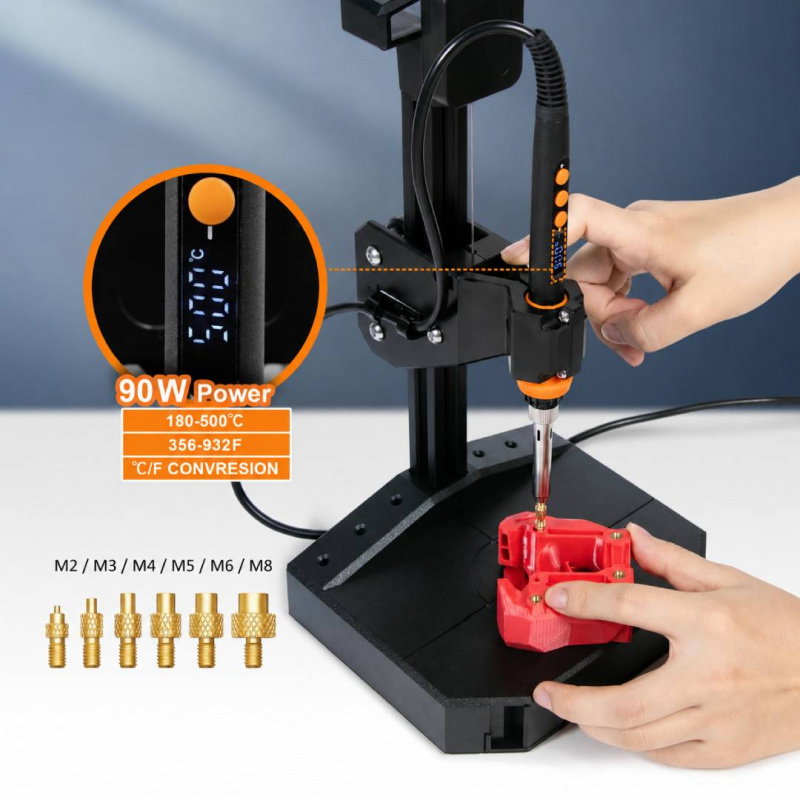

- 90W soldering iron : ensures fast heating and stable temperature when fusing threaded inserts
- Temperature regulation from 180°C to 500°C : allows you to adjust the device's operation to various materials used in 3D printing
- Digital display : enables real-time temperature control and increases assembly repeatability
- Vertical clamping mechanism : facilitates simple insertion without tilting or damaging the print
- M2, M3, M4, M5, M6 and M8 adapters : allow you to work with the most popular threaded insert sizes
- 95% pre-assembled kit : set up your work station in less than 5 minutes
- Accessory drawer : helps you stay organized and store bits, screws and tools in one place
- Adjusting the guide clearance : the eccentric nut allows you to adjust the smoothness of the mechanism movement
Technical specifications of the press for fusing threaded inserts
- Soldering iron power: 90 W
- Temperature control range: 180°C to 500°C
- Display: digital
- Supported adapter sizes: M2, M3, M4, M5, M6, M8
- Threaded inserts included: M3 x OD5 x L4
- Number of M3 inserts included: 30 pcs.
- Compatible materials: PLA, PETG, ABS, ASA and other popular thermoplastics
- Preparation time: less than 5 minutes
- Construction: aluminum guide profile with vertical pressure mechanism

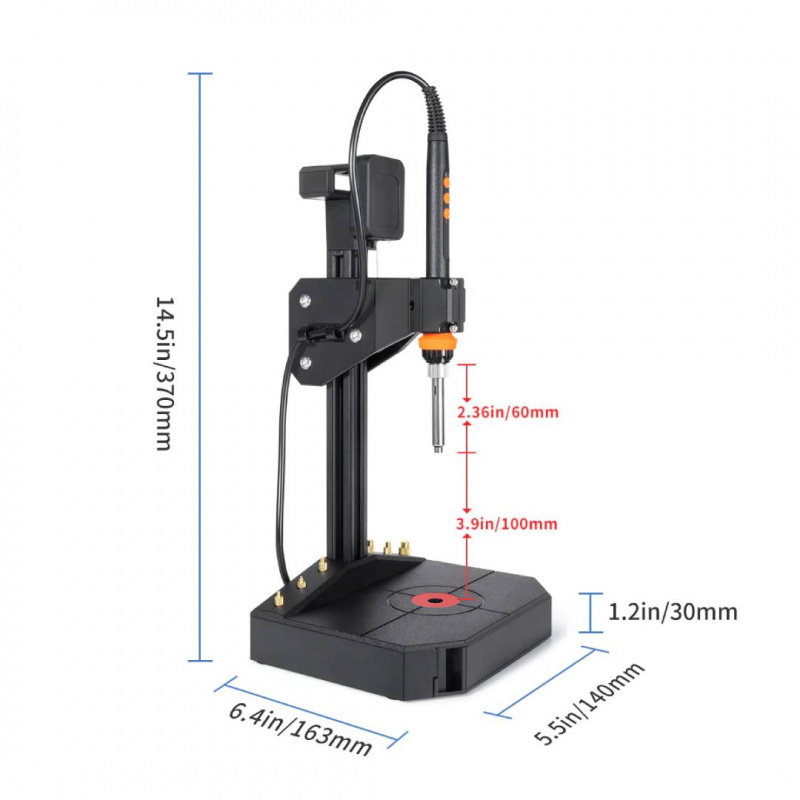

- Height: 370 mm
- Base dimensions: 163 x 140 x 30 mm
- Maximum working height above the base: approximately 100 mm
- Length of working tip: approximately 60 mm

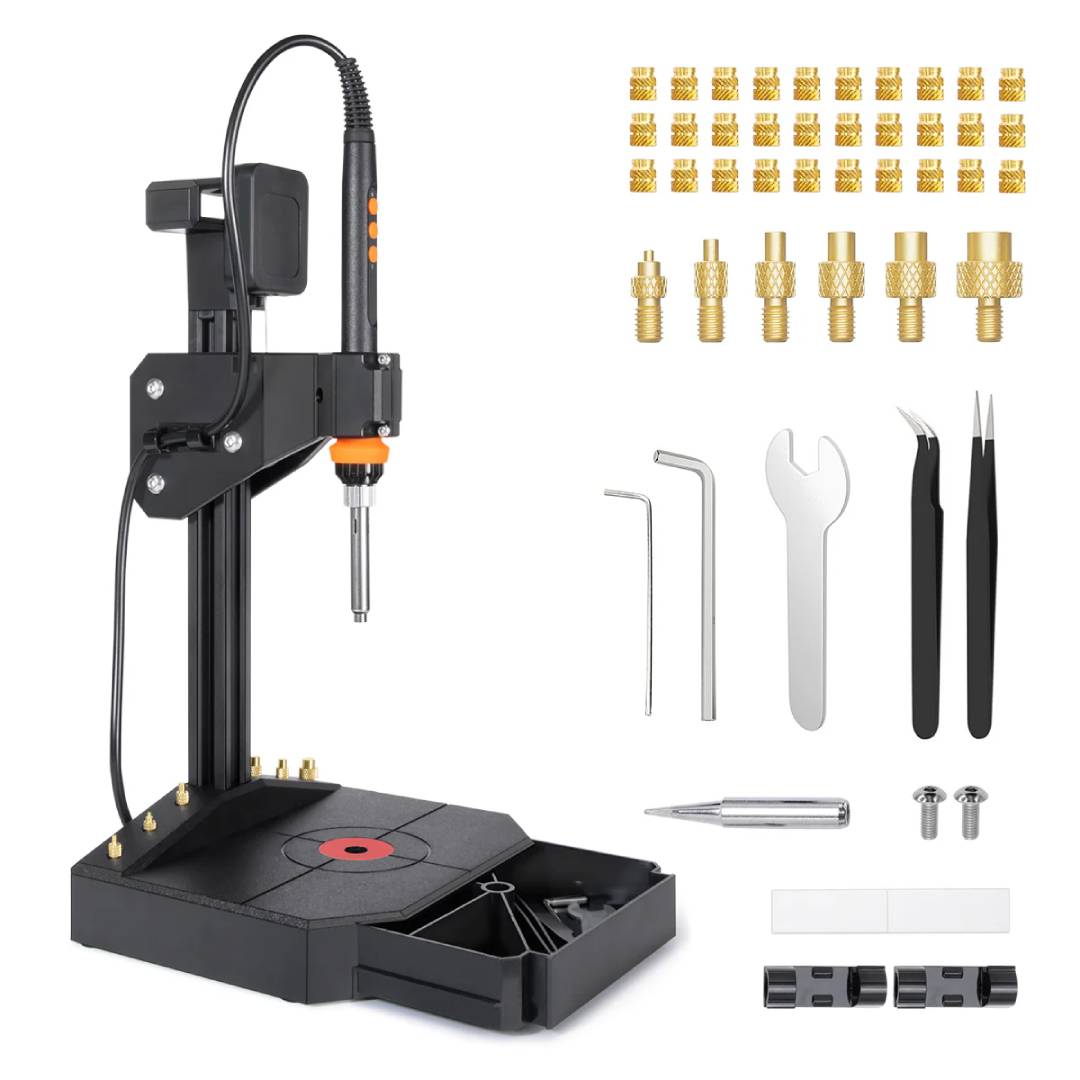

Kit contents
- Mintion NutoPress press for fusing threaded inserts
- 90W soldering iron with digital display
- Adapters for inserts: M2, M3, M4, M5, M6, M8
- 30 M3 brass threaded inserts
- Stainless steel working tip
- Straight tweezers
- Curved tweezers
- Open-end wrench
- 2 Allen keys
- 2 cable holders
- 2 mounting screws
- 2 double-sided tapes

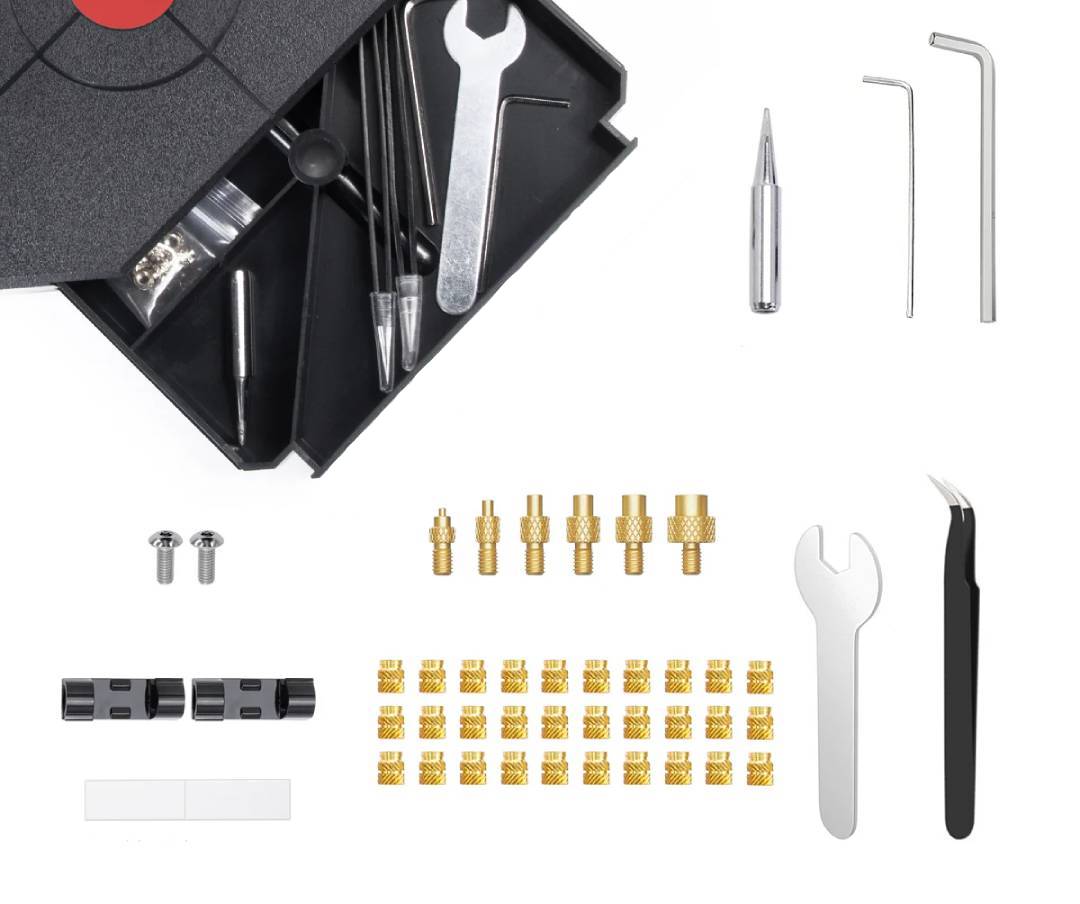

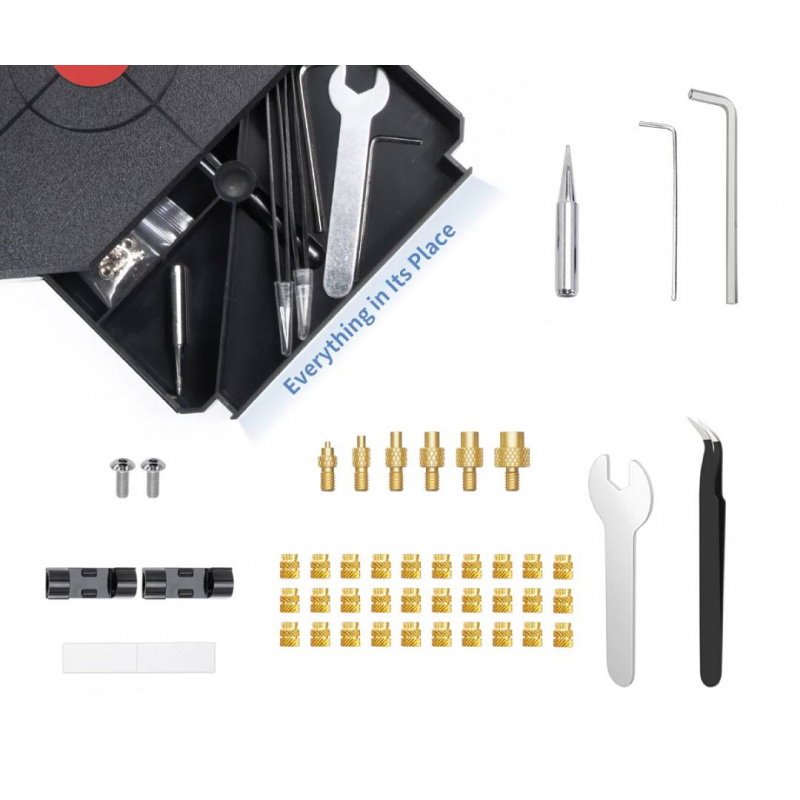

Elements included in the set.
