Product description: Device for washing and curing prints - Elegoo Mercury Plus V3.0
The Elegoo Mercury Plus V3.0 is a modern device that combines resin model cleaning and curing in a single, compact workstation. An increased cleaning capacity of 7.5 liters and an expanded curing area allow for simultaneous processing of larger models or multiple elements. Two cleaning modes, precise 405nm UV curing, and intuitive operation make it an ideal tool for hobbyists and professionals alike. Designed specifically for Elegoo printers , the device also works with other resin models.

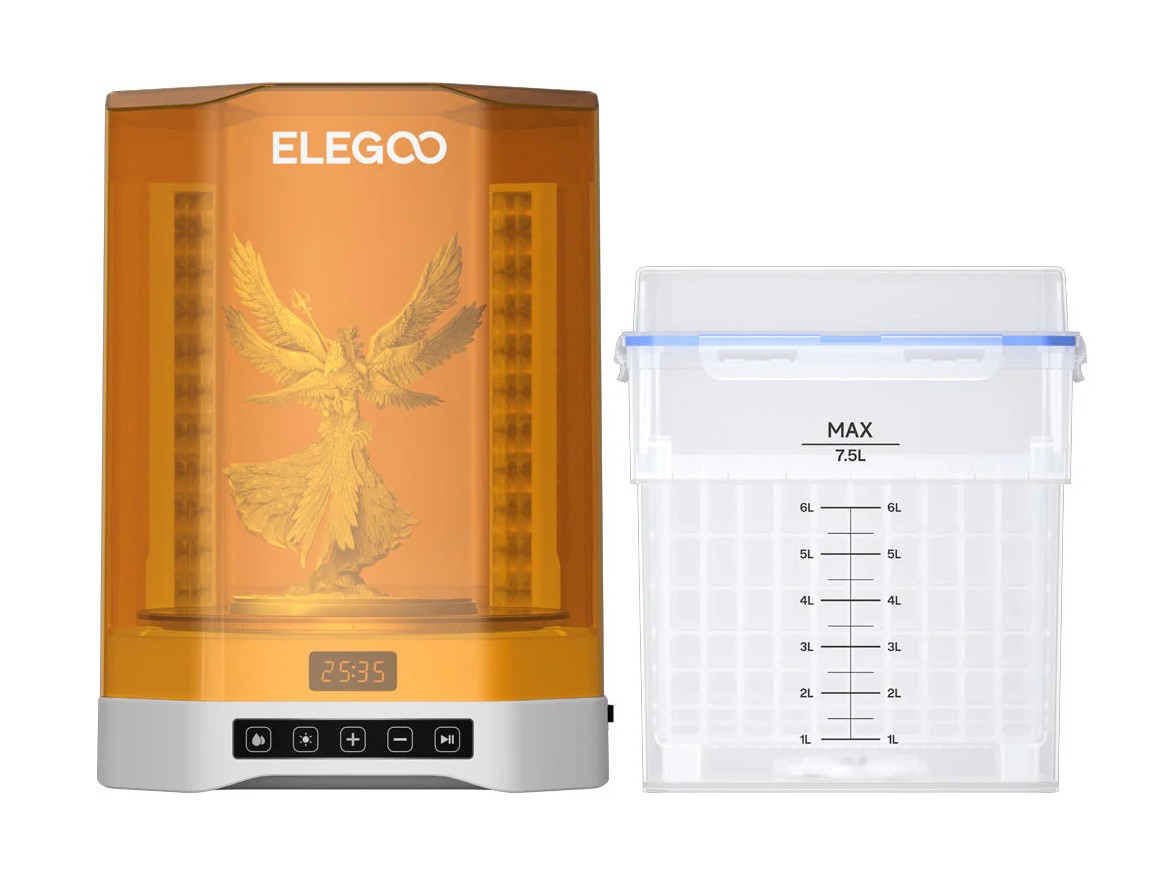

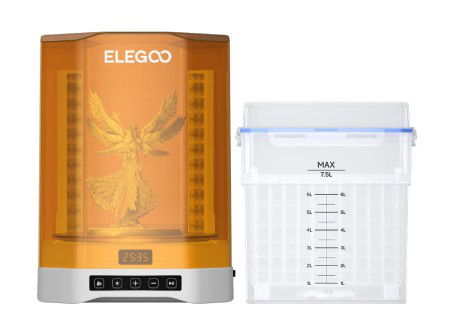

Device for washing and curing prints - Elegoo Mercury Plus V3.0.

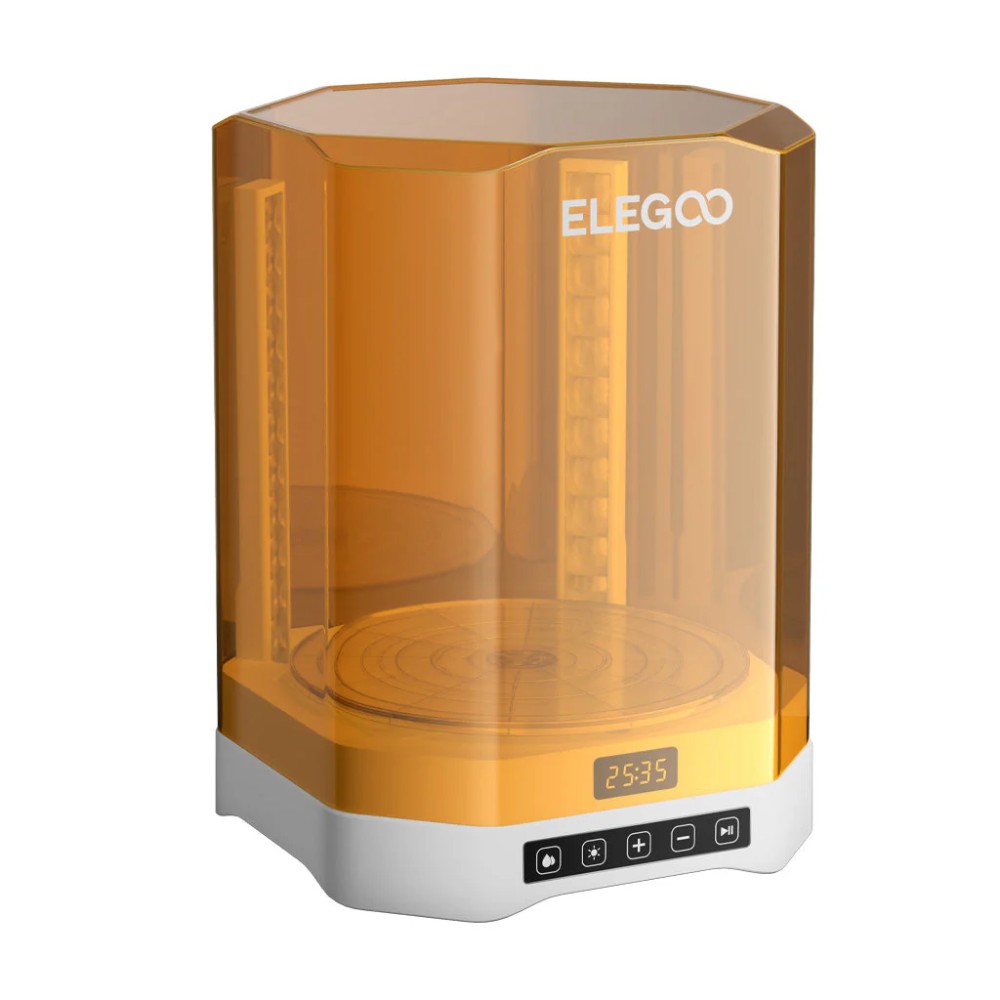

The device has a 360° rotating table with 24 powerful UV lamps with a wavelength of 405 nm.
Main features
- 2-in-1 function : one device for washing and hardening resin models
- Increased capacity : 7.5 l - 114% more than in version V2.0
- Two cleaning modes : in the basket or on the worktop
- 360° curing : rotating platform and 24 UV 405 nm diodes
- Touch operation : easy to configure operating time up to 30 minutes
- UV blocking cover : blocks 99.9% of radiation and ensures safety
- Compatibility : Works with most LCD/DLP/SLA 3D printers
Increased capacity and cleaning efficiency
The Elegoo Mercury Plus V3.0 is a significant step forward from the previous generation – the cleaning capacity has increased by 114%, reaching 7.5 liters , while the curing space has been increased by 460%. This allows you to easily fit larger models or multiple prints simultaneously . Two cleaning modes – in the basket (230 x 135 x 260 mm) or with a build plate (214 x 135 x 180 mm) – allow you to tailor your workflow to the specific task . Additionally, adjustable supports support plates up to 10 inches, increasing the device's versatility.
There are two convenient cleaning options available - in the basket or by mounting the platform on the supports.

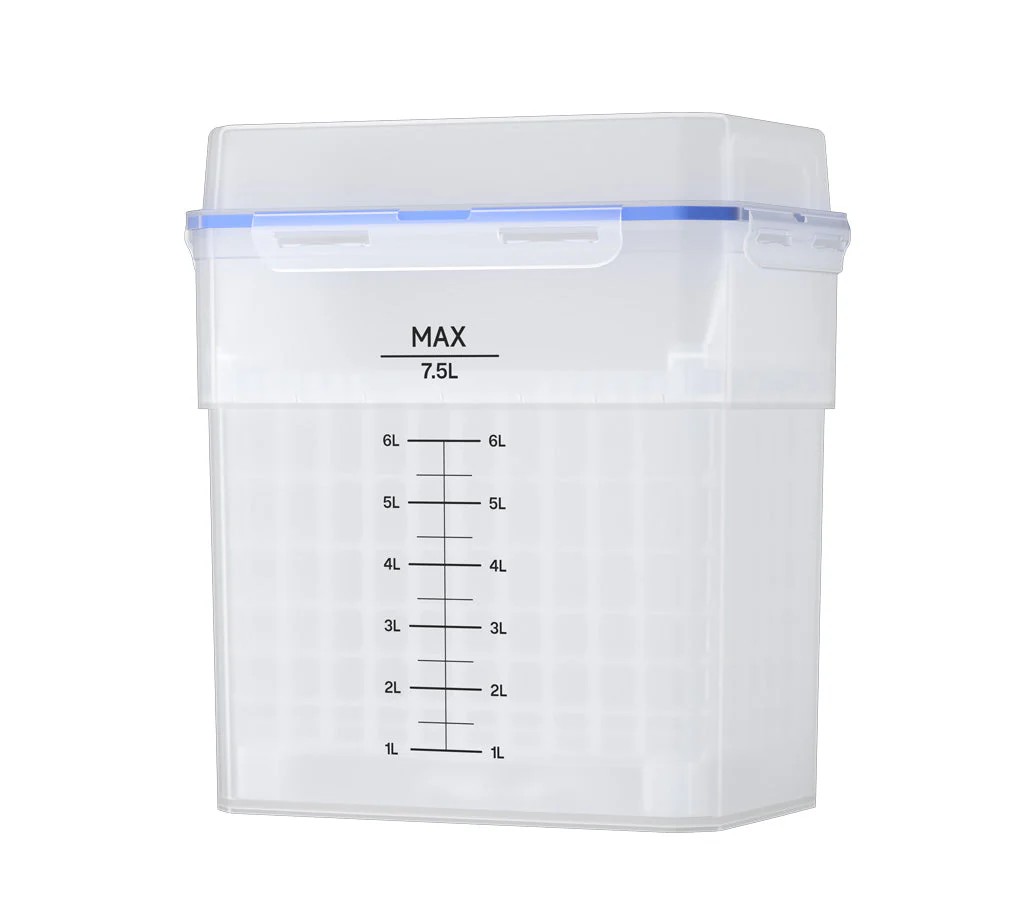

The washer has a large container with a capacity of 7.5 liters.
Even curing and easy handling
Thanks to the rotating platform and as many as 24 UV diodes with a wavelength of 405 nm , The device ensures complete curing of models from all sides. A system of mirrors and LED columns increases exposure efficiency, resulting in improved surface quality. An intuitive touchscreen panel allows for precise setting of cleaning and curing times (up to 30 minutes). The UV filter cover not only protects eyes but also stops the device when removed, significantly increasing user safety.
Elegoo Mercury Plus V3.0 Technical Specifications
- Power supply: 100V to 240V 50/60Hz, 24V 2.5A
- Control method: touch control panel
- Maximum washing volume: 214 x 135 x 180 mm (with plate), 230 x 135 x 260 mm (without plate)
- Maximum curing size: Ø250 x 290 mm
- Working time: 0 to 30 minutes
- Dimensions: 302.5 x 302.5 x 412.5 mm
- Weight: 4.7 kg
Contents of the set
- Elegoo Mercury Plus V3.0 Station
- Washing container
- Rotating curing platform
- Cleaning basket
- 2x adjustable brackets
- Charger
- Tool kit
- User manual

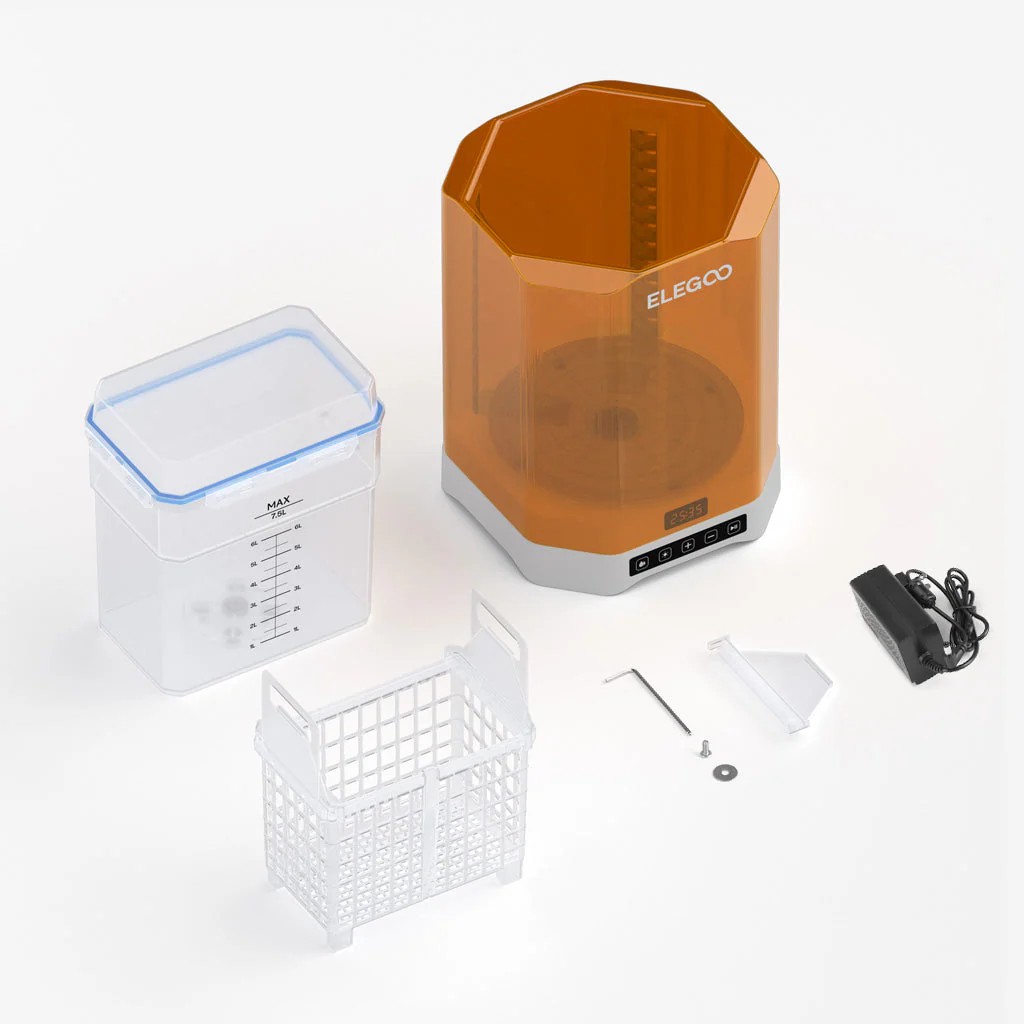

Elements included in the set.
