Module with USB type A connector

Index: MOD-03726 EAN: 5904422359416
5
(1)
Ask a question

The connector allows you to connect a USB A plug to any circuit. Pinout is matched to standard pinout boards and connection wires available in our shop.

Module with USB type A connector
€0.90
€0.73 tax excl.
Add to cart
Notify me when available
Check quantity
Waiting time: 4-6 weeks
Temporarily unavailable
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: OEM

Product description: Module with USB type A plug

The connector allows you to connect the USB A plug to the contact board or connect them by wires. The pinout is goldpin 2,54 mm standard (not included to be purchased separately). The dimensions of the module are: 31 x 14 mm. There are two mounting holes of 3 mm diameter on the board.

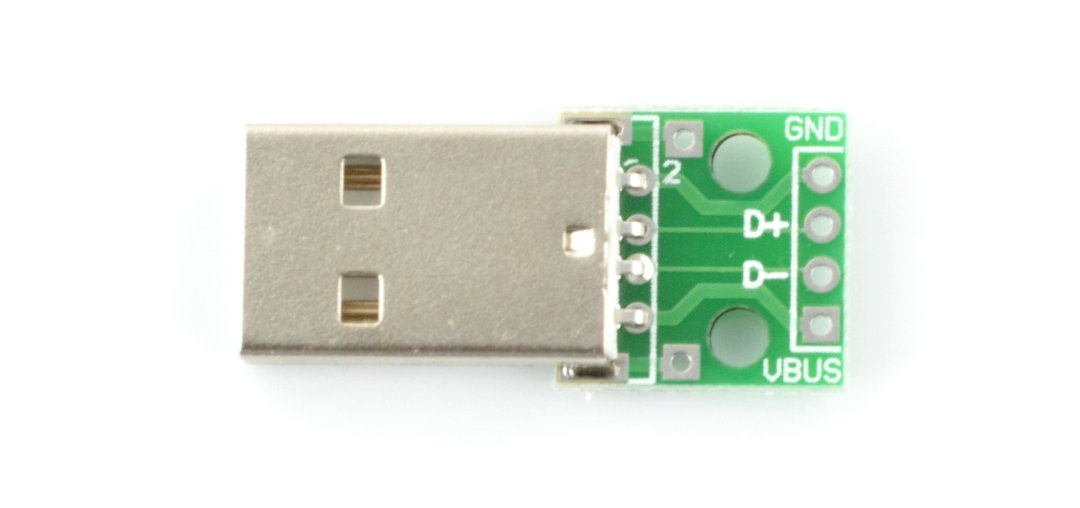

Moduł z wtykiem USB typ A

Module with USB type A connector.

Specifications of USB type A plug

  • Mounted USB type A plug
  • Extracted USB signals: GND, VCC, D+, D-
  • Two mounting holes with 3 mm diameter
  • Leads pattern: 2.54 mm - goldpin standard(connectors not included, can be purchased separately)
  • Dimensions of board with socket: 31 x 14 mm
Raster 2.54 mm
Lead 4
Conn Type USB-A
Conn - Standard female
Package width 4 cm
Package height 0.5 cm
Package depth 6 cm
Package weight 0.003 kg
