Product Description: Double-sided USB Type-C Socket Module - Breadboard Connector - Adafruit 5993

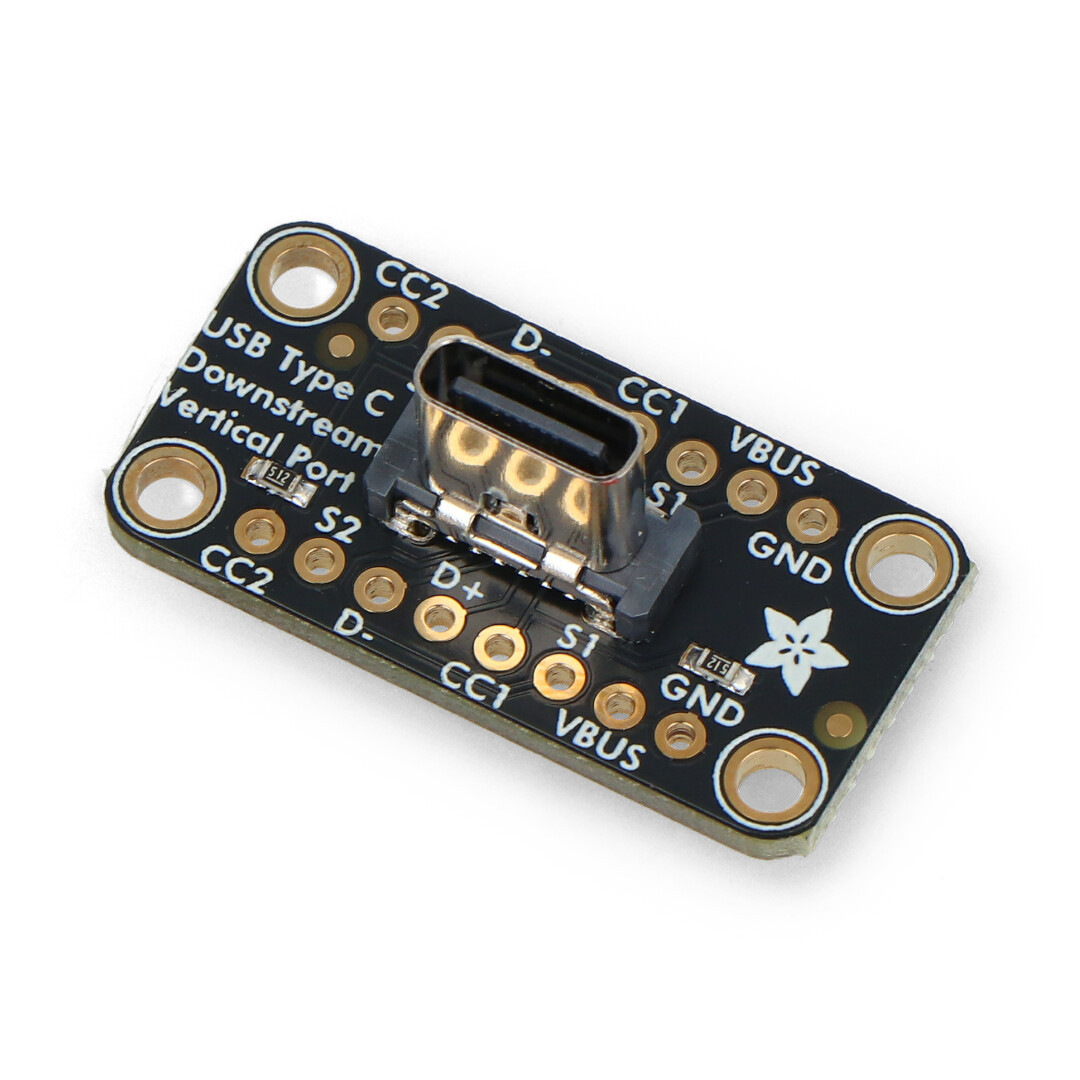

Adafruit ’s reversible module is the perfect solution for makers looking to incorporate USB Type-C into their projects. With its symmetrical and reversible design, USB Type-C eliminates the hassle of misplacing cables. The module features two 5.1kΩ resistors on the CC pins, which tell the upstream port to provide 5V and up to 1.5A of current. Depending on the capabilities of your power source, the module can provide the right amount of power for your project. Additionally, the vertical orientation of the connector means the module takes up less space on your breadboard, making it easier to integrate into compact designs.
Double-sided USB Type-C module - breadboard connector - Adafruit 5993.
Adafruit's double-sided module is the perfect solution for makers looking to incorporate USB Type-C into their projects.Special Features
- Symmetrical and reversible USB Type-C connector for easy connection
- USB 2.0 compatible pin configuration for easy integration
- 5.1kΩ resistors on CC pins indicating 5V supply and up to 1.5A current
- Compact, vertical design saves space on the breadboard
- Two identical goldpin connectors for stable placement on the contact board
- Four mounting holes for easy attachment to the case

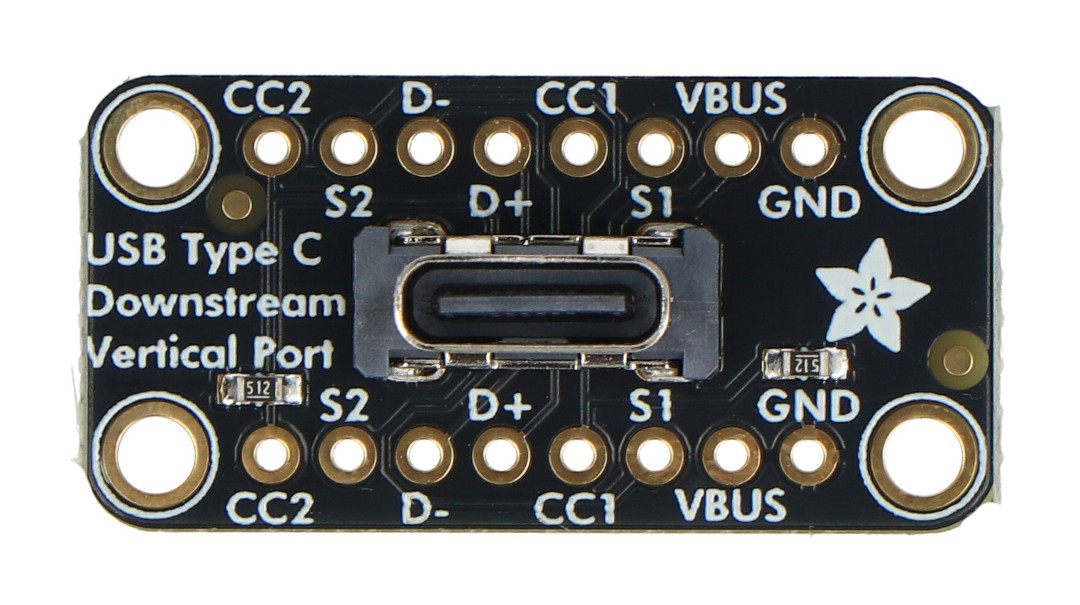

The module has the following pins
| Name | Description |
| VBUS | Bus power supply |
| GND | System mass |
| D+ D- | USB data transmission differential lines |
| CC 1 and 2 | Configuration pins |
| SBU 1 and 2 | Additional pins |
Technical specification of the module
- Connector type: USB Type-C
- Number of pins: 16
- Pin pitch: 2.54 mm
- Supply voltage: 5V
- Maximum current: up to 1.5 A (depending on power source)
- Compatibility: USB 2.0 standard
- Dimensions: 30.5 x 15.2 x 11.1 mm
- Weight: 2.2 g
Kit Contents

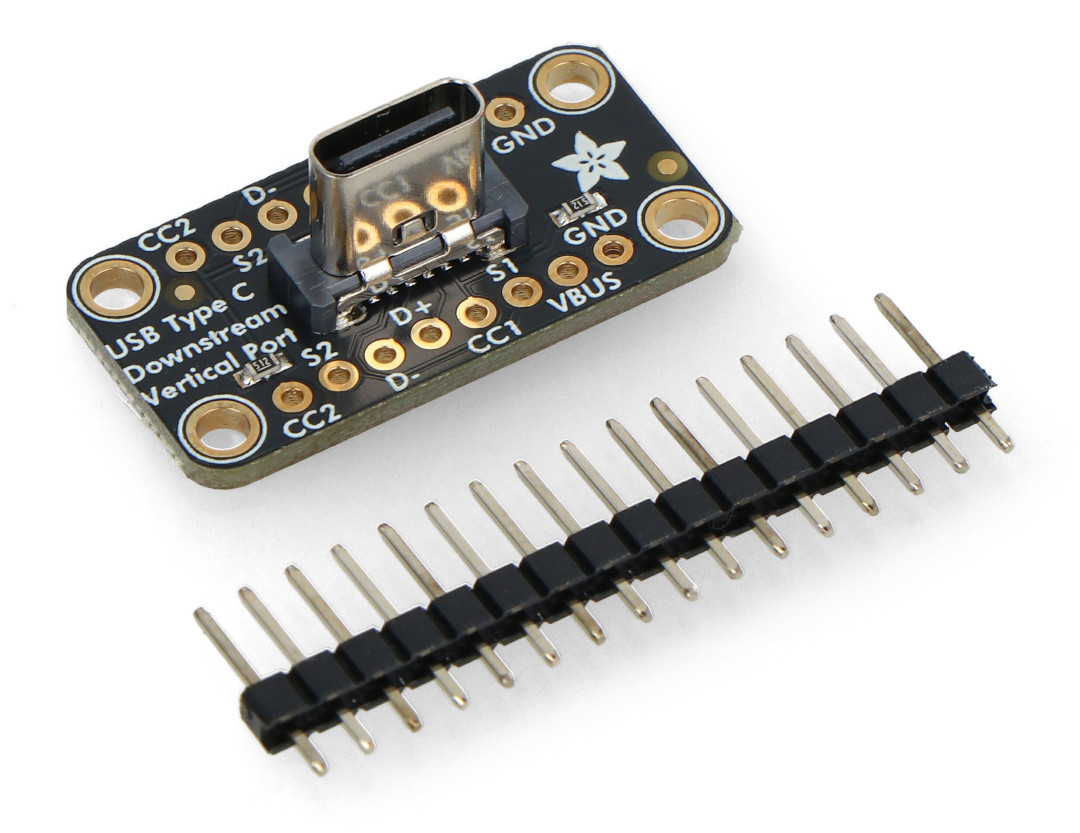

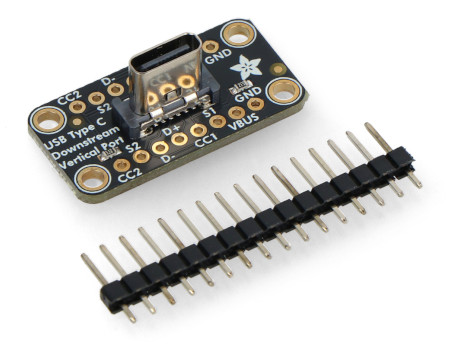

- Double-sided module with USB Type-C socket
- Two goldpin connectors for mounting on a breadboard
Thanks to the vertical connector orientation, the module takes up less space on the breadboard, making it easier to integrate into compact designs. Useful links |
