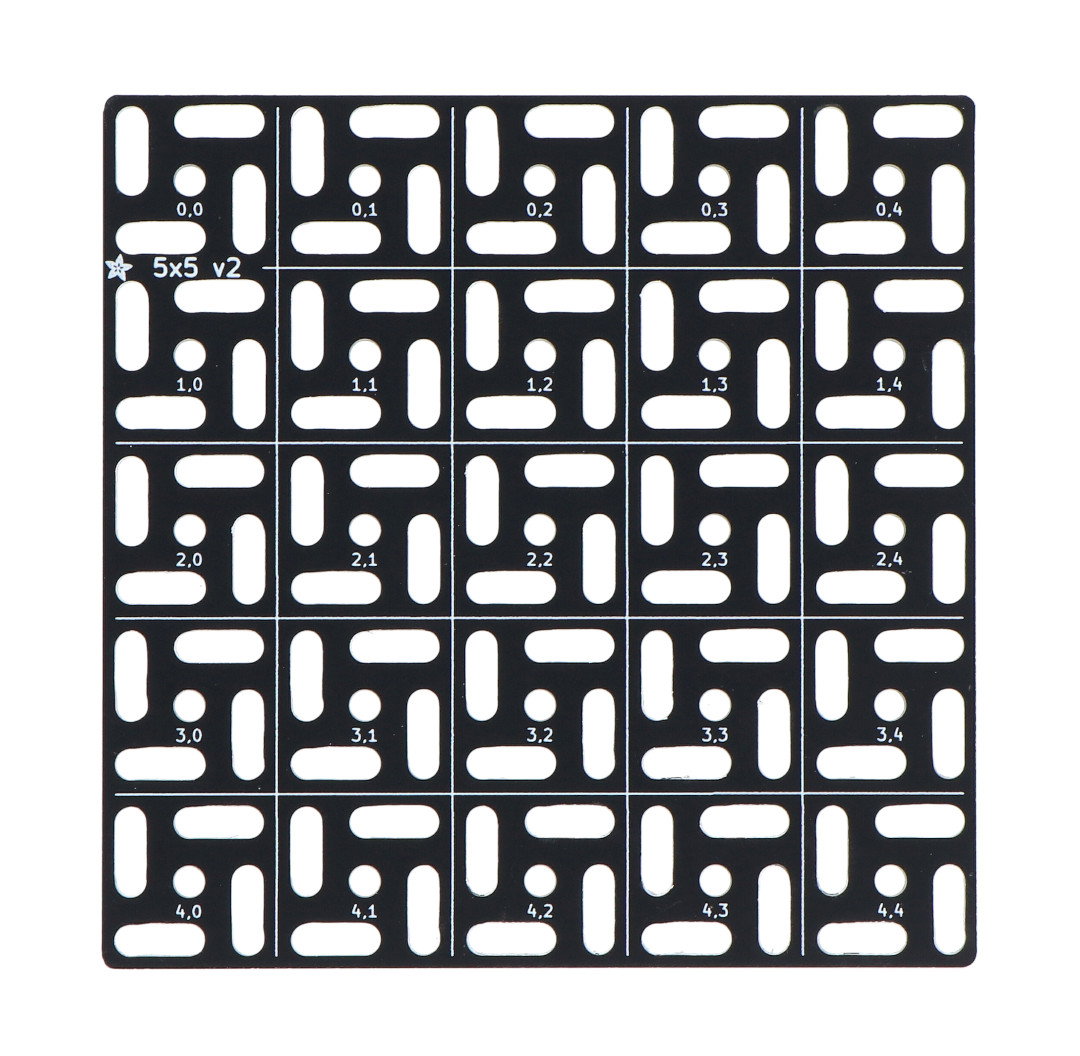

Mounting grid for PCBs - 5x5 - 2,54mm raster - Adafruit 5779

Index: ADA-23823 EAN: 5904422384722
The PCB mounting grid is a proposition from Adafruit that is an alternative to standard prototype boards, which allows you to quickly connect peripheral devices and development modules. The mesh is made of a single-sided PCB with an aluminum core, which makes it electrically and thermally conductive at the same time. It consists of twenty-five squares measuring 15 x 15 mm, with mounting holes every 3 mm, which allow for the arrangement of components with an accuracy of 0.1 mm . Moreover, the mesh can be freely cut or subjected to other processing, such as drilling and bending.
Mounting grid for PCBs - 5x5 - 2,54mm raster - Adafruit 5779
€5.90
€4.80 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Adafruit

Product description: Mounting grid for PCBs - 5x5 - 2.54 mm pitch - Adafruit 5779

The PCB mounting grid is a proposition from Adafruit that is an alternative to standard prototype boards , which allows you to quickly connect peripheral devices and development modules. The mesh is made of a single-sided PCB with an aluminum core, which makes it electrically and thermally conductive at the same time. It consists of twenty-five squares measuring 15 x 15 mm, with mounting holes every 3 mm, which allow for the arrangement of components with an accuracy of 0.1 mm . Moreover, the mesh can be freely cut or subjected to other processing, such as drilling and bending.

Mounting grid for PCBs - 5x5 - 2.54 mm pitch - Adafruit 5779.

It allows you to quickly connect various modules, microcontrollers and sensors.

Technical Specifications

  • Material: aluminum
  • Layout: 5x5
  • Thickness: 1.5 mm
  • Grid spacing: 3 mm
  • Hole diameter: 2.54 mm
  • Board dimensions: 75 x 75 x 1.5 mm
  • Weight: 13.6 g
Package width 10 cm
Package height 8 cm
Package depth 0.5 cm
Package weight 0.017 kg
