Product description: Mounting grid for PCBs - 10x10 - 2.54 mm pitch - Adafruit 5781

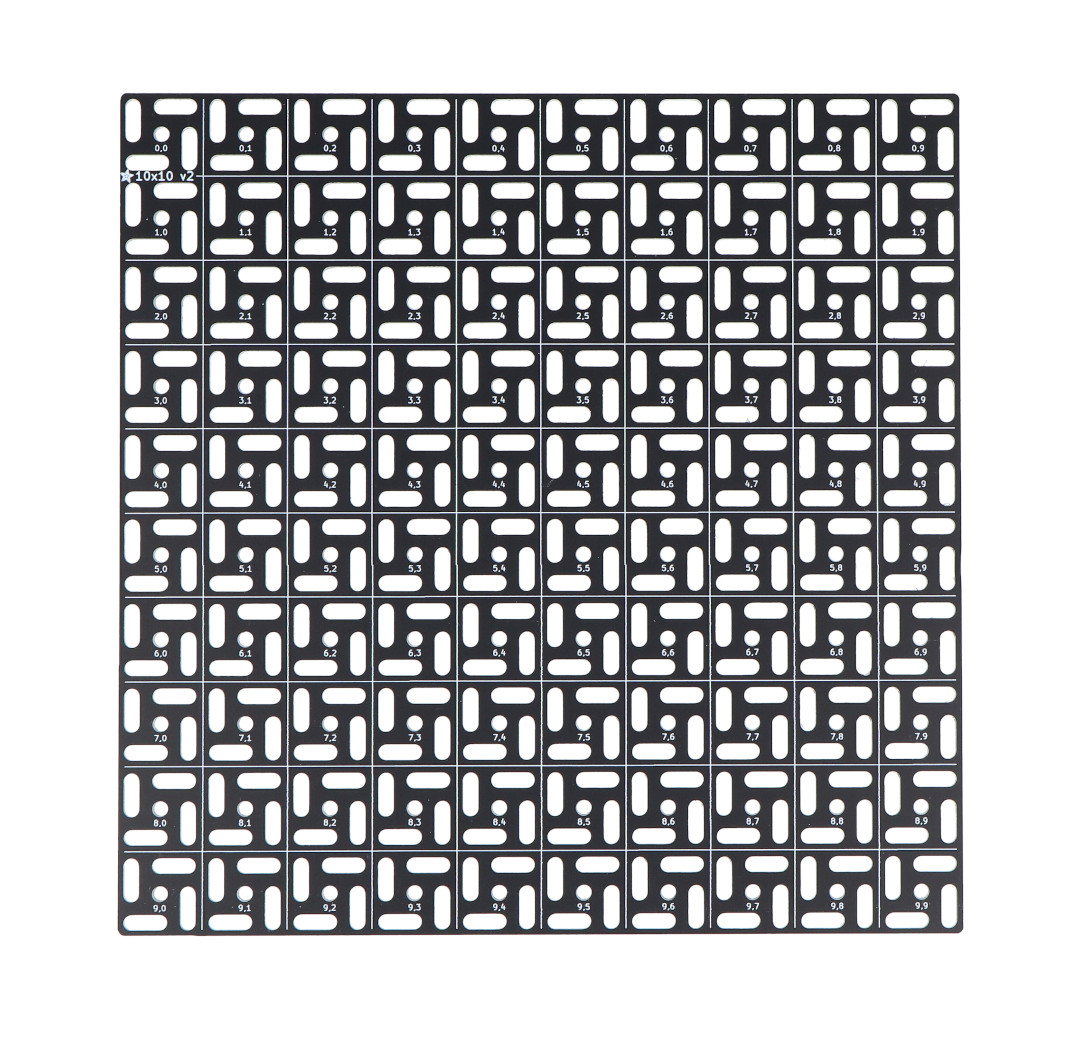

The PCB mounting grid is a proposition from Adafruit that is an alternative to standard prototype boards , which allows you to quickly connect peripheral devices and development modules. The mesh is made of a single-sided PCB with an aluminum core, which makes it electrically and thermally conductive at the same time. It consists of one hundred squares measuring 15 x 15 mm, with mounting holes every 3 mm, which allow for the arrangement of components with an accuracy of 0.1 mm . Moreover, the mesh can be freely cut or subjected to other processing, such as drilling and bending.

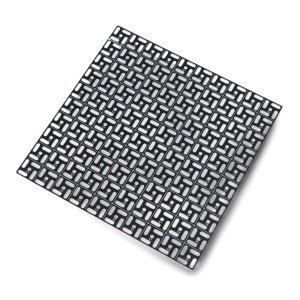

Mounting grid for PCBs - 10x10 - 2.54 mm pitch - Adafruit 5781.
It allows you to quickly connect various modules, microcontrollers and sensors.
Technical Specifications
- Material: aluminum
- Layout: 10x10
- Thickness: 1.5 mm
- Grid spacing: 3 mm
- Hole diameter: 2.54 mm
- Board dimensions: 150 x 150 x 1.5 mm
- Weight: 54.6 g
