Universal board small 210 holes - MSX

Index: MSX-06120 EAN: 5904422365318

A universal board with a connection layout in accordance with the contact plate. The module allows to transfer and solder the prototype system from the contact plate while maintaining the distribution of elements.

Universal board small 210 holes - MSX
€3.50
€2.85 tax excl.
Delivery 20 pcs scheduled for 2024-10-18
Waiting for delivery
PayPal payment
Manufacturer: MSX Elektronika

Product description:Small 210 fields universalplate- MSX

A universal board with a connection layout in accordance with the contact plate. The module allows to transfer and solder the prototype system from the contact plate while maintaining the distribution of elements.

Płytka uniwersalna mała 210 pól - MSX

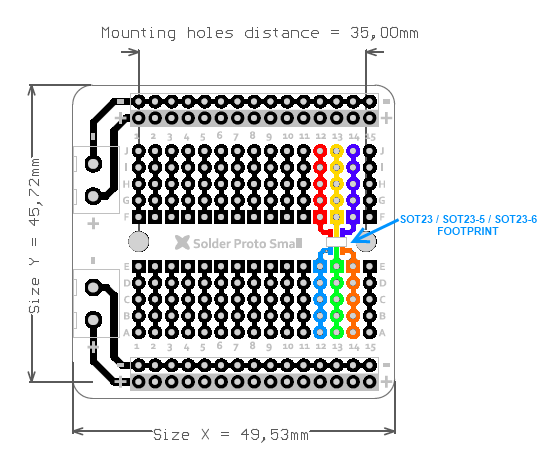

Specifications of the universal insert

  • Dimensions: 49 x 48 mm
  • Soldermask colour: black
  • Mounting: THT threaded
  • Hole raster: 2.54 mm
  • Additional power supply leads
  • Two 3 mm diameter mounting holes

A universal board with a joint arrangement in accordance withthe contact plate. The module allows to transfer and solder the prototype system from the contact plate while maintaining the distribution of elements.

In our offer we also have tiles in other sizes: large840,medium 420 andsmall210.

Package width 6 cm
Package height 0.2 cm
Package depth 8.5 cm
Package weight 0.008 kg

Marcin

06/26/23

Question: Good day, What is the spacing between the "+" and "-" power supply holes on this board? Greetings Marcin Szewczyk
Answer: The hole spacing is 5 mm.

Product reviews

Universal board small 210 holes - MSX

5/5

Average grade

3

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Damian 02.07.2023 Confirmed purchase Translated review
I recommend
Łukasz 31.01.2023 Confirmed purchase Translated review
Everything in the best order.
Wojciech 12.09.2022 Confirmed purchase Translated review
I recommend. Easily transfer the project from the breadboard.
