MicroUSB type B 5 pin - connector for breadboard - Pololu 2586

Index: PLL-02050 EAN: 5903351249805

Connector allows you to connect microUSB connectores with 5-wire connector type B to a breadboard. The module is suitable for a standard breadboard and connection cables, available in our store.

MicroUSB type B 5 pin - connector for breadboard - Pololu 2586
€2.50
€2.03 tax excl.
Available
Shipping in 24 hours
PayPal payment
USB connector for contact plate - type:
Manufacturer: Pololu

Description of product:microUSB type B 5 pin - connector for breadboard

Connector allows you to connect microUSB type B connector tobreaboardsor to connect them usingwires. The output raster is a standardgoldpin2.54 mm. Module dimensions: 12.7 x 11.2 mm (one tile: 12.7 x 9.9 mm). The diameter of the mounting brackets is 2.2 mm.

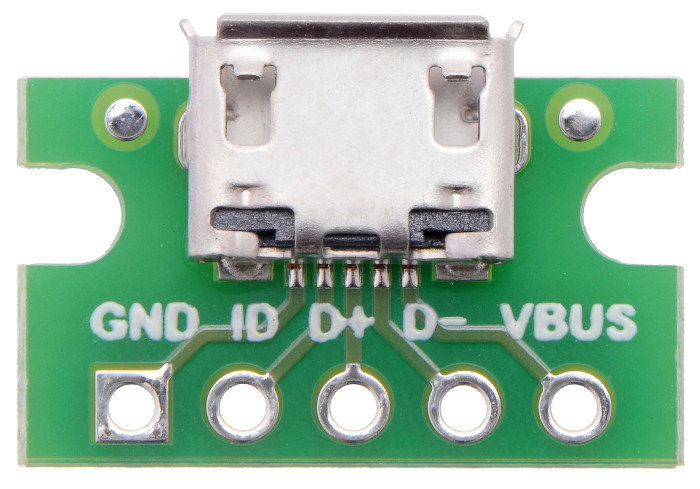

MicroUSB typ B 5 pin

Micro-usb type B 5 pin - connector for breaboard - Pololu



Specifications of microUSB connector

  • Raster: 2.54 mm
  • VBUS supply voltage bus
  • GND - ground
  • Differential data transmit USB D+ and D- lines
  • ID identification pin
  • Dimension 12.7 x 11.2 x 9.9 mm



Raster 2.54 mm
Lead 5
Conn Type microUSB
Conn - Standard female
Package width 7.5 cm
Package height 0.3 cm
Package depth 8.5 cm
Package weight 0.002 kg
