Module with USB socket type A - soldered-in connectors
Module with USB socket type A - soldered-in connectors
Module with USB socket type A - soldered-in connectors
Module with USB socket type A - soldered-in connectors
Module with USB socket type A - soldered-in connectors - zdjęcie 1
Module with USB socket type A - soldered-in connectors - zdjęcie 2
Module with USB socket type A - soldered-in connectors - zdjęcie 3
Module with USB socket type A - soldered-in connectors - zdjęcie 4

Module with USB socket And soldered connectors

Index: MOD-16154 EAN: 5904422300692
4.7
(6)
Ask a question

A module with a USB A socket for connecting a type A USB plug to any circuit. Standard 2.54 mm pin raster , allows direct connection of the module to the contact plate or cables available in our shop. The module has soldered in goldpin connectors.

Module with USB socket And soldered connectors
€1.90
€1.54 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: OEM

Product description: Module with USB socket type A - soldered-in connectors

A module with a USB A socket for connectingthe USB plug type A to thecontactplateorfor connecting them with wires. Standard 2.54 mm pin raster. Themodule's dimensionsare: 24 x 17 mm.There aretwo mounting holes of 3 mm diameter on the board.The module has soldered in goldpin connectors.

Moduł z gniazdem USB i wlutowanymi złączamiUSB module with soldered-in connectors.

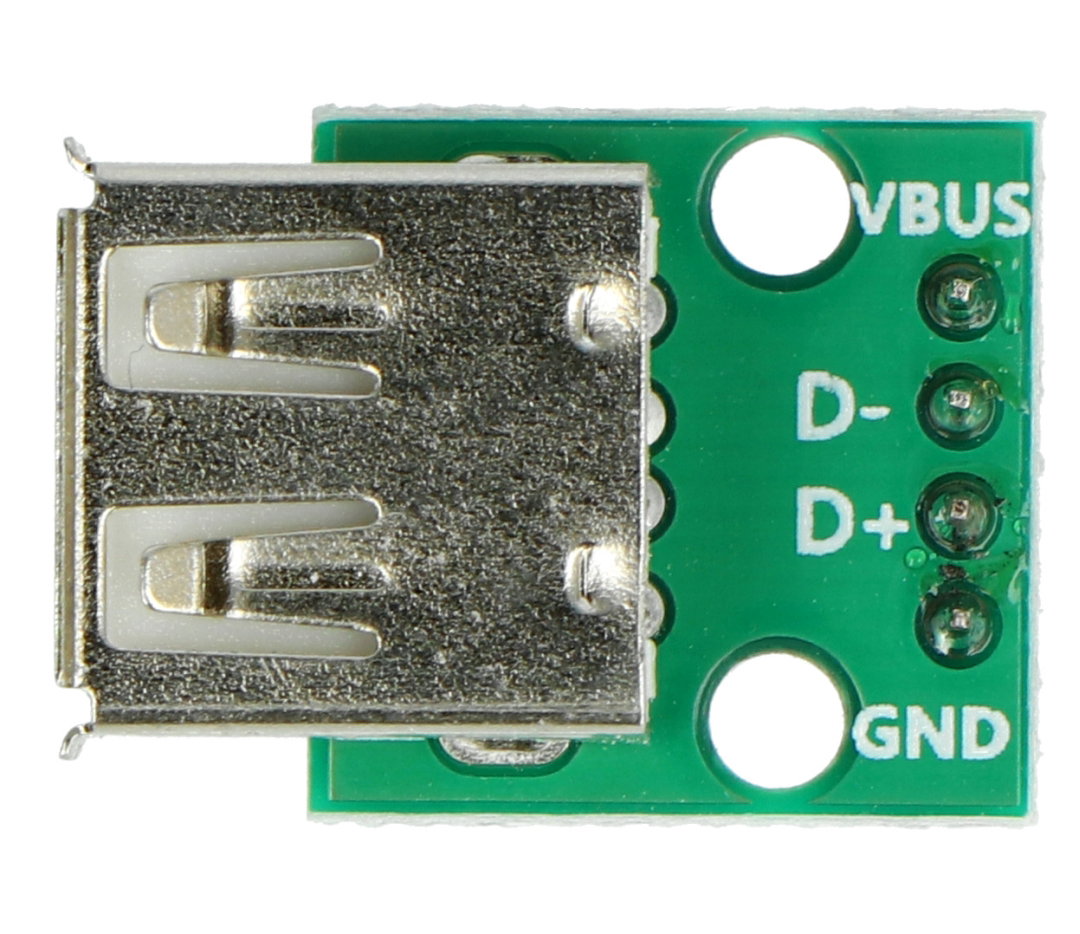

Module specifications with USB socket A

  • USB Type A socket fitted
  • USB signals: GND, VBUS, D+, D-
  • Two 3 mm diameter mounting holes
  • Raster of exits: 2.54 mm - standard goldpin(connectorssoldered into the board)
  • Dimensions of the socket plate: 24 x 17 mm

Raster 2.54 mm
Lead 4
Conn Type USB-A
Conn - Standard female
Package width 2 cm
Package height 2 cm
Package depth 3 cm
Package weight 0.003 kg
Send us your question

Be the first to ask a question about this product!

Product reviews

Module with USB socket And soldered connectors

4.7/5

Average grade

6

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Sebastian 22.02.2023 Confirmed purchase Translated review
I recommend
Tomas R. 07.05.2022 Confirmed purchase Translated review
A useful component for experiments with USB 2.0.
Adrian W. 29.03.2022 Confirmed purchase Translated review
It is okay
Emil S. 26.03.2022 Confirmed purchase Translated review
OK OK
Wojciech B. 02.10.2021 Confirmed purchase Translated review
It works, but I suggest you add an example connection diagram
Daniel K. 10.05.2021 Confirmed purchase Translated review
it's cool
