Product description: Double-sided USB Type-A plug module - breadboard connector - Adafruit 6001
This small module from Adafruit eliminates the common problem of a misplaced USB Type-A cable . Thanks to its special design with a thin center contact, the plug works correctly regardless of orientation . It's ideal for projects where aesthetics, functionality, and a fixed module orientation are important—for example, in devices with LEDs or displays. The module provides all basic USB signal lines: 5V, GND, D+, D- , and an additional ground pin for the case.

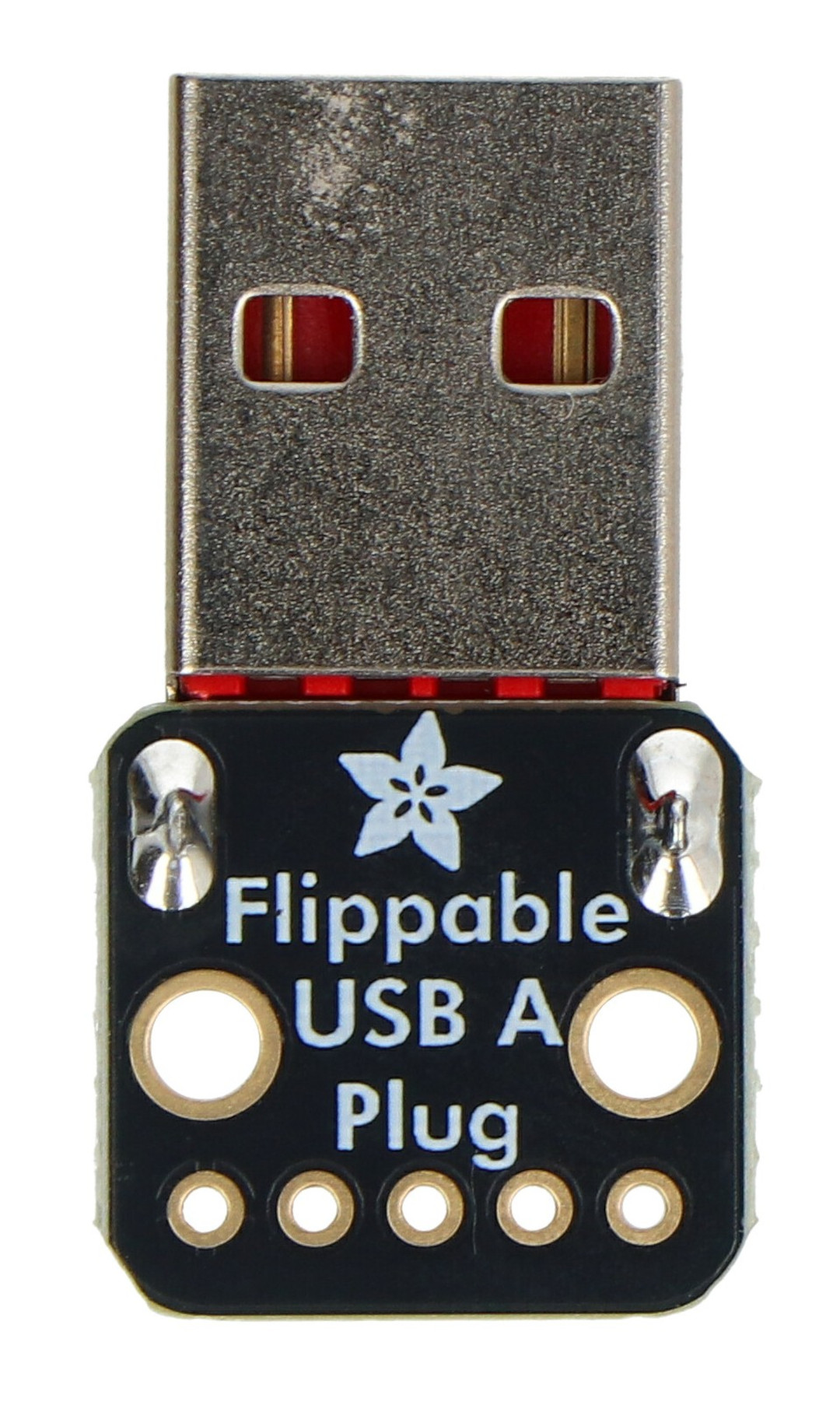

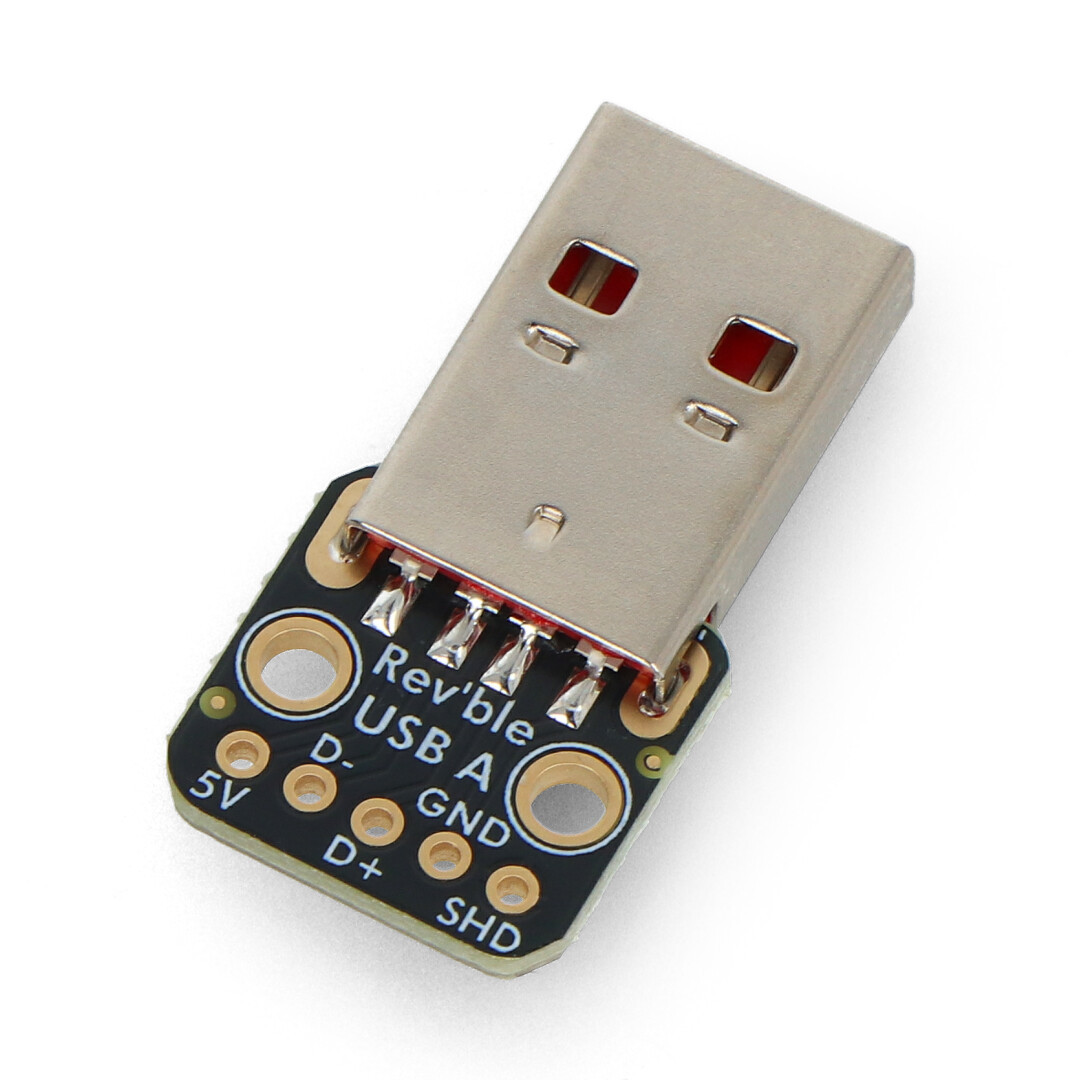

Module with double-sided USB Type-A plug - breadboard connector - Adafruit 6001.

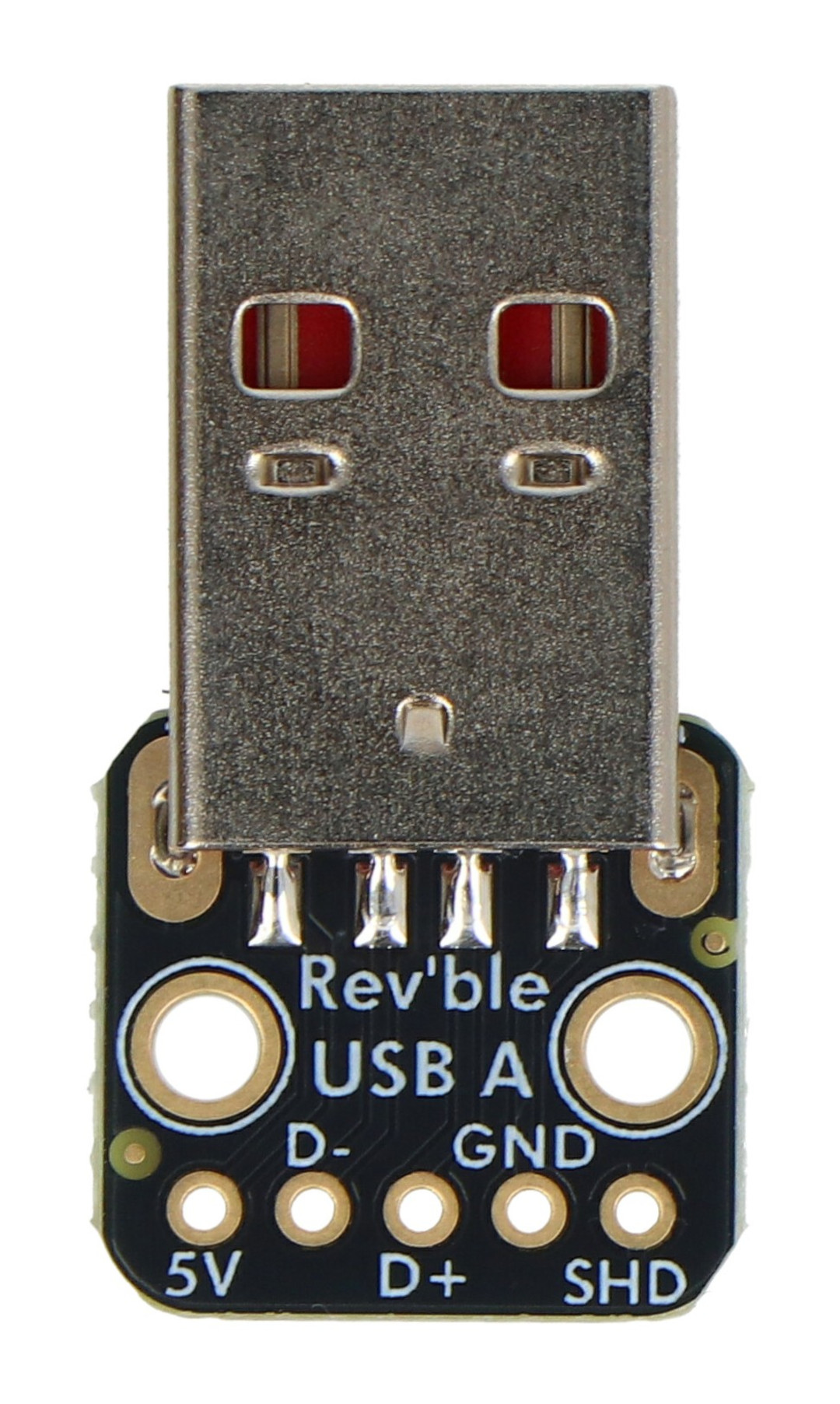

Thanks to the special design with a thin contact in the center, the plug works correctly regardless of orientation.
Main features of the module
- Reversible USB Type-A plug : allows connection to a USB port regardless of orientation - always works correctly
- Complete signal pins : 5V, GND, D+, D- lines available and a contact for the metal housing
- Mechanically stable construction : partly through-hole assembly, partly SMD - ideal for permanent connections with PCBs
- Breadboard compatibility : the included goldpin header allows for quick testing on breadboards
- Compact dimensions : ideal for mobile projects where space saving is key
- Open-source project : EagleCAD files available on GitHub repository
Practical applications
This module, featuring a reversible USB Type-A connector , is ideal for a variety of DIY and prototyping projects . It can be used as a USB power supply, a data interface, or an adapter for devices that require quick and easy connection. Ideal for educational, test, and commercial projects requiring consistent connector orientation.
The module provides all basic USB signal lines: 5 V, GND, D+, D-
and an additional housing ground lead.
Elements included in the set.
Technical specifications of the module with USB type A plug
- Connector: Double-sided USB Type-A plug
- Pins: 5V, GND, D+, D-, SHIELD
- Mounting type: through hole (THT) + surface mount (SMT)
- Compatibility with prototyping boards: yes (after soldering the goldpin strip)
- Dimensions: 28.8 x 15.2 x 4.6 mm
- Weight: 2.5 g
Contents of the set
- 1x Double-sided USB Type-A Plug Module - Breadboard Connector - Adafruit 6001

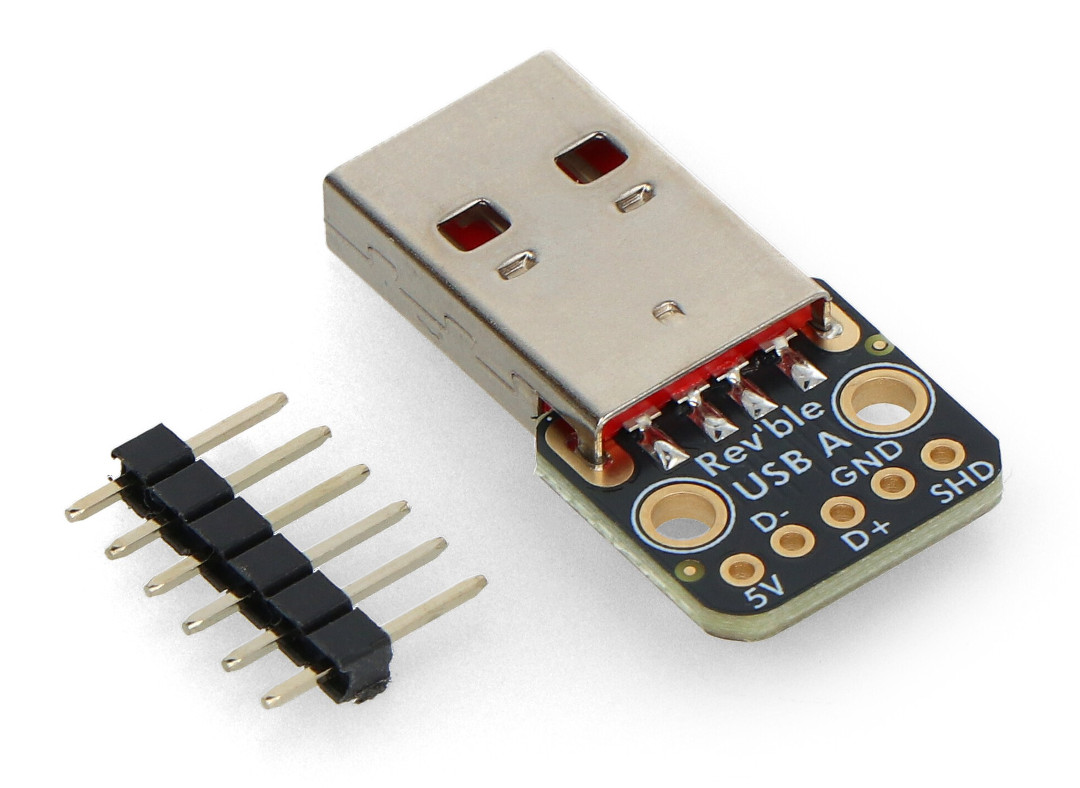

- 1x 1x5-pin goldpin connector (for self-soldering)
