Product description: Raspberry Pi NVMe SSD drive - 256 GB
The Raspberry Pi 256GB NVMe SSD offers exceptional performance thanks to the use of PCI Express 2.0 technology. Combined with the 1-lane PCIe interface, users can count on high data read and write speeds that significantly outperform traditional storage media such as cards SD or pendrives. The drive is a great solution for Raspberry Pi 5 users who need the high data transfer speeds provided by NVMe technology.
The official Raspberry Pi M.2 SSD NVMe comes in two capacities: 256 GB and 512 GB . There are also ready-made kits available with an M.2 HAT+ overlay and a 256 GB and 512 GB drive.

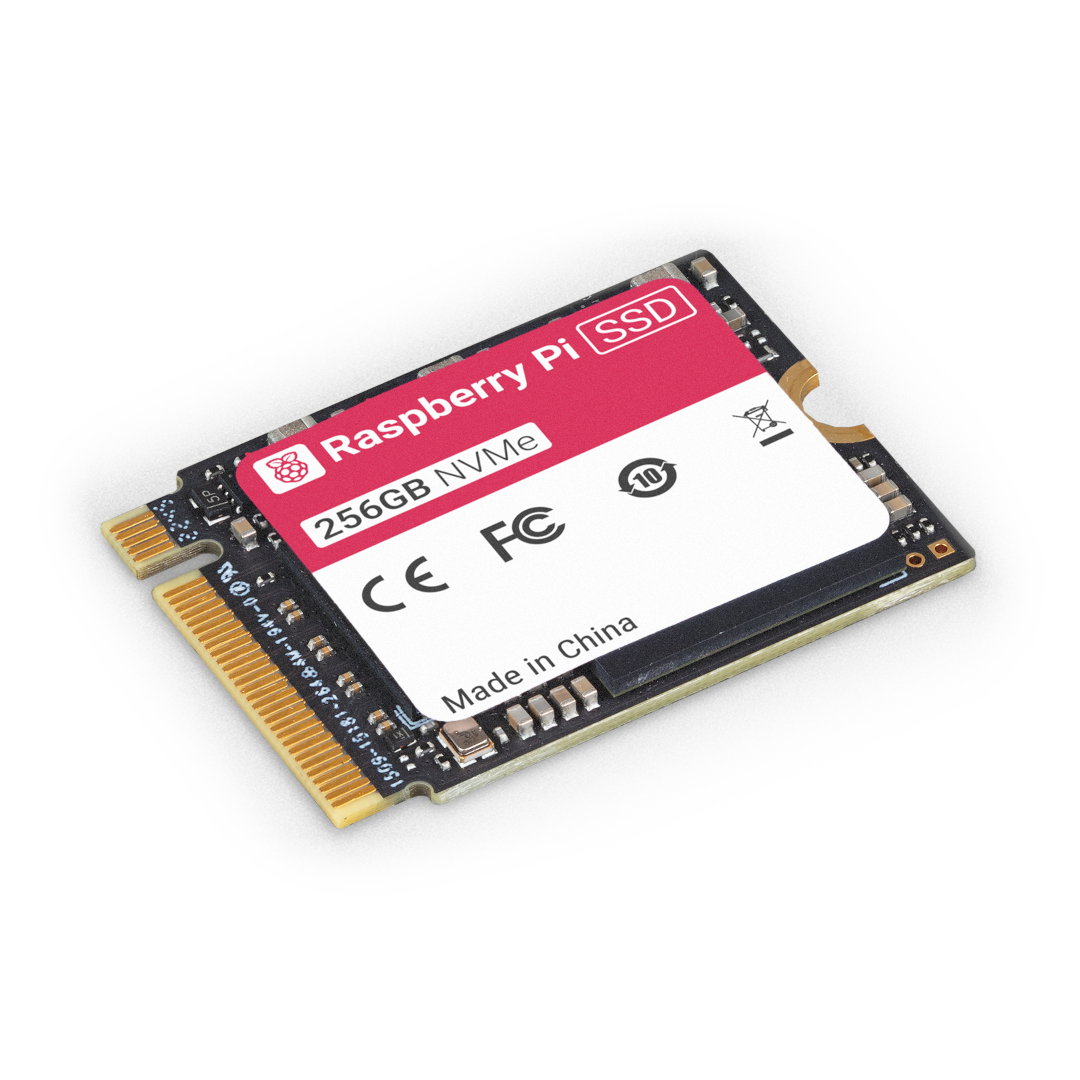

Raspberry Pi NVMe SSD drive - 256 GB.
Raspberry Pi SSD NVMe 256 GB with Raspberry Pi M.2 HAT+ mounted on Raspberry Pi 5.Key Features of the Raspberry Pi NVMe SSD
- Exceptional SSD performance : the drive is available in two variants, with a capacity of 256 GB or 512 GB, offering high data read and write speeds.
- Fully compliant with HAT+ : The Raspberry Pi M.2 HAT+ is fully compliant with the Raspberry Pi HAT+ specification, enabling easy integration with the Raspberry Pi 5 and ensuring a perfect fit for your setup.
- Random Read Performance (4KB) :
- 256GB: 40,000 IOPS
- 512GB: 50,000 IOPS
- Random Write Performance (4KB) :
- 256GB: 70,000 IOPS
- 512GB: 90,000 IOPS
Raspberry Pi SSD Specifications
- Memory capacity: 256 GB
- Type: NVMe SSD
- Compatibility: Raspberry Pi M.2 HAT+
- Supported Device: Raspberry Pi 5
- Disk format: 2230
- Interface: PCIe Gen3x4
- Flash Memory Type: TLC
- Read speed: 3260 MB/s
- Write speed: 2660 MB/s
- Read IOPS (4KB): 40K (256GB) / 50K (512GB)
- Write IOPS (4KB): 70K (256GB) / 90K (512GB)
- Operating voltage: 3.3 V
- Current consumption: 2 A
- Maximum power consumption: 2.8 W
- Operating temperature: 0°C to 70°C
- Dimensions: 22 x 30 x 2.3 mm
Kit Contents
- Raspberry Pi NVMe SSD drive - 256 GB
Disk with Raspberry Pi M.2 HAT+ cover.
