A set of resistors 0,25W SMD0805 - justPi - 1500pcs.

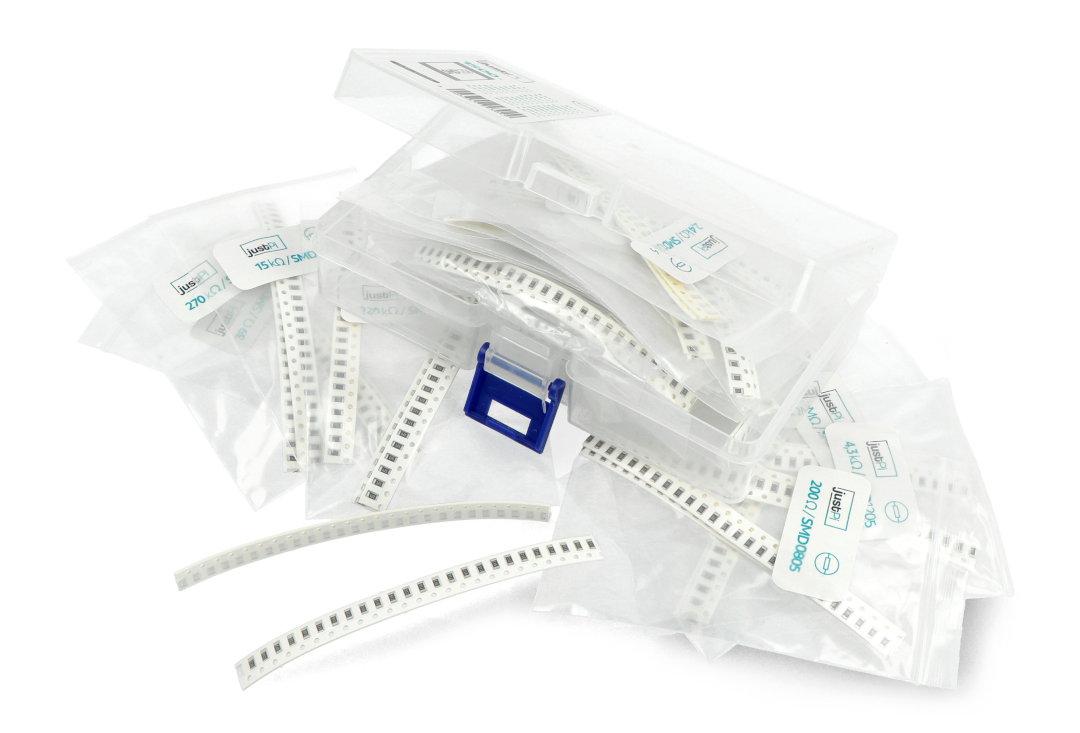

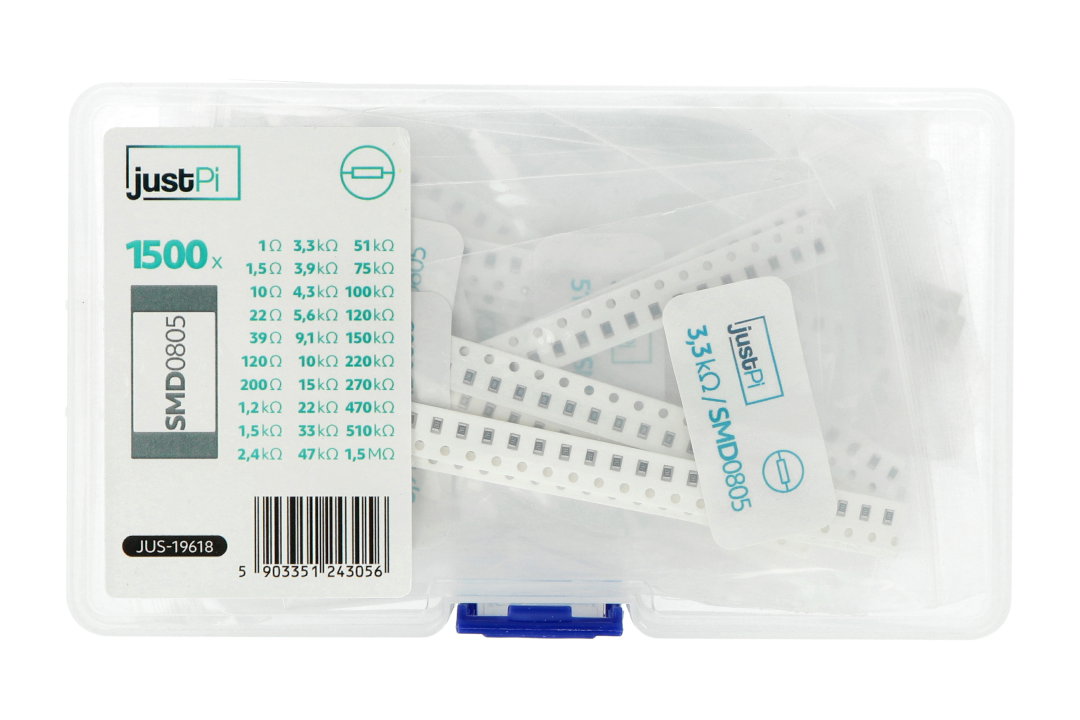

The set consists of 30 popular resistor values in SMD0805 housings, useful in the workshop of both robotics and electronics engineers. The resistors are packed in separate, labeled string bags. The whole is in a box for easy storage.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description: SMD0805 0,25 W resistor set - justPi - 1500 pcs.
The set consists of 30 popular resistor values in SMD0805 housings, useful in the workshop of both robotics and electronics engineers. Resistors are packed in separate, labeled string bags. The whole is in a box for easy storage.
Our shop also offers a wide range of other passive electronic components.
SMD0805 resistors set - justPi - 1500 pieces.
A set of resistors in SMD0805 housing.
What can SMD resistors be used for?
Resistors are electronic components that work on the basis of Ohm's law(i.e. the higher the voltage at the resistor leads, the higher the current will flow through it). SMD resistors are used in electronics, e.g. as auxiliary elements for integrated circuits (amplifiers, TTL/CMOS logic circuits, microcontrollers, other specialised integrated circuits) and discrete semiconductor devices (bipolar and unipolar transistors).
Resistors specification
- Mounting method: SMD
- Tolerance: 5%.
- Quantity tolerance: +/- 2%.
Set contents
| Resistance | Tolerance | Housing | Quantity |
|---|---|---|---|
| 1 Ω | 5% | SMD0805 | 50 pcs. |
| 1,5 Ω | 5% | SMD0805 | 50 pcs. |
| 10 Ω | 5% | SMD0805 | 50 pcs. |
| 22 Ω | 5% | SMD0805 | 50 pcs. |
| 39 Ω | 5% | SMD0805 | 50 pcs. |
| 120 Ω | 5% | SMD0805 | 50 pcs. |
| 200 Ω | 5% | SMD0805 | 50 pcs. |
| 1.2 kΩ | 5% | SMD0805 | 50 pcs. |
| 1.5 kΩ | 5% | SMD0805 | 50 pcs. |
| 2.4 kΩ | 5% | SMD0805 | 50 pcs. |
| 3.3 kΩ | 5% | SMD0805 | 50 pcs. |
| 3.9 kΩ | 5% | SMD0805 | 50 pcs. |
| 4.3 kΩ | 5% | SMD0805 | 50 pcs. |
| 5.6 kΩ | 5% | SMD0805 | 50 pcs. |
| 9.1 kΩ | 5% | SMD0805 | 50 pcs. |
| 10 kΩ | 5% | SMD0805 | 50 pcs. |
| 15 kΩ | 5% | SMD0805 | 50 pcs. |
| 22 kΩ | 5% | SMD0805 | 50 pcs. |
| 33 kΩ | 5% | SMD0805 | 50 pcs. |
| 47 kΩ | 5% | SMD0805 | 50 pcs. |
| 51 kΩ | 5% | SMD0805 | 50 pcs. |
| 75 kΩ | 5% | SMD0805 | 50 pcs. |
| 100 kΩ | 5% | SMD0805 | 50 pcs. |
| 120 kΩ | 5% | SMD0805 | 50 pcs. |
| 150 kΩ | 5% | SMD0805 | 50 pcs. |
| 220 kΩ | 5% | SMD0805 | 50 pcs. |
| 270 kΩ | 5% | SMD0805 | 50 pcs. |
| 470 kΩ | 5% | SMD0805 | 50 pcs. |
| 510 kΩ | 5% | SMD0805 | 50 pcs. |
| 1.5 MΩ | 5% | SMD0805 | 50 pcs. |
| Name | Value |
|---|---|
| RLC - Resistance | various |
| RLC - Tolerance | 5 % |
| RLC - Type SMD/THT | SMD 0805 |
| Width | 8.5 cm |
| Height | 14.5 cm |
| Depth | 3.6 cm |
| Weight | 0.102 kg |
