Product description: Industrial USB - RS485 converter (B) - Waveshare 22456

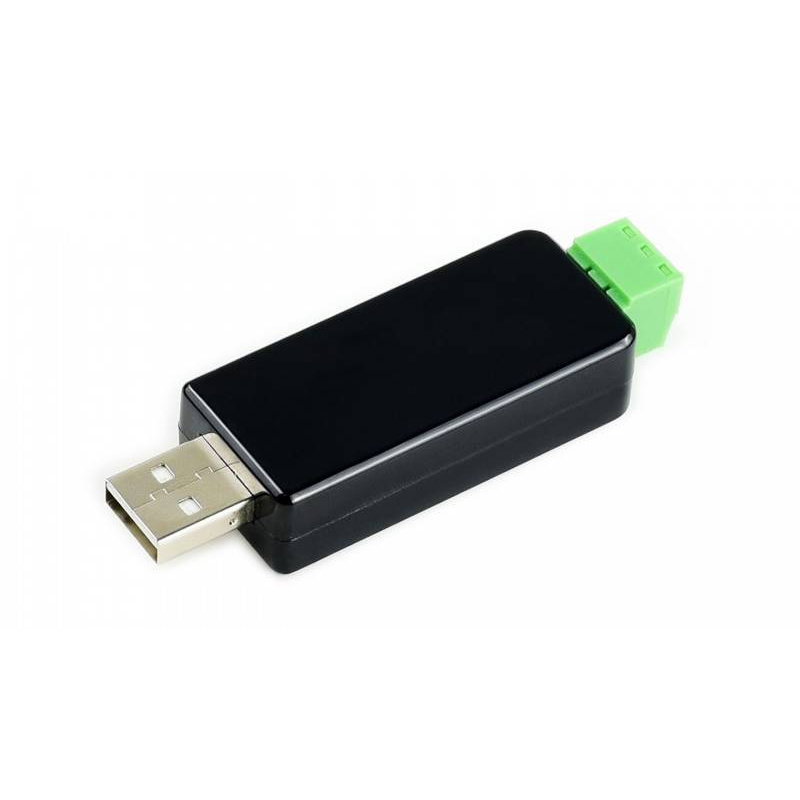

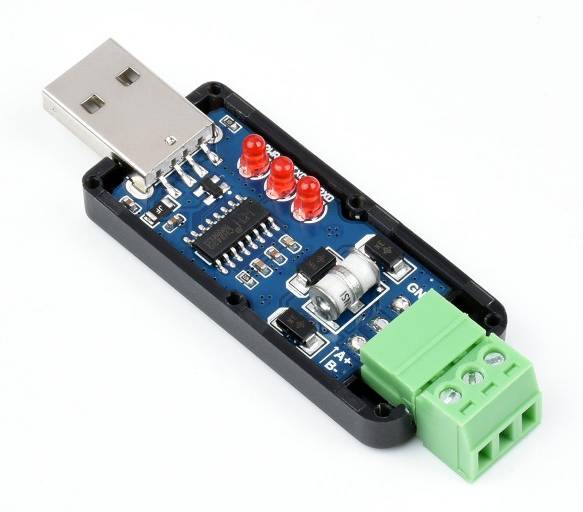

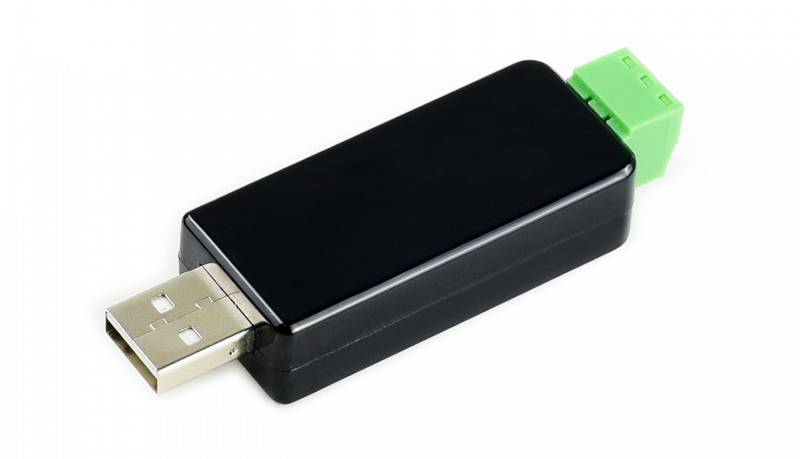

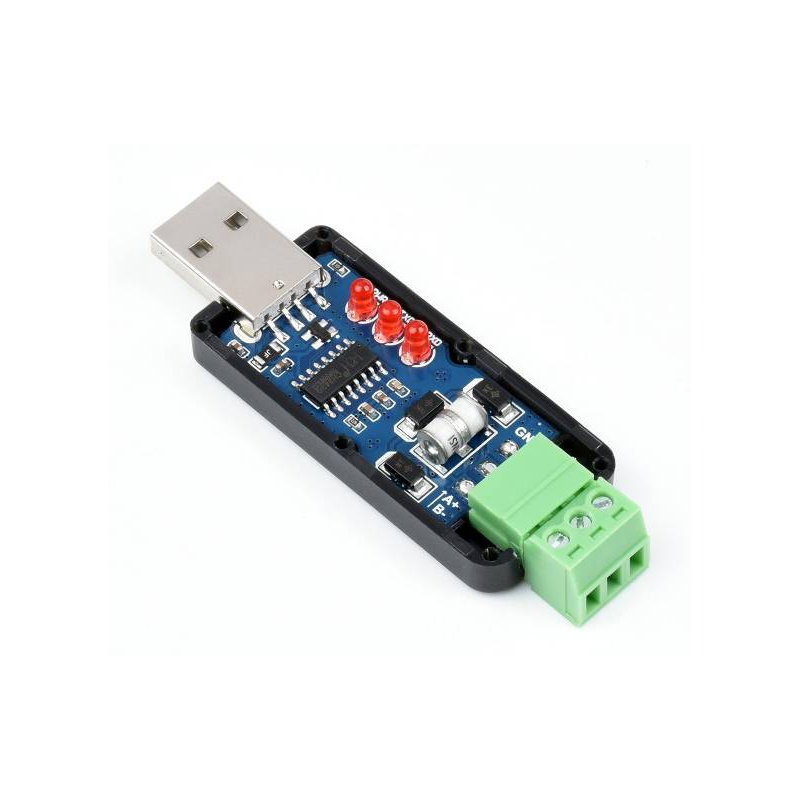

The Waveshare USB to RS485 (B) converter is a compact converter designed for connecting RS485 devices to a computer via USB . Original CH343G and SP485EEN chips ensure fast and stable signal conversion, while hardware transmission direction control eliminates the need to manually switch transmit and receive modes. The RS485 interface is connected to a detachable screw-type connector with A+, B-, and GND lines. Three LEDs indicate power and transmitter and receiver activity. A built-in 120Ω terminating resistor, polymer fuse, and extensive protection circuitry enhance the device's reliability in environments exposed to interference, electrostatic discharge, and surges.

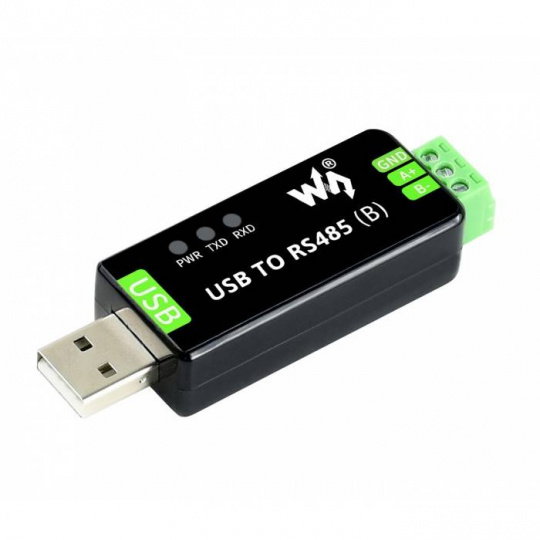

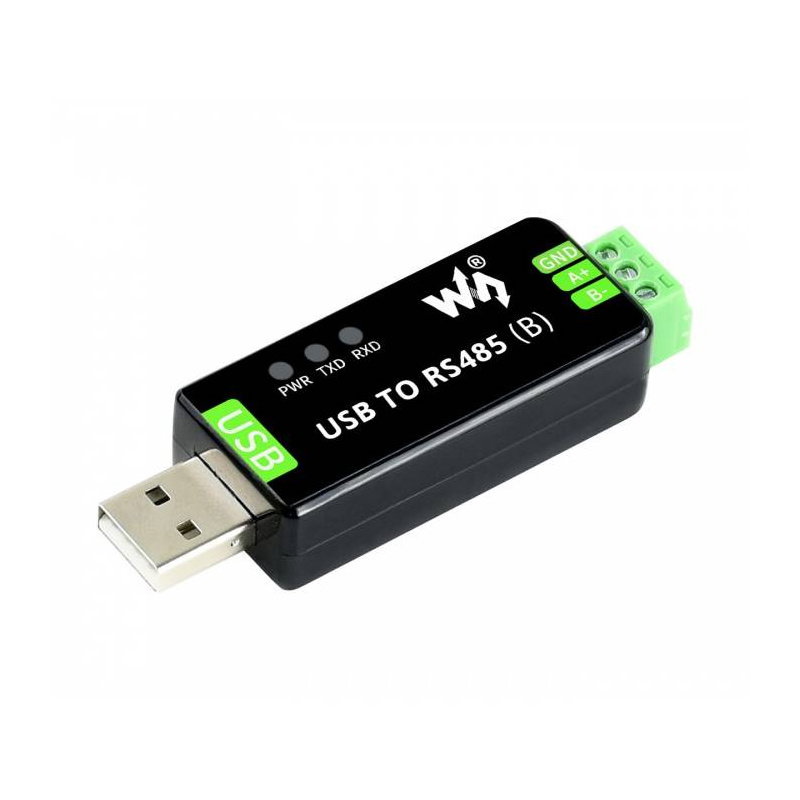

Industrial USB - RS485 converter (B) - Waveshare 22456.
Supports USB to RS485 bidirectional conversion .
Main features of the converter
- Bidirectional USB - RS485 conversion : enables data exchange between a computer and devices using the RS485 bus
- CH343G Chip : Provides high-speed USB-to-serial conversion and wide compatibility with operating systems
- SP485EEN transceiver : responsible for stable differential transmission in the RS485 standard
- Transmission speed up to 3 Mb/s : allows you to adjust communication parameters to automation devices, controllers and measuring equipment
- RS485 range up to approximately 1.2 km : allows the construction of extensive installations using appropriate cable and lower transmission speeds
- Automatic direction control : no manual operation of the transmit and receive lines required
- Support for up to 32 devices : allows you to create point-to-multipoint buses, but for more than 16 devices the manufacturer recommends using amplifiers
- TVS and ESD protection : limits the impact of overvoltages, transient pulses and electrostatic discharges
- 600W surge protection : increases the RS485 interface's immunity to surges and interference
- 200 mA self-resetting fuse : protects the USB circuit against overload effects
- 120Ω termination resistor : improves bus matching and reduces signal reflections
- Three LEDs : PWR, TXD and RXD indicators make it easy to monitor power and data flow

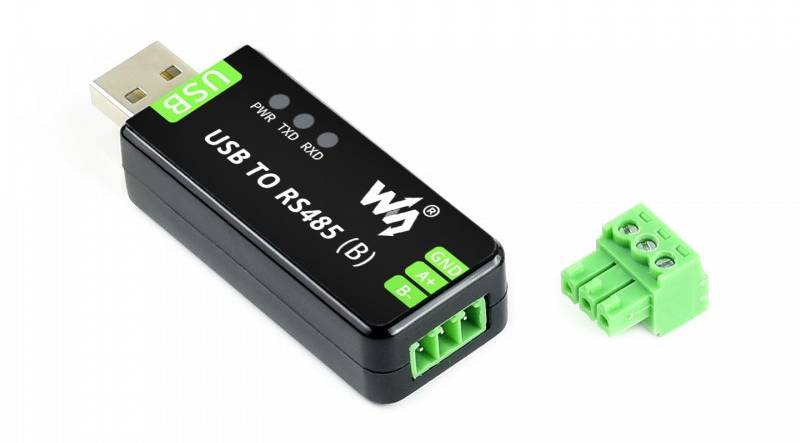

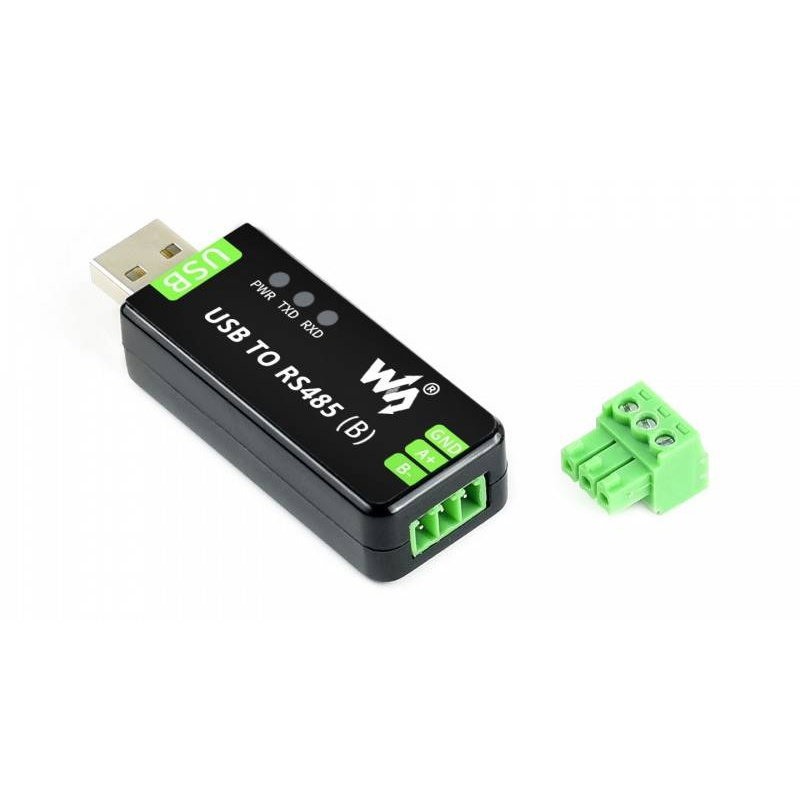

- Detachable screw connector : allows you to conveniently connect the A+, B- and GND lines
- Wide system compatibility : supports Windows, Linux, macOS, Android and WinCE

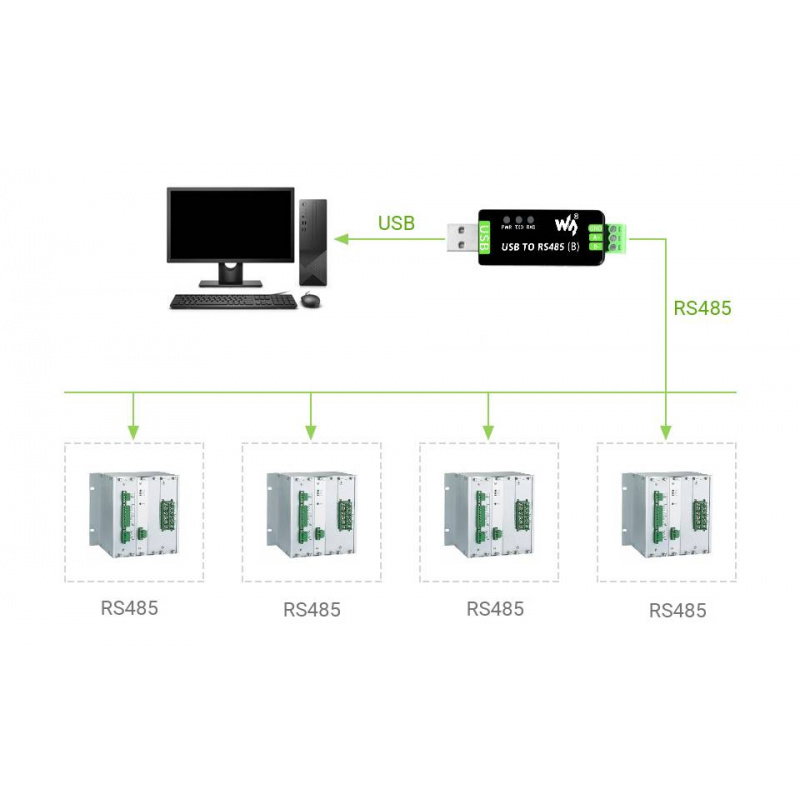

RS485 transmission up to 1.2 km

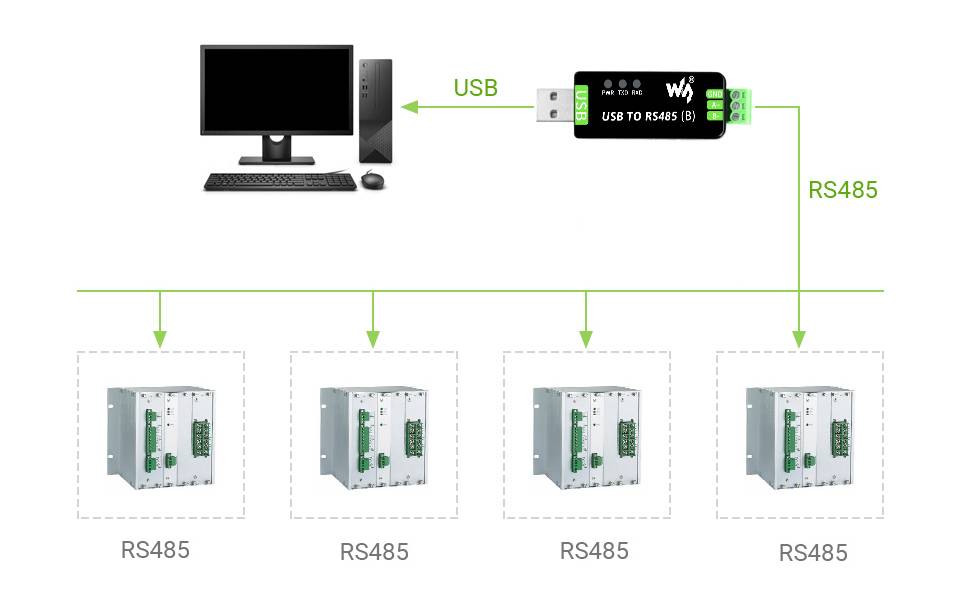

The converter converts the USB signal to a differential RS485 signal , which is highly resistant to electromagnetic interference. This makes it suitable for use in production halls, buildings, laboratories and extensive automation installations. The maximum declared RS485 connection length is approximately 1.2 km at a lower transmission speed , while the USB connection length can be approximately 5 m . The device supports point-to-multipoint transmission with up to 32 nodes . The actual range depends on factors such as transmission speed, cable quality and type, installation method, bus termination, and interference levels.
The transmission distance is about 1.2 km for RS485 and about 5 m for USB.
Supports Mac, Linux, Android, WinCE, Win11/10/8.1/8/7/XP etc.
Compatibility of the RS485 adapter with operating systems
The converter can be used with computers running Windows 11, Windows 10, Windows 8.1, Windows 8, and Windows 7 , as well as Linux, macOS, Android, and WinCE . In Linux, including Raspberry Pi, the converter can be operated using a standard driver, and the device appears as a serial port. CDC and VCP drivers are available for Windows, while macOS may require the installation of a manufacturer-provided driver. Broad compatibility allows the converter to be used in industrial computers, single-board computers, service terminals, and mobile devices .
Technical specifications of the converter
- Transmission direction: bidirectional
- USB interface chip: CH343G
- RS485 interface chip: SP485EEN
- Host interface: USB
- USB connector: USB type A
- Supply voltage: 5 V
- Device interface: RS485
- RS485 connector: removable screw connector
- RS485 pins: A+, B-, GND
- Transmission speed: from 300 bps to 3 Mbps
- Transmission direction control: automatic, hardware
- Maximum USB connection length: approximately 5 m
- Maximum RS485 connection length: approximately 1.2 km at lower speeds
- Transmission mode: point-to-multipoint
- Maximum number of nodes: 32
- Recommendations for the bus: use of amplifiers for 16 or more devices
- Terminating resistor: 120 Ω
- USB Protection: 200 mA self-resetting fuse and ESD protection
- RS485 Protection: 600W surge protection and 15kV ESD protection
- Additional protection: TVS, protection diodes and surge suppressor
- Indicators: PWR, TXD, RXD
- Operating temperature: -15°C to 70°C
- Operating humidity: 5% RH to 95% RH
- Supported systems: Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Linux, macOS, Android and WinCE

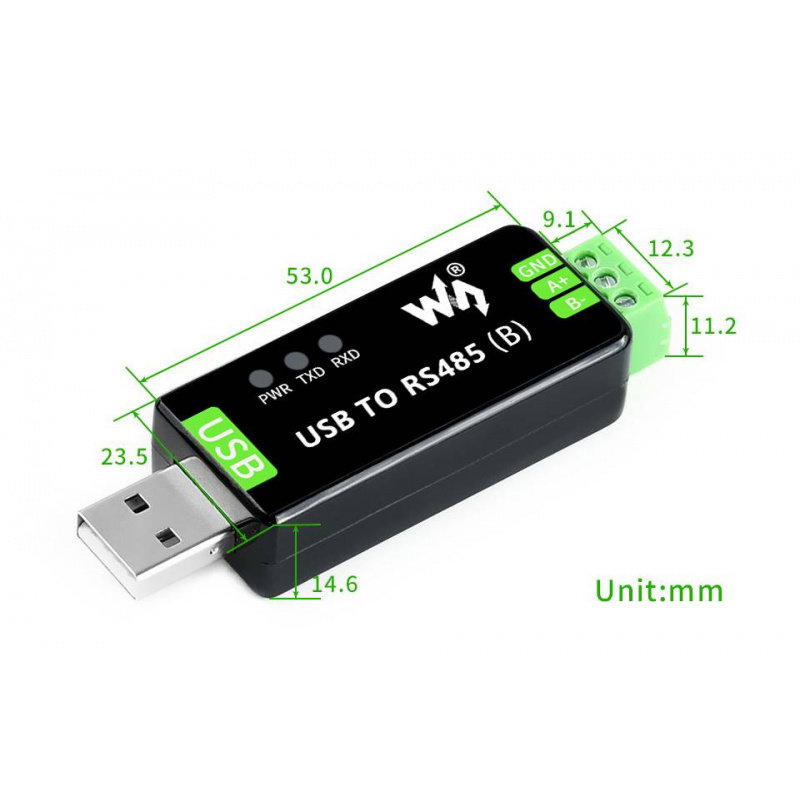

- Dimensions: 53 x 23.5 x 14.6 mm
- Weight: 85 g
Contents of the set
- USB to RS485 Converter (B) - Waveshare 22456
- USB Type-A extension cable, approximately 1.2 m long
- Screwdriver

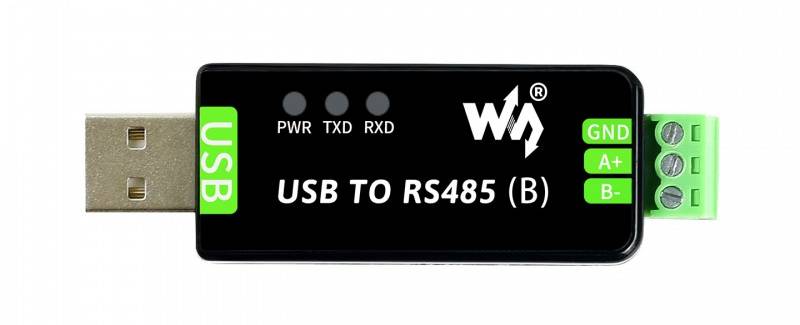

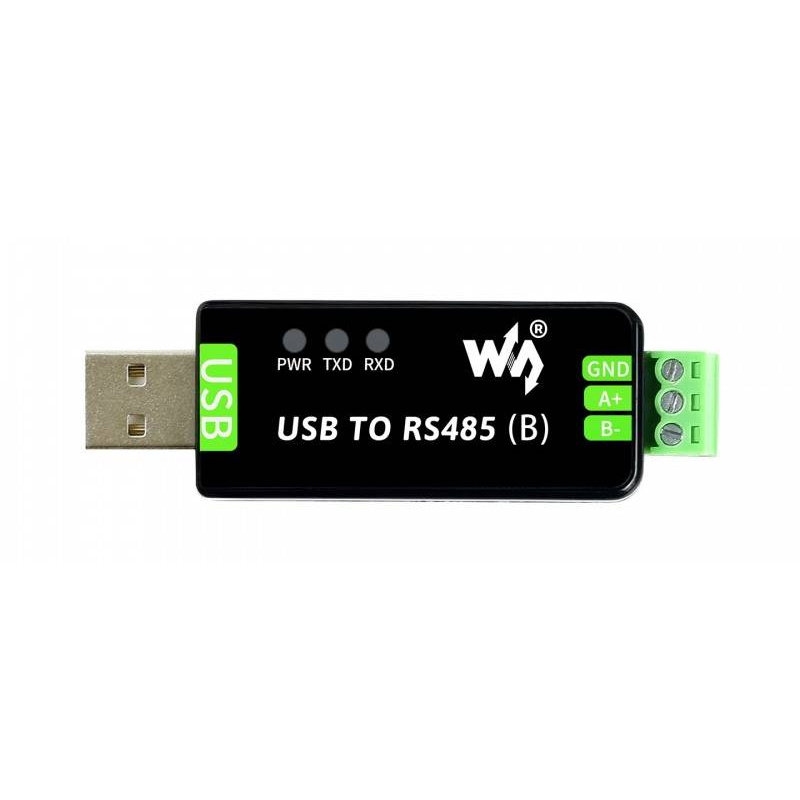

LEDs indicate operating and power status.
