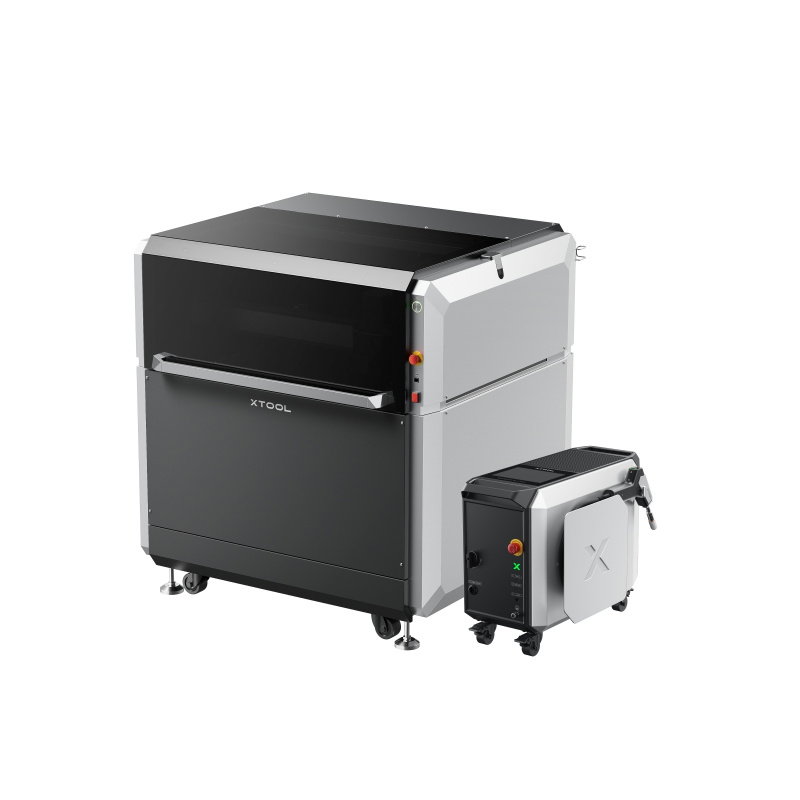

xTool MetalFab - laser welder and CNC cutter - 800W
The xTool MetalFab 800 W is a professional metalworking system that combines a fiber laser welder and a CNC cutter with a 610 x 610 mm workspace in a single system. The device enables welding, manual laser cutting, surface cleaning, and precise CNC cutting with an accuracy of ±0.1 mm . With pre-built material profiles, intuitive software, and intelligent cameras, the system is ideal for workshops, manufacturing companies, and users just starting out with laser technology.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: xTool MetalFab - laser welding and CNC cutting machine - 800 W

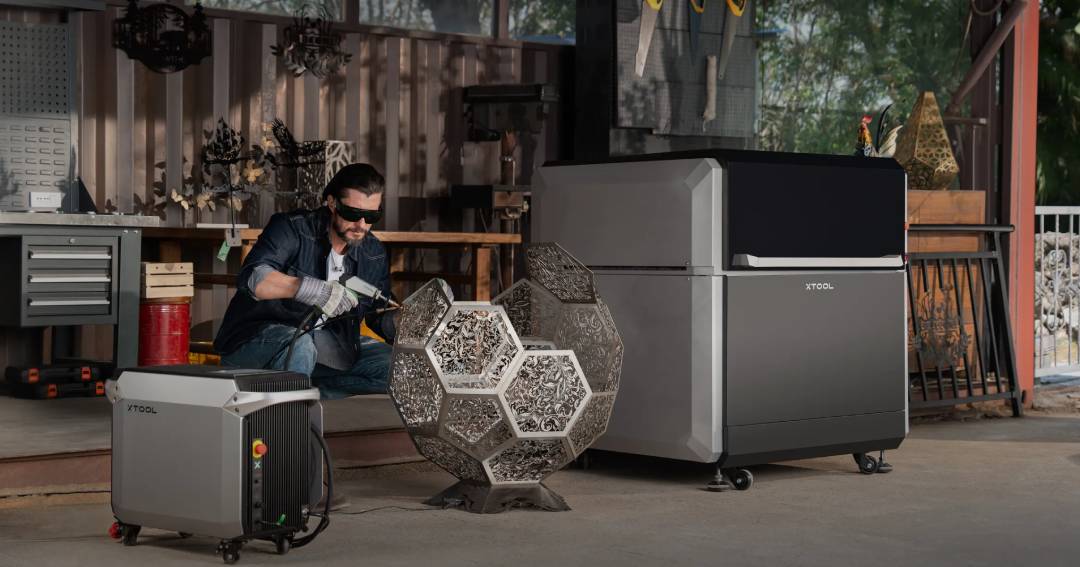

The xTool MetalFab 800 W is a complete solution for modern metalworking. The system consists of a compact 800 W laser welder and a CNC cutter with a 610 x 610 mm work area. The device allows for welding, manual cutting, automated CNC cutting, rust removal, surface cleaning, and engraving of selected metals within a single work environment. The fiber laser with a wavelength of 1080 ±10 nm ensures high energy concentration, a small heat-affected zone, and aesthetically pleasing welds and cut edges. With a database of over 108 preset material settings, automatic wire feeding, and an intelligent camera system, you can start working with virtually no time-consuming parameter selection. MetalFab was designed for metalworking shops, prototyping shops, steel structure manufacturers, art studios, and companies producing short and medium-sized production runs.

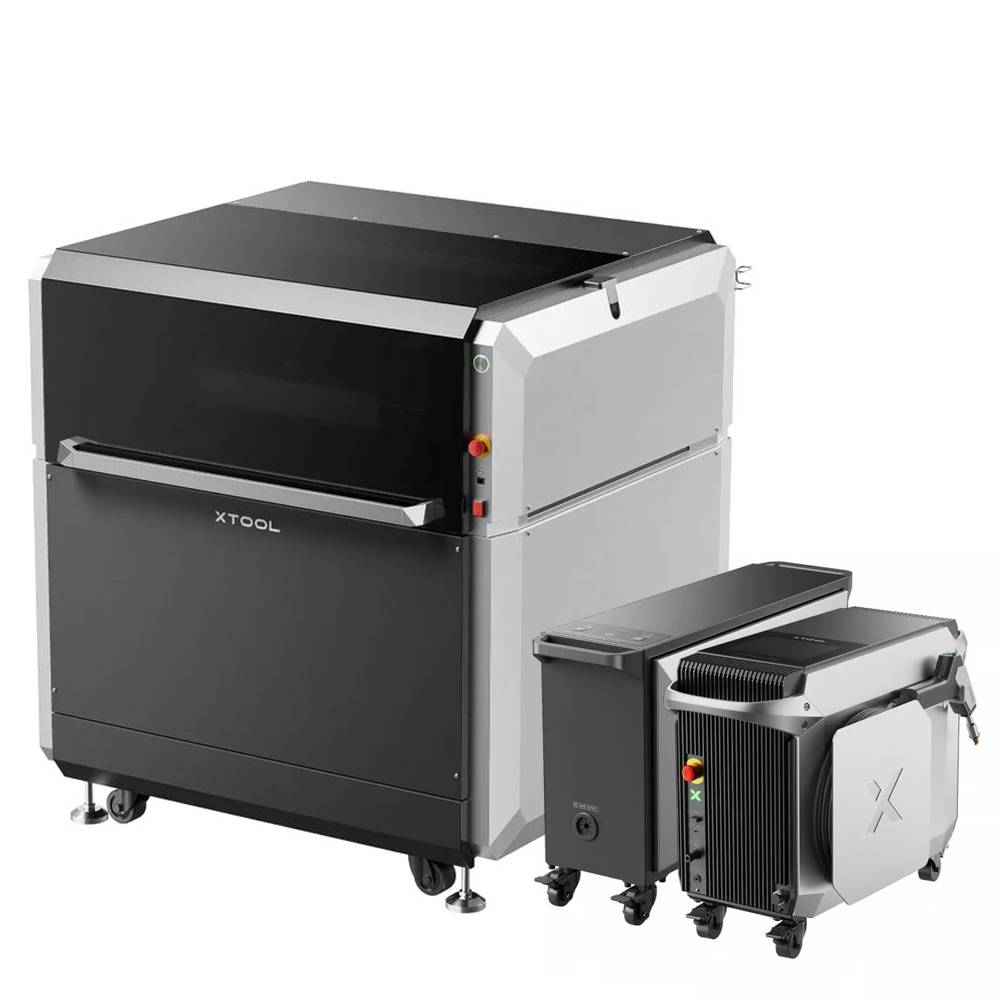

xTool MetalFab - laser welder and CNC cutter - 800 W.
MetalFab uses a laser beam with a power of 800 W and a wavelength of 1080 nm, which allows for precise cutting and welding.
How does xTool MetalFab work?
xTool MetalFab utilizes fiber laser technology, which generates a beam of light within a fiber laser and then directs it to the work head. This focused, high-energy beam rapidly melts the material, enabling welds or precise cuts with a minimal heat-affected zone . This minimizes deformation of the processed components and allows for a neat finish without the need for extensive post-processing. The welding machine and cutting machine work together as a single ecosystem . Depending on the task at hand, you can switch between welding, manual cutting, cleaning, and automatic CNC operation modes . Process parameters are selected via the software, which provides ready-made material profiles and allows for quick project preparation.

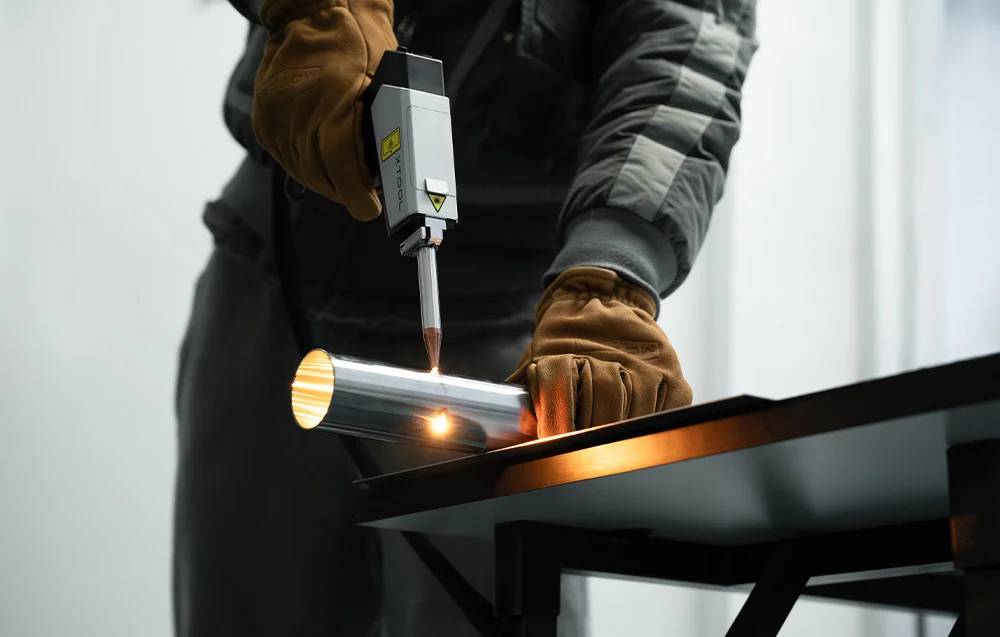

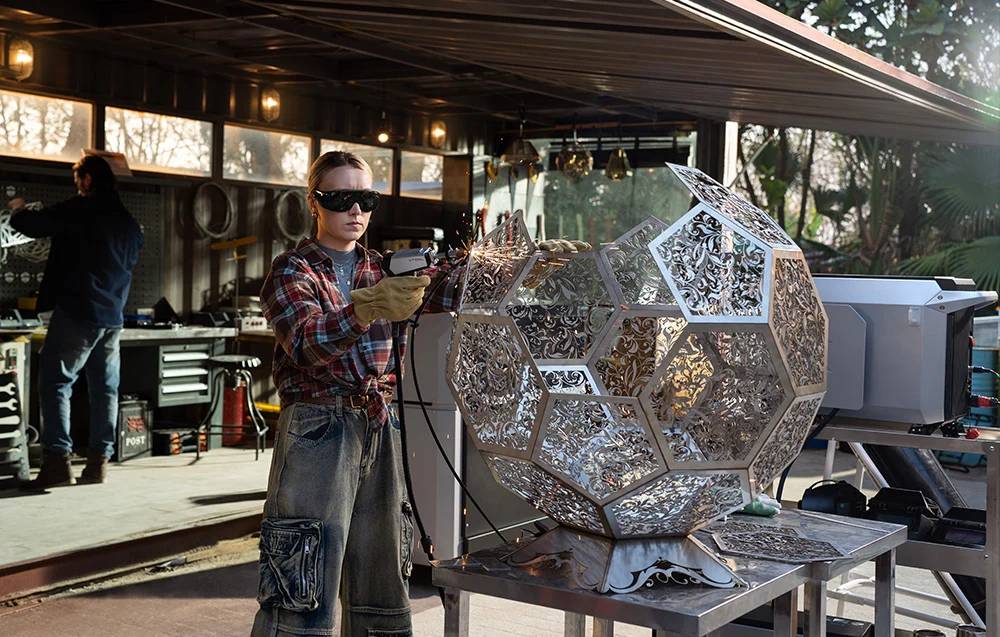

800 W laser welder - precise metal welding
The xTool MetalFab laser welder is equipped with an 800W fiber laser , enabling high-quality welds with minimal spatter and limited material deformation. The device supports continuous, spot, and pulse welding , making it suitable for both thin components and more demanding steel structures. The 800W model can weld metals from 0.2mm to 4mm thick, including stainless steel, carbon steel, and galvanized sheets . up to 3 mm for aluminum and brass. The integrated wire feeder simplifies operation, increases work comfort, and ensures even feeding of filler material during welds. The laser can also be used for manual metal cutting and cleaning surfaces of rust, paint, and welding residue , allowing one device to replace several traditional workshop tools.
Fiber laser technology minimizes heat-affected zones to ≤ 0.05 mm.
The camera provides precise positioning with a deviation of less than 0.2 mm.
CNC cutting machine - automatic and repeatable cutting
The xTool MetalFab CNC cutting machine complements the laser welder, enabling automatic cutting of sheet metal with high accuracy and repeatability . A 610 x 610 mm work area and a pass-through table function enable the processing of longer workpieces without the need to split them. Combined with an 800 W welder, the system performs burr-free cuts on carbon steel and galvanized sheets up to 8 mm thick , stainless steel up to 4 mm thick, and aluminum and brass up to 2 mm thick. A positioning accuracy of ±0.1 mm and a maximum operating speed of 400 mm/s enable the production of both structural elements and precise decorative details. Thanks to a stable guide system, intelligent motion control, and optimized operating algorithms, the device ensures high edge quality and repeatable results, even during mass production.

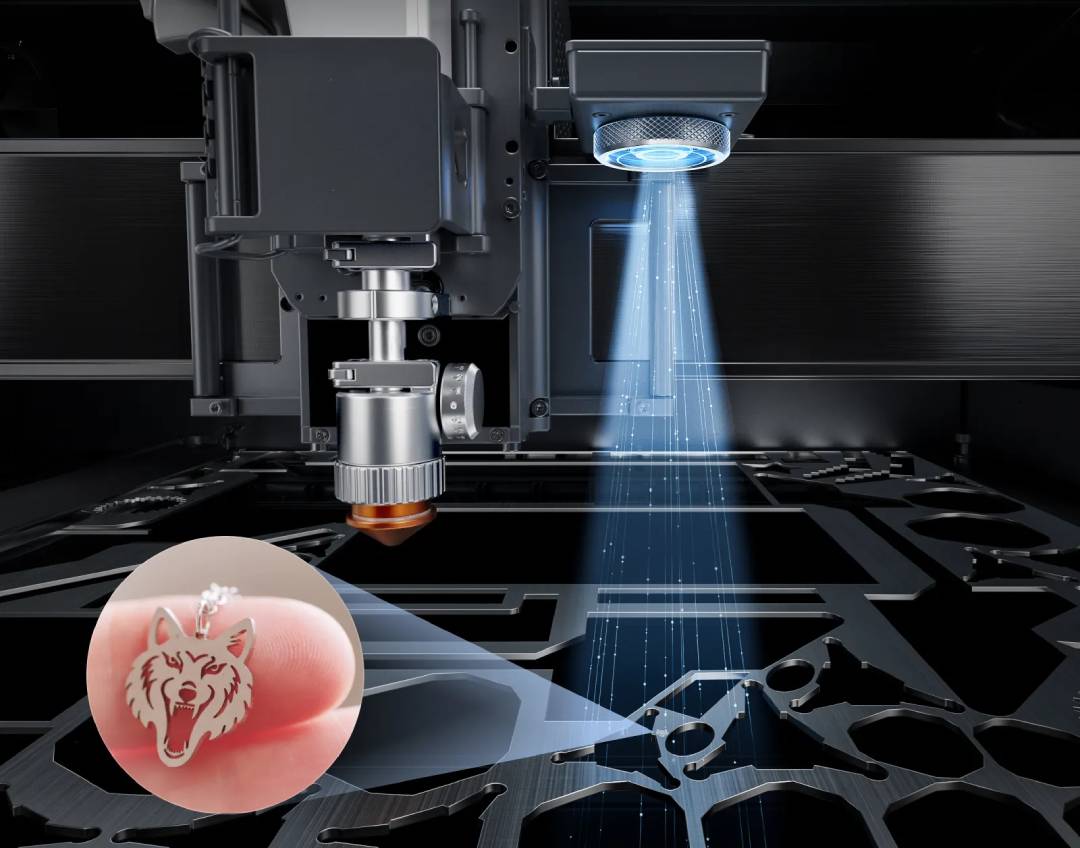

Dual cameras and intelligent footage management
One of the greatest advantages of the xTool MetalFab system is the use of two cameras working with intelligent control software . A 16 MPx panoramic camera analyzes the entire work area, automatically detects material positioning, and arranges designs to maximize sheet utilization. This reduces waste and achieves material utilization rates of up to 98.7%. The second element of the system is a close-range camera responsible for precise part positioning . This allows for precise positioning of the starting point with a deviation of less than 0.2 mm , which is particularly important when manufacturing small parts, mass production, and re-machining previously prepared parts. The system also utilizes intelligent cutting path planning algorithms that automatically optimize the sequence of operations . This shortens workflow time, reduces consumable consumption, and improves the efficiency of the entire production process. Additionally, VibeFreeCut, FlexiTrack, and ObstacleFree technologies stabilize the head movement, reduce vibration, and increase the accuracy of the parts being machined.
Intelligent arrangement of elements allows for maximum use of material.
xTool Creative Space (XCS) software ensures simple and convenient operation.
xTool MetalFab Software
xTool MetalFab is equipped with intuitive software designed for both beginners and professional workshops. A clear interface guides the operator through each step of the process, enabling quick project preparation without the need to manually select process parameters. The system has a database of over 108 ready-made material profiles , covering the most popular grades of steel, aluminum, brass, and other metals. Simply select the appropriate material, and the device automatically selects the laser parameters, operating speed, and other process settings . This significantly reduces the number of process trials and material consumption. The software also offers automatic cutting path planning, intelligent element placement on the sheet, project management, and control of both the welding machine and the CNC cutting machine from a single work environment. This makes the entire process—from design preparation to production—quick and easy.
Work safety
Working with a fiber laser requires the use of effective operator protection systems. The xTool MetalFab meets Class 4 laser requirements and holds the appropriate safety certificates , allowing it to be used in professional applications in accordance with applicable standards. The device is equipped with an extensive safety system, including laser monitoring, temperature control, intelligent cooling management, and safeguards against incorrect operation . Stable air cooling and an advanced temperature control system ensure high performance even during prolonged operation. The kit includes safety glasses designed for work with a 1080 nm laser, heat-resistant gloves, and safety instructions. Additionally, the CNC cutting machine is equipped with an efficient smoke and process gas extraction system , which improves work comfort and helps maintain a clean workspace.
xTool MetalFab ensures stable performance even at temperatures ranging from -10°C to 40°C.

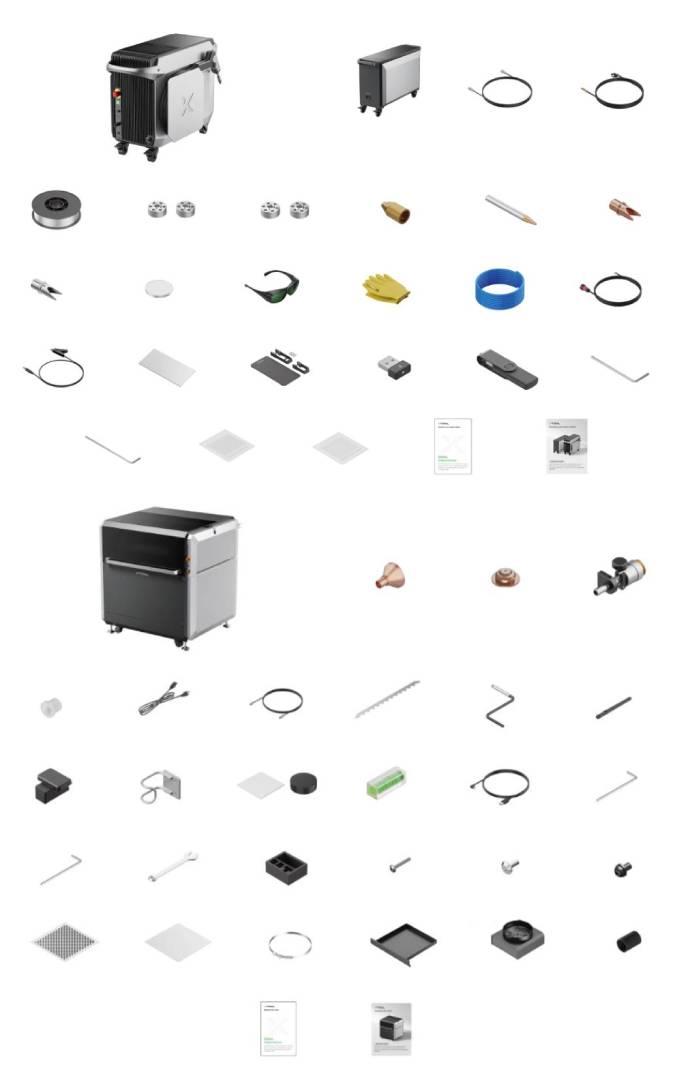

Elements included in the set.
Kit contents
- xTool MetalFab 800 W Laser Welder
- Wire feeder
- xTool MetalFab CNC cutting machine
- Accessories - detailed content in the user guide of the welding machine and CNC cutting machine
Technical specifications of the xTool MetalFab 800 W laser welder
| Model | MHJ-K006-240 |
|---|---|
| Laser power | 800 W |
| Laser type | fiber optic laser |
| Welding modes | continuous (CW), modulated (MW) |
| Laser wavelength | 1080 ± 10 nm |
| Supported material thicknesses | from 0.2 mm to 4 mm (steel, titanium), up to 3 mm (aluminum, brass) |
| Cleaning width | up to 45 mm (with optional MaxClean accessory), up to 10 mm after welding |
| Supported materials | stainless steel, carbon steel, aluminum, brass, titanium, galvanized steel, magnesium, nickel and zinc alloys |
| Photoelectric conversion efficiency | 36% |
| Recommended gases | nitrogen, argon, oxygen - 99.99% |
| Head cable length | 3.5 m |
| Minimum bending radius of the cable | ≥ 150 mm |
| Supply voltage | from 200 V to 240 V AC, 50 / 60 Hz |
| Maximum current consumption | 15 A |
| Rated power | 3000 W |
| Cooling | air cooling |
| Safety certification | class 4 (Class 4 Laser Safety) |
| Operating temperature | from -10°C to 40°C |
| Storage temperature | from -10°C to 60°C |
| Ambient humidity | from 10% to 85% |
| Dimensions | 632 x 304 x 472 mm |
| Mass | 35 kg |
| Wire feeder technical specifications | |
| Wire feed speed | from 2 mm/s to 100 mm/s |
| Supported wire diameters | 0.8mm, 1mm, 1.2mm, 1.6mm |
| Max spool weight | 15 kg |
| Max. outer diameter of the spool | 300 mm |
| Max. spool thickness | 105 mm |
| Wire feed tube length | 3 m |
| Operating voltage | 24V DC |
| Dimensions | 232 x 664 x 417 mm |
| Mass | 13.2 kg |
| Technical specifications of the xTool MetalFab CNC cutting machine | |
| Work area | 610 x 610 mm |
| Max cutting thickness | up to 10 mm |
| Movement accuracy | ±0.1 mm |
| Max operating speed | 400 mm/s |
| Z axis range | 90 mm |
| Dimensions | 1175 x 1157 x 1230 mm |
| Mass | 150 kg |
Useful links
| Name | Value |
|---|---|
| Rodzaj pracy urządzenia | Cutting (high power) |
| Moc lasera | 800 W |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Advanced |
| CNC - Typ lasera | Fiber optic |
| CNC - długość pola roboczego | 610 mm |
| CNC - szerokość pola roboczego | 610 mm |
| CNC - wielkość pola roboczego | Big |
| Weight | 295.3 kg |
