Main control board for Snapmaker U1 3D printer
Original Snapmaker main control board for the U1 3D printer that controls all motion components of the printer and its temperature regulation.
- Manufacturer part number 10004
- 4 mounting screws included
- Replacement in about 20 minutes with an H2.0 key
We could not load the price.
The promotional price does not combine with quantity discounts.
U1 main board: motion and heating control
The Main Control Board is the original mainboard of the Snapmaker U1 3D printer. It controls all motion components of the printer and handles the temperature regulation of the printer. The board has a heatsink and comes with four mounting screws.
The board sits on the right inner panel of the printer. The replacement takes about 20 minutes and needs only an H2.0 hex key, and the manufacturer rates it as moderately difficult.

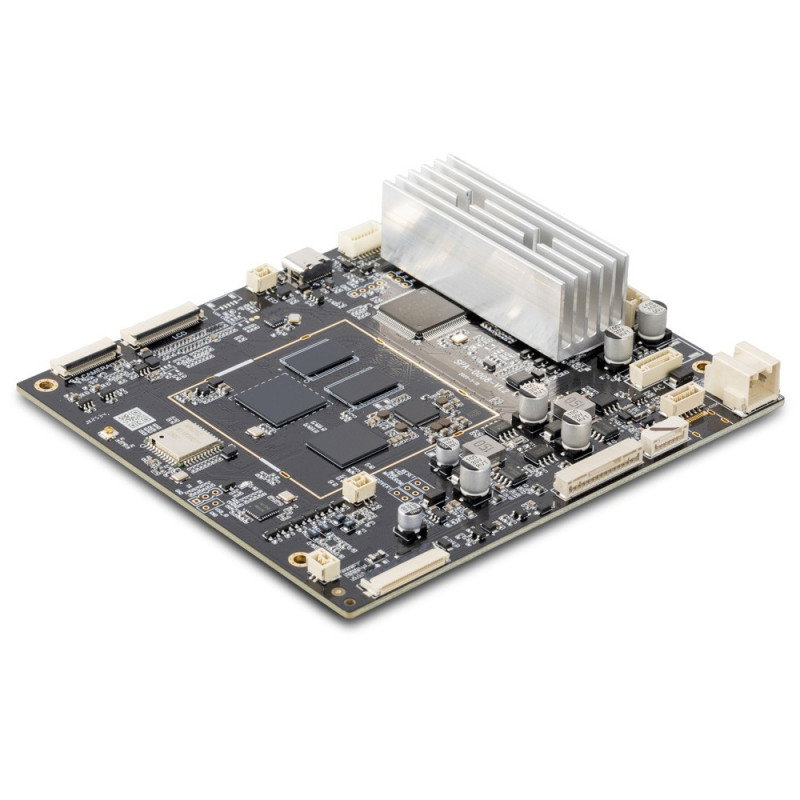

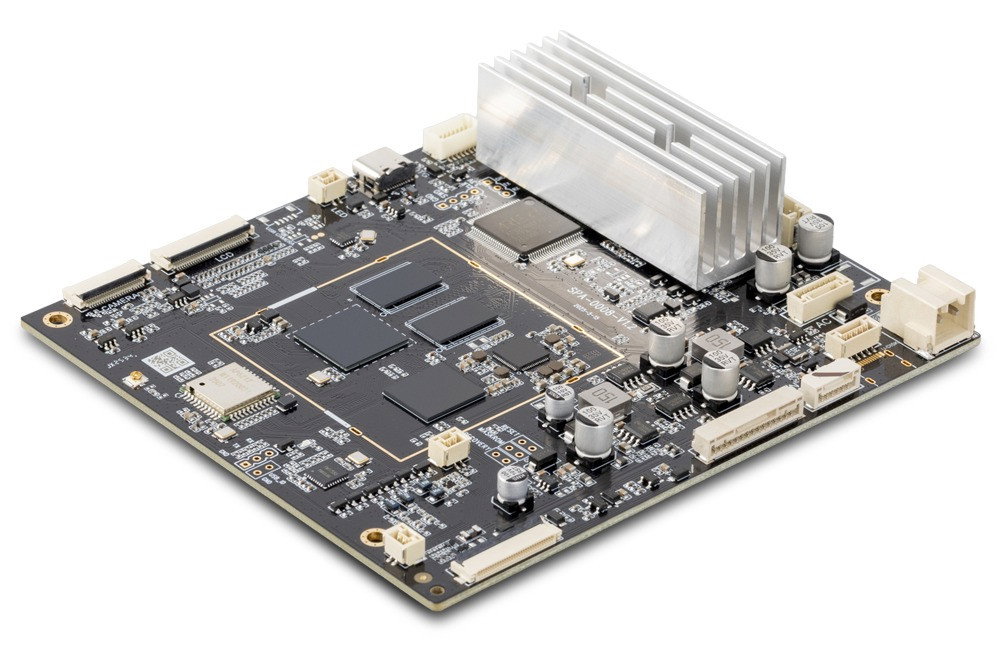

Snapmaker U1 main control board with heatsink
10004
manufacturer part number
about 20 min
replacement time according to the manufacturer
105 g
board weight, 4 screws included
Botland is the only official distributor of Snapmaker 3D printers and accessories in Poland. Buying from us guarantees original equipment and fast technical support. We also run a professional service for these devices and offer original spare parts.
Is it a good choice for you?
A good choice if:
- you want an original spare board for a printer that works in a company or a workshop
- you are replacing the main board as recommended by Snapmaker support
Consider another option if:
- you need the board of the toolhead itself: choose Toolhead PCB for Snapmaker U1 3D printer
Frequently asked questions
Where is the main board in the printer?
The main board is mounted on the right inner panel of the Snapmaker U1. To reach it, you remove the top cover and the right panel of the printer, as described in the manufacturer's replacement guide.
Do I need to configure anything after replacing the board?
Yes. The manufacturer recommends saving the extruder_config.json and homing_calibrated_origin.json files before the replacement and uploading them again via Fluidd afterwards. This keeps the toolhead swapping coordinates from the previous board.
Technical specifications
| Parameter | Value |
|---|---|
| Type | main control board of a 3D printer |
| Compatibility | Snapmaker U1 |
| Manufacturer part number | 10004 |
| Material | metal, plastic |
| In the box | main board, 4 screws |
| Tools for replacement | H1.5 and H2.0 hex keys |
| Manufacturer | Snapmaker |
| Weight | 105 g |
Useful links
| Name | Value |
|---|---|
| Snapmaker - model | U1 |
| Width | 20 cm |
| Height | 15 cm |
| Depth | 8 cm |
| Weight | 0.226 kg |
