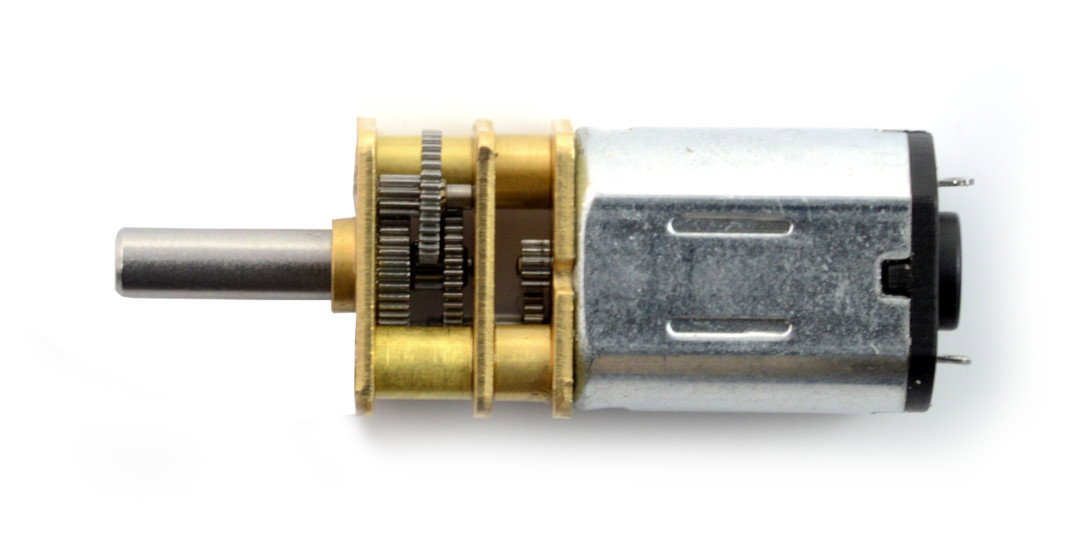

Micro motor N20-BT11 5:1 3000RPM - 9V

Index: DNG-12550 EAN: 5904422341183

The N20 series miniature motor with 5:1 gearing, has 3000 RPM, torque is 0.1 kg*cm (0.01 Nm). The supply voltage is from 3V to 9V.

Micro motor N20-BT11 5:1 3000RPM - 9V
€5.50
€4.47 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: N20 Motors

Product description: N20-BT11 micro 5:1 3000 RPM motor - 9V

Small, lightweight yet powerful motors from the N20 series, compatible with Pololu's motors, are used by robot builders as drive units. The units can be powered by up to 9 V (depending on the model), and gain their useful power above 3 V. The optimum voltage, at which the ratio of power to strength is most favourable, is 6 V.

Silnik N20

Dimensions of the motor

The motor body is a cuboid measuring 24 x 10 x 12 mm. The gearbox is 9.27 mm long. There is a 3 mm D-shaped shaft at the output. Total mass is about 10 g.

The drawing shows the dimensions of the micro motor with gearbox.

Technical specification N20-BT11 micro 5:1 3000RPM

Supply voltage:

3 V - 9 V

No-load current (9 V):

75 mA

No-load speed (9 V):

3000 rpm

Torque (9 V):

0.1 kg*cm (0.01 Nm)

Gear ratio:

5:1

Shaft diameter:

3 mm

Body dimensions:

24 x 10 x 12 mm

Weight:

10 g

Double-sided shaft:

NO

Accessories compatible with the N20 series

N20 motors are compatible with Pololu motor accessories.

  • Mounts: Special mounts in white or black have been designed for mounting the motors. An extended version and one made of high-strength aluminium are also available.

Silnik N20


Silnik N20

Silnik N20

Attention!

N20 motors are not compatible with Pololu micro motor encoders.

Diameter 12 mm
Length 24 mm
Voltage to 3.0 V
Voltage from 9.0 V
Motor - current 100 mA
Motor - gear 5:1
Rotation speed 3000 obr/min
Torque 0.1 kg*cm
Mass 10 g
Motor - shaft 3 mm
Package width 4.8 cm
Package height 1.1 cm
Package depth 2.5 cm
Package weight 0.01 kg
