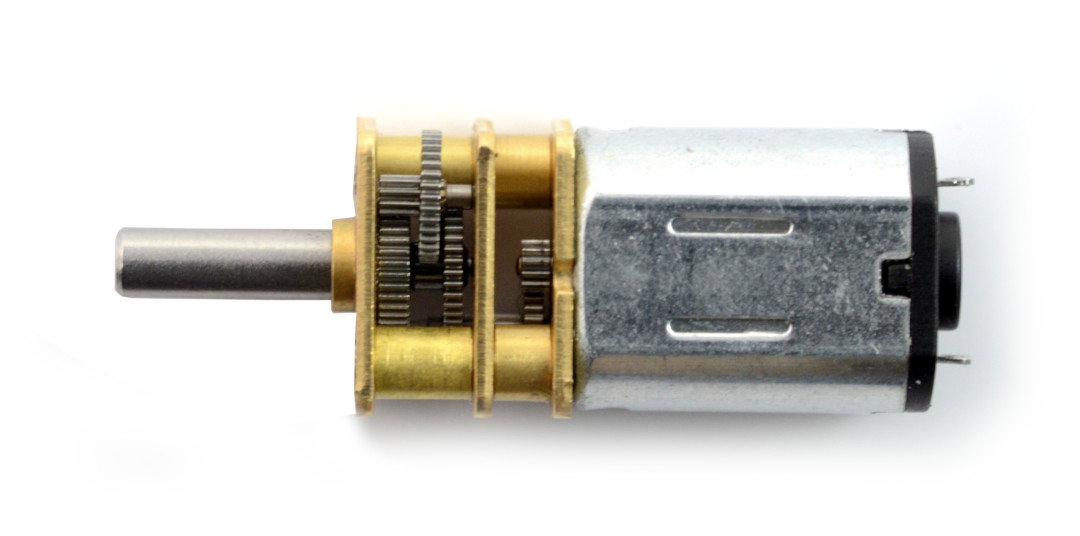

Micro motor N20-BT32 100:1 320RPM - 9V
The N20 series miniature motor with 100:1 gearing, has 320 RPM and the torque is 2.2 kg*cm (0.216 Nm). The supply voltage ranges from 3 V to 9 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: N20-BT32 micro 100:1 320 RPM motor - 9V
Small, lightweight yet powerful motors from the N20 series, compatible with Pololu's motors, are used by robot builders as drive units. The units can be powered by up to 9 V (depending on the model), and gain their useful power above 3 V. The optimum voltage, at which the ratio of power to strength is most favourable, is 6 V.
The drawing shows the dimensions of the micro motor with gearbox.
Dimensions of the motor
The motor body is a cuboid measuring 24 x 10 x 12 mm. The gearbox is 9.27 mm long. There is a 3 mm D-shaped shaft at the output. Total mass is about 10 g.
Technical specification of the N20 motor
| Specification | Value |
|---|---|
| Supply voltage: | 3 V - 9 V |
| No-load current (9 V): | 50 mA |
| No-load speed (9 V): | 320 rpm |
| Torque (9 V): | 2.2 kg*cm (0.216 Nm) |
| Gear ratio: | 100:1 |
| Shaft diameter: | 3 mm |
| Body dimensions: | 24 x 10 x 12 mm |
| Weight: | 10 g |
| Double-sided shaft: | NO |
Accessories compatible with the N20 series
N20 motors are compatible with Pololu motor accessories.
- Mounts: Special mounts in white or black have been designed for mounting the motors. An extended version and one made of high-strength aluminium are also available.
- Motor controllers: Direction and speed control is provided by DC motor controllers. We offer integrated circuits for individual soldering as well as ready to connect, cooperating with kits (e.g. Arduino) modules.
Attention! N20 motors are not compatible with Pololu micro motor encoders. |
| Name | Value |
|---|---|
| Diameter | 12 mm |
| Length | 24 mm |
| Voltage to | 3.0 V |
| Voltage from | 9.0 V |
| Motor - current | 70 mA |
| Motor - gear | 100:1 |
| Rotation speed | 320 obr/min |
| Torque | 2,2 kg*cm |
| Mass | 10 g |
| Motor - shaft | 3 mm |
| Width | 4.8 cm |
| Height | 1.1 cm |
| Depth | 2.5 cm |
| Weight | 0.01 kg |
