Product description: Color printing module for FLUX Ador
The Ador plotter printing module by Flux is an innovative solution that allows you to enrich your projects with vivid colors. It works with CMYK eco-solvent inks , offering printing modes: single color (300 DPI ), mixed colors and gradients ( 150 DPI ). The module prints on flat surfaces up to 30 mm thick, such as wood , canvas, paper and fabrics . Thanks to the color mixing technology, you can achieve a multi-color effect, improving the aesthetics of the products you create. Additionally, the system allows for easy replacement of inks , which makes working with various projects intuitive and effective.

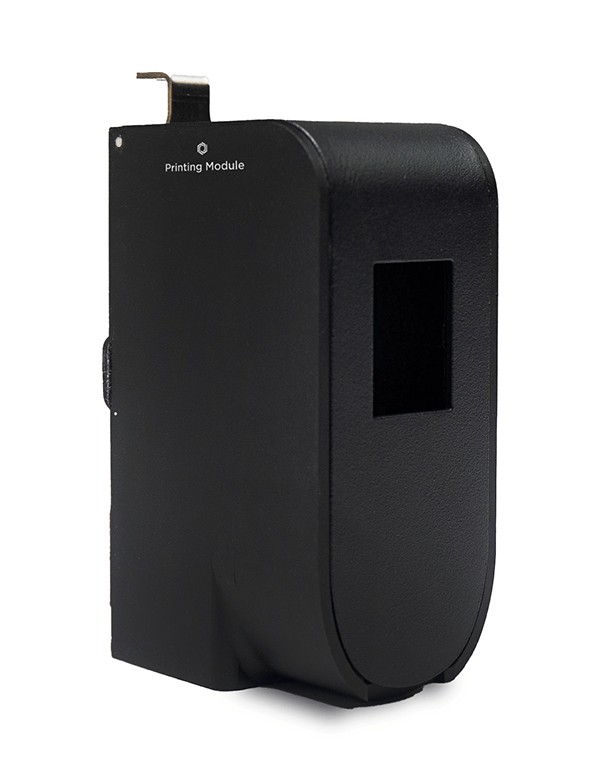

Colour printing module for FLUX Ador.
Enables precise printing on materials up to 30 mm thick.
Main features of the printing module
- Ink Compatibility : Supports CMYK eco-solvent inks (cyan, magenta, yellow, black) for vibrant color prints
- Print modes : offers a single color mode at 300 DPI and mixed color and gradient modes at 150 DPI
- Maximum material thickness : Designed for flat surfaces up to 30mm thick, allowing for a wide range of applications
- Supported materials : prints on wood, paper, canvas and fabrics, providing great versatility in use
- Easy to replace cartridges : quick replacement of inks allows for convenient creation of designs in different colors
- Color mixing technology : allows you to create multi-color effects, enriching your designs with smooth tonal transitions
Compatibility with Ador plotter and inks
The printing module works perfectly with the Ador plotter , increasing its versatility. Using CMYK eco-solvent inks, you can easily change colors, achieving vivid visual effects on a variety of surfaces such as wood, canvas or paper. For porous surfaces, it is recommended to use a primer to ensure proper ink adhesion. In the case of materials with a glossy structure, adhesion may be limited, which in some cases may lead to slight scratches or streaks. It is also worth remembering that fabric prints are not resistant to water washing , which makes them best suited for decorative applications.
The printing module allows you to print in three modes: single color, color mixing and gradient mode.
Technical specification of the module
- Purpose: module for Flux Ador laser plotters
- Compatible inks: CMYK eco-solvent (Cyan, Magenta, Yellow, Black)
- Supported materials: wood, paper, canvas, fabrics
- Material thickness: up to 30 mm
- Resolution:
- single color: 300 DPI
- mixed colors and gradients: 150 DPI
- Surfaces covered: flat, requiring primer on porous materials
- Dimensions: 120 x 80 x 50 mm (with packaging)
Kit Contents
- 1x Color Printing Module for FLUX Ador
